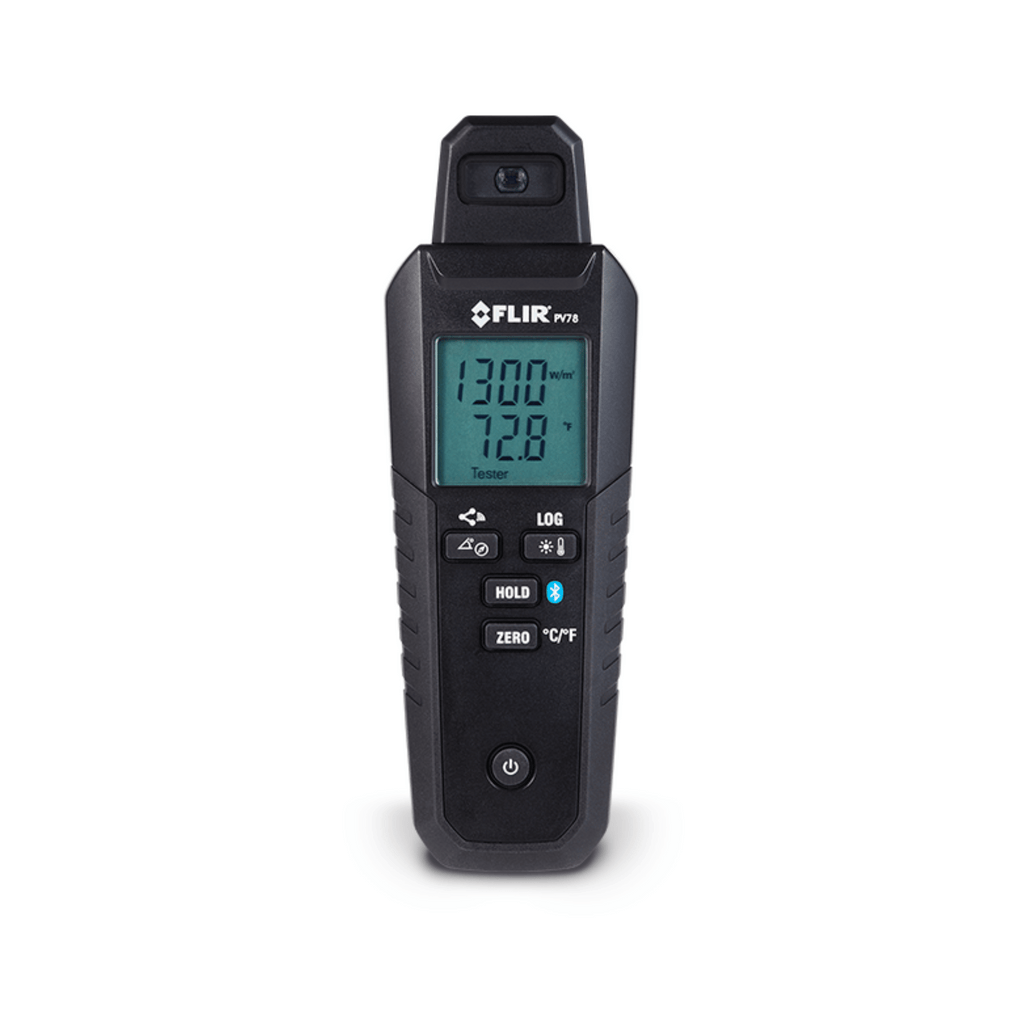

FLIR PV78

Solar Irradiance and Temperature Meter with Tilt Sensor

The FLIR PV78 is purpose-built for solar site surveys, panel installations, and ongoing maintenance of photovoltaic (PV) systems. It delivers instant irradiance measurements (W/m²) to meet IEC 62446-1 Electrical Safety standards for PV installations. Measure panel temperature by placing the meter directly on the surface or use an external probe for continuous monitoring.

Additional features include an integrated compass to determine panel orientation and a tilt sensor to confirm roof or panel inclination. With Bluetooth® FLIR METERLiNK® technology, the PV78 connects wirelessly to the METERLiNK app, making it easy to document, report, and share data directly from the field.

FLIR PV78 Key Features

FLIR PV78 Solar Irradiance and Temperature Meter

Optimized for solar installers

Instantly measure solar irradiance from 50 to 1400 W/m² as required by IEC 62446-1 standard.

A versatile tool designed to help you work faster & smarter

Measures solar irradiance, panel temperature, array direction, and inclination

The right tech to simplify your workflow

View readings, create reports and share findings with colleagues with the FLIR METERLiNK® mobile app.

FLIR METERLINK App

Get Inspection Information to the People you Need

FLIR METERLiNK® App

The FLIR METERLiNK® app lets you monitor multiple environmental and electrical conditions at the same time, with support for connecting up to seven compatible FLIR meters simultaneously. It enables safe, real-time monitoring of hazardous areas from a distance while capturing images with ease. Whether you're using FLIR clamp meters, digital multimeters, or any of the new METERLiNK-compatible devices, you can effortlessly track critical readings across your facility and quickly share data with your team.

FLIR PV-78 Specifications

Connectivity

Bluetooth BLE

Measurement & Analysis

Inclination Angle

Range: −90° to 90° / Accuracy: ±3°

Irradiance

Range: 50 to 1400 W/m² / Accuracy: ±5%

Measuring Rate

3 samples per second

Temperature

Meter: Range: −10°C to 50°C (14°F to 122°F) / Accuracy: ±1.5°C (±2.7°F)
External Probe: Range: −30°C to 100°C (−22°F to 212°F) / Accuracy: ±1.5°C (±2.7°F)

Communication & Data Storage

Bluetooth range max

10 m (32 ft)

Connectivity

Bluetooth BLE

Data Storage

Data Storage Interval: 1 minute

Memory

360 sets per file

Power

Auto Power Off

After approximately 30 minutes of inactivity

Battery

9 V Alkaline battery

Battery Life

Approx. 25 hours, with alkaline battery

General

Compass

Range: 0° to 360° / Accuracy: ±7°

Size (L x W x H)

240.5 mm × 67 mm × 38 mm (9.5 in × 2.6 in × 1.5 in)

Weight

300 g (0.66 lbs)

Environmental & Certifications

Certifications

CE, FCC, RCM

EMC

EN61326-1, EN300328

Operating Ambient Temperature and Relative Humidity (RH)

Meter: −10°C to 50°C (14°F to 122°F), <80% RH
Probe: −30°C to 100°C (−22°F to 212°F), <80% RH

Storage temperature and relative humidity [RH]

−20°C to 60°C (−4°F to 140°F), 0 to 80% RH (without batteries)

Warranty

Limited 3-Years Warranty
https://www.flir.com/testwarranty

Accessories

Accessories In the Box

External Temperature Probe
9 V Alkaline Battery
User Manual
