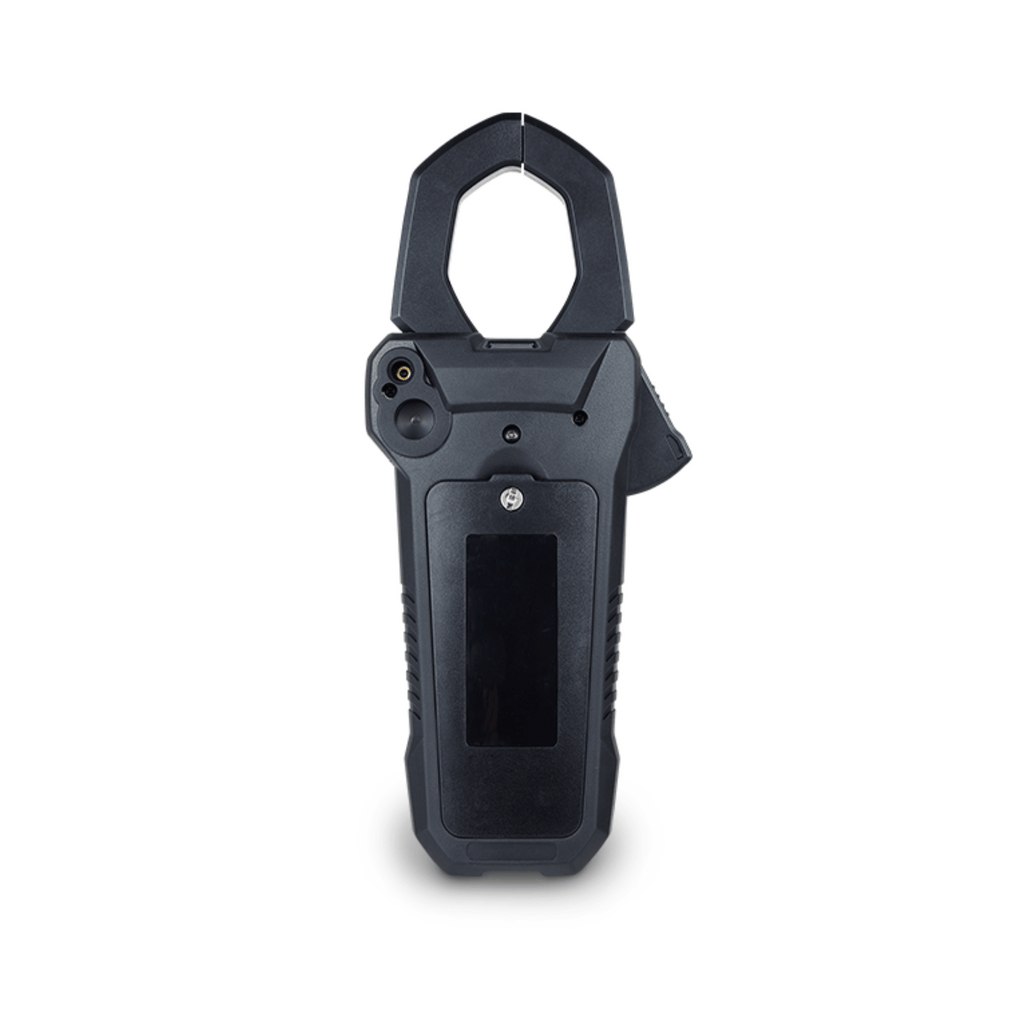

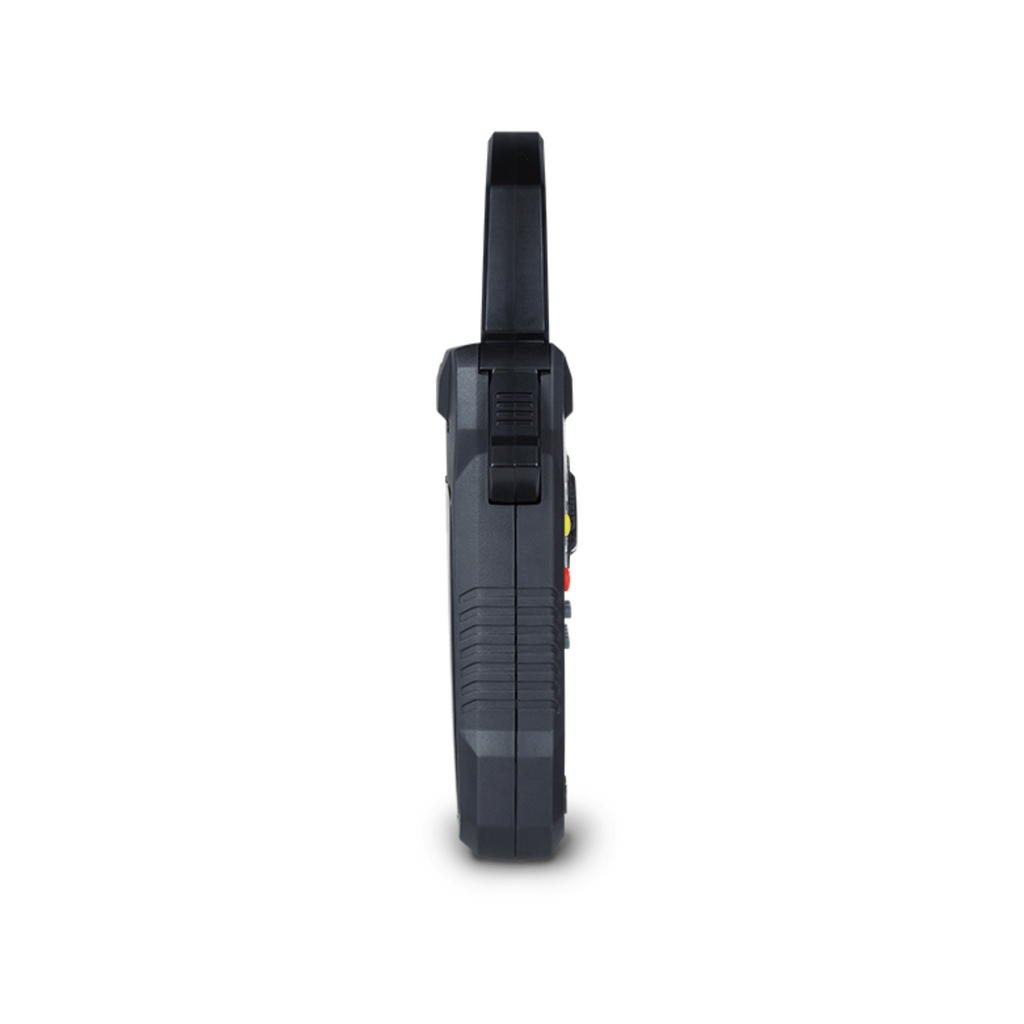

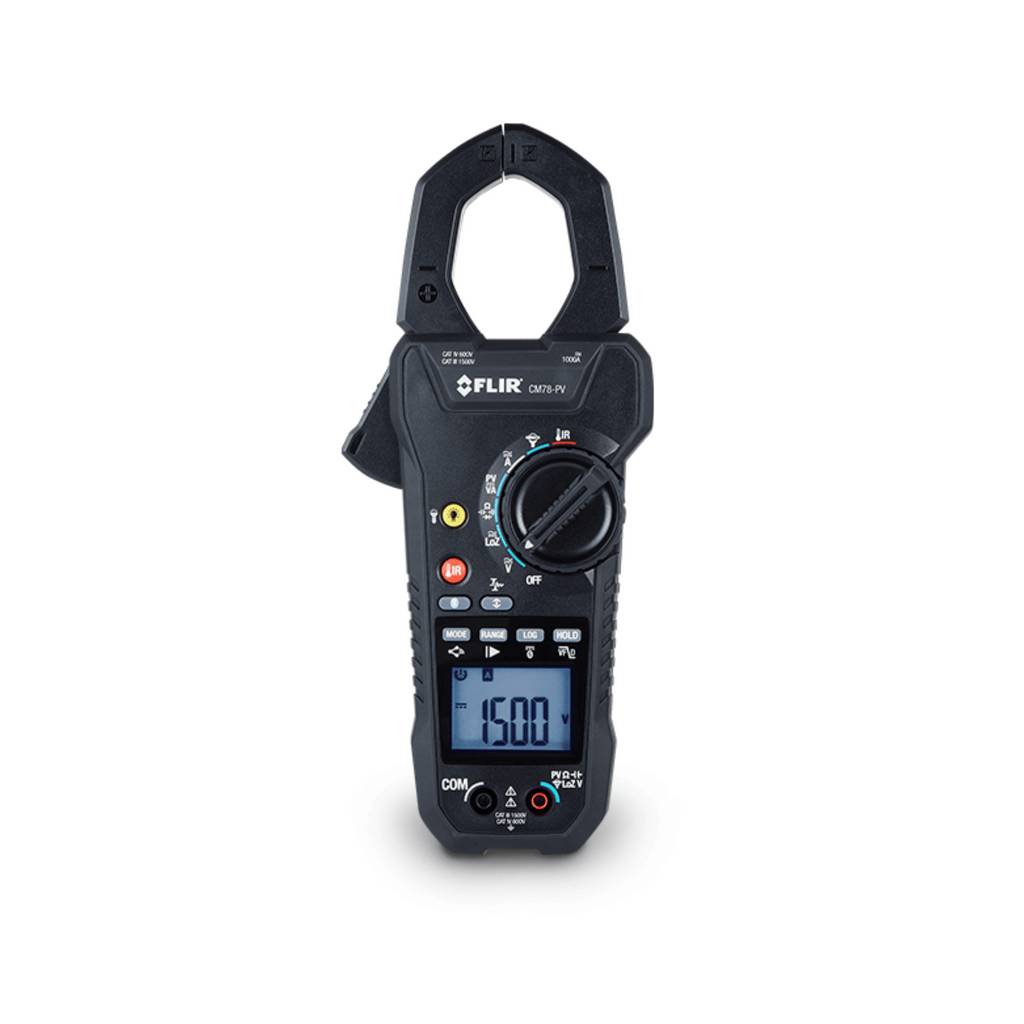

FLIR CM78-PV Solar Clamp Meter
FLIR CM78-PV Solar Clamp Meter
FLIR CM78-PV Solar Clamp Meter
FLIR CM78-PV Solar Clamp Meter
FLIR CM78-PV Solar Clamp Meter
FLIR CM78-PV Solar Clamp Meter

FLIR CM78-PV Solar Clamp Meter

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

FLIR CM78-PV

CAT III 1500 V Solar Clamp Meter

The FLIR CM78-PV is a versatile clamp meter built for both commercial and industrial electrical inspections, with specialized support for solar photovoltaic (PV) systems. It measures up to 1,500 V DC using test leads and up to 1,000 A AC/DC through the clamp jaw, making it ideal for DC power diagnostics. Advanced features include Inrush AC current, VFD mode, True RMS, and Low Impedance (LoZ) mode—ensuring accurate performance in complex electrical environments.

A built-in non-contact infrared thermometer helps diagnose issues in panels, conduits, and motors, while datalogging functionality captures intermittent faults and supports detailed troubleshooting. With integrated Bluetooth® and FLIR METERLiNK® technology, users can wirelessly connect to the METERLiNK® app for easy data capture, reporting, and sharing—streamlining fieldwork and documentation.

FLIR TG268 Key Features

Tools You Need to Work Faster and Smarter

Measures solar string DC power and performance up to 1500 kVA at CAT III 1500 V rating.

Accuracy for Electrical and Solar Applications

Performs accurate measurements with TRMS readings, VFD mode, and Low Impedance (LoZ) mode.

The Right Tech to Simplify Your Workflow

View readings on your mobile device using the CM78-PV's METERLiNK® Mobile app—on the roof, on the ground, or anywhere on the job site.

FLIR CM78-PV

Get Inspection Information to the People you Need

FLIR METERLiNK® App

The FLIR METERLiNK® app lets you monitor multiple environmental and electrical conditions at the same time, with support for connecting up to seven compatible FLIR meters simultaneously. It enables safe, real-time monitoring of hazardous areas from a distance while capturing images with ease. Whether you're using FLIR clamp meters, digital multimeters, or any of the new METERLiNK-compatible devices, you can effortlessly track critical readings across your facility and quickly share data with your team.

FLIR CM78-PV Specifications

Display Counts

Super Resolution 320 × 2406000

AC/DC Amps

1000 A / Accuracy ±2.0%

Connectivity

Bluetooth BLE

Safety Category

IEC 61010-1 CAT IV-600 V, CAT III-15000 V

Measurement & Analysis

AC Voltage

1000 V / Accuracy ±1.0%

AC/DC Amps

1000 A / Accuracy ±2.0%

AC/DC LoZ V

AC: 1000 V / Accuracy ±1.5%
DC: 1500 V / Accuracy ±1.5%

Capacitance

6000 μF / Accuracy ±3.0%

Category Rating

CAT IV-600 V, CAT III-1500 V

Continuity check threshold

<50 Ω beeper on, >150 Ω beeper off

DC Voltage

1500 V / Accuracy ±1.0%

Diode Test

3.0 V / ±1.5%

Display Counts

6000

Flex Clamp Range

3000 A / ±3.0%

Flex Input AC A

Range 3000 A / Accuracy ±3.0%

Frequency Counter

60 kHz / ±1.0%

Inrush AC Current

Range 1000 A / Accuracy ±3.0%

Measuring Rate

3 samples per second

PV DC Power

Range 1500 kVA / Accuracy ±2.0%

PV DC Voltage

Range 1500 V / Accuracy ±2.0%

Resistance

60 MΩ / Accuracy ±1.0%

Temperature

−10°C to 30°C (14°F to 86°F), <85% RH
30°C to 40°C (86°F to 104°F), <75% RH
40°C to 50°C (104°F to 122°F), <45% RH

True RMS

Yes

VFD AC Current

Range 1000 A / Accuracy ±5.0%

Accuracy

1000 V AC / ±2.0% at 45 Hz to 65 Hz

Communication & Data Storage

Bluetooth range max

10 m (32 ft)

Connectivity

Bluetooth BLE

Data Storage

Configurable interval: 1 second

Memory

Readings per memory set: 999 set per file

Power

Auto Power Off

After approximately 25 minutes of inactivity

Battery

6 × AAA Alkaline batteries

Battery Life

Approx. 50 hours, with alkaline batteries

General

Size (L x W x H)

257 mm × 110 mm × 50 mm (10.2 in × 4.3 in × 2 in)

Weight

630 g (1.39 lbs)

Worklights

2 × White LED

Environmental & Certifications

Certifications

ETL, CE, FCC, FDA, RCM

EMC

EN61326-1, EN61326-2-2, EN300328

Operating Ambient Temperature and Relative Humidity (RH)

−10°C to 30°C (14°F to 86°F), <85% RH
30°C to 40°C (86°F to 104°F), <75% RH
40°C to 50°C (104°F to 122°F), <45% RH

Safety Category

IEC 61010-1 CAT IV-600 V, CAT III-15000 V

Storage temperature and relative humidity [RH]

−20°C to 60°C (−4°F to 140°F), 0 to 80% RH (without batteries)

Temperature Coefficient

0.2 × (specified accuracy) / °C, <18°C (64.4°F), >28°C (82.4°F)

Warranty

Limited Lifetime Warranty
https://www.flir.com/testwarranty

Accessories

Accessories In the Box

Carrying Pouch
CAT III-1500 V double molded test leads
CAT III-1500 V MC4 PV Plugs (TA89)
6 × AAA (LR03) Battery
User Manual
