The FLIR EV86-T2 EV Charger Analyzer with MeterLink is a portable test instrument for EV charging station operators, service and maintenance providers, electrical professionals and automotive manufacturers. It brings the principal checks needed to assess the safety and performance of residential and commercial AC charging stations into one unit, helping technicians investigate protective-earth conditions, charging-interface behaviour, RCD/CCID operation and loop impedance. MeterLink connectivity also supports wireless capture of test results into reporting software.
Why Choose the FLIR EV86-T2?
-
RUN THE PRINCIPAL AC CHARGER CHECKS FROM ONE INSTRUMENT
Auto testing covers PE Pre-Test, the EVSE interface, RCD testing and loop impedance from the settings menu. This gives maintenance teams a practical sequence for assessing an AC charging point before deciding whether it can remain in service or needs further investigation.
-
CHECK PROTECTIVE-EARTH CONDITIONS BEFORE TESTING
The PE Pre-Test measures up to 50 V AC/DC and indicates pass or fault when more than 50 V AC/DC is detected between the PE conductor and touch sensor. That early check helps the technician identify a potentially hazardous protective-earth condition before proceeding with the rest of the assessment.
-
SIMULATE VEHICLE CONNECTION AND CONTROL-PILOT STATES
PP state simulation provides Not connected, Connected and Connected + Latch conditions, while CP Error (E state) simulation provides Pass/Fault. These functions let an operator check how an EVSE responds as connection states change and when a control-pilot error is presented.
-
ASSESS SINGLE-PHASE AND THREE-PHASE AC EVSE OUTPUTS
The EVSE interface supports single-phase operation to 250 V maximum and three-phase operation to 230 / 440 V maximum at 50 / 60 Hz and a maximum of 10 A. Voltage phase indication for L1, L2, L3, PE and N helps the technician identify the conductors present during testing.
-
TEST RCD AND CCID TRIPPING BEHAVIOUR
The EV86-T2 provides trip-time and ramping-current tests for the AC and DC protection conditions listed in its specification. Testing at 0° and 180° gives service teams defined results for diagnosing protective-device operation at an AC charging station.
-
WORK ACROSS TYPE 2 AND TYPE 1 CONNECTIONS

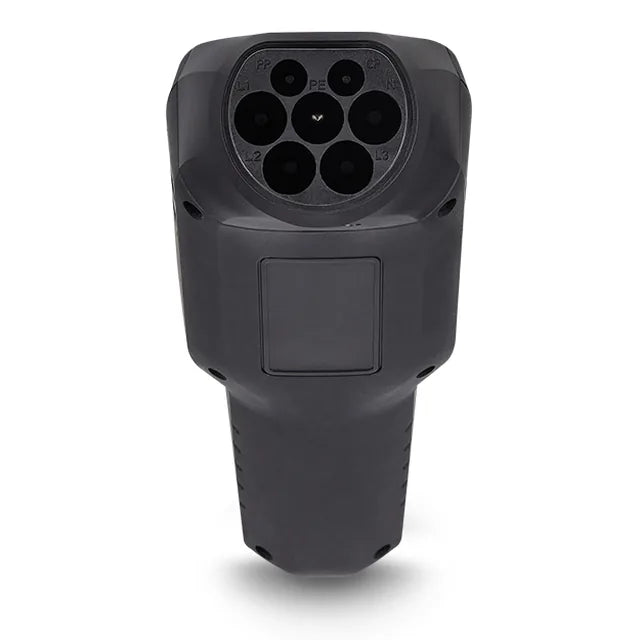

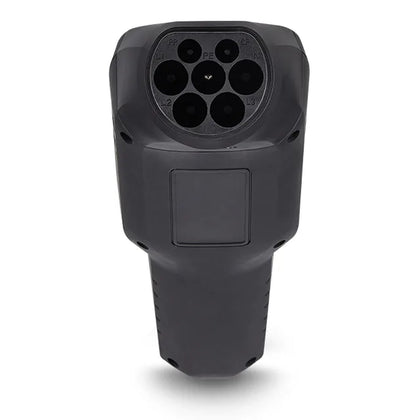

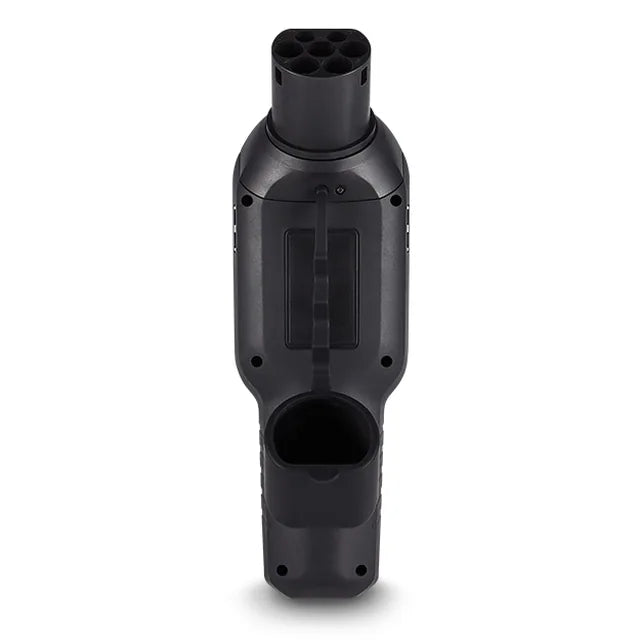

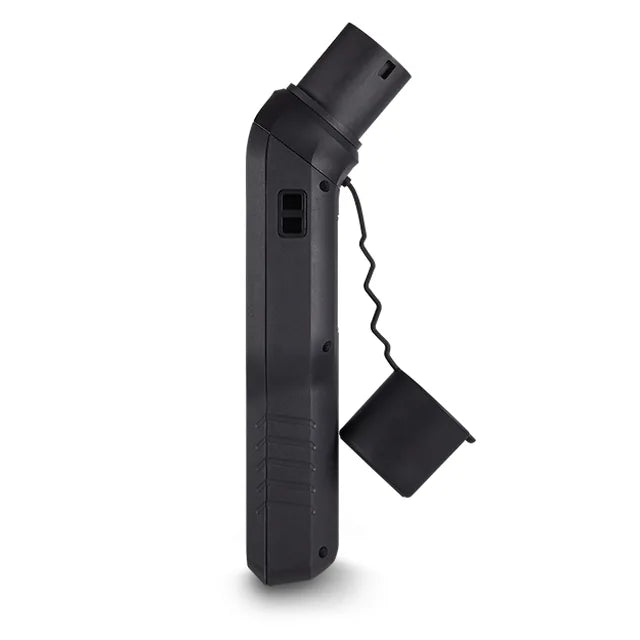

A Type 2 connection is built into the analyzer, and a Type 2-to-Type 1 converter is included. This allows one test kit to support the two connector types without requiring a separate analyzer.
-
CAPTURE RESULTS WIRELESSLY FOR REPORTING

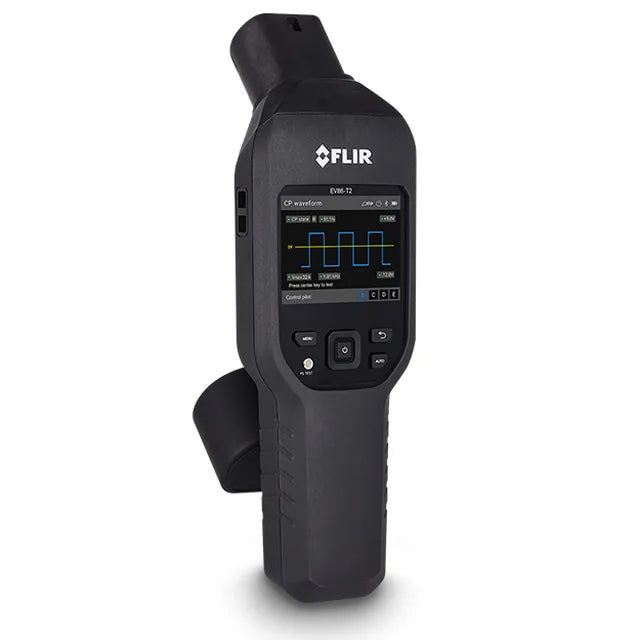

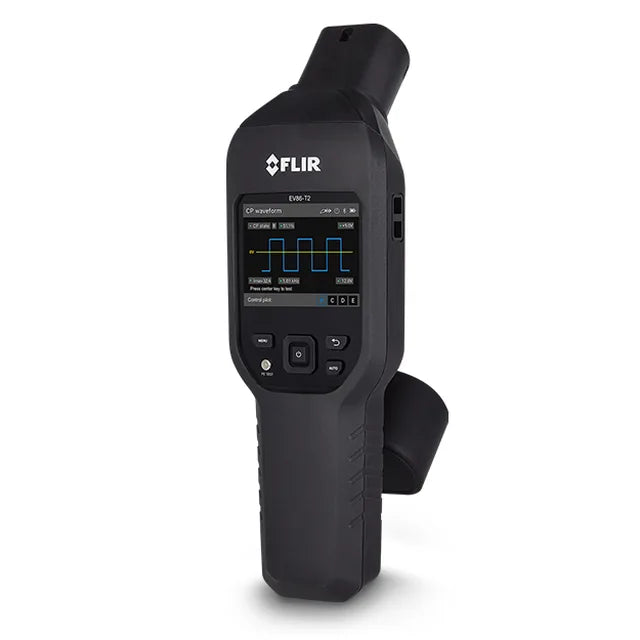

Bluetooth BLE connectivity provides a specified range of 10 m (32 ft), enabling MeterLink transfer of results into reporting software. A 3.5 in. TFT-LCD, rechargeable Li-Battery and 12 hours of continuous battery life support field use across multiple charging points.
KEY SPECIFICATIONS
| Specification | Value |
|---|---|
| DISPLAY, CONNECTIVITY AND SAFETY | |
| Display Size | 3.5 in. TFT-LCD |
| Connectivity | Bluetooth BLE with 10 m (32 ft) range |
| Safety Category | CAT II-300 V, IEC61010-1 |
| Display Size | 3.5 in. TFT-LCD |
| EV CHARGER TESTING | |
| Auto Testing Items | PE Pre-Test, EVSE Interface, RCD Test, and Loop Impedance in Settings Menu |
| Category Rating | CAT II-300 V |
| CP Error (E state) Simulation | Pass/Fault |
| EVSE interface | 1 Φ: 250 V max, 3 Φ: 230 / 440 V max, 50 / 60 Hz, max 10 A Main Voltage: Range 440 V / Accuracy: +/- 2.0% Frequency Range: 2 kHz / Accuracy: +/- 1 Hz Duty Cycle Range:100% / Accuracy: +/- 5 Digits |
| Loop Impedance | Range: 2.000 kΩ / Accuracy ±1.0% |
| PE Pre-Test | Range: 50 V AC/DC / Accuracy ±2.0%, Pass / Fault (>50 V AC/DC Between PE Conductor and Touch Sensor) |
| PP State Simulation | Not connected, Connected, Connected + Latch |
| RCD/CCID Trip Test | RCD Trip Time (0°, 180°) Range: 31.5 mA AC, 300 ms / Accuracy ±2.0% Range: 6 mA DC, 12.5s for RCD Ramping Current (0°, 180°) Range: 6 mA DC in 2.5s Smooth Ramp Every 2 mA DC, 30 mA AC in 2mA Steps Every 300 ms in .5s / Accuracy ±2.0% |
| Voltage Phase Indication | L1, L2, L3, PE, N |
| Connectivity | Bluetooth BLE with 10 m (32 ft) range |
| Connector Types | Type 2 (Built-in), Type 1 (converter included) |
| POWER, CONTROLS AND SUPPLIED ITEMS | |
| Auto Power Off | Off / 5 min / 10 min / 20 min / 30 min |
| Battery | Rechargeable Li-Battery |
| Battery life | 12 Hours Continuously |

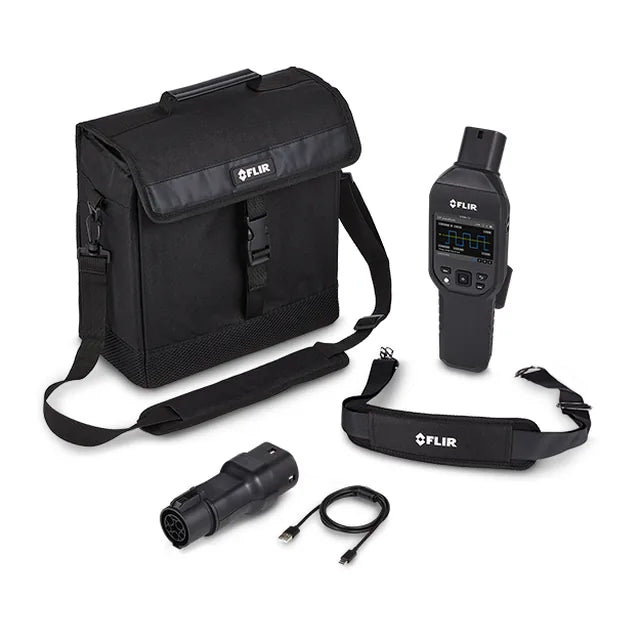

| Box Contents | 1 × EV86-T2 EV Charger Analyzer 1 × Converter (Type 2 to Type 1) 1 × USB Cable Type A to C 1 × Flir Quick Start Guide 1 × Neck Strap 1 × Carrying Pouch with Shoulder Strap |
| Size (L x W x H) | 296 × 94 × 50 mm (11.6 × 3.7 × 2 in.) |
| Weight | 760 g (1.7 lbs) |
| CERTIFICATIONS AND ENVIRONMENTAL CONDITIONS | |
| Certifications | ETL, CE, FCC |
| EMC | EN61326-1 |
| Operating Altitude | 2000 m (6560 ft) |
| Operating Ambient Temperature and Relative Humidity (RH) | -10°C to 30°C (14°F to 86°F), <85% RH 30°C to 40°C (86°F to 104°F), <75% RH 40°C to 50°C (104°F to 122°F), <45% RH |
| Pollution Degree | 2 |
| Safety Category | CAT II-300 V, IEC61010-1 |
| Storage temperature and relative humidity [RH] | -20°C to 60°C (-4°F to 140°F), 0 to 80% RH |
| Warranty | Limited 3-Year Warranty |
Documents and downloads
Frequently asked questions
What can the FLIR EV86-T2 test on an AC EV charging station?
The FLIR EV86-T2 combines PE Pre-Test, EVSE interface, RCD testing and loop-impedance functions. It also provides PP state simulation, CP Error (E state) simulation and voltage phase indication for L1, L2, L3, PE and N, giving technicians a defined set of checks for investigating AC charging-station safety and performance.
Does the FLIR EV86-T2 work with Type 1 and Type 2 charging connectors?
The FLIR EV86-T2 has a built-in Type 2 connector and is supplied with a Type 2-to-Type 1 converter. The included converter allows the same analyzer to be used with Type 1 connections.
How does MeterLink support EV charger reporting?
The FLIR EV86-T2 uses Bluetooth BLE with a specified range of 10 m (32 ft). MeterLink provides wireless capture of the analyzer's results into reporting software, reducing the need to transcribe readings manually.
Can the FLIR EV86-T2 test single-phase and three-phase charging stations?
The FLIR EV86-T2 EVSE interface supports single-phase operation to 250 V maximum and three-phase operation to 230 / 440 V maximum, at 50 / 60 Hz and a maximum of 10 A. It is intended for testing the safety and performance of AC EV charging stations in residential and commercial environments.
