FLIR K1 Situational Awareness Camera

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.



FLIR K1

Situational Awareness Camera

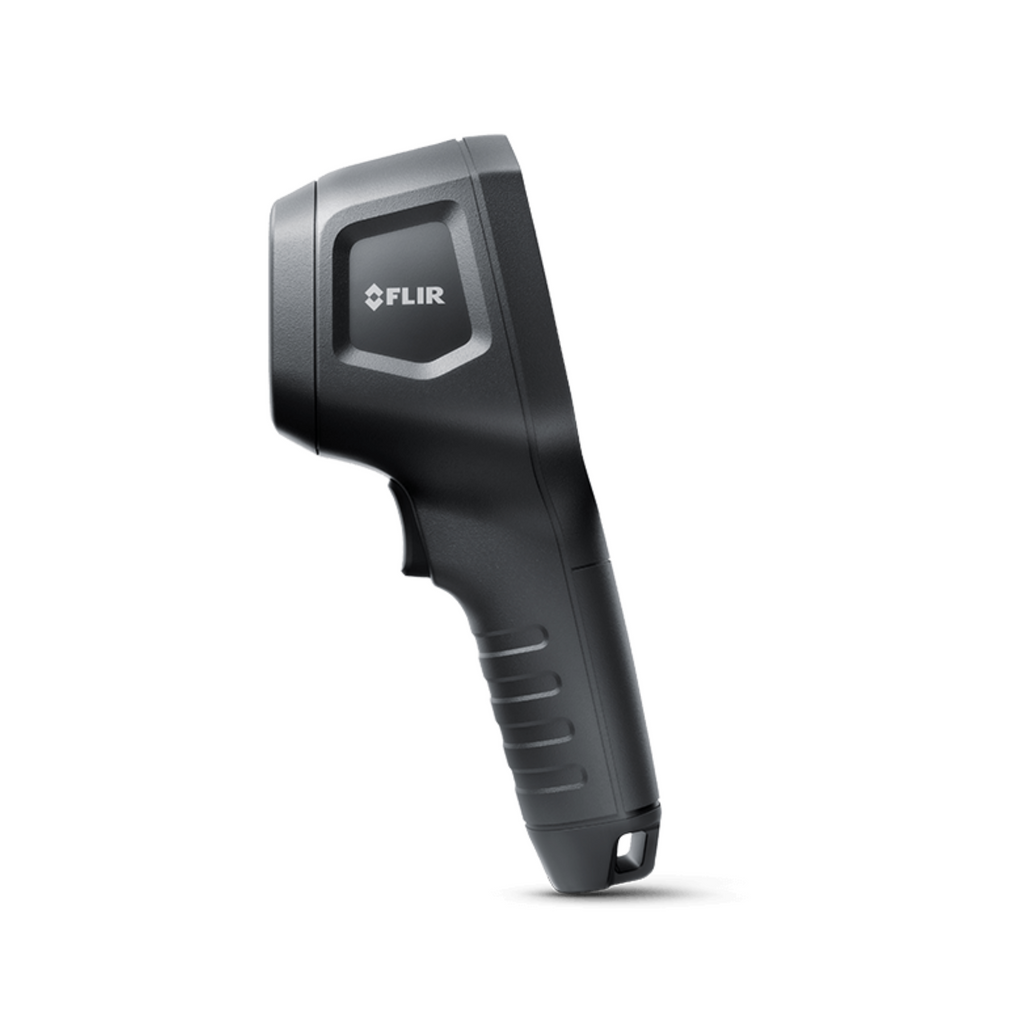

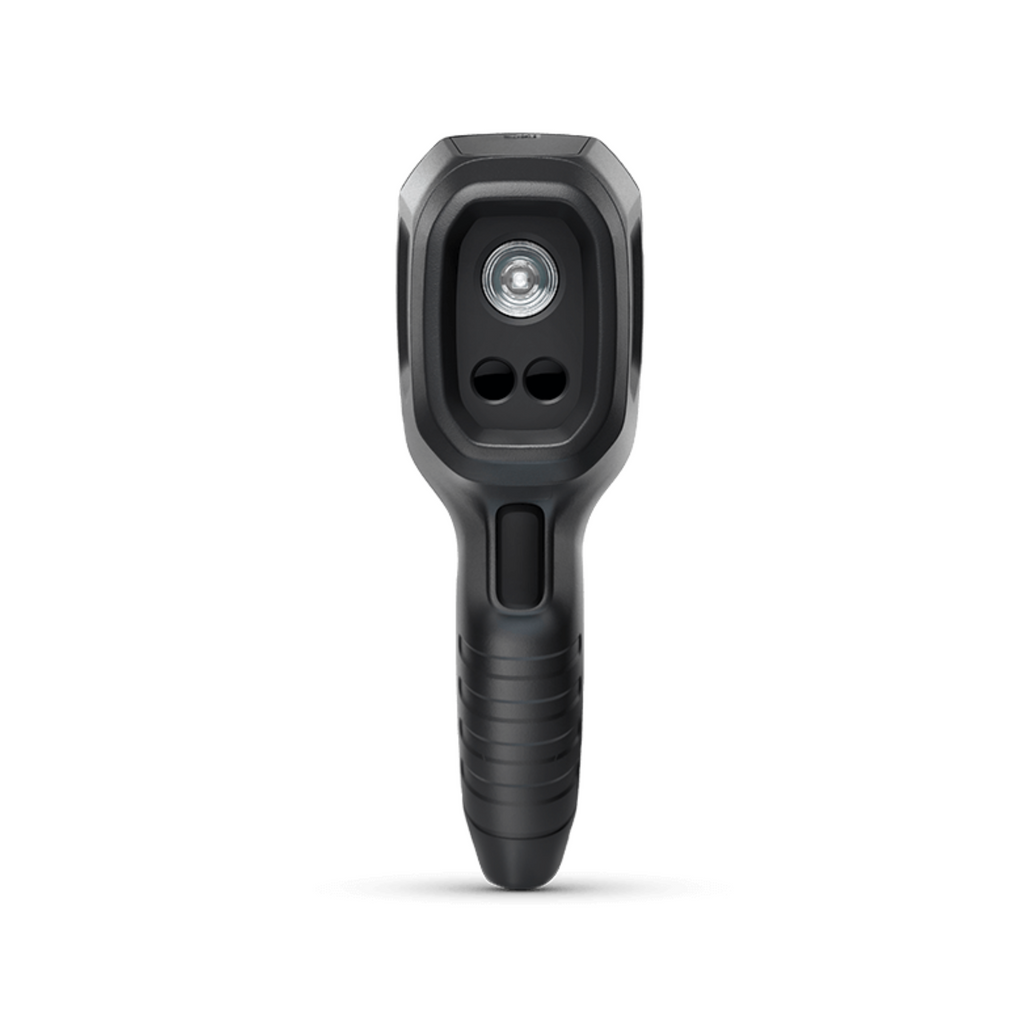

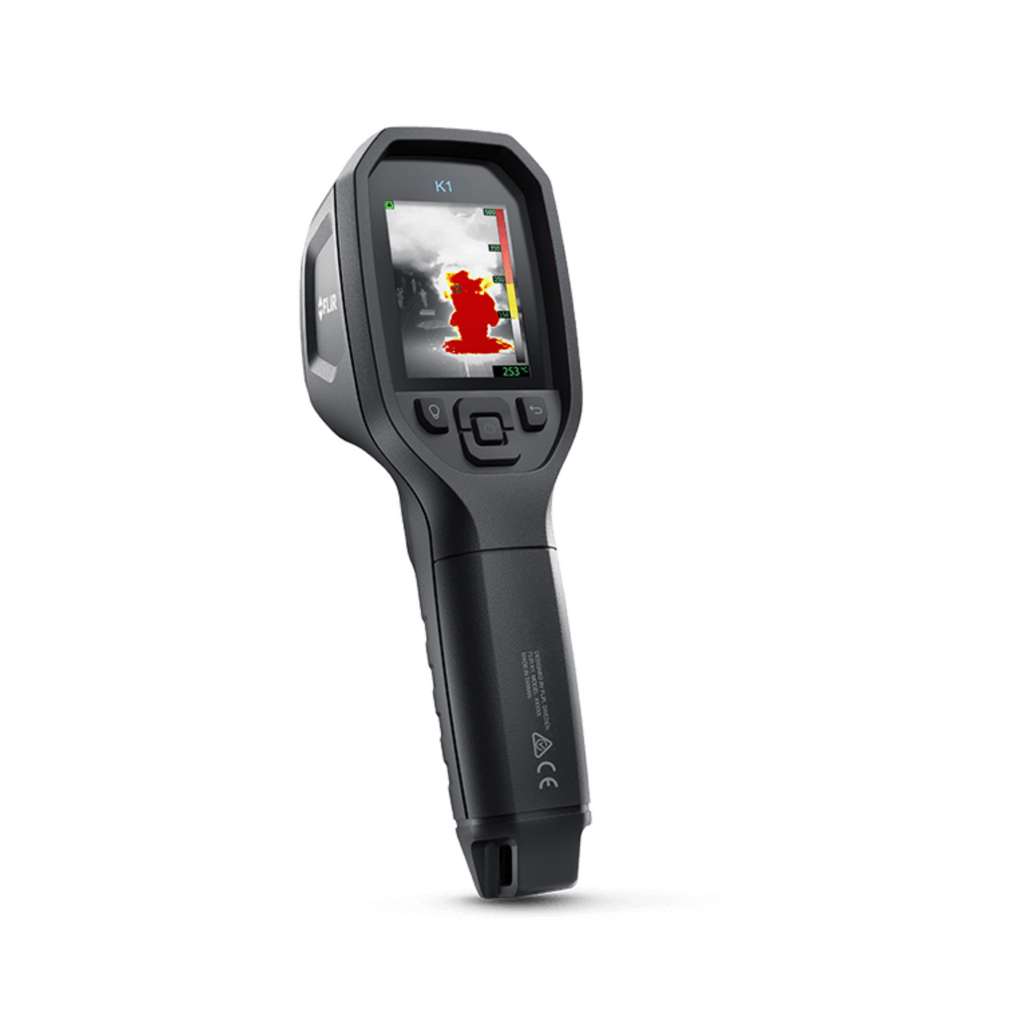

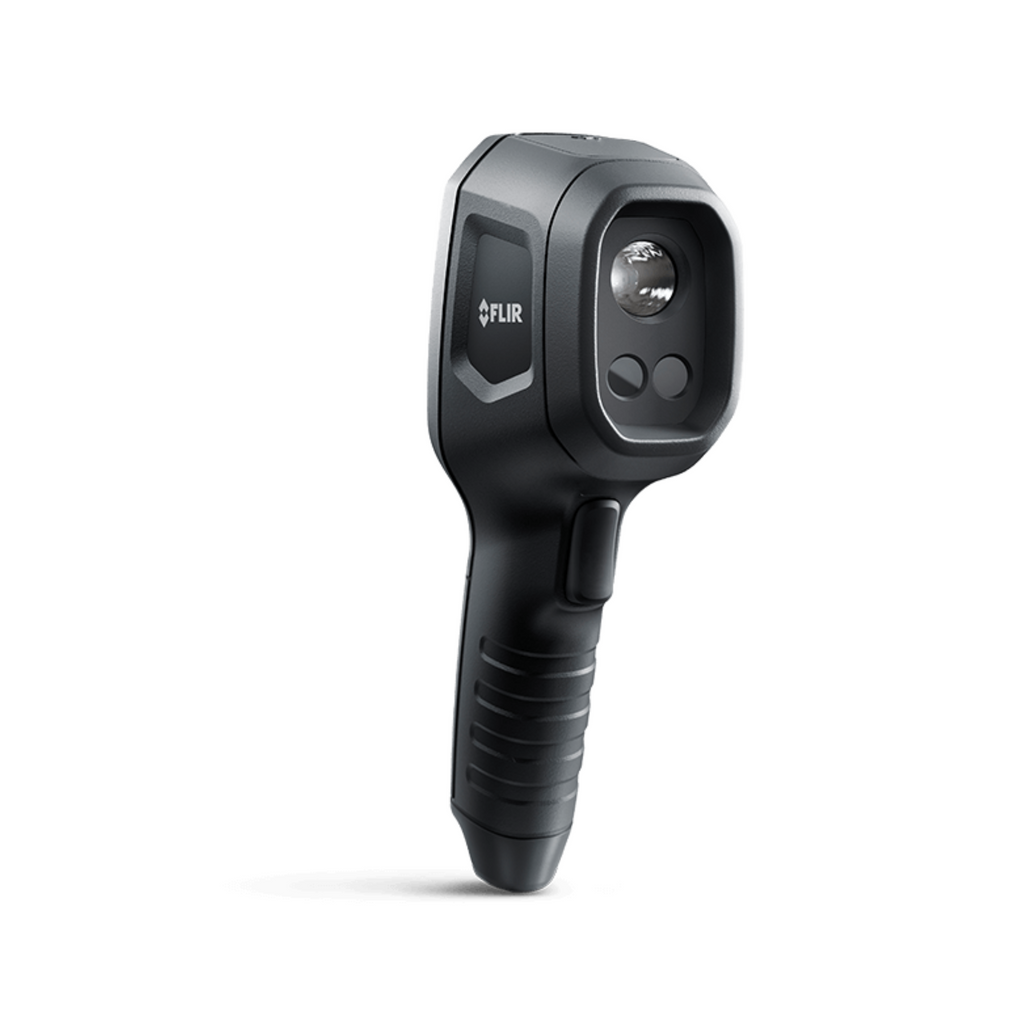

The FLIR K1 is a rugged, compact thermal camera that serves as an extra set of eyes on the fire scene, allowing commanders, officers, and inspectors to quickly complete a thorough 360° assessment in total darkness and through smoke. With a bright, integrated flashlight, the FLIR K1 illuminates the scene to help the user steer and manage the crew more effectively. It also displays 160 × 120 pixel thermal images that help users gain additional situation awareness that is not possible with the naked eye.


Keep Your Eyes on the Fire Scene

ENHANCE SITUATIONAL AWARENESS

Quickly assess the scene in total darkness, through smoke, and never lose line of sight.

DOCUMENT FINDINGS CONVENIENTLY

Gather compelling evidence and save up to 10,000 sets of radiometric thermal and visual images for simple reporting.

RUGGED AND EASY TO USE

The water-resistant K1 withstands a 2-meter drop onto concrete, and is lightweight enough to attach to gear.

Specifications

OVERVIEW

Camera size (L x W x H)

208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)

Camera weight incl battery

0.41 kg (0.90 lb.)

Compatible with FLIR software

FLIR Tools

Detector Type

Focal plane array, uncooled microbolometer

Display

2.4 in. backlit LCD, 320 × 240 pixels

Multi Spectral Dynamic Imaging (MSX)

Yes

Packaging Size

283 × 148 × 103 mm (11.1 × 5.83 × 4.06 in)

CONNECTIONS & COMMUNICATIONS

Interface

Update from PC devices over USB

Storage Media

Internal memory (3.9 GB)

USB

USB Type-C

ENVIRONMENTAL

Corrosion

NA

Drop

2 m (6.6 ft.)

EMC

EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC Title 47 part 15, subpart B

Encapsulation

IP 67 (IEC 60529)

Humidity (Operating and Storage)

0–90% RH (0°C–37°C / 32°F– 98.6°F); 0–65% RH (37°C–45°C / 98.6°F–113°F); 0–45% RH (45°C–55°C / 113°F–131°F)

Magnetic fields

EN 61 000-4-8 Class 3

Operating Temperature Range

Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–30°C to 55°C (–22°F to 131°F)

Tripod Mounting

UNC 1/4"-20

Vibration

2 g (IEC 60068-2-6)

FLASHLIGHT

Beam Angle

20°

Flashlight

Bright LED flashlight

LED CCT

5700K

LED CRI

70

IMAGING & OPTICAL

Built-in Digital Camera

320 × 240 pixels

Depth of Field

0.1 m (0.33 ft.), infinity

Digital Camera FOV

71° × 56°, adapts to the IR lens

Field of view (FOV)

57° × 44°

f-number

1.1

Focal Length

1.9 mm (0.075 in.)

Focus

Fixed

Image Frequency

8.7 Hz

Image Modes

• TI Basic (White-hot with isotherm) • White-hot • Iron

IR Resolution

160 × 120 pixels

Light Output

300 lumens

Pitch

12 µm

Spatial resolution (IFOV)

6.22 mrad

Spectral Range

8–13 µm

Thermal Sensitivity/NETD

<100 mK @ 30°C (86°F)

MEASUREMENT & ANALYSIS

Accuracy

±5°C (±9°F) or ±5% in High Gain Mode, or ±10°C (±18°F) or ±10% in Low Gain Mode, for ambient temperatures of 10–35°C (50–95°F)

Automatic Hot Detection

NA

Isotherm

• Yellow coloring 150°C to 250°C • Orange coloring 250°C to 350°C • Red coloring >350°C

Object Temperature Range

High Gain Mode: –10°C to 140°C (14°F to 284°F) Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)

Spot Meter

Center spot

METER DATA

Auto Range

NA

POWER

Battery capacity

3000 mAh

Battery operating time

Approximately 5.5 hours in MSX mode; 3.8 hours with torchlight only

Battery type

Li ion

Battery voltage

3.7 V

Battery weight

NA

Charging system

Battery is charged inside the camera

Charging Temperature

0°C to 45°C (32°F to 113°F)

Charging Time

4 hours to 90%, 6 hours to 100%

Power Management

Adjustable

Safety [power supply]

Camera: IEC/EN 61010-1 Power supply: UL, CSA, CE, PSE, CCC, and SAA

Start Up Time

15 s

Start-up time from sleep mode

TBD

SHIPPING INFORMATION

Material

PPSU Silicon rubber Aluminium, cast

STORAGE MEDIA

Image Storage

JPEG files

Image Storage Capacity

4 GB

Image Storage Mode

FLIR radiometric JPEGs, visual JPEGs

Storage Capacity

Approx. 10,000 images
