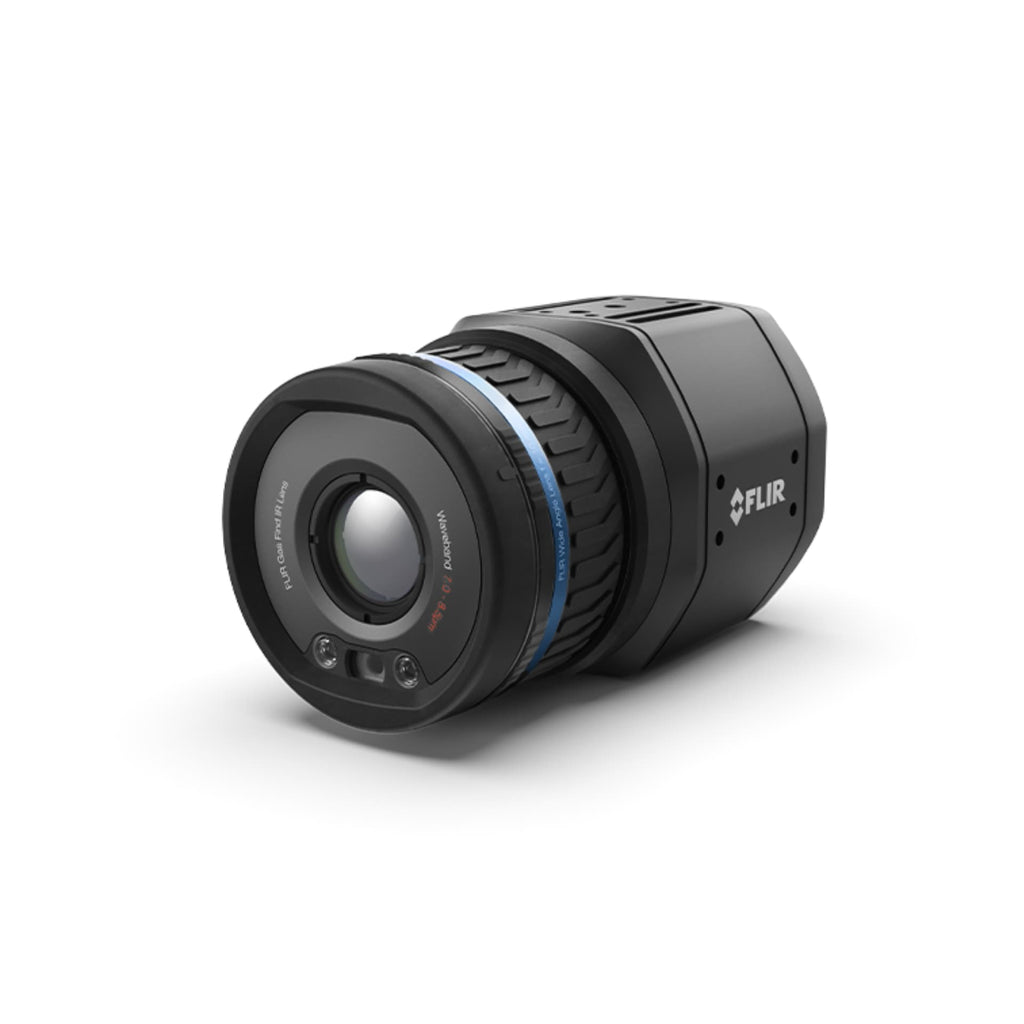

The FLIR GF77a Gas Find IR Thermal Camera is the first uncooled autonomous leak detection camera from FLIR designed specifically to visualize methane gas. This affordable, fixed-camera solution provides upstream and midstream gas processors, producers, or operators the features they need to continuously monitor for potentially dangerous, invisible methane leaks. Small and lightweight, the FLIR GF77a is packed with FLIR-patented features, such as High Sensitivity Mode (HSM), for improved gas visualization. The GF77a can help oil and gas companies maintain valuable capital equipment, avoid product loss, meet emissions reduction metrics, and ensure safer work practices.
Continuous, autonomous methane gas detection
AFFORDABLE FIXED OGI SOLUTION
Offers industry-leading features for continuous monitoring applications including High Sensitivity Mode, remote motorized focus, and open architecture for third-party integration.
AFFORDABLE FIXED OGI SOLUTION
Spectrally-filtered to detect methane gases, improving worker safety and leak location identification with fewer in-person inspections.
UNMATCHED CONNECTIVITY
RTSP, GigE and ONVIF compliant, the GF77a offers flexibility to meet many industrial communication needs and connects to a network for continuous leak detection.
Specifications
| GENERAL | |
| Contrast Enhancement | FSX®, histogram equalization (IR only) for RTSP and GVSP video streaming, Image Source 0 |
| OVERVIEW | |
| Accuracy | ±5°C (±9°F) for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F) |
| Detector Type | Uncooled microbolometer |
| Encoding | Video streaming – RTSP Protocol: H.264 / MPEG4 / MJPEG; GVSP: Uncompressed Radiometric streaming – RTSP Protocol: Compressed JPEG-LS, FLIR radiometric; GVSP: Uncompressed, signal linear, temperature linear, FLIR radiometric |
| Field of view (FOV) | 25° lens: 25° × 19° 6° lens: 6.4° × 4.9° |
| Focal Length | 25° lens: 18 mm 6° lens: 74 mm |
| IR Resolution | 320 × 240 (76,800) pixels |
| Object Temperature Range | –20°C to 70°C (–4°F to 158°F) |
| Web interface | Yes |
| Weight | 0.82 kg (1.8 lbs) |
| Size [L × W × H] | 123 × 77 × 77 mm (4.84 × 3.03 × 3.03 in) |
| CONNECTIONS & COMMUNICATIONS | |
| Connector | Pan and tilt control: M8 A-coded, male; Wi-Fi: Female RP-SMA (Pan/Tilt is an optional feature) |
| Digital I/O connector type | M12 Male 12-pin A-coded (shared with ext. power) |
| Digital Inputs | 2x opto-isolated, Vin (low) = 0 - 1.5 V, Vin (high) = 3-25V |
| Digital Output Purpose | • Programmatically set • Fault (NC) |
| Digital Outputs | 3x opto-isolated, 0–48 VDC, max. 350 mA (derated to 200 mA at 60. Solid-state opto relay, 1x dedicated as Fault output (NC) |
| Ethernet Communication | GigE Vision ver. 1.2, Client API GenICam compliant, TCP/IP socket-based FLIR proprietary |
| Ethernet Connector Type | M12 8-pin X-coded, Female |
| Ethernet Image Streaming | Yes |
| Ethernet Power | Power over Ethernet, PoE IEEE 802.3af class 3 |
| Ethernet Protocols | IEEE 1588, ONVIF-S, SNMP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, sftp (server), FTP (client) SMTP, DHCP, MDNS (Bonjour), uPnP |
| WiFi | Wi-Fi standard – IEEE802.11a/b/g/n |
| Multicast | RTSP Protocol, GVSP (GigE Vision) Protocol |
| Unicast | RTSP Protocol, GVSP (GigE Vision) Protocol |
| Serial Communication | Pan and tilt control: RS232 and RS485 exclusively |
| Connection Type | Wi-Fi: Peer to peer (ad hoc) or infrastructure (network) |
| DETECTOR | |
| Visual Focus and FOV | Fixed, 67.2° diagonal |
| ENVIROMENTAL | |
| Encapsulation | IP 54 (IEC 60529) IP66 with accessory |
| IMAGING & OPTICAL | |
| Detector Pitch | 25 µm |
| Focal Plane Array (FPA) - Spectral range | Uncooled microbolometer/7 – 8.5 µm |
| Focus | One-shot contrast, motorized, manual |
| Image Frequency | 30 Hz |
| Minimum Focus Distance | 0.3 m (0.98 ft) for 25° lens; 5 m (16.4 ft) for 6° lens |
| Spatial resolution (IFOV) | 1.4 mrad/pixel |
| Spectral Range | 7 – 8.5 µm |
| Visual Resolution | 2592 × 1944 pixels |
| Overlay | Image Source 0: RTSP Protocol: with, without; GVSP (GigE Vision) Protocol, with, without, |
| Video Lamp | Built-in LED light |
| Thermal Resolution [NETD] | <25 mk at 30°C (86°F) |
| Gas Sensitivity [NECL] | CH4 (<100 ppm × m), N2O (<75 ppm × m), C3H8 (<400 ppm × m); ΔT = 10°C, distance = 1 m |
| MEASUREMENT & ANALYSIS | |
| Measurement Corrections | Global object parameters |
| Correction Options | Atmospheric, optics transmission, emissivity, reflected apparent temperature, external optics/window |
| PAN-TILT | |
| Pan/Tilt | Optional feature; Control standard – Pelco D |
| POWER | |
| Power Consumption | 6.8 W at 24 V DC typical 7.0 W at 48 V DC typical 7.3 W at 48 V PoE typical |
| General | PoE or external |
| External Voltage | Allowed range 18-56 VDC, 8 W max |
