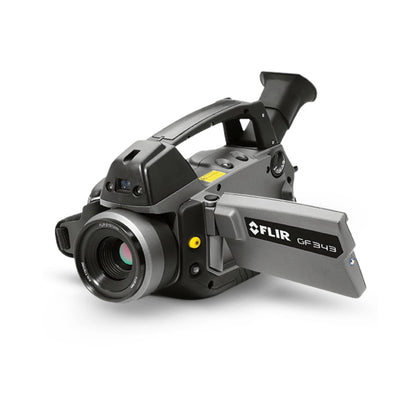

FLIR GF343 Optical Gas Imaging Camera

Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.



FLIR GF343

Optical Gas Imaging Camera

The FLIR GF343 is an optical gas imaging camera that lets you see carbon dioxide leaks quickly, easily, and from a safe distance. Whether CO2 is a byproduct of a production process, a trace gas used to detect hydrogen leaks from power generators, or part of an enhanced oil recovery program, fast and accurate detection of CO2 is key to keeping your operation running safely, efficiently, and profitably.

Fast, Unbeatable Gas Detection

VISUALIZE GAS IN REAL TIME

The GF343 displays the optical gas image in real-time, so you can quickly scan large areas for signs of gas emissions.

TRACE HYDROGEN LEAKS TO THEIR SOURCE

By adding 3-4% CO2 to hydrogen as a tracer gas, the GF343 can localize leaks and verify repairs.

DECREASE DOWNTIME, SAVE MONEY

Use the GF343 during regular operations to find leaks and confirm repairs—avoiding outages as well as costly regulatory fines.

The Sensitivity to Visualize Even Small Leaks

With its dedicated filter, thermal sensitivity, and the option of High Sensitivity Mode (HSM), the FLIR GF343 allows you to visualize leaks so you can pinpoint the exact source of the emissions and begin repairs immediately. Improve your reliability program and increase worker safety by finding leaks before they cause an issue with this dedicated CO2 gas imaging camera.


Specifications

Imaging & Optical

Available Fixed Lenses

14.5° (38 mm), 24° (23 mm)

Camera f-number

f/1.5

Color Palettes

Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

Detector Pitch

30 µm

Detector Type

Focal plane array, cooled QWIP

Dynamic Range

14-bit

Field of View

14.5° × 10.8°

Focus

Automatic (one touch) or manual (electric or on the lens)

Frame Rate [Full Window]

60 Hz

Image Modes

IR image, visual image, High Sensitivity Mode (HSM)

Menu Commands

Level/span, auto adjust continuous/manual/semi-automatic, zoom, palette, start/stop recording, store image, playback/recall image

NETD

< 15 mK @ 30°C (86°F)

On Camera Display

Built-in widescreen, 4.3 in. LCD, 800 x 480 pixels

Resolution

320 x 240 pixels

Sensor Cooling

Stirling Microcooler (FLIR MC-3)

Spectral Range

4.2 – 4.4 µm

Video Recording & Streaming

Real-time non-radiometric recording: MPEG4/H.264 (up to 60 min./clip) to memory card Real-time non-radiometric streaming: RTP/MPEG4

Visual Image

3.2 MP from integrated visible camera

Visual Video

MPEG4 (25 min./clip) to memory card

Zoom

1-8x continuous, digital zoom

MEASUREMENT & ANALYSIS

Automatic Gain Control

Continuous/manual, linear, histogram

Bump/Vibration

25 g (IEC 60068-2-27) / 2 g (IEC 60068-2-6)

COMMUNICATION & DATA STORAGE

Image Storage Capacity

> 1200 images (JPEG) with post-process capability per GB on memory card

Storage Media

Removable SD or SDHC memory card; two card slots

GENERAL

Packaging Size

400 x 190 x 510 mm (15.7 x 7.5 x 20.1 in.)

Size [L x W x H ] w Lens

306 × 169 × 161 mm (12.0 × 6.7 × 6.3 in.)

Weight [incl lens & batteries]

2.48 kg (5.47 lb.)

POWER

Battery System

Rechargeable Li-ion battery

Power

AC adapter 90-260 VAC, 50/60 Hz or 12 V from a vehicle

ENVIRONMENTAL & CERTIFICATIONS

Encapsulation

IP 54 (IEC 60529)

Mounting

UNC 1/4"-20

Operating Temperature Range

–20°C to 50°C (–4°F to 122°F)

Storage Temperature Range

–30°C to 60°C (–22°F to 140°F)
