INTEGRATED SYSTEM TO DETECT ELEVATED SKIN TEMPERATURE FLIR A700-EST™ IS MODEL: SINGLE-HEAD REMOTE INTEGRATED EST SCREENING

FLIR A400-EST™ IS Elevated Skin Temperature Screening Solution

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

FLIR A400-EST™ IS

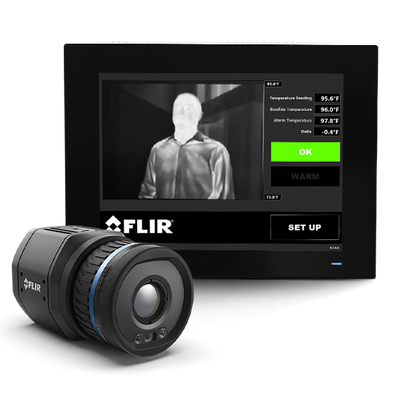

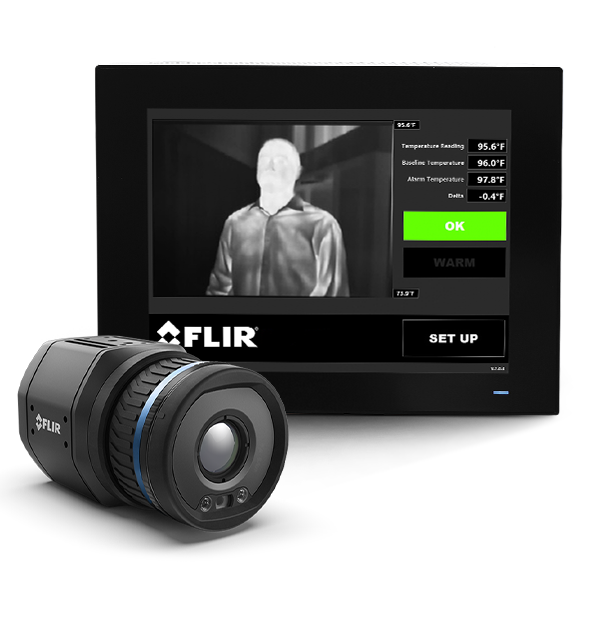

The FLIR A400-EST™ IS is a non-contact screening tool designed to detect elevated skin temperatures that can be a first line of defense against potential health risks. This fully integrated, scalable solution pairs the revolutionary FLIR A400 thermal camera with a high definition, user-friendly interface. Easy to deploy, the FLIR A400-EST IS detects and visualizes heat to quickly identify individuals with elevated skin temperatures. Anyone displaying an elevated temperature can then be screened using a thermometer or other medical device.

Scalable quick-deploy temperature screening system

RAPID SCREENING CAPABILITY

Screens individuals in just seconds or, when used with multiple cameras in high traffic spaces, spots anomalies in skin temperatures to quickly identify individuals who may need a medical temperature check

INTUITIVE USER INTERFACE

The screening function is quickly executed by large, colored indicators on-screen. Privacy is ensured through an avatar display

DEPLOYED IN MINUTES

Simple set up: uses only two cables and PoE to operate the camera and touchscreen display. Once system is fully powered on initial set up, calibration takes approx.10 minutes to complete before ready for use

A400 Specifications

OVERVIEW A400

List of Contents
A700 thermal camera, Smart Display with embedded software, Installation B-Kit, Pelican case

Object Temperature Range

-20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 2000°C (572°F to 3632°F)

Thermal Sensitivity/NETD
<30 mK to <50 mK, lens dependent

Touchscreen

Yes

IMAGING & OPTICAL A400

Lens Options

14°, 24°, and 42°

Minimum Focus Distance

14° lens: 1.0 m (3.28 ft); 24° or 42° lens: 0.15 m (0.49 ft)

POWER A400

Battery

Option for battery backup or battery power for remote locations

Power over Ethernet Type [PoE]

PoE IEEE 802.3af class 3

SYSTEM INTERFACE A400

Display and Alerts

Avatar (privacy), Enhanced Avatar (adjustability and color), Color-coded elevated skin temp indicator (green, yellow), Audio alarm, Sample size requirement notification , Key coded admin screen
