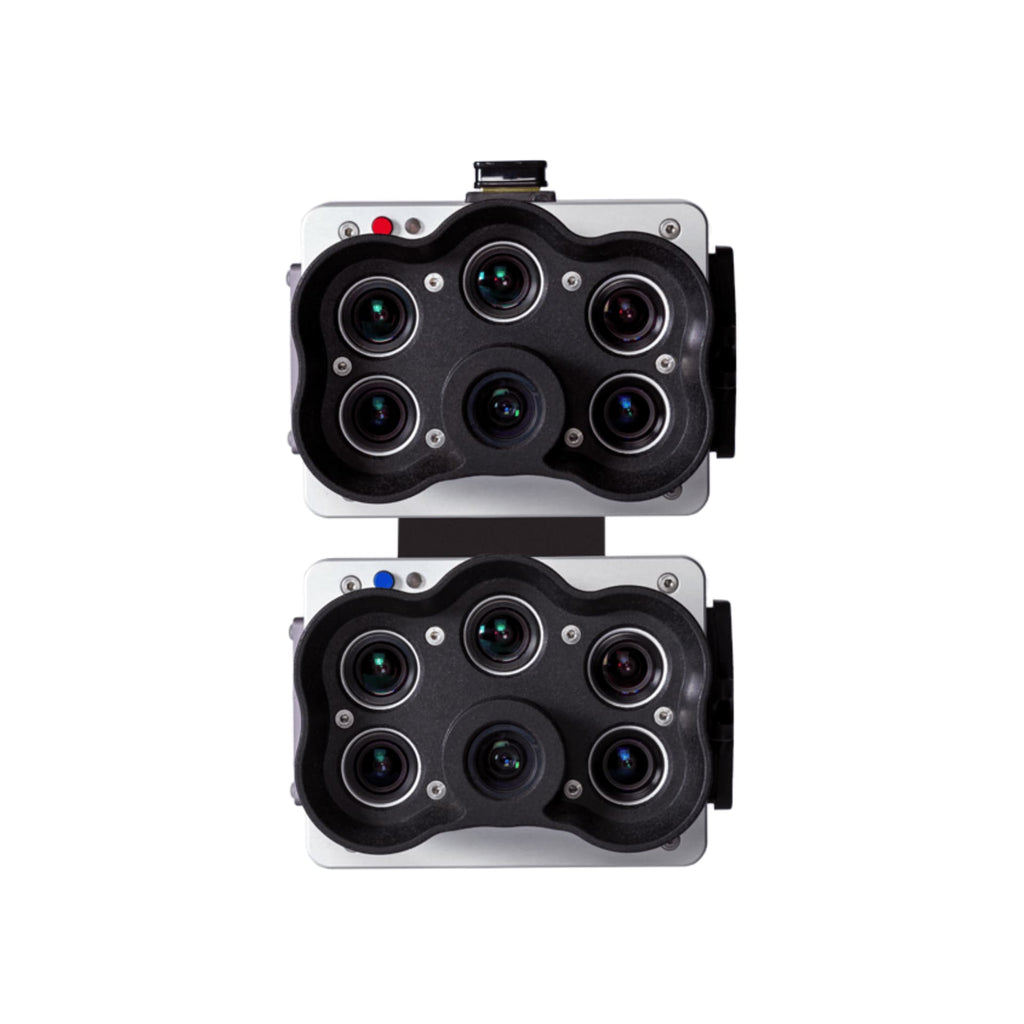

MicaSense AgEagle RedEdge-P dual

The RedEdge-P dual bands cover Landsat 8 and Sentinel-2 satellite bands at an enhanced spatial resolution.

The RedEdge-P dual enables a GSD of 2 cm per pixel / 0.8 in per pixel when flying at 60 m / 200 ft. Sharper imagery allows you to spot smaller problems sooner and make reliable decisions.

RedEdge-P dual unique coastal blue band is specially designed for water vegetation analysis and weeds identification in shallow water environments.

Spectral narrow bands are key to detecting subtle variations in plant health and allow for more precise data. The RedEdge-P dual is a narrow-band sensor that captures the most relevant segments of the spectral curve.

The DLS light sensor and CRP reflectance panel are one of a kind in the market and allow accurate and reliable data in varying light conditions, enabling time series analysis.

On all 10 lenses that withstands vibration without degrading image quality. The global shutter of the RedEdge-P dual allows for distortion-free image captures.

CFexpress card of 128 GB storage enables up to three captures per second and immediate turnaround time between flights by swapping cards.

Synchronized capture of all 10-bands, automatic triggering and geotagging of images for efficient flight times and easy post-processing.

The RedEdge-P dual bands cover Landsat 8 and Sentinel-2 satellite bands (~10 m / 32 ft per pixel) at an enhanced spatial resolution of 2 cm / 0.8 in. It enables the use of many indices already created using satellites.

The RedEdge-P dual multispectral kit comes with a Calibrated Reflectance Panel (CRP) and a Downwelling Light Sensor (DLS). These radiometric calibration tools account for different weather and light conditions, providing data that enables reliable time series analysis and comparability of outputs over time.

The RedEdge-P dual‘s panchromatic band enables high-resolution RGB and multispectral imagery for machine learning applications, such as early-stage crop counting.

The RedEdge-P dual is compatible with the DJI Matrice 300 and DeltaQuad Evo drones. The camera features an open API interface for easy integration with most flight planning and post-processing software, including Measure Ground Control.

Simultaneous capture of all bands, enabling multiple high-resolution outputs and indexes, such as RGB, NDVI, NDRE, OSAVI, NIT, CIR, DSM and more.

MicaSense series sensors are manufactured in the U.S. (NDAA compliant) and employed at academic, private and government institutions worldwide since 2014.

Included:

• RedEdge-P
• RedEdge-P blue
• DLS light sensor
• CRP calibrated reflectance panel
• USB Wi-Fi dongle
• Lens cover
• Integration cables
• Mounting hardware
• CFexpress card
• CFexpress card reader
• Hard carrying case
• Start guide

Option for customers who already have a RedEdge-P.

Included:

• RedEdge-P blue
• USB Wi-Fi dongle
• Lens cover
• Integration cables
• Mounting hardware
• CFexpress card
• Hard carrying case
• Start guide

The Downwelling Light Sensor (DLS) is an advanced incident light sensor. It measures the ambient light and sun angle for each of the multispectral bands of the camera. This information can then be used by specialized processing tools to correct global lighting changes in the middle of a flight, such as those that can happen due to clouds covering the sun.

The Calibrated Reflectance Panel (CRP) is a compact radiometric calibration tool. The panel has pre-measured reflectance values across the visible and near-infrared light spectrum and therefore acts as a “control”. Taking a picture of the calibration panel allows you to assign the known reflectance values and adjust your dataset accordingly during post-processing.
