Guide TD211 Compact Thermal Imaging Night Vision Monocular

  • Sale
  • R 13,499.00
  • Regular price R 14,849.00
Shipping calculated at checkout.

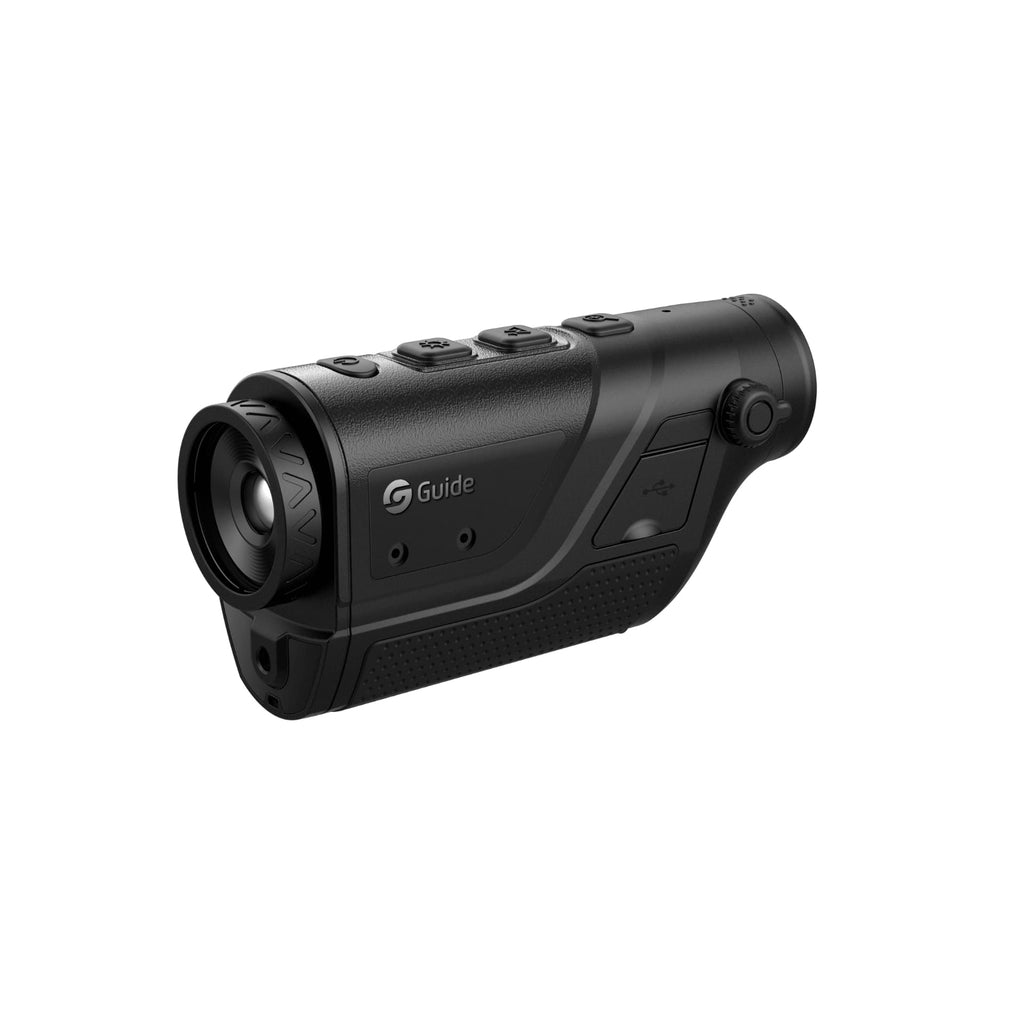

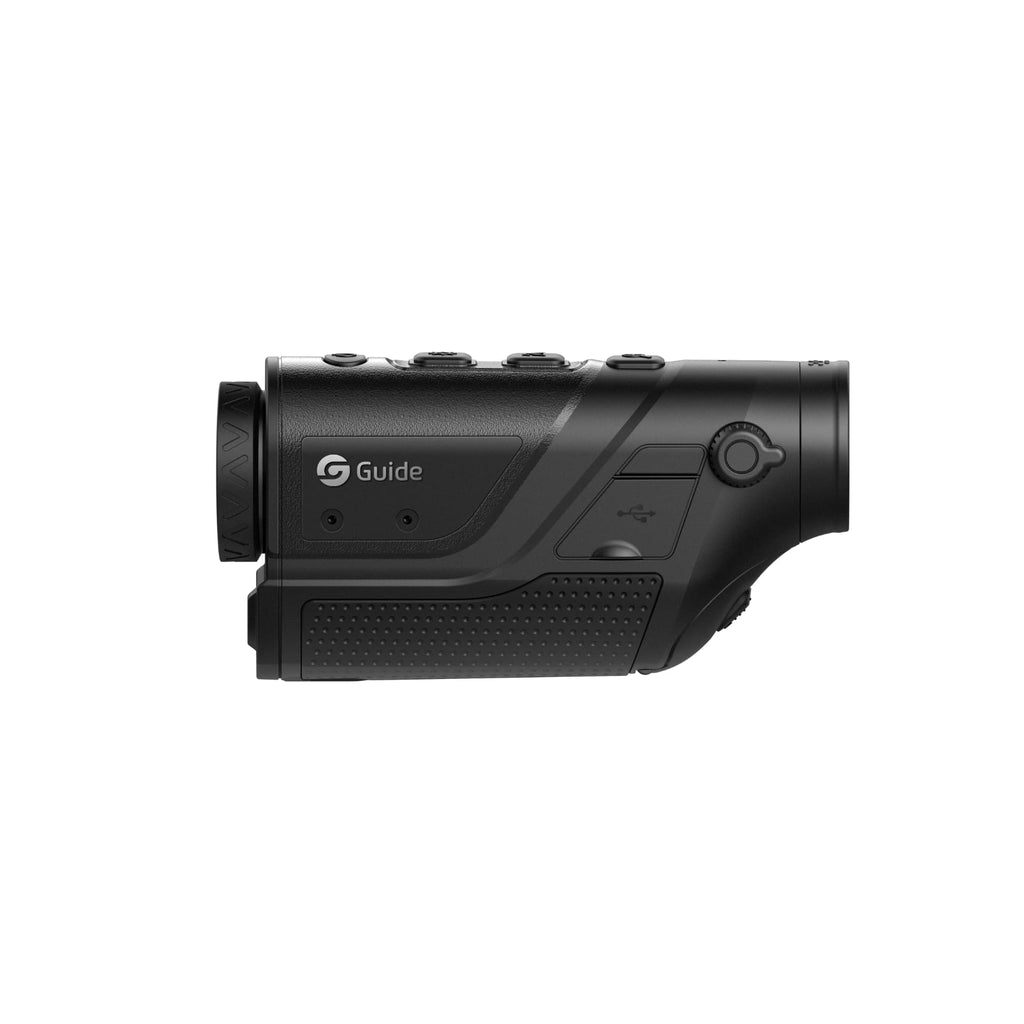

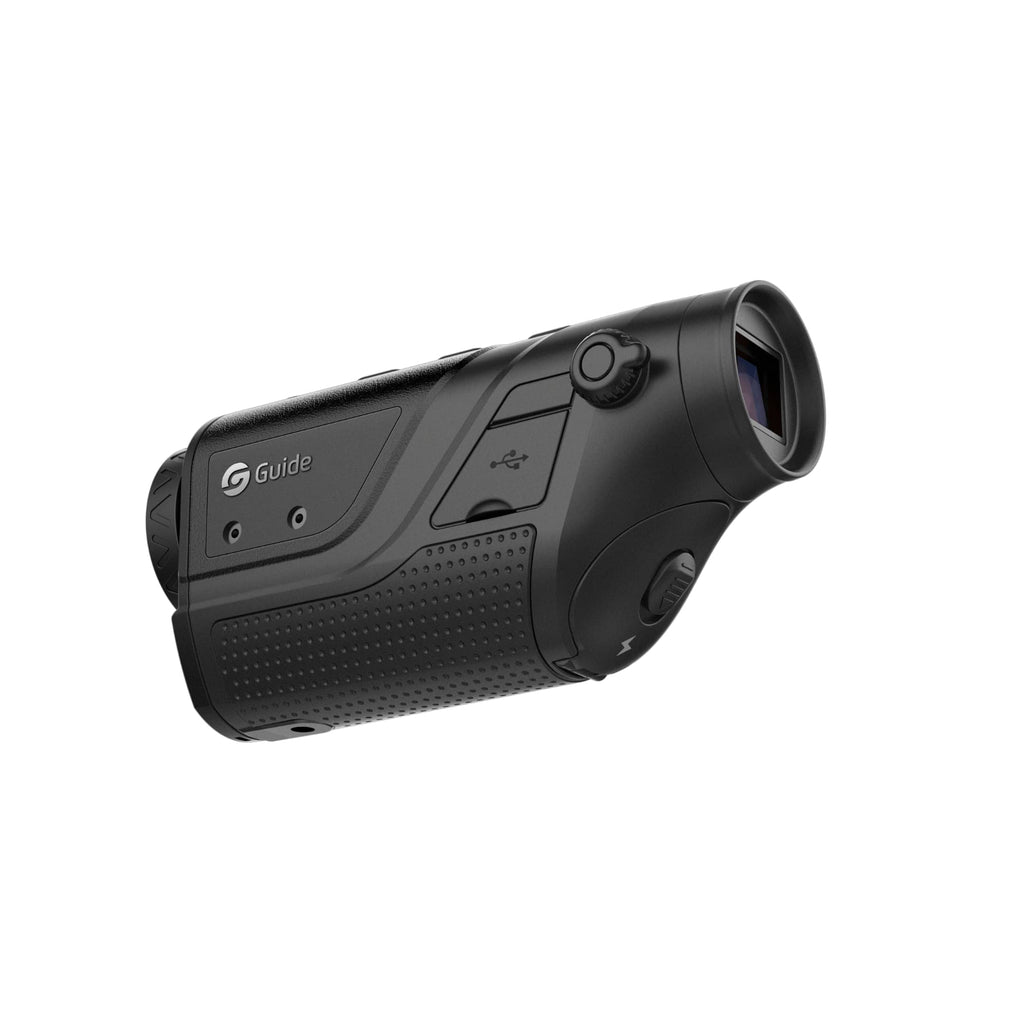

Guide TD211

Handheld Thermal Imaging Monocular

Experience the epitome of night vision technology with the TD211 Compact Thermal Imaging Night Vision Monocular, a remarkable addition to the TD Gen2 Series. Crafted with the principles of traditional optical equipment, this handheld thermal imaging monocular offers a lightweight and portable design, ensuring ease of use in various scenarios. Whether you are an outdoor enthusiast, a hunter, or a security professional, the TD211 caters to your night vision needs. Its high-brightness OLED display guarantees clear and vivid imaging, providing a comfortable viewing experience even in the darkest conditions. With a remarkable battery life of up to 10 hours, you can embark on extended nocturnal adventures with unwavering confidence in the TD211's capabilities. Unleash the full potential of outdoor night vision with the TD211 Compact Thermal Imaging Night Vision Monocular, the perfect companion for any low-light endeavor.

Features:

  • 256x192 IR resolution
  • 10mm/F1.0 Focal Length
  • 400m Human Detection Range
  • Focus-Free Focusing
  • 12 Hours Battery Life




Guide TD Gen2 Banner
Guide TD Gen2 Banner

Compact and Powerful

The TD211's lightweight design, allows for single-handed operantion - comfortable to hold and carry during operations.

TD211

New User Interface design

Enjoy a simplified operation with the new user interface design, featuring iconized controls that transcend language barriers for effortless usability.

Real-time Sharing by WIFI

Easily connect to the app on your phone via WiFi and instantly share wonderful moments in real-time. i



OTA Upgrade

Achieve high efficiency by connecting to the TargetIR APP for seamless device firmware updates support.





10 Hours,Extended Operation Time

Experience more than 10 hours of active usage, a remarkable 3-hour improvement over the previous generation, powered by a standard 18650 battery that is easily accessible for purchase.





Guide TD211

Applications

Law Enforcement

Outdoor

Low Light Observation


Media Gallery

Guide TD Thermal image
Guide TD Thermal Image
Guide TD Thermal Image
Specifications

Infrared detector

Detector resolution and pitch

256 × 192, 12 μm

Spectral range

8~14μm

NETD

≤50mk @ F1 25℃

Lens

Focal length

10 mm; F1.0

Focusing mode

Focs-Free

Field of view

17.5° × 13.1°

Frame Rate

Output frame frequency

50Hz

Zoom

Optical zoom

0.7x

Digital zoom

1x, 2x

Visual effect

It's like viewing at a 22’‘ screen at a 1 meter

Display

Display type

0.23'' OLED

Resolution

640 × 400

Eyepiece

Monocular, exit pupil distance≥10 mm, diopter adjustment: -4 to+2

Eyepiece zoom

18x

Video output

Analog Video

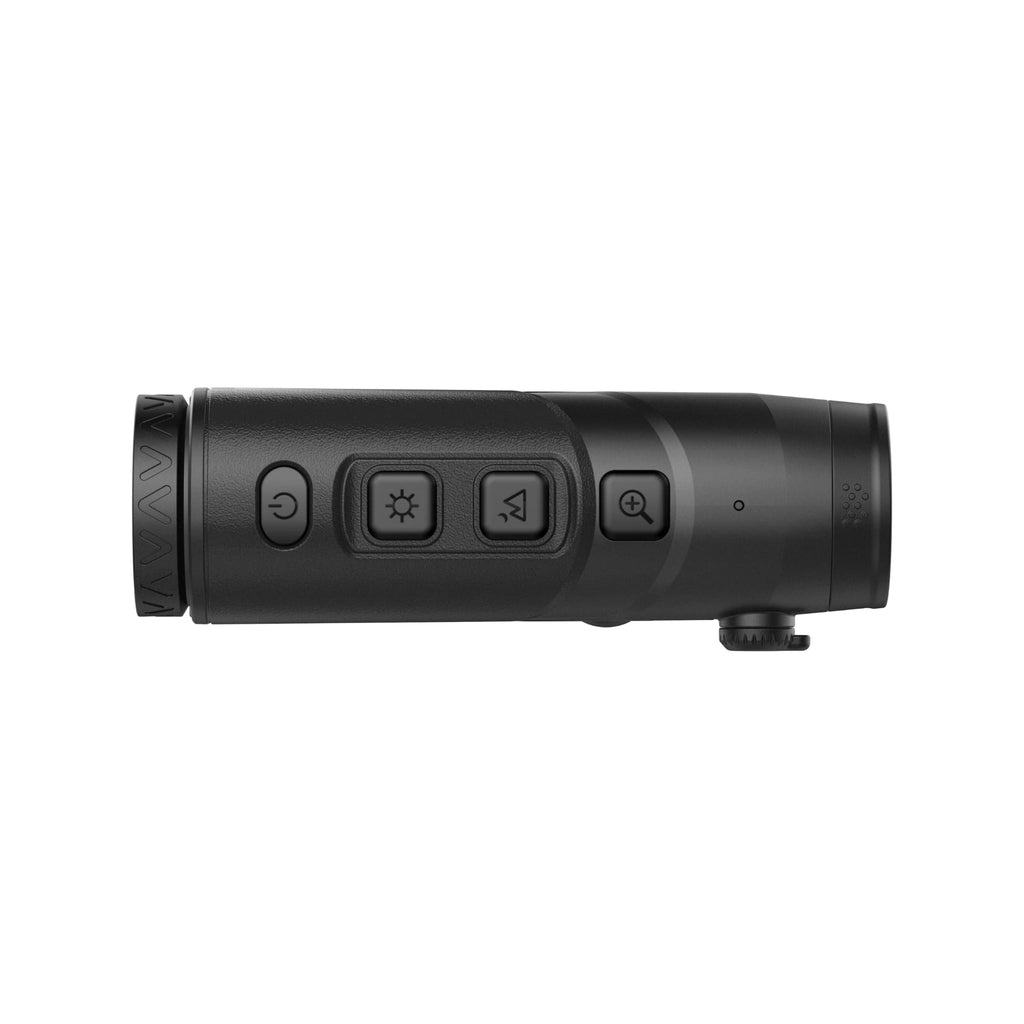

Button

Button Function

Power / Brightness / Zoom / Color palette

System

PIP

Upper left, Upper middle, Upper right, Closed

Hot spot tracking

Available

Environmental

Operating temperature range

-10 ℃ to 50 ℃

Storage temperature range

-30 ℃ to 60 ℃

Humidity

10 % to 95 % non-condensing

Shock

30 G at 11 ms half sine pulse (as per IEC60068-2-27)

Vibration

10 Hz - 150 Hz - 10 Hz 0.15 mm (as per IEC60068-2-6)

Drop

1 m

Encapsulation

IP66

Certification

IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2

Physical

Weight

≤280 g

Size (L × W × H)

140 × 45 × 74 mm

Standard

A device, lens cover and lanyard, Battery charger, single 18650 battery, USB Type-C cable, Wrist strap, Carry bag, Eye mask, Quick use guide, Warranty card
