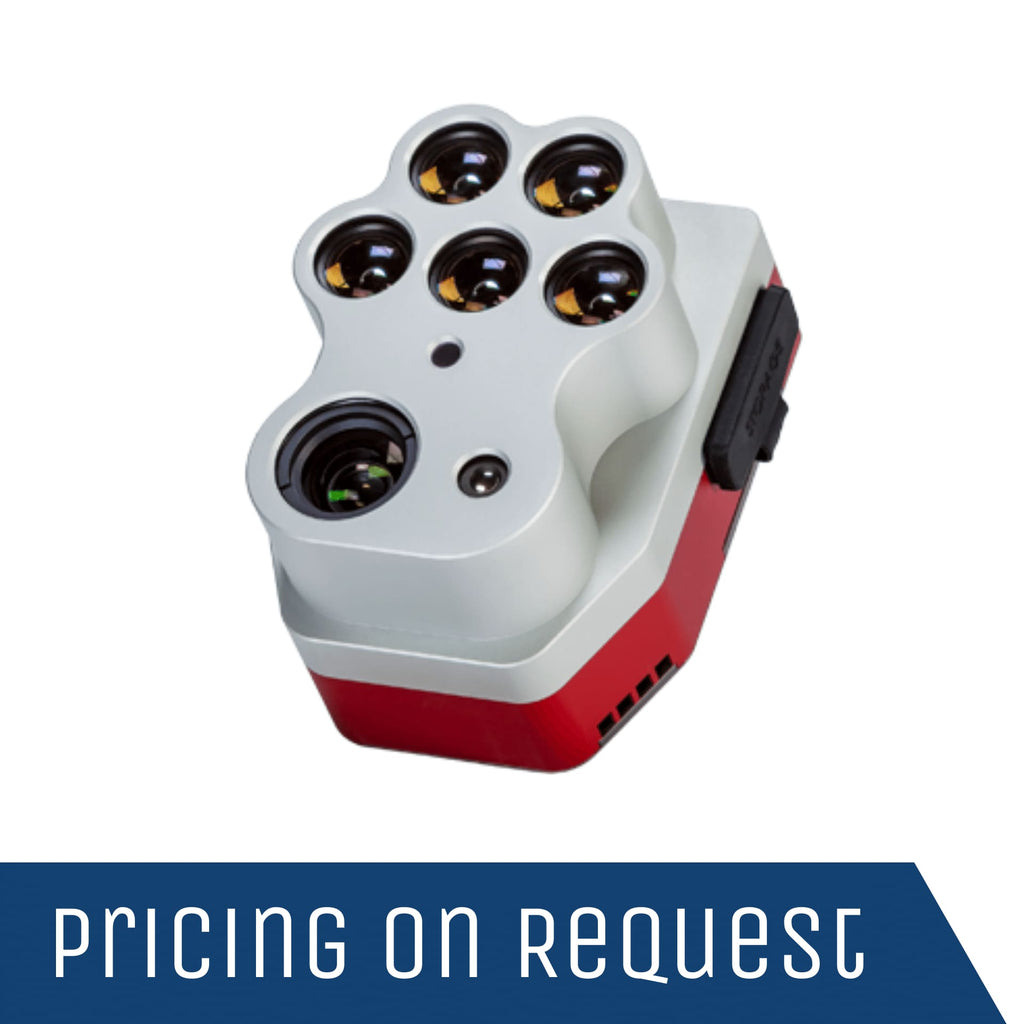

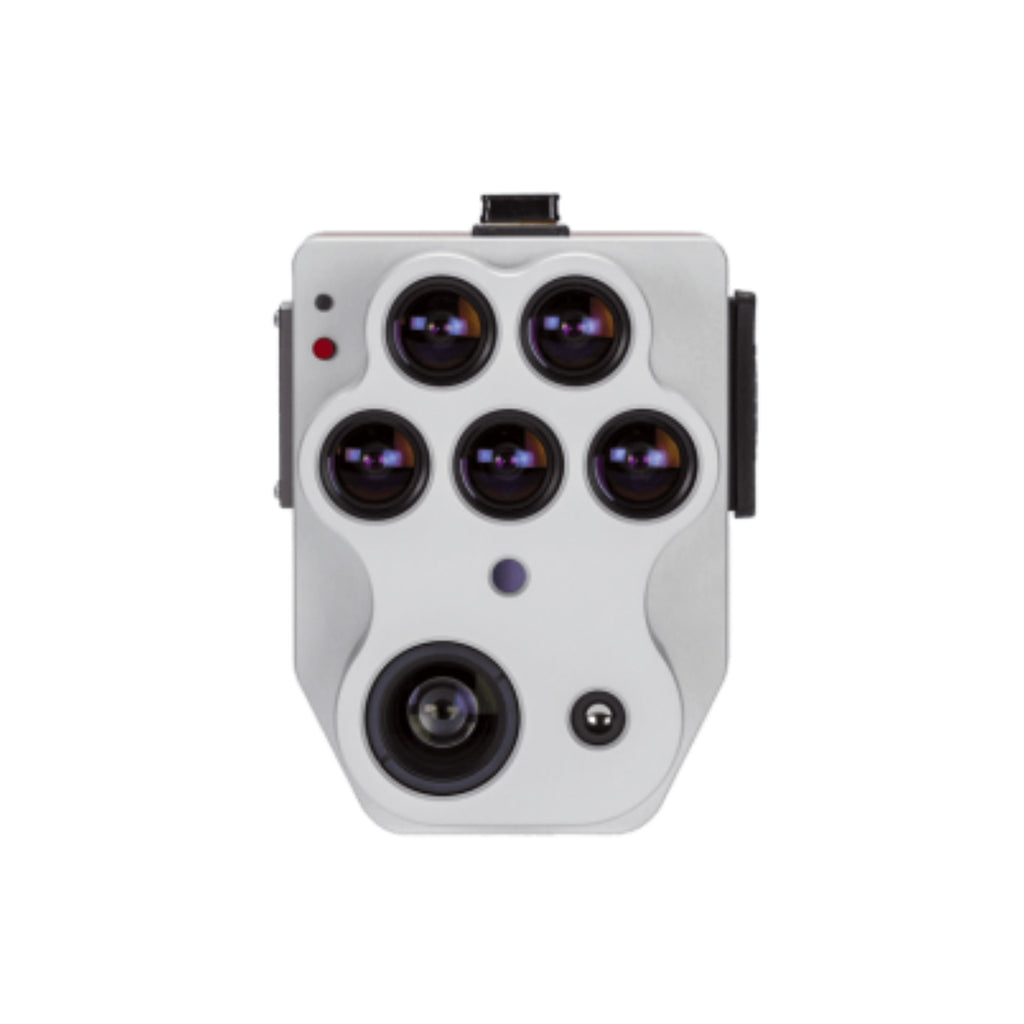

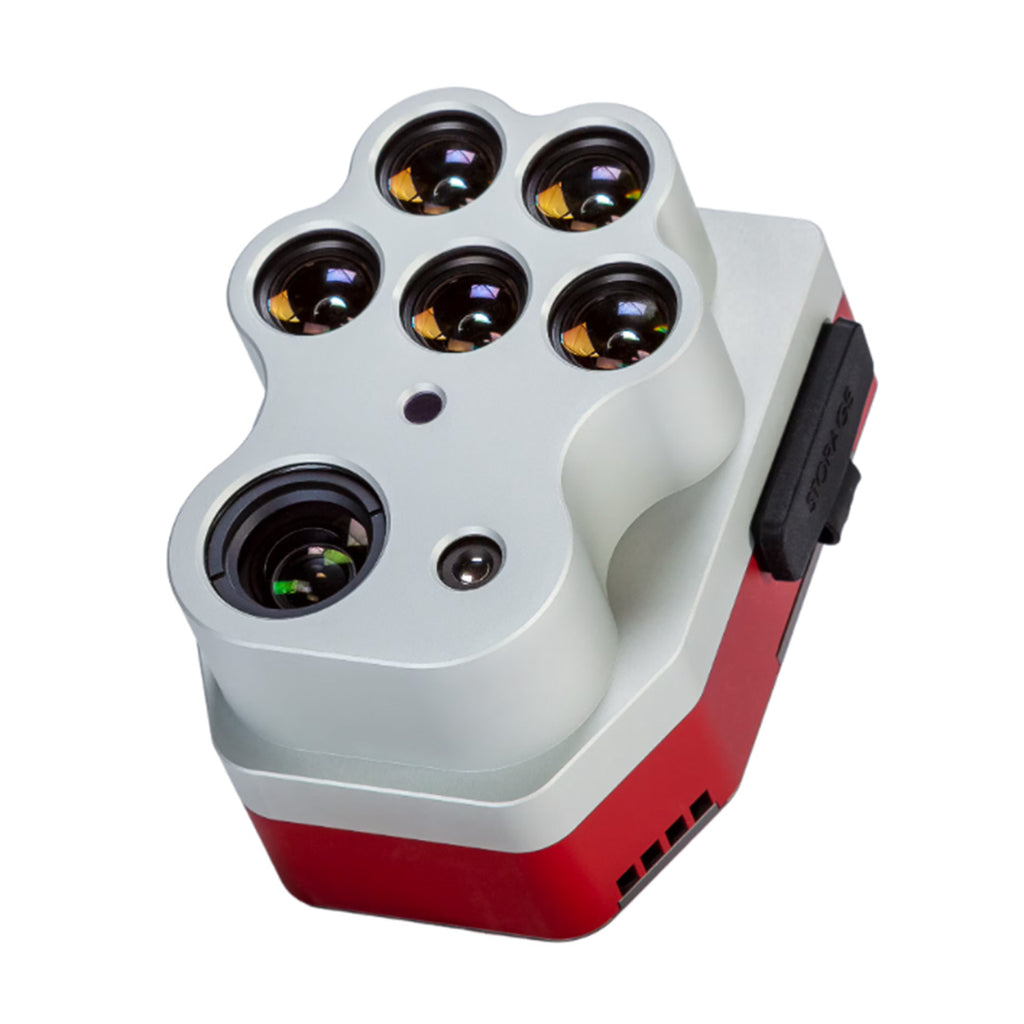

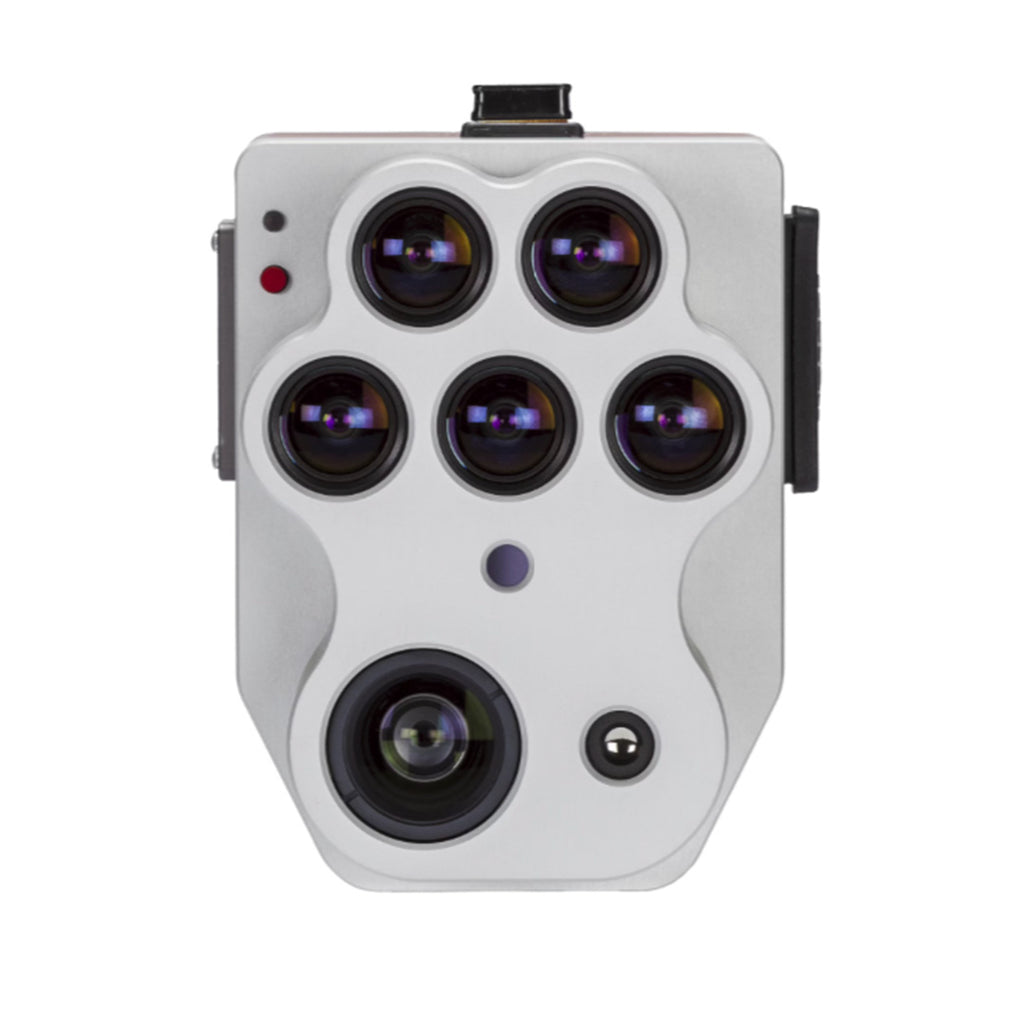

MicaSense AgEagle Altum-PT Synchronized Thermal & Multispectral Sensor

Altum-PT features a high resolution 12.4 MP panchromatic sensor, which allows for “pan-sharpening” of the multispectral imagery, increasing the spatial resolution of the multispectral data: 1.25 cm per pixel / 0.47 in per pixel pan-sharpened ground resolution when flying at 60 m / 200 ft .

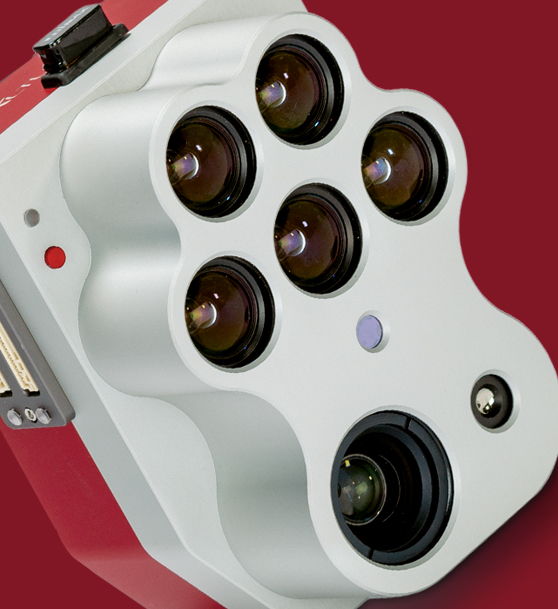

The built-in 320 x 256 FLIR Boson® thermal sensor enables accurate thermal maps at a GSD of 17 cm / 6.7 in from 60 m / 200 ft flight altitude.

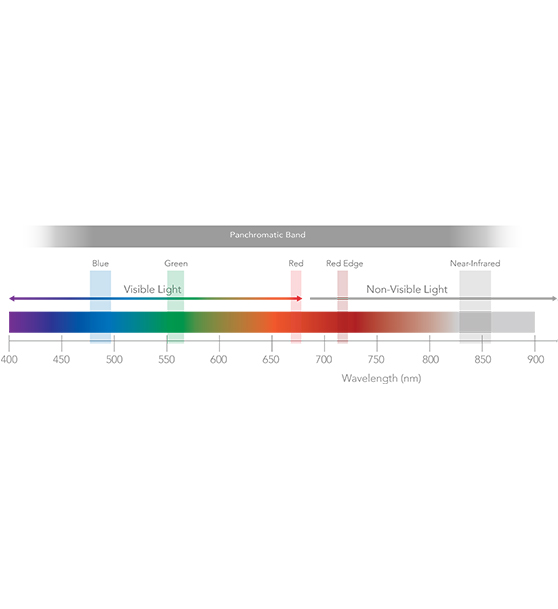

• Blue (475 nm center, 32 nm bandwidth)

• Green (560 nm center, 27 nm bandwidth)

• Red (668 nm center, 14 nm bandwidth)

• Red edge (717 nm center, 12 nm bandwidth)

• Near-IR (842 nm center, 57 nm bandwidth)

Altum-PT leverages CFexpress, a 2 TB removable storage that enables up to two captures per second*, immediate turnaround time between flights by swapping cards, and fast card-to-computer upload speeds for more efficient data management.

*depending on user configurations

The global shutter of Altum-PT allows for distortion-free image captures.

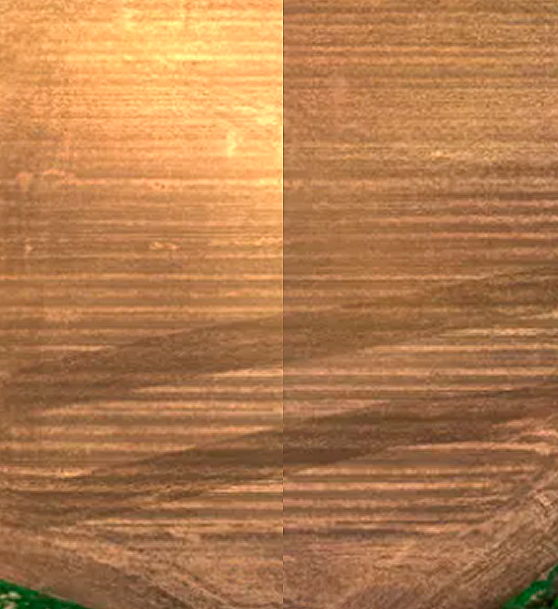

Each Altum-PT camera kit comes with a Reflectance Panel for on-the-ground calibration as well as a DLS2 light sensor for irradiance and sun angle measurements. These radiometric calibration tools account for different weather and light conditions, providing more accurate, reliable data that enable time series analysis and comparability of outputs over time.

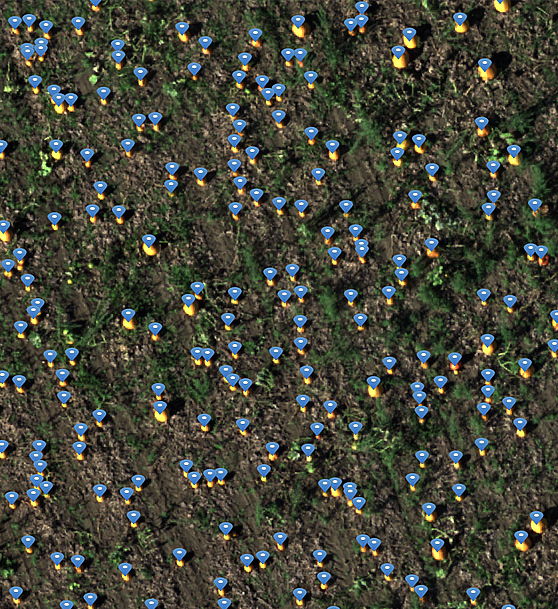

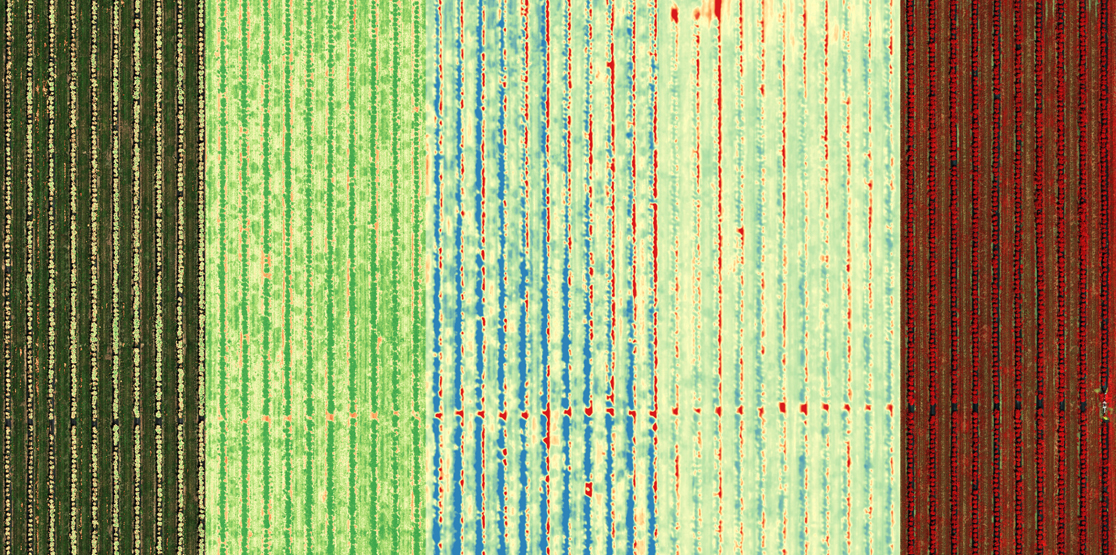

Thanks to the panchromatic band, Altum-PT enables high-resolution RGB, multispectral, and thermal imagery for machine learning applications such as plant counting and advanced vegetation research applications.

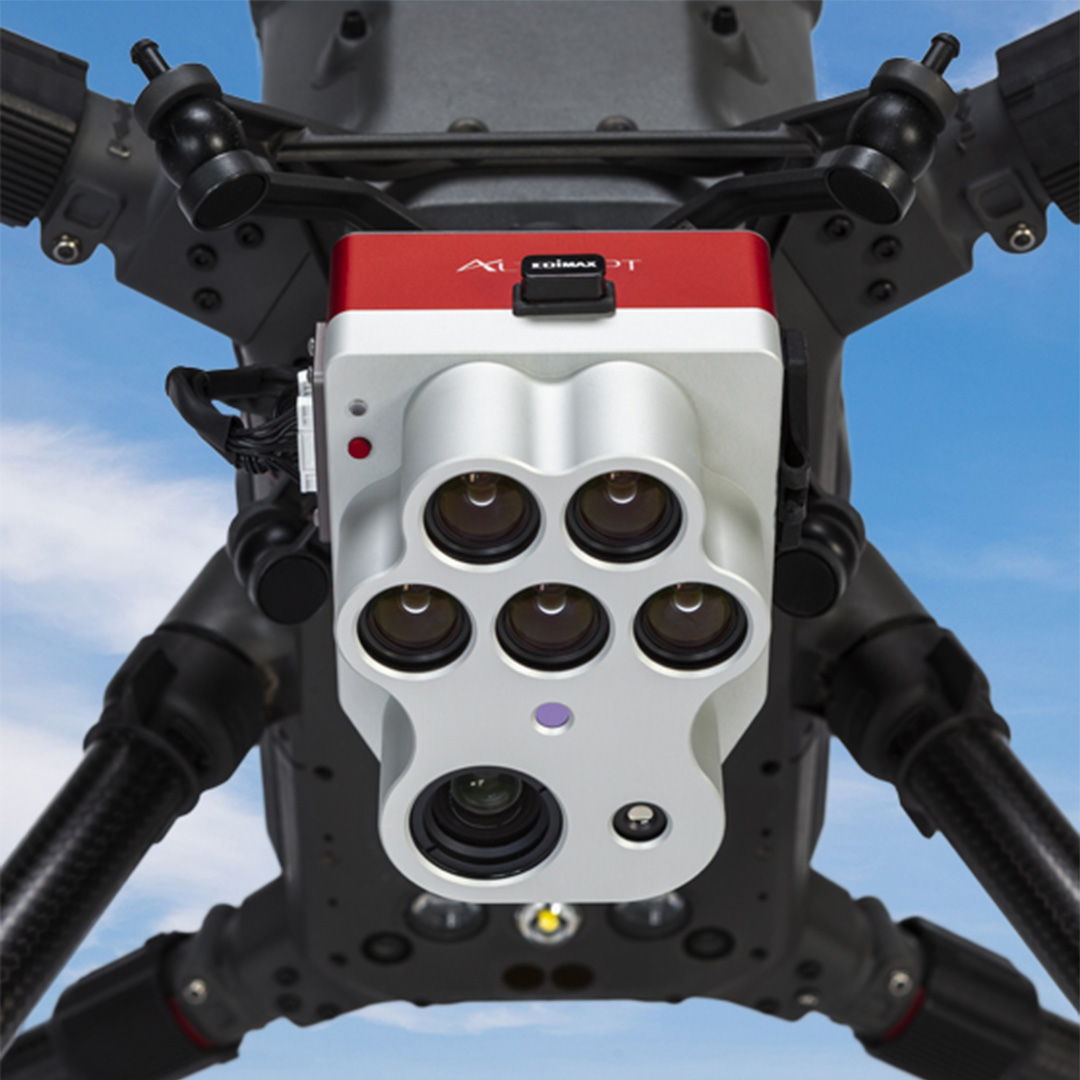

The Altum-PT SkyPort ensures perfect compatibility with DJI’s M300 RTK drones. The camera also features an open API interface for easy integration with many popular drone and software platforms.

Our products are designed upon customer feedback. The Altum-PT features twice the spatial resolution of previous Altum models, a faster capture rate and RTK support for DJI M300 anddM350 drones.

All MicaSense series sensors are NDAA compliant, designed, manufactured, and engineered in the USA.

Included:

• Altum-PT sensor
• DLS2 light sensor with embedded GPS
• CRP2 Calibrated Reflectance Panel
• USB Wi-Fi dongle
• Lens cover
• Integration cables
• Assorted mounting hardware
• CFexpress card
• CFexpress card reader
• Hard carrying case
• Start guide

RTK support for M300 drones. Trigger and control the camera through DJI’s flight planner.

Included:

• Altum-PT sensor
• DJI SkyPort mount
• DLS2 light sensor with embedded GPS
• CRP2 Calibrated Reflectance Panel
• USB Wi-Fi dongle
• Lens cover
• Integration cables
• Assorted mounting hardware
• CFexpress card
• CFexpress card reader
• Hard carrying case
• Start guide

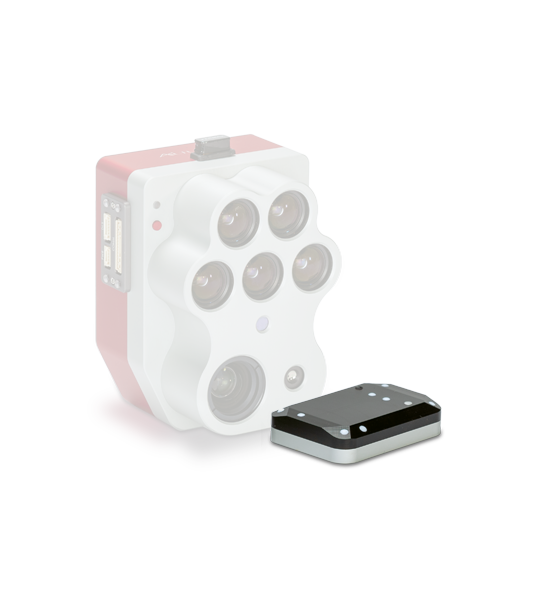

The Downwelling Light Sensor (DLS2) is an advanced incident light sensor. It measures the ambient light and sun angle for each of the five multispectral bands of the camera. This information can then be used by specialized processing tools to correct global lighting changes in the middle of a flight, such as those that can happen due to clouds covering the sun.

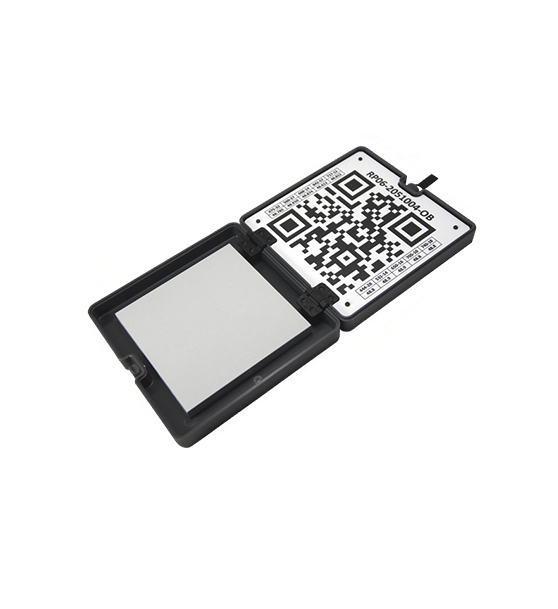

The Calibrated Reflectance Panel (CRP2) is a compact on the ground radiometric calibration tool. The panel has pre-measured reflectance values across the visible and near-infrared light spectrum and therefore acts as a “control”. Taking a picture of the calibration panel allows you to assign the known reflectance values and adjust your dataset accordingly during post-processing. As a best practice, CRP images should be captured before and after each flight to provide an accurate representation of light conditions during the flight.
