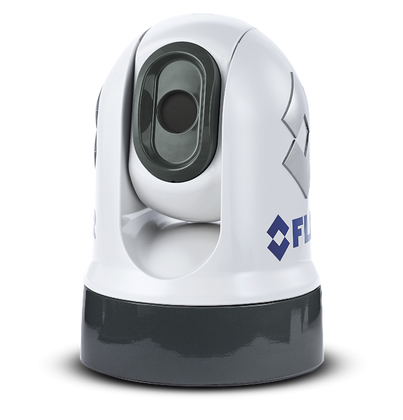

M232 Pan and Tilt Thermal Camera

The M232 pan and tilt camera is one of FLIR's smallest and affordable marine thermal cameras. Featuring a resolution of 320 × 240, the M232 improves safety by revealing vessels and obstacles at night. Enjoy 360 degree viewing while underway. Combine the M232 with a Raymarine Axiom MFD and take advantage of FLIR ClearCruise™ intelligent thermal analytics. ClearCruise™ provides audible and visual alerts when "non-water" objects such as boats, obstacles, ornavigation markers—appear in the scene. This enhances boaters’ overall situational awareness, both day and night. Installation Note: ClearCruise™ features are only available on conventional ball-up installations. ClearCruise™ is not available on ball-down installations. Please consult your FLIR dealer for more details.

• MAKE NAVIGATION SAFER

  The M232 improves navigation and safety by helping you see bridges, docks, buoys, and other vessels, night and day. The M232 also helps boaters find people in the water faster than using spotlights and radar alone.

• OPTIMIZED VIEWING

  M232 features a full 320x240 resolution for optimal horizon-to-horizon viewing and 4X continuous e-zoom

• EASY TO INSTALL ON ANY VESSEL

  The combination of the M232’s small, lightweight design and IP video connectivity make it a snap to install and integrate with multiple MFDs.

Combine the M232 with a Raymarine Axiom MFD and take advantage of FLIR's ClearCruise™ intelligent thermal analytics. ClearCruise™ provides audible and visual alerts when "non-water" objects—such as boats, obstacles, or navigation markers—appear in the scene. This enhances boaters’ overall situational awareness, both day and night.

The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.

What’s In the Box: Every M132 and M232 thermal camera includes:
• Camera unit
• Top down riser kit
• Thermal camera base-seal
• Right-angled RayNet to RayNet cable, 32 feet (10 meters)
• RayNet to RJ45 adapter cable, 4-inches (100mm)
• Right-angled 3-pin power cable, 32 feet (10 meters)
• Stainless steel mounting hardware kit
Notes: JCU3 joystick controller and IP to analog video decoder sold separately.
