Guide TU620 Thermal Scope

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.



Guide TU620

Thermal Scope

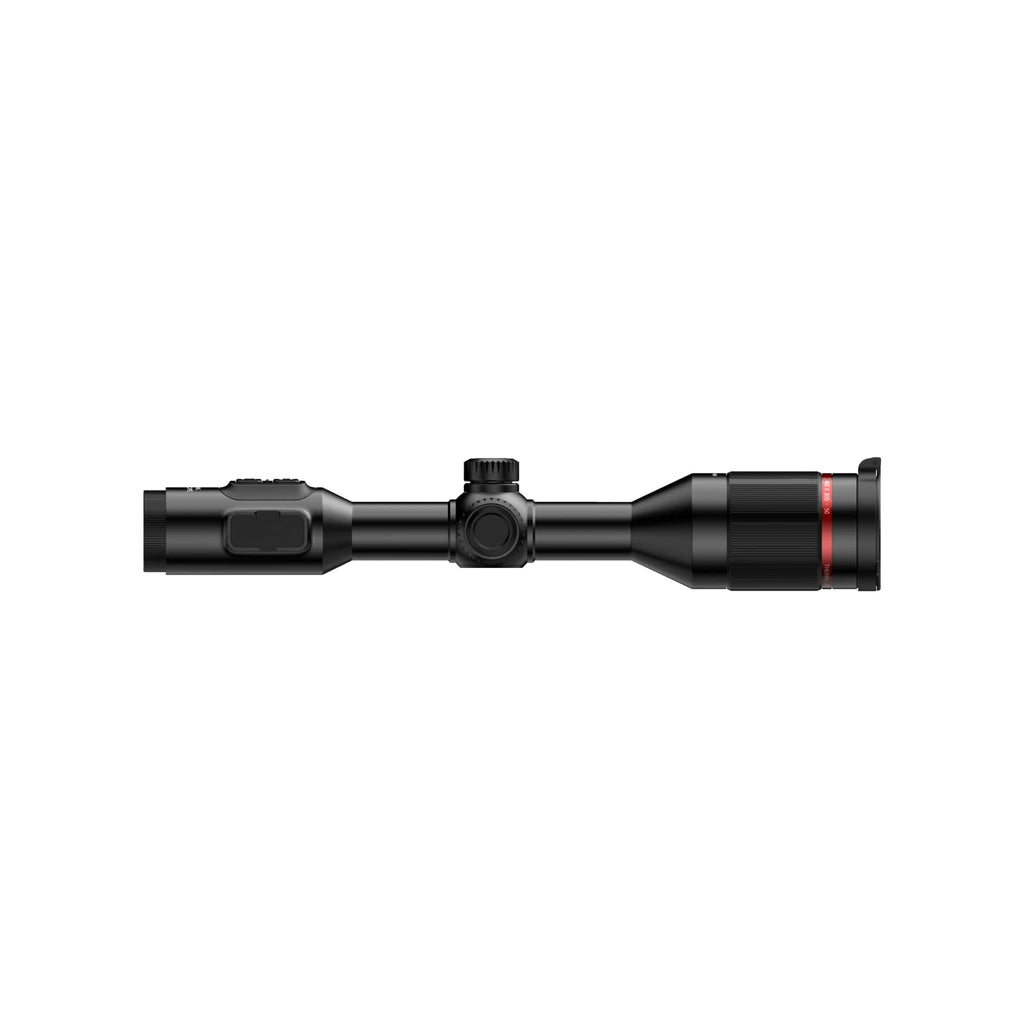

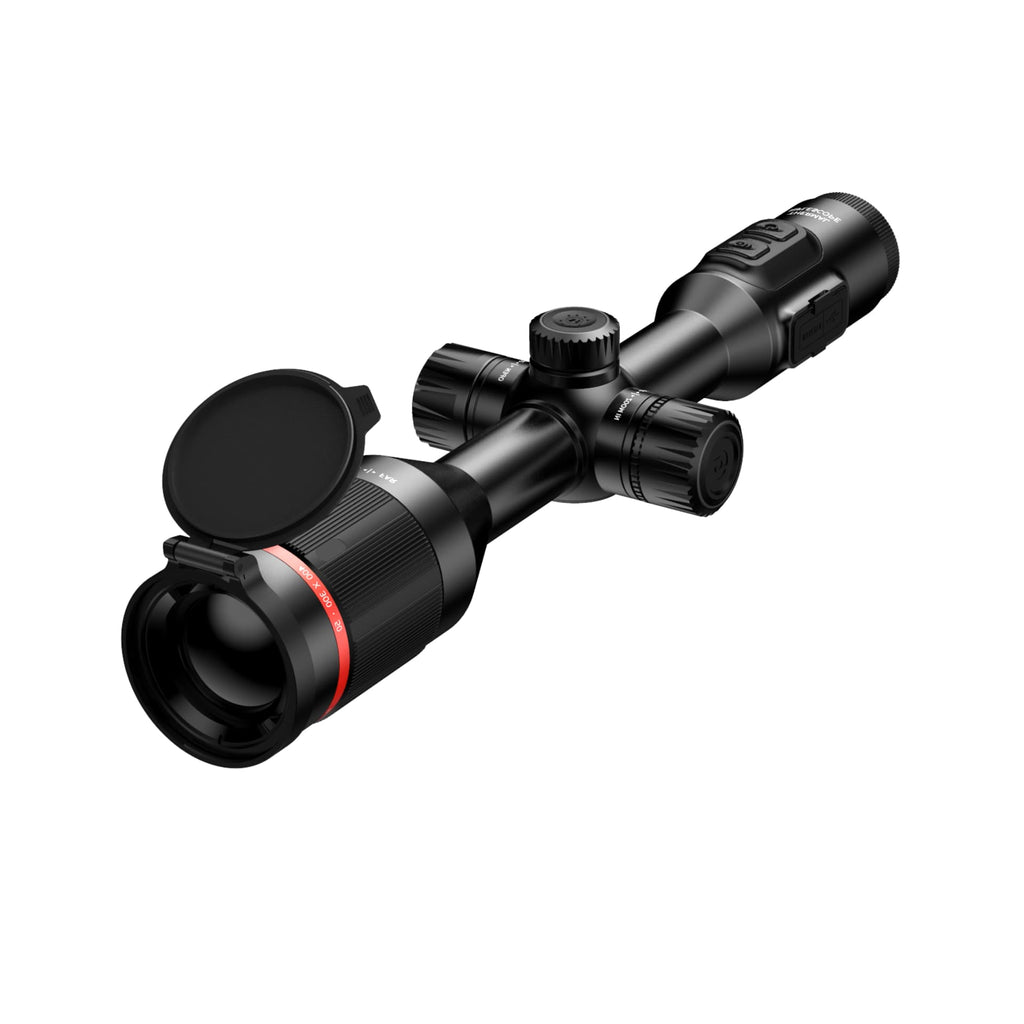

The Guide TU Thermal Scope retains the appearance of a traditional daylight scope and perfectly integrates the latest premium thermal imaging technology. The TU620's design accommodates long operation hours for hunters. The TU620 comprises of a 400x300 high- sensitivity thermal detector with a 25mm lens and 10 setting options for zero calibration configuration making it convenient to switch between different instruments.

Features:

  • 640×480@12μm, VOx Detector Type
  • 1000m Human Detection
  • 25mm Focal Length
  • 17.46°×13.14°FOV
  • 4X~11.2X Magnification



Note: Thermal Weapon Mountable Scopes are classified as Munitions Listed items (ML1D) under The Wassenaar Arrangement of which S.A. is a participating state. As such The National Conventional Arms Control Act requires that ownership may only lawfully take place once the purchasing company or individual are in possesion of a valid DCAC Registration Certificate and Possesion Permit. Dealers may not resell or market these products without a DCAC Registration Certificate, Brokering Permit and Marketing Permit. Please contact us for assistance.




Full-color OLED display

1024 x 768 Full-color OLED, high contrast, enhanced image quality, improved viewing comfort.





Smooth Zoom For Flexible Searching

By pressing anf holding the up/down button, users can easily zoom in and zoom out on targets. Making it easy to quickly pinpoint the target quickly .





Multiple Color Palettes to Highlight the Target

• Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.

• Supports a one-button switch to identify the location of the target instantly, helping to capture the target in any weather conditions.





Designed for Professional Hunters

The graticule density can be zoomed in simultaneously with the image, and the reticle line width can be maintained at any magnification, without having to refocus the image - avoiding errors, and helping hunters improve shooting accuracy.

Multiple scene modes,Highlight Target Clearly

Easily switch between “enhance/highlight/natural” with the touch of a button. The image can be adaptively adjusted in different environments. The “Enhance/Highlight” setting can effectively reduce image impurities to highlight the target.





Photo and Video Recording

The TU620 supports photos and videos, recording wonderfull moments at any time. Remote-control can be used via WIFI connection to transmit images and video. The APP allows you to share to your social media.





10 Hours, Extended operation times

Supporting 10 hours extended battery life. The TU Series has a dual battery system which consists of an internal battery and an external battery. The external battery can easily be replaced without powering off the unit , ensuring extended operating hours.



IP67 Protection Rated, Rugged and Robust

With an IP67 waterproof-rating for protection from heavy-rainfall, dust, and impact, operating temperatures from -30°C~50°C makes it suitable for all kinds of harsh weather. It also features UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.






Applications

Law Enforcement

Outdoor

Border Control


Media Gallery

Specifications 640 × 480, 12 μm

Infrared detector

Detector resolution and pitch

640 × 480, 12 μm

Spectral range

8~14μm

NETD

≤30mk @ F1 25℃

Lens

Focal length

25mm F1.0

Focusing mode

Manual focusing

Field angle

17.46° × 13.14°

Frame Rate

Output frame frequency

50Hz

Zoom

Optical zoom

1.4x

Digital zoom

1 – 8x

Display

Display type

0.39'' OLED

Resolution

1024 × 768

Eyepiece

Exit pupil distance ≥ 48 mm Exit pupil diameter ≥ 8 mm Diopter ± 4

Eyepiece zoom

14x

Video output

Digital Video

Button

Button Function

Power / Menu / Zoom / Photo / Video

System

Time setting

Available

Watermark settings

Closed, setting of date or date and time

PIP

Upper left, Upper middle, Upper right, Closed, PIP with division line

Restore to default

Available

Start up

18 s

Memory capacity

16 GB

Environmental

Operating temperature range

-30 ℃ to 50 ℃

Storage temperature range

-45℃ to 70 ℃

Humidity

10 % to 95 % non-condensing

Shock

500 G at 1 ms half sine pulse (as per IEC60068-2-27)

Vibration

10 Hz - 150 Hz - 10 Hz 0.15 mm (as per IEC60068-2-6)

Encapsulation

IP67

Certification

IP67, FCC, CE, Rohs, EAC, un38.3

Physical

Weight

≤980 g

Size (L × W × H)

367 × 107 × 69 mm

Standard

Type C cable, lens cap, 5V2A adapter (China, US, Britain, Australia and Europe), customized battery, customized battery charger (desktop charger), Micro HDMI cable, eye mask, two Picatinny rail clips, quick start guide

Optional

Bluetooth remote control, customized battery
