Guide TU430 Thermal Scope

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

Guide TU430

Thermal Scope

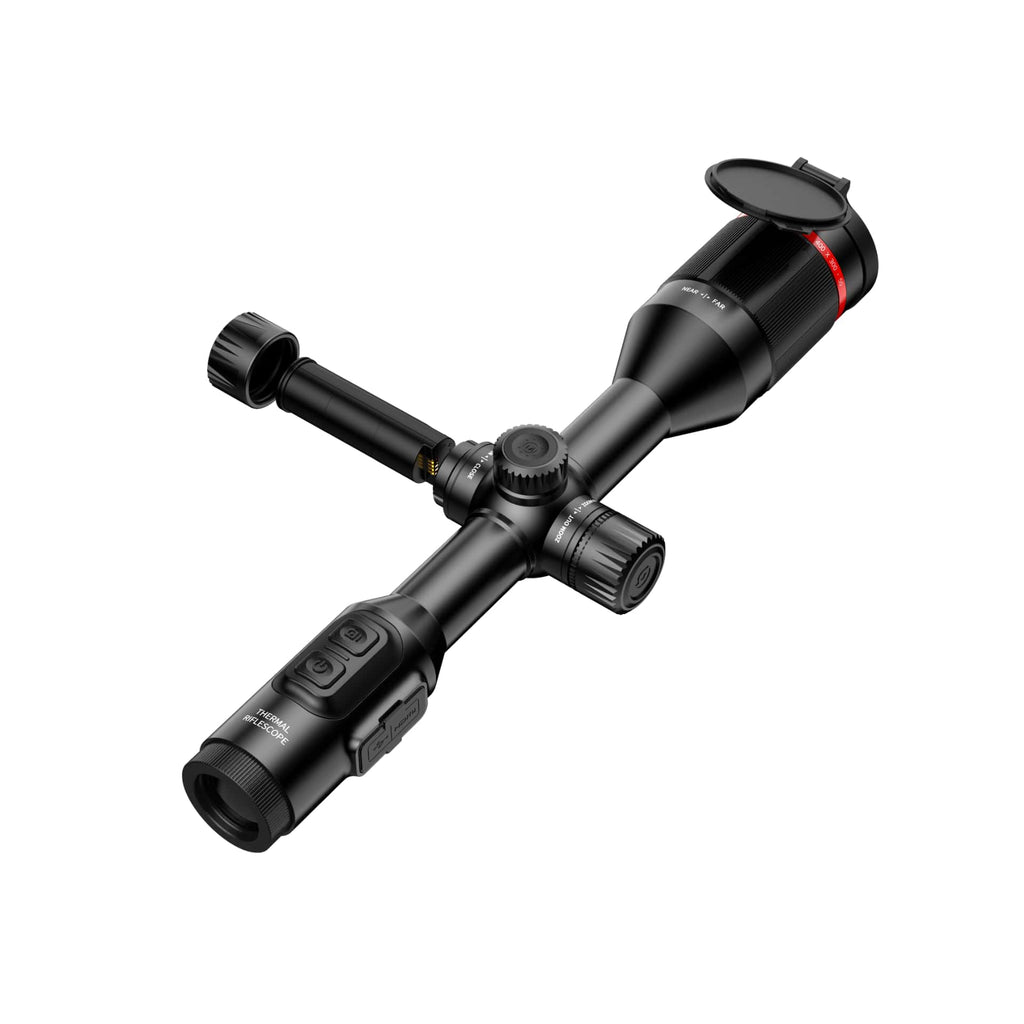

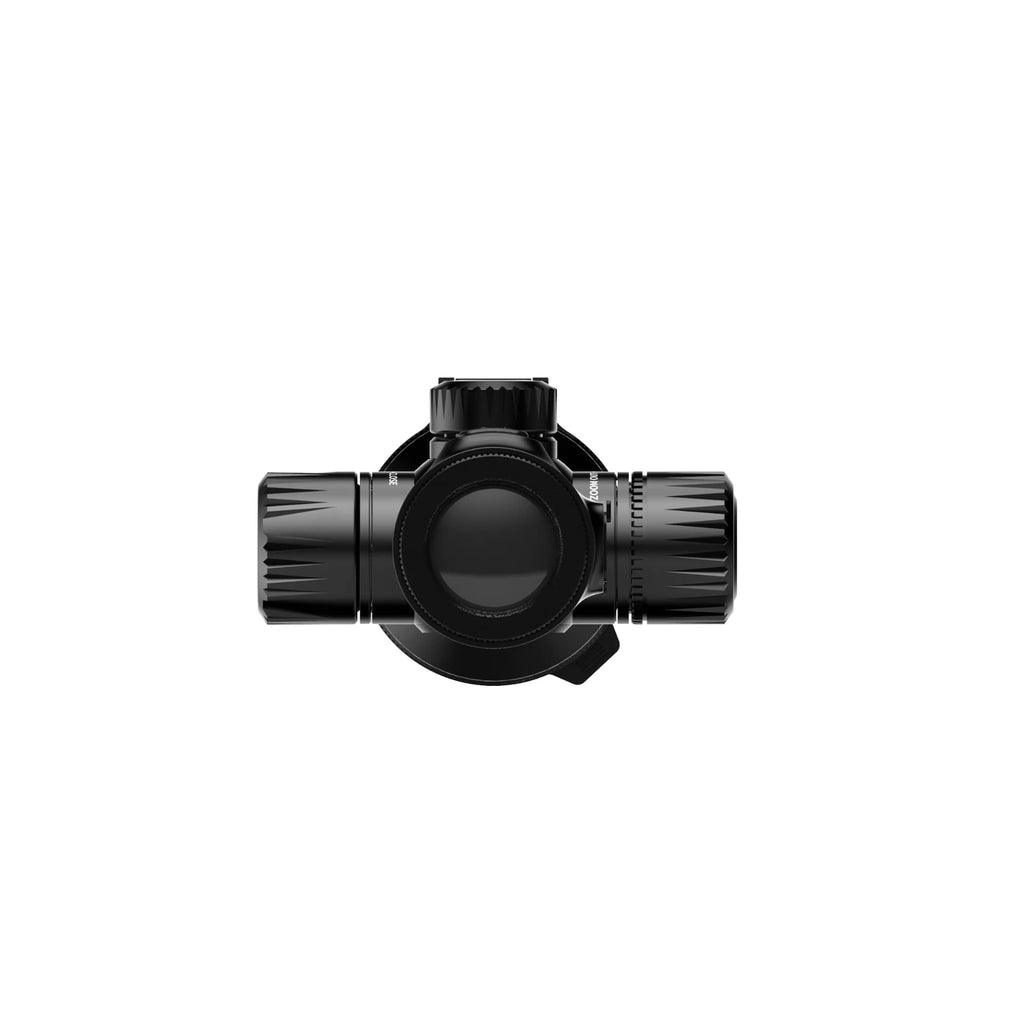

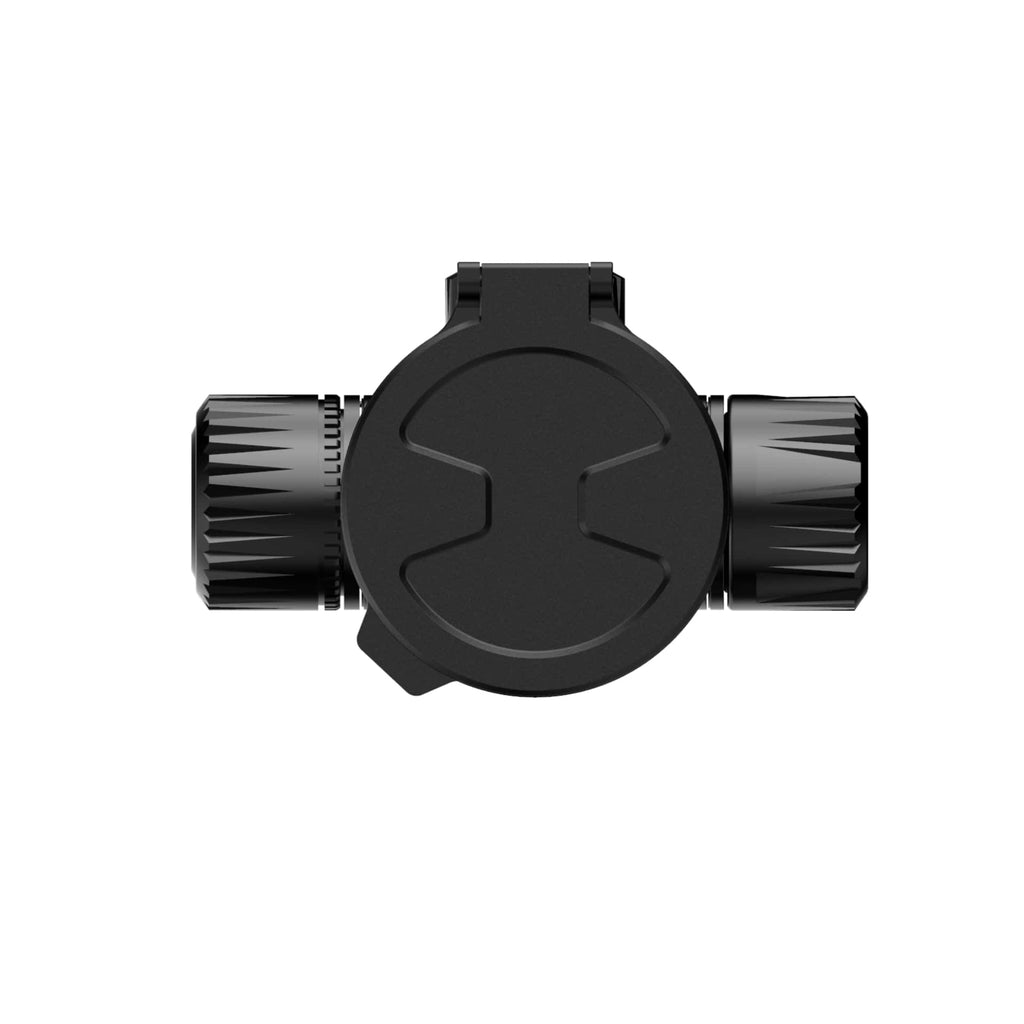

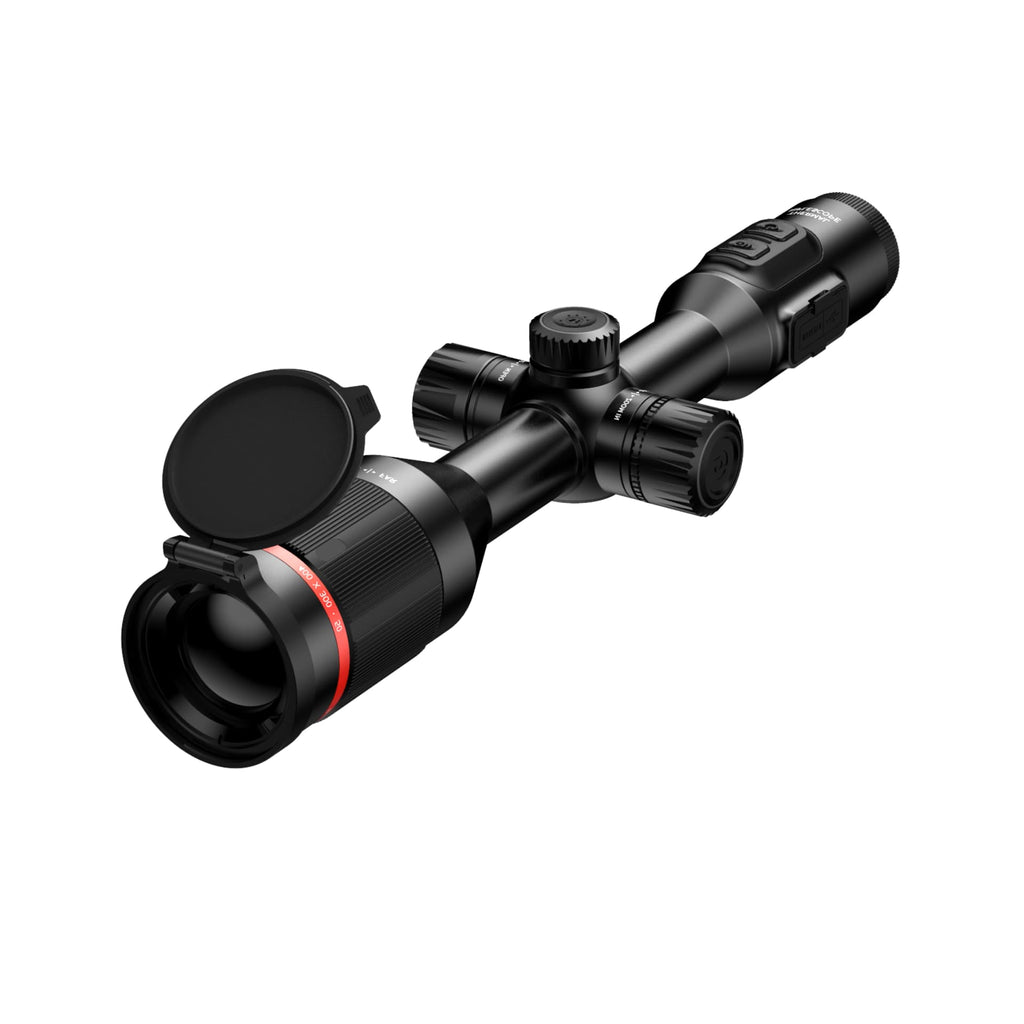

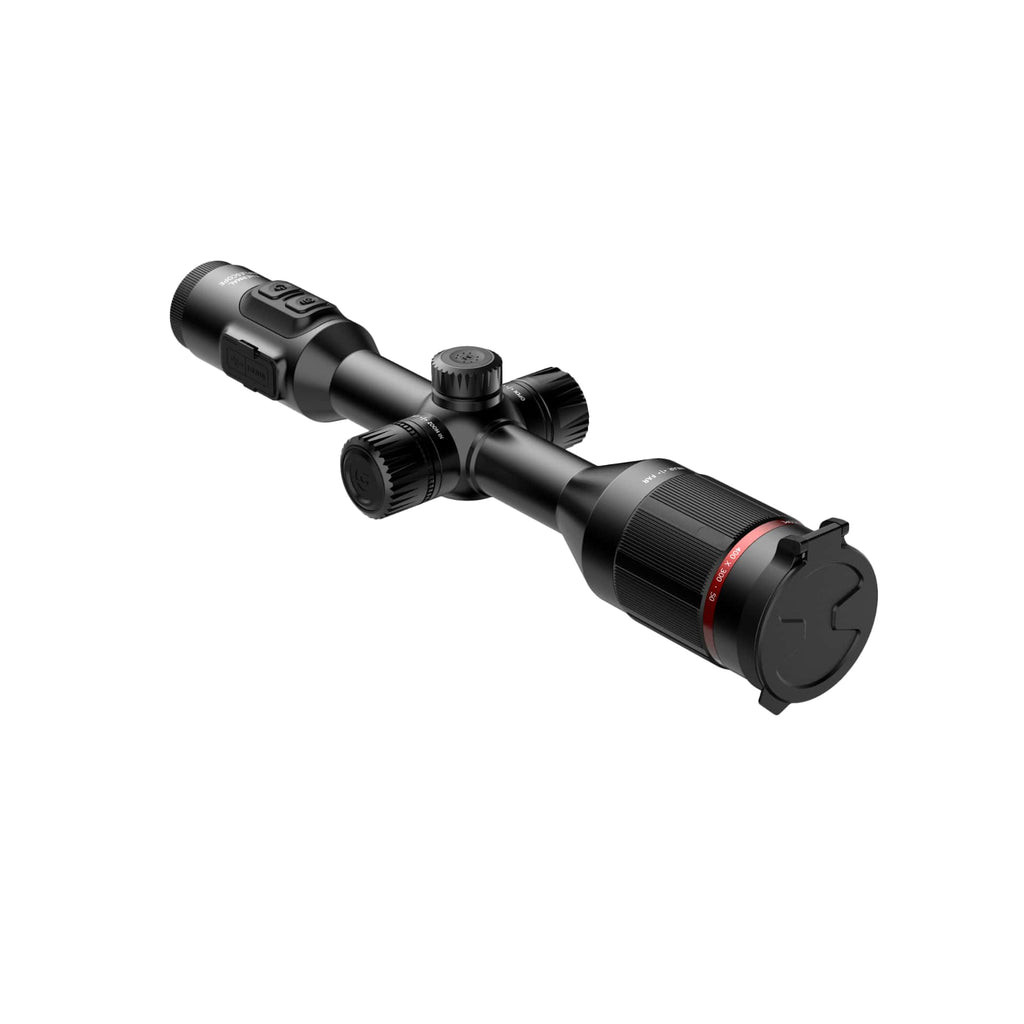

The Guide TU Thermal Scope retains the appearance of a traditional daylight scope and perfectly integrates the latest premium thermal imaging technology. The TU430's design accommodates long operation hours for hunters. The TU430 comprises of a 400x300 high- sensitivity thermal detector with a 35mm lens and 10 setting options for zero calibration configuration making it convenient to switch between different instruments.


  • 400*300 IR resolution
  • 1000m Human Detection
  • 35mm Focal Length
  • 11.1°×8.33° FOV
  • 2.3×~9.2× Magnification


Note: Thermal Weapon Mountable Scopes are classified as Munitions Listed items (ML1D) under The Wassenaar Arrangement of which S.A. is a participating state. As such The National Conventional Arms Control Act requires that ownership may only lawfully take place once the purchasing company or individual are in possesion of a valid DCAC Registration Certificate and Possesion Permit. Dealers may not resell or market these products without a DCAC Registration Certificate, Brokering Permit and Marketing Permit. Please contact us for assistance.


Full-color OLED display

1024 x 768 Full-color OLED, high contrast, enhanced image quality, improved viewing comfort.



Smooth Zoom For Flexible Searching

By pressing anf holding the up/down button, users can easily zoom in and zoom out on targets. Making it easy to quickly pinpoint the target quickly .



Multiple Color Palettes to Highlight the Target

• Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.

• Supports a one-button switch to identify the location of the target instantly, helping to capture the target in any weather conditions.



Designed for Professional Hunters

The graticule density can be zoomed in simultaneously with the image, and the reticle line width can be maintained at any magnification, without having to refocus the image - avoiding errors, and helping hunters improve shooting accuracy.

Multiple scene modes,Highlight Target Clearly

Easily switch between “enhance/highlight/natural” with the touch of a button. The image can be adaptively adjusted in different environments. The “Enhance/Highlight” setting can effectively reduce image impurities to highlight the target.



Photo and Video Recording

The TU430 supports photos and videos, recording wonderfull moments at any time. Remote-control can be used via WIFI connection to transmit images and video. The APP allows you to share to your social media.



10 Hours, Extended operation times

Supporting 10 hours extended battery life. The TU Series has a dual battery system which consists of an internal battery and an external battery. The external battery can easily be replaced without powering off the unit , ensuring extended operating hours.


IP67 Protection Rated, Rugged and Robust

With an IP67 waterproof-rating for protection from heavy-rainfall, dust, and impact, operating temperatures from -30°C~50°C makes it suitable for all kinds of harsh weather. It also features UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.




Law Enforcement


Border Control

Media Gallery


Infrared detector

Detector resolution and pitch

400 × 300, 17 μm

Spectral range



≤30mk @ F1 25℃


Focal length

35mm F1.2

Focusing mode

Manual focusing

Field angle

11.1° × 8.33°

Frame Rate

Output frame frequency



Optical zoom


Digital zoom

1 – 4x


Display type

0.39'' OLED


1024 × 768


Exit pupil distance ≥ 48 mm Exit pupil diameter ≥ 8 mm Diopter ± 4

Eyepiece zoom


Video output

Digital Video


Button Function

Power / Menu / Zoom / Photo / Video


Time setting


Watermark settings

Closed, setting of date or date and time


Upper left, Upper middle, Upper right, Closed, PIP with division line

Restore to default


Start up

18 s

Memory capacity

16 GB


Operating temperature range

-30 ℃ to 50 ℃

Storage temperature range

-45℃ to 70 ℃


10 % to 95 % non-condensing


500 G at 1 ms half sine pulse (as per IEC60068-2-27)


10 Hz - 150 Hz - 10 Hz 0.15 mm (as per IEC60068-2-6)




IP67, FCC, CE, Rohs, EAC, un38.3



≤940 g

Size (L × W × H)

367 × 107 × 69 mm


Type C cable, lens cap, 5V2A adapter (China, US, Britain, Australia and Europe), customized battery, customized battery charger (desktop charger), Micro HDMI cable, eye mask, two Picatinny rail clips, quick start guide


Bluetooth remote control, customized battery
