Guide TR420 Thermal Imaging Scope

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

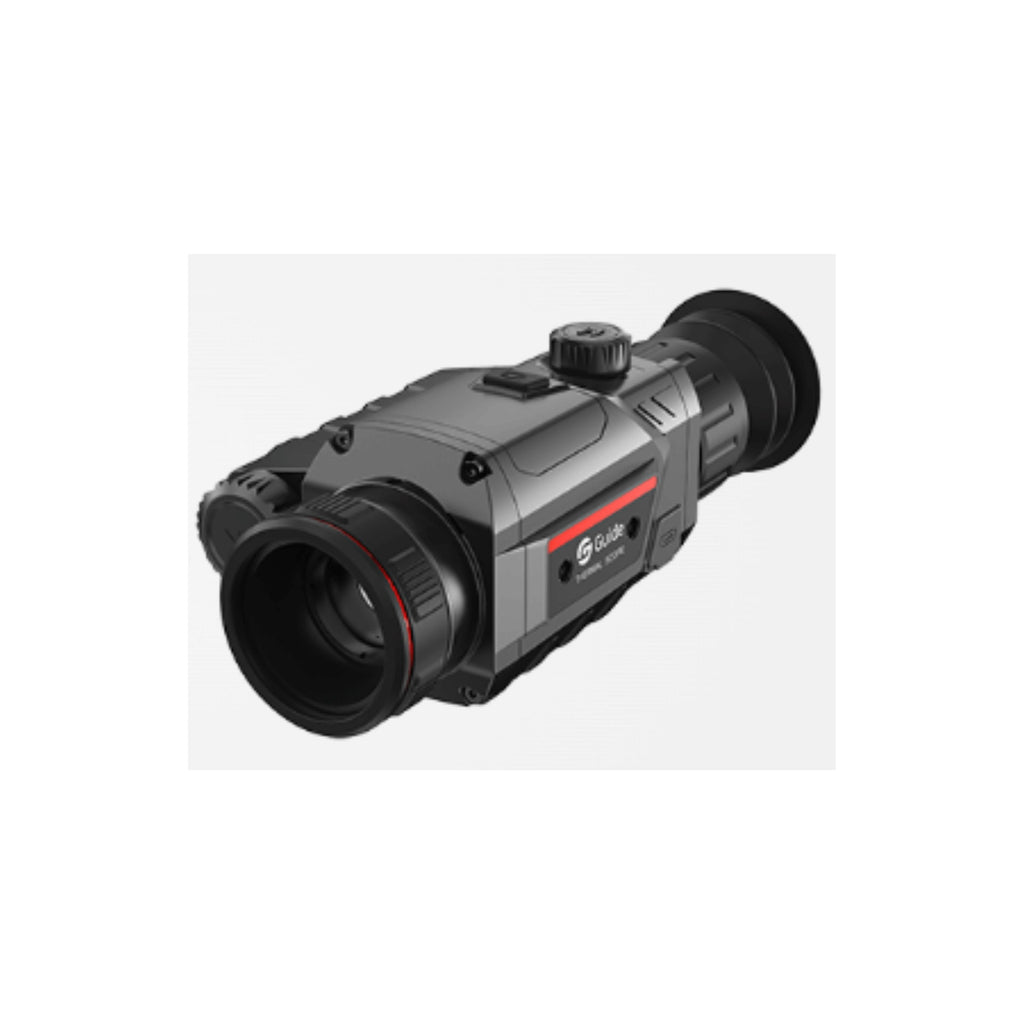

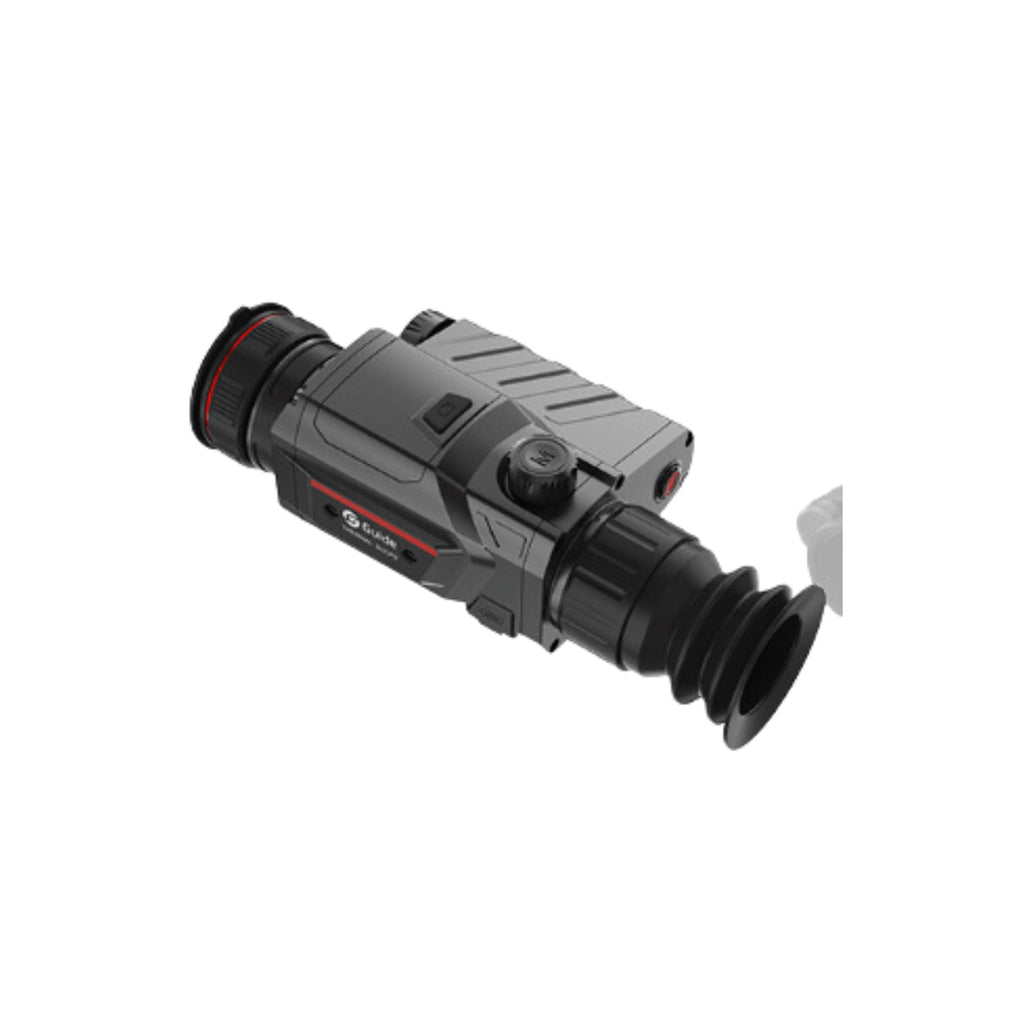

Guide TR420

Thermal Scope

Step into the realm of cutting-edge thermal imaging technology with the Guide TR420 Thermal Scope. As a prominent member of the TR Series, this civilian infrared scope offers an economical yet exceptional solution for enthusiasts and professionals alike. Equipped with a high sensitivity thermal detector and available in three lens options - 25mm, 35mm, and 50mm - the TR420 delivers sharp and detailed images, boasting an impressive 384 × 288 IR resolution without compromising accuracy. Its compact size, waterproof and dustproof design, high shock resistance, and rugged durability make the TR420 an exceptional choice, ensuring outstanding performance even in the harshest weather conditions. Experience the pinnacle of thermal imaging with the Guide TR420 Thermal Scope.


Features:

  • 384x288 IR esolution
  • 1000m Human Detection
  • 25mm F1.0 Focal Length
  • 10.44°×7.87° FOV
  • 1024×768 OLED display



Note: Thermal Weapon Mountable Scopes are classified as Munitions Listed items (ML1D) under The Wassenaar Arrangement of which S.A. is a participating state. As such The National Conventional Arms Control Act requires that ownership may only lawfully take place once the purchasing company or individual are in possesion of a valid DCAC Registration Certificate and Possesion Permit. Dealers may not resell or market these products without a DCAC Registration Certificate, Brokering Permit and Marketing Permit. Please contact us for assistance.




Guide TR Series Banner

8 Hours Super Long Battery Life

The standard 18650 battery provides enough power for
up to 8 hoursof operation time, ensuring continuous
bservation without disptions

Guide TR Series Banner

Photo and Video Recoring

The TR Series features photo and video functions
to capture wonderful moments at any time,
and making it easy to share

High Defenition Detector

The TR Series employs top-tier 12µm thermal imaging detectors, boasting a 384×288 resolution that ensures remarkably sharp imagery and exceptional thermal sensitivity across diverse weather conditions.

High Definition Detector
Guide TR Series Scope

Full-color HD OLED Display

Experience the brilliance of the full-color 0.39-inch HD OLED display, boasting 1024×768 pixels. Immerse yourself in sharp, vivid, and richly contrasted images that flawlessly capture every moment with impeccable detail.

One-touch Freeze

Enhance user convenience and accuracy with the quick and effortless screen freeze for zeroing, ultimately elevating the overall user experience.





One touch freeze
External Laser Range Finder

External Laser Range Finder

The TR series incorporates an external laser range finder, enabling precise distance measurement of up to 600 meters. This quick and accurate target searching feature eliminates the need for manual pairing, allowing for seamless direct connection upon booting.

Six Color Palettes

Enhance visibility across diverse conditions with the availability of 6 color palettes. Optimal for object detection are White Hot, Black Hot, and Red Hot. Increase recognition and identification opportunities with Green Hot, Iron Red, and Blue Hot palettes.





Six Color Palettes
IP67 Protection Rating

IP67 Protection Rating

Sporting an IP67 waterproof and dustproof rating, the TR Series thrives in high humidity and heavy rainfall, shielding against dust and impact. Its remarkable shock resistance of up to 800G ensures durability and reliable performance in demanding scenarios.





OTA Upgrade

Achieve optimal efficiency through streamlined device firmware updates by seamlessly connecting to TargetIR.



OTA Upgrade

Applications

Law Enforcement

Outdoor

Border Control


Media Gallery

Guide TR Thermal image
Guide TR Thermal image
Guide TR Thermal image
Specifications

Infrared detector

Detector resolution and pitch

384 × 288, 12 μm

Spectral range

8~14μm

NETD

≤30mk @ F1 25℃

Lens

Focal length

25mm F1.0

Focusing mode

Manual focusing

Field angle

10.44° × 7.87°

Frame Rate

Output frame frequency

50Hz

Zoom

Optical zoom

2.4x

Digital zoom

1x – 4x

Display

Display type

0.39'' OLED

Resolution

1024 × 768

Eyepiece

Exit pupil distance ≥ 48 mm Exit pupil Diopter ± 4

Eyepiece zoom

14x

Video output

Analog Video

Button

Button Function

Power / Menu / Zoom / Photo / Video

System

Time setting

Available

Watermark settings

Closed, setting of date or date and time

PIP

Upper left, Upper middle, Upper right, Closed, PIP with division line

Restore to default

Available

Start up

18 s

Memory capacity

16 GB

Environmental

Operating temperature range

-30 ℃ to 50 ℃

Storage temperature range

-45℃ to 70 ℃

Humidity

10 % to 95 % non-condensing

Shock

800 G at 1 ms half sine pulse (as per IEC60068-2-27)

Vibration

10 Hz - 150 Hz - 10 Hz 0.15 mm (as per IEC60068-2-6)

Encapsulation

IP67

Certification

IP67, FCC, CE, RoHS, EAC, WEEE, UKCA, un38.3

Physical

Weight

≤540 g

Size (L × W × H)

202 × 88 × 66 mm

Standard

Type C cable, 5V2A adapter (US, Britain, Australia and Europe),18650 battery, Battery charger, lens cap, eye mask, quick start guide, warranty card

Optional

18650 battery, Dovetail guide, Bluetooth remote control, Laser rangefinder
