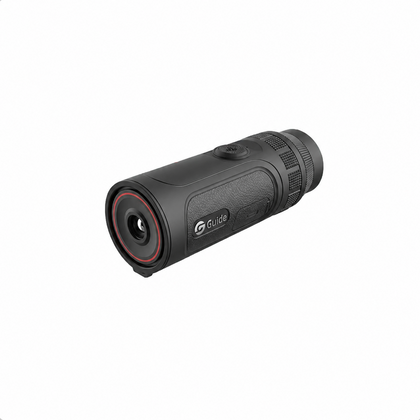

Guide TE210S Compact Thermal Imaging Monocular

Name: Guide TE210S Compact Thermal Imaging Monocular
Brand: Guide
Availability: OutOfStock
Rating: 5 (5 reviews)

Sale
Regular price R 0.00

Tax included. Shipping calculated at checkout.

GUIDE TE210S HANDHELD THERMAL IMAGING MONOCULAR

Small in Size. Sharp in Vision.

Discover clear thermal vision in a compact, ultra-lightweight design with the Guide TE210S. Built around a high-sensitivity 256 × 192 @ 12 μm infrared detector, 15 mK thermal sensitivity and Guide’s advanced ApexVision S1 imaging architecture, it delivers crisp and smooth thermal imagery in complete darkness and low-contrast conditions.

The 10 mm F1.0 focus-free lens provides a wide field of view and a detection range of up to 500 metres. Weighing only 228 g, the TE210S is exceptionally easy to carry and operate, with a streamlined one-button and one-ring control system that keeps essential functions within easy reach.

A built-in rechargeable battery provides up to six hours of operation, while 20 W quick charging delivers approximately one hour of use from a ten-minute charge. With dual-band Wi-Fi, Bluetooth, photo and video recording with audio, 64 GB of internal storage and IP67 protection, the TE210S is ready for security observation, search and rescue, wildlife monitoring and outdoor exploration.

Get a Quote

GUIDE TE210S KEY FEATURES

GoThermal FLIR Assetlink FROM CAPTURE TO CLARITY - INSTANTLY

See More, See Clearly

The TE210S combines a 256 × 192 @ 12 μm detector, 15 mK thermal sensitivity and a smooth 50 Hz frame rate to produce clear, detailed thermal imagery. Its detection range of up to 500 metres helps users locate heat signatures across open terrain, even when temperature contrast is limited.

GoThermal FLIR Assetlink INSIGHTS THAT DRIVE RELIABILITY

Compact, Tough and Field-Ready

Weighing only 228 g, the TE210S is pocket-sized, lightweight and easy to carry. Its IP67-rated housing, six-hour operating time and 20 W quick-charging support make it a dependable thermal companion for changing weather and extended outdoor use.

GoThermal FLIR Assetlink DASHBOARDS THAT TELL THE WHOLE STORY

Simple Control and Smart Connectivity

Focus-free optics and a streamlined one-button, one-ring interface keep operation fast and intuitive. Dual-band Wi-Fi, Bluetooth, 64 GB of internal storage and audio-enabled recording make it easy to capture, store and share observations from the field.

Guide TE210S 256 by 192 thermal detector with 12 micrometre pixel pitch

APEXVISION CLARITY IN EVERY DETAIL

The Guide TE210S features the complete ApexVision S1 system architecture, combining the ApexCore S1 detector, Nexus 1.0 processing platform and Hyper-Light 2.0 imaging algorithm.

Together with its high-sensitivity 256 × 192 @ 12 μm detector and 15 mK NETD, the system reveals subtle temperature differences and produces clearer target definition in darkness, mist, humidity and other low-contrast conditions. Its 50 Hz frame rate keeps moving subjects smooth and easy to follow.

LIGHTWEIGHT POWER THAT LASTS

The TE210S combines an ultra-lightweight 228 g body with a built-in rechargeable battery that provides up to six hours of operating time.

Support for 20 W quick charging helps reduce downtime in the field. A ten-minute charge can provide approximately one hour of continuous use, making the TE210S a practical choice for outdoor observation, security patrols and search operations.

Guide TE210S six-hour battery life with 20 watt quick charging

Guide TE210S with ApexVision S1 thermal imaging technology

SIMPLE, SMOOTH AND COMFORTABLE CONTROL

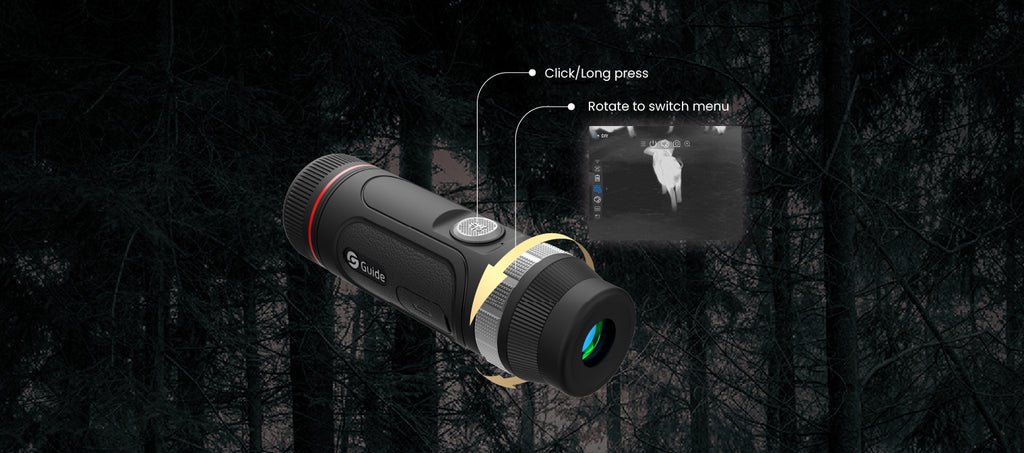

The TE210S is designed for quick and uncomplicated operation. Its focus-free lens removes the need for constant manual adjustment, while the streamlined one-button and one-ring control system provides easy access to menus and essential functions.

A clear 0.32-inch AMOLED display, comfortable eyepiece and 25 mm eye relief help reduce eye strain during longer observation sessions. The compact housing is comfortable to hold and simple to operate with one hand.

Sensor
Core technology	Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0
Type	Uncooled VOx Infrared Detector, 8 to 14 μm
Resolution	256 × 192 @ 12 μm
NETD	15 mK
Frame rate	50 Hz

Lens
Objective lens	10 mm, F1.0
Field of view	17.5° × 13.1°
FOV m@100m	31 × 23 m
Magnification	1.2× to 4.8×
Detection range	500 m / 550 yd
Focus	Focus-free

Display
Display type	0.32-inch AMOLED, 800 × 600
Color palettes	White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece	Eye relief: 25 mm; Dioptre: −5 to +5; Zoom: 13.8×

Hardware
WIFI	2.4G, 5G
Interface	USB-C, charging, power supply and USB 2.0
Additional hardware	Microphone, Bluetooth

System
Recording function	Photo and video, audio recording included
Memory capacity	64 GB

Power
Battery type	Built-in battery
Operating time	6 hours, supports 20 W quick charging

Environmental
Operating temp.	−20°C to 50°C / −4°F to +122°F
Encapsulation	IP67

Physical
Weight (g/oz)	228 g / 8.04 oz
Size (mm/in)	47 × 47 × 132 mm / 1.85 × 1.85 × 5.20 in
Standard	Device, Wrist strap, Carry bag, Lint-free cloth, USB-A to USB-C cable, Quick-start guide, Warranty card
Optional	Bluetooth remote control, Quick-charging adapter, USB-C to USB-C cable
