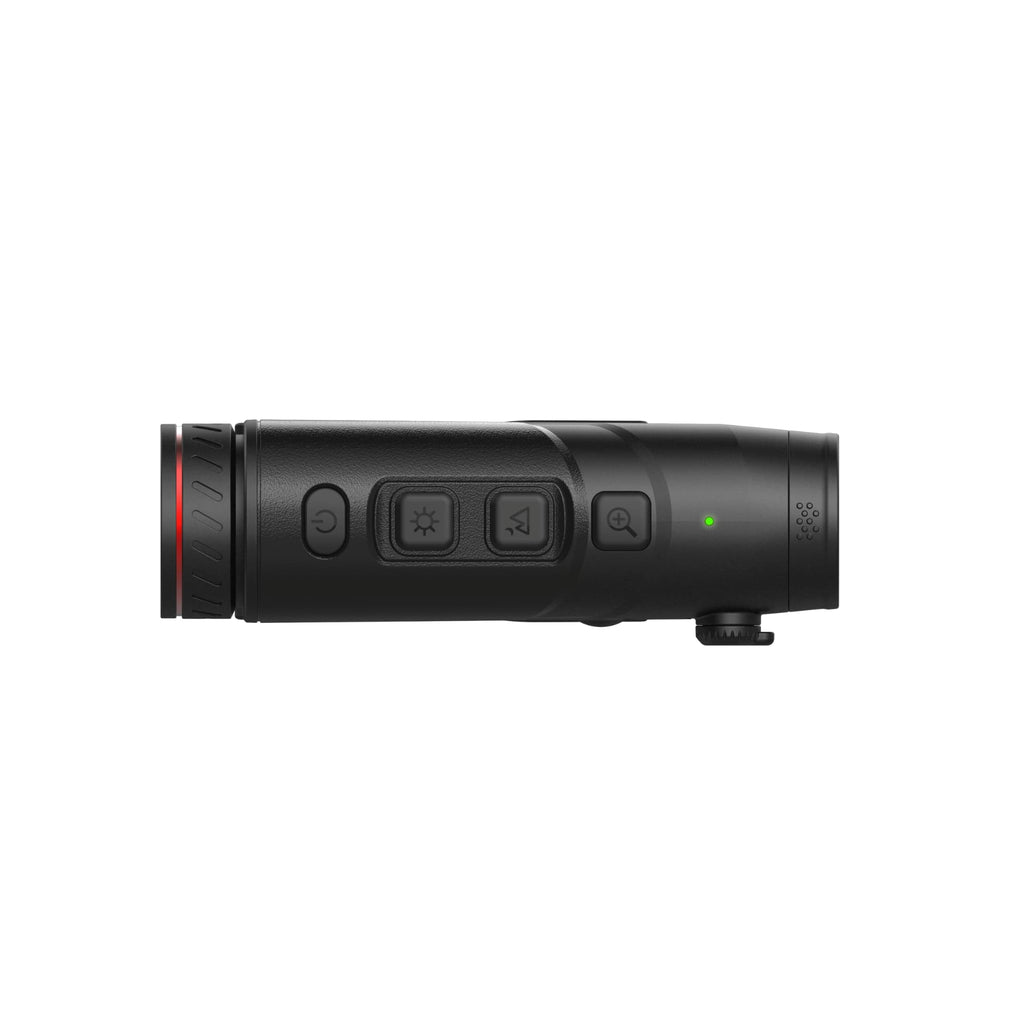

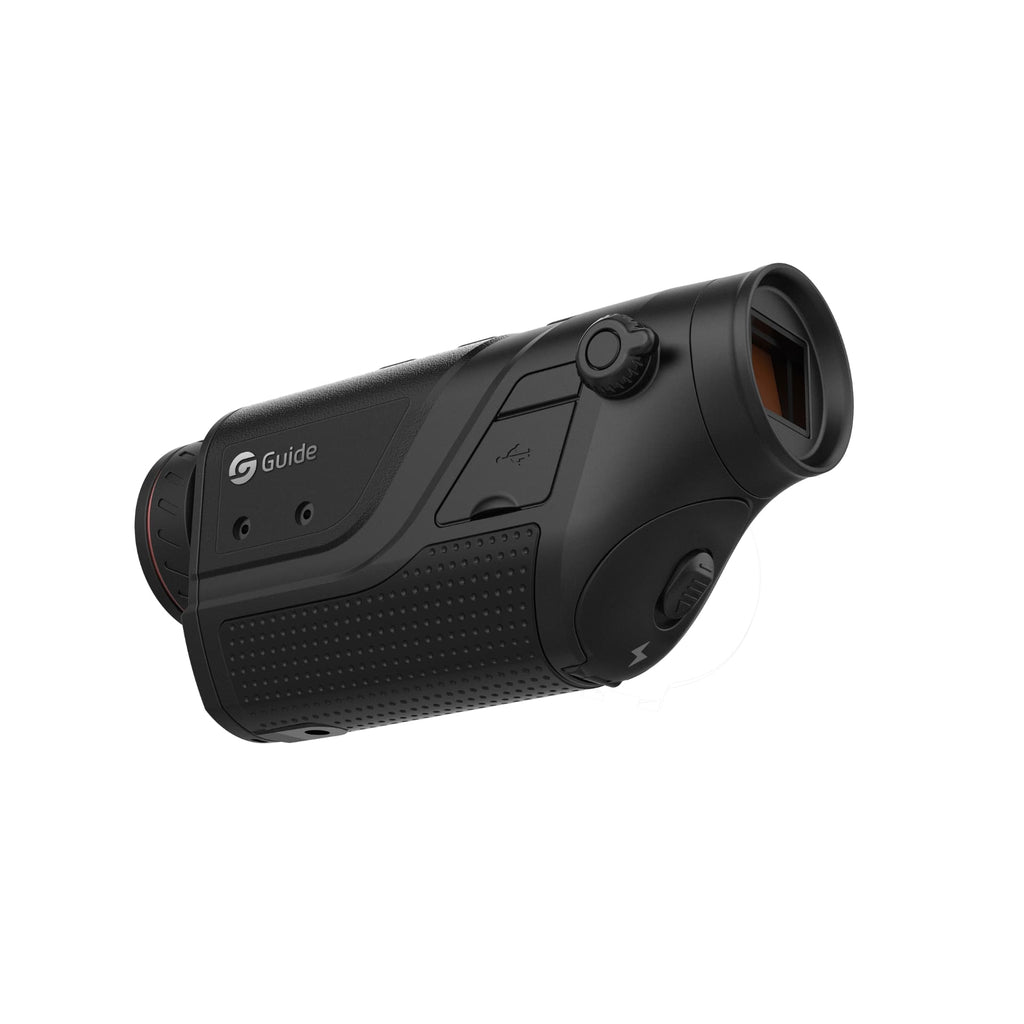

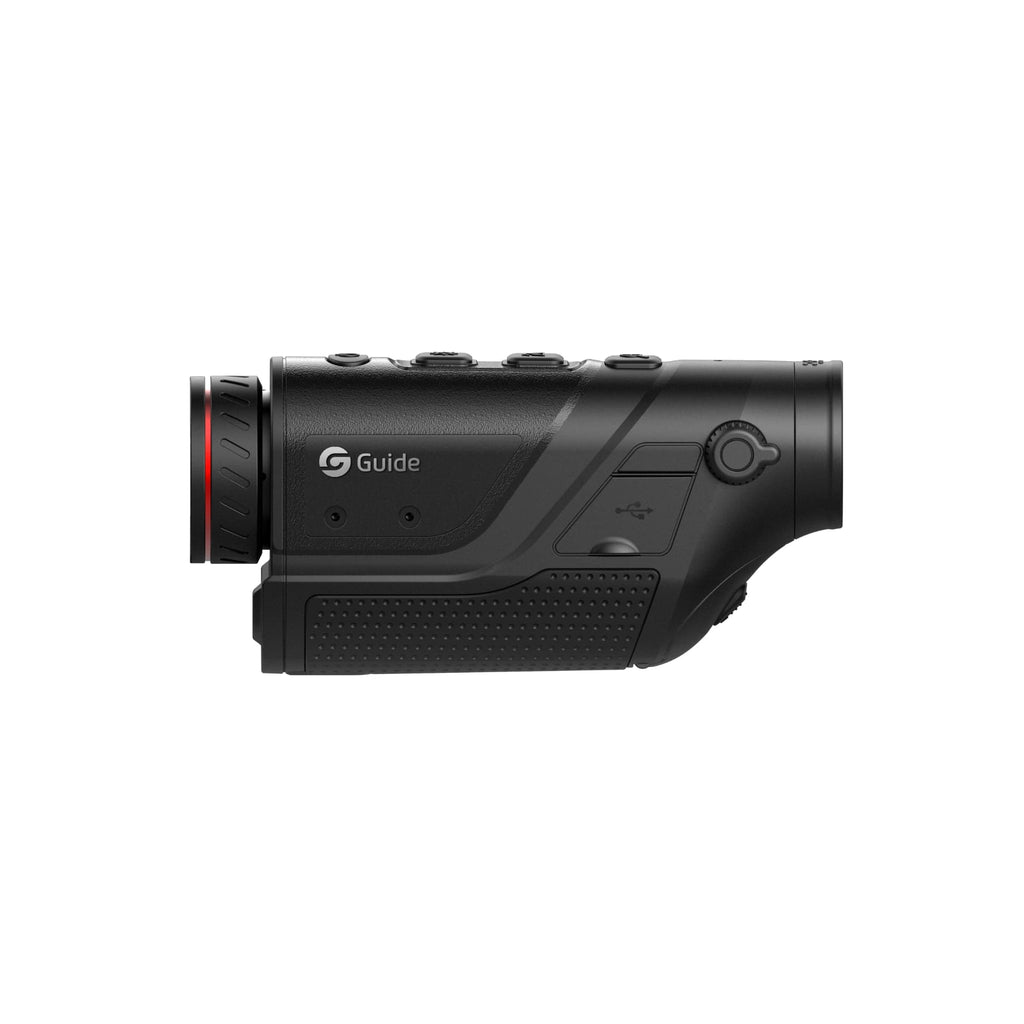

Guide TD421 Compact Thermal Imaging Night Vision Monocular

  • Sale
  • Regular price R 32,999.00
Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.



Guide TD421

Handheld Thermal Imaging Monocular

Step into a world of cutting-edge night vision technology with the Guide TD421, a remarkable addition to the TD Gen2 Series. Embodying the design principles of traditional optical equipment, this handheld thermal imaging monocular offers a lightweight and portable build, ensuring easy use across various scenarios. Featuring a high-brightness OLED display, the TD421 delivers unparalleled clarity and a comfortable viewing experience, revealing the hidden wonders of the night with astonishing precision. With an impressive battery life of up to 10 hours, the TD421 stands as the ultimate choice for outdoor night vision, empowering you to explore the darkness with unwavering confidence.

Features:

  • 384x288 IR resolution
  • 25mm/F1.1 Focal Length
  • 1000m Human Detection Range
  • Manual Focusing
  • 10 Hours Battery Life



Guide TD Gen2 Banner
Guide TD Gen2 Banner

Compact and Powerful

The TD421's lightweight design, allows for single-handed operantion - comfortable to hold and carry during operations.

TD211

New User Interface design

Enjoy a simplified operation with the new user interface design, featuring iconized controls that transcend language barriers for effortless usability.

Real-time Sharing by WIFI

Easily connect to the app on your phone via WiFi and instantly share wonderful moments in real-time. i



OTA Upgrade

Achieve high efficiency by connecting to the TargetIR APP for seamless device firmware updates support.





10 Hours,Extended Operation Time

Experience more than 10 hours of active usage, a remarkable 3-hour improvement over the previous generation, powered by a standard 18650 battery that is easily accessible for purchase.





Guide TD211

Applications

Law Enforcement

Outdoor

Low Light Observation


Media Gallery

Guide TD Thermal image
Guide TD Thermal Image
Guide TD Thermal Image
Specifications

Infrared detector

Detector resolution and pitch

384 × 288, 12 μm

Spectral range

8~14μm

NETD

≤40mk

Lens

Focal length

25 mm; F1.1

Focusing mode

Manual

Field of view

10.4° × 7.9°

Frame Rate

Output frame frequency

50Hz

Zoom

Optical zoom

1.9x

Digital zoom

1x, 2x and 4

Visual effect

It's like viewing at a 22’‘ screen at a 1 meter

Display

Display type

0.23'' OLED

Resolution

640 × 400

Eyepiece

Monocular, exit pupil distance≥10 mm, diopter adjustment: -4 to+2

Eyepiece zoom

18x

Video output

Analog Video

Button

Button Function

Power / Brightness / Zoom / Color palette

System

PIP

Upper left, Upper middle, Upper right, Closed

Hot spot tracking

Available

Environmental

Operating temperature range

-10 ℃ to 50 ℃

Storage temperature range

-30 ℃ to 60 ℃

Humidity

10 % to 95 % non-condensing

Shock

30 G at 11 ms half sine pulse (as per IEC60068-2-27)

Vibration

10 Hz - 150 Hz - 10 Hz 0.15 mm (as per IEC60068-2-6)

Drop

1 m

Encapsulation

IP66

Certification

IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2

Physical

Weight

≤325 g

Size (L × W × H)

140 × 45 × 74 mm

Standard

A device, lens cover and lanyard, Battery charger, single 18650 battery, USB Type-C cable, Wrist strap, Carry bag, Eye mask, Quick use guide, Warranty card
