After an in-depth hardware upgrade and software optimization, the Guide TB630 LRF Pro combines precision and portability. Its appearance remains light without reducing professionalism at all: built-in laser rangefinder can reach an ultra-long distance of up to 1,000 meters; two batteries empower a longer operating time; full HD AMOLED display brings a rich and detailed visual experience; it also supports intelligent functions such as image tracing, automatic recording, AI tracking, etc.

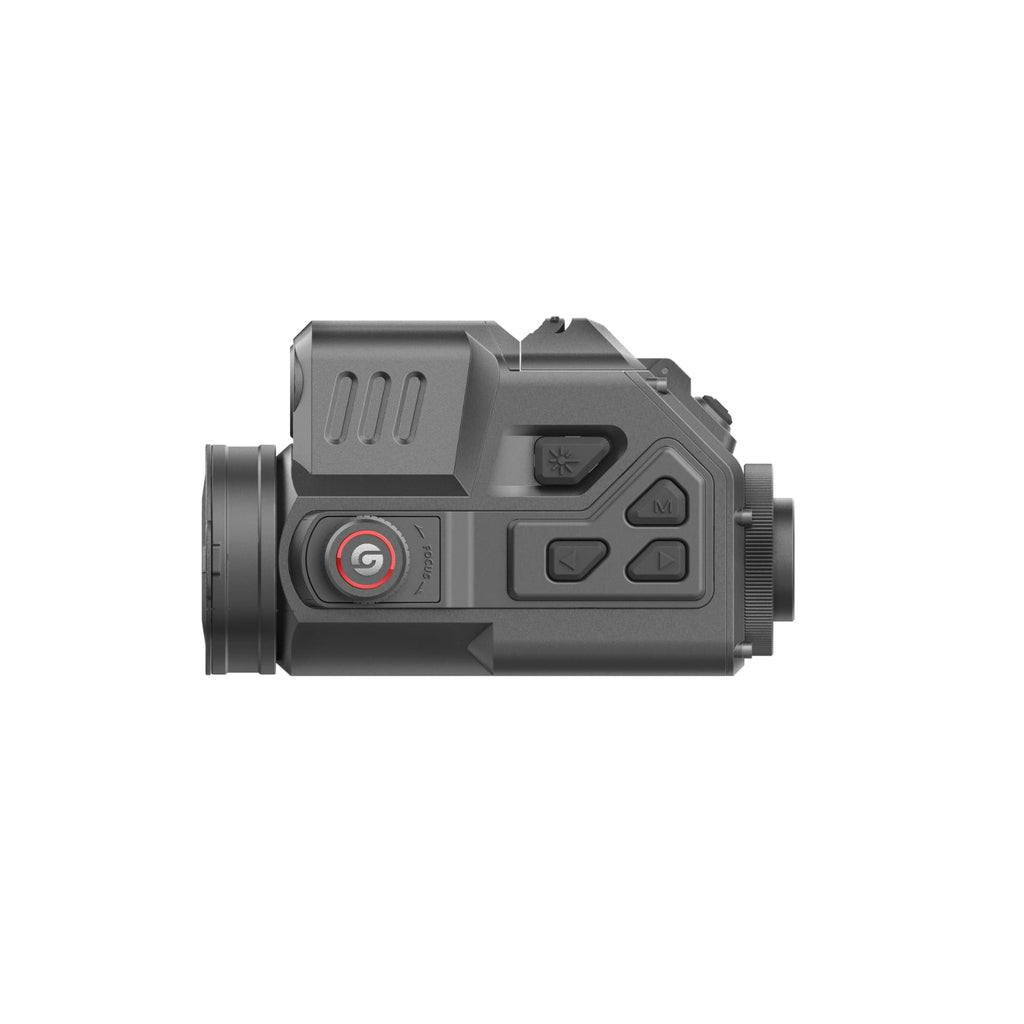

Guide TB630LP
Laser Rangefinder Professional Clip-on Thermal Imaging Attachment
Guide TB630LP Key Features:
- 640×512 IR resolution
- 35mm/F1.0 Focal Length
- 1000m Laser Range Finder Detection Range
- 1920x1080 AMOLED Display
- 12.5°×9.4° FOV
Guide TB630LP Features
12um Infrared Detector
The TB630 LRF Pro features a highly sensitive 12µm infrared detector with a NETD (Noise Equivalent Temperature Difference) of down to 20mK. This advanced detector is capable of distinguishing the slightest differences and changes in temperature, providing superior thermal imaging performance.
1000m Laser Rangefinder
The built-in LRF module of the Guide TB630LP Thermal Imaging Clip-On Attachment offers a laser rangefinder with a range of up to 1,000 meters. This enables users to detect and locate targets quickly and accurately.
FuII-HD 1920x1080 AMOLED Display
The Guide TB630LP Thermal Imaging Clip-On Attachment is equipped with a 0.39" 1920x1080 AMOLED display screen, delivering a vivid image with enhanced detail for users.
Superior IP68 Protection for Outdoor Use
Compact and rugged, portable and powerful, the Guide TB630LP is designed with the high protective features of IP68, ensuring it supports your outdoor adventures in harsh environments.
Applications
Border Control
Outdoor
Low Light Observation
| Guide TB650P Specifications | |
| Sensor | |
| Type | Uncooled VOx Infrared Detector, 8 to 14 μm |
| Resolution | 640×512@12μm |
| NETD | 20mK |
| Frame rate | 50Hz |
| Lens | |
| Objective lens | 50mm, F1.0 |
| Field of view | 8.8°×6.6° |
| FOV m @100m | 15x12 |
| Magnification | 1x |
| Detection range | 2600m/ 2800yd |
| Display | |
| Display type | 0.39'' AMOLED 1920x1080 |
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Eyepiece | Exit pupil distance 20mm; Zoom: 6.8x |
| Hardware | |
| WIFI | 2.4G, 5G |
| Interface | USB Type-C (Power supply/USB2.0) |
| Others | Microphone, Bluetooth |
| System | |
| Recording function | Photo/Video (Audio recording included) |
| Memory capacity | 64GB |
| Power | |
| Battery type | 2 replaceable 18650 batteries |
| Operating time | 9 hours |
| Environmental | |
| Operating temp. | -20 °C to 50 °C/ -4°F to +122°F |
| Operating temp. | 1000 G at 1 ms half sine pulse (as per IEC60068-2-27) |
| Encapsulation | IP68 |
| Physical | |
| Weight(g/ oz) | 582/ 20.53 |
| Size(mm/ in) | 161×89×97/ 6.34×3.50×3.82 |
| Standard | A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card |
| Optional | 18650 battery, Bluetooth remote control, Cover ring adapter |
