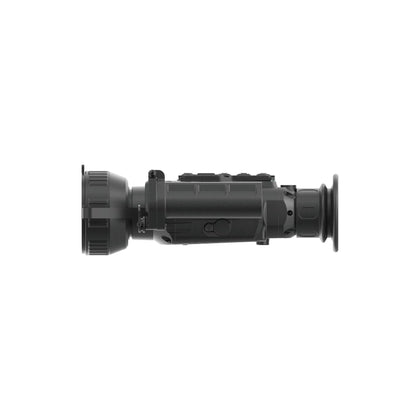

Guide TA631 Thermal Imaging Clip-On Attachment

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.



Guide TA631

Clip-on Thermal imaging Attachmen

Introducing the Guide TA631 Thermal Clip-On Attachment, a cutting-edge solution that elevates your day scopes to powerful thermal imaging aiming systems. Boasting high-resolution thermal imaging detectors with 400×300 and 640x480 pixel resolutions, coupled with HD OLED displays, the TA Gen2 delivers images of exceptional quality, rich in detail and high in contrast. Despite its lightweight and modest size, this attachment harnesses revolutionary battery technology, ensuring prolonged operation for extended use. With a myriad of other useful features, the TA631 is the ultimate thermal upgrade, empowering you with unparalleled thermal imaging capabilities for precise targeting and enhanced vision in any scenario.

Features:

  • 640x480 IR Resolution
  • 1400m Detection Range
  • 35mm/F1.0 Focal Length
  • 12.5°×9.4° FOV
  • ≥ 7 Hours Battery Life




Guide TA Gen2 Banner

Upgraded Detector

The TA Gen2 incorporates high-quality 17μm and 12µm thermal imaging detectors, featuring 400×300 and 640x480 pixel resolution respectively. This powerful combination ensures an exceptionally sharp image and outstanding thermal sensitivity, delivering top-notch performance in all weather conditions.

TA Gen2 Detector
TA Gen2 Scope

Double algorithm

Experience the next level of thermal imaging with TDE-Tech and PureIR, delivering crisp and richly contrasted imagery for enhanced target identification. From the smallest details to target extremities, witness unparalleled clarity in thermal imaging like never before.

7 hours Super Long Battery Life

With the standard 18650 battery, enjoy up to 7 hours of uninterrupted operation time. Swift and easy battery replacement guarantees continuous observation with minimal disruptions. Stay focused and empowered during extended periods of use.

Guide TA Gen 2 battery life
Thermal Night Vision Image

Multiple scene modes, Highlight Target Clearly

With just one button, effortlessly switch between "Enhance," "Highlight," and "Natural" modes, enabling adaptive image adjustments for diverse scenes. "Enhance" and "Highlight" modes effectively reduce image impurities, ensuring clear and emphasized target visibility for enhanced image quality.

Multiple Color Palettes to Highlight the Target

Experience versatility with six color palettes to choose from: white hot, black hot, red hot, green hot, iron red, and blue hot. Instantly identify target locations with a simple one-button switch, facilitating all-weather observations and providing unmatched convenience.





Instant Clarity Enhancement with One-Click Compensation

Unlock the potential of two compensation methods to eliminate pepper noise, image jitter, stripe noise, and more, resulting in clearer and enhanced images.





Wireless remote control.

Opt for the optional Bluetooth Controller that allows convenient remote control of the device. Featuring buttons identical to those on the device itself, it offers seamless and user-friendly operation from a distance.

Ta GEn2 wireless control

IP67 Rated, Rugged and Durable

Designed with IP67 waterproof rating, the device offers reliable protection against heavy rainfall, dust, and impact. Operating smoothly within a wide temperature range of -30°C to 50°C, it is well-suited for various harsh weather conditions. Additionally, the product has obtained UN38.3 battery certification, RoHS, CE, FCC, and ECA certification, ensuring compliance with stringent quality and safety standards.


Applications

Law Enforcement

Outdoor


Media Gallery

Thermal night vision image
Thermal night vision image
Thermal night vision image
Thermal night vision image
Thermal night vision image
Specifications

Infrared detector

Detector resolution and pitch

640x480, 12 μm

Spectral range

8~14μm

NETD

≤40mk

Lens

Focal length

35mm F1.0

Focusing mode

Manual focusing

Field of view

12.5°×9.4°

Frame Rate

Output frame frequency

50Hz

Zoom

Optical zoom

1x

Digital zoom

1x, 2x, 4x and 8x

Display

Display type

0.39’’ OLED

Resolution

800 × 600

Eyepiece

Exit pupil distance ≥ 10 mm Exit pupil diameter ≥ 20 mm

Video output

Analogal Video

Power

Battery Type

Single 18650 battery

Battery Life

≥ 7 hours

Functions

Hot spot tracking

10 s

Scene modes

Enhanced, Highlight and Natural

Color palettes

White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot

Compensation modes

Shutter and scene compensation

Detection range

Detection range

700 m

Environmental

Operating temperature range

-30 ℃ to 50 ℃

Storage temperature range

-45 ℃ to 70 ℃

Humidity

10 % to 95 % non-condensing

Shock

500 G at 1 ms half sine pulse (as per IEC60068-2-27)

Vibration

5Hz~200Hz~5Hz 0.15mm (as per IEC60068-2-6)

Encapsulation

IP67

Certification

IP67, FCC, CE, RoHS, EAC, WEEE, un38.3, Certification for Air transport

Physical

Weight

≤550 g

Size (L × W × H)

161 × 60 × 79mm

Standard

Device×1, Eye mask×1, Carry bag×1, 7-pin LEMO to USB cable×1, Battery charger×1, 18650 battery×1, Quick start guide×1, Warranty cardx1

Optional

External eyepiece, Adapter ring, Picatinny rail, Bluetooth remote control (with hook-and-loop fastener), 7-pin LEMO to USB and AV cable
