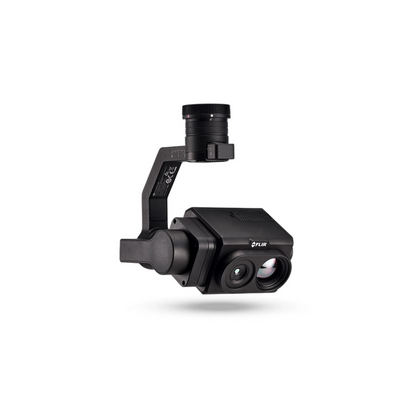

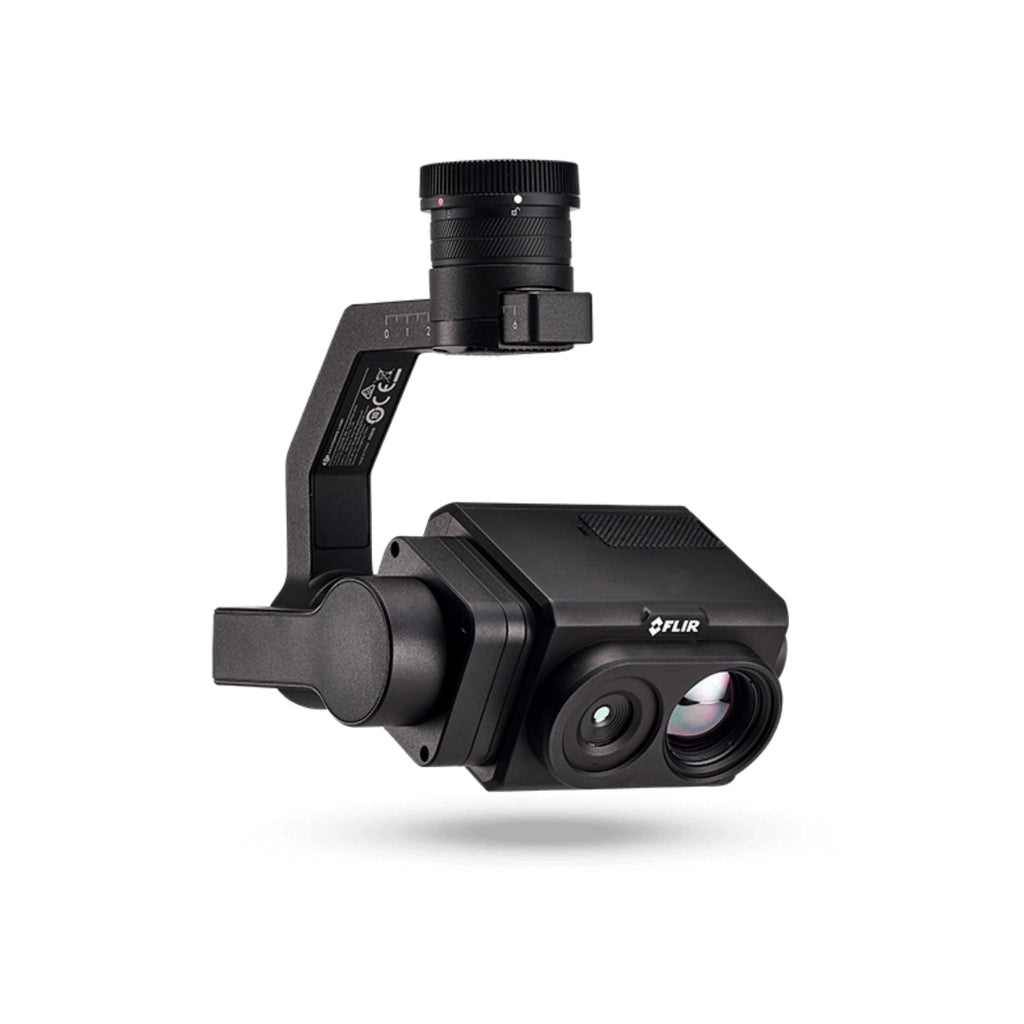

FLIR VUE TZ20-R High Resolution, Radiometric Gimbaled Thermal Zoom Drone Payload

Tax included. Shipping calculated at checkout.

This product is End Of Life. Please CONTACT US for alternatives.



This product has now been discontinued, for an alternative product:

FLIR VUE® TZ20-R

High Resolution, Radiometric Gimbaled Thermal Zoom Drone Payload

Made in the USA, the radiometric VUE TZ20-R thermal-zoom drone payload enables DJI Matrice 200 V2 and Matrice 300RTK pilots to see and measure thermal details not possible with other leading sUAS aircraft and payloads. The TZ20-R features two FLIR Boson® thermal cameras that put four times more pixels on target at every zoom level versus all competition and offers an unmatched 20× zoom capability. Utility, roofing, solar farm, and other industrial inspectors can zoom into objects of interest, identify them with unmatched clarity, and take and record radiometric temperature measurements, all from a safe standoff distance. Emergency response pilots in search and rescue, law enforcement, firefighting, and public safety can search for and observe in silence while using the thermal zoom to reduce false positives and make critical decisions faster with the affordable VUE TZ20-R. The combination of performance-leading thermal zoom and radiometry enables more efficient missions with faster search, silent surveillance, and safer stand-off inspections.

SEARCH AND INSPECT MORE AREA IN LESS TIME

Unmatched thermal zoom performance and clarity at 5×, 10×, and 20×

SAFELY AND ACCURATELY MEASURE TEMPERATURE FROM FARTHER AWAY

Dual Bosons provide 4× more radiometric pixels on target at every zoom level versus all competitors

READY TO FLY AND MEASURE

Plug and play with DJI Matrice 300, DJI V2 Matrice 200 series, and post-process reporting software


Specifications

Overview

Airframe Capatibility

DJI V2 Matrice 200-series and Matrice 300

Ground Control

DJI Pilot App

Radiometric Accuracy

Accuracy: ±5C / 5% for scenes +10C to +100C Scene dynamic range: -10C to +300C

System Overview

Zoom

5x optical (WFOV/NFOV), 4x digital Effective zoom: 1x (95°), 5x, 10x, 20x (4.5°)

Electrical & Mechanical

Mechanical Interface

Skyport 2.0 connector, X-Port DJI gimbal

Weight

640 g

Enviromental & Approvals

Environmental Sealing

IP44

Operational & Storage Temperature

Operational: -20° to 45°C (-4° to 113°F) Storage: -20° to 60°C (-4° to 140°F)

Storage

2 micro SD cards, 2x64GB included, supports 2x256GB

Tested EMI Performance

FCC part 15 Class B

Imaging & Optical

Array format

2 FLIR Boson 640 × 512

IR Camera Optics

Wide FOV: 95° HFOV, 4.9 mm EFL Narrow FOV: 18° HFOV, 24 mm EFL

Pixel Pitch

12 µm LWIR

Streaming Video

640 × 512 @ 25 Hz

Measuremnt & Analysis

Measurement Functions

Spot meter, measurement box with min/max/avg Isotherms above or below threshold temperature

Thermal Sensitivity

85 mK @ F/1.0

Meter Data

Recording

Still: Radiometric JPEG, JPEG, raw TIFF Periodic capture 1s – 30s interval, all still image formats Video •MPEG 25Hz (zoomed) • Radiometric CSQ 5Hz (zoomed) • Raw multipage TIFF 10Hz (wide and narrow FOV separate)

Other

Gimbal Range of Motion

3-axis Pitch: 30° to -120° Yaw: ±270°

Physical

Dimensions

Payload: 75 × 70 × 55 mm (2.95 × 2.75 × 2.17 in) With gimbal: 128 × 154 × 141 mm (5.04 × 6.06 × 5.55 in)

Power

Electrical Interface

Skyport 2.0, 13.6V/2A

Power Consumption

Typically <8W
