The FLIR TG298 is a powerful industrial diagnostic tool that combines precise temperature measurement with thermal imaging capabilities up to 1080°C (1976°F). Featuring FLIR’s patented MSX® (Multi-Spectral Dynamic Imaging), it overlays visible details onto full thermal images for enhanced clarity, while Super Resolution boosts image quality up to 320 × 240 for greater detail. Designed for demanding high-temperature environments—like glass furnaces, kilns, forges, and manufacturing processes—the TG298 helps you accurately detect faults, troubleshoot issues, and monitor operations. With the FLIR METERLiNK® app, you can remotely track measurements, capture data, and create detailed reports right from the field.

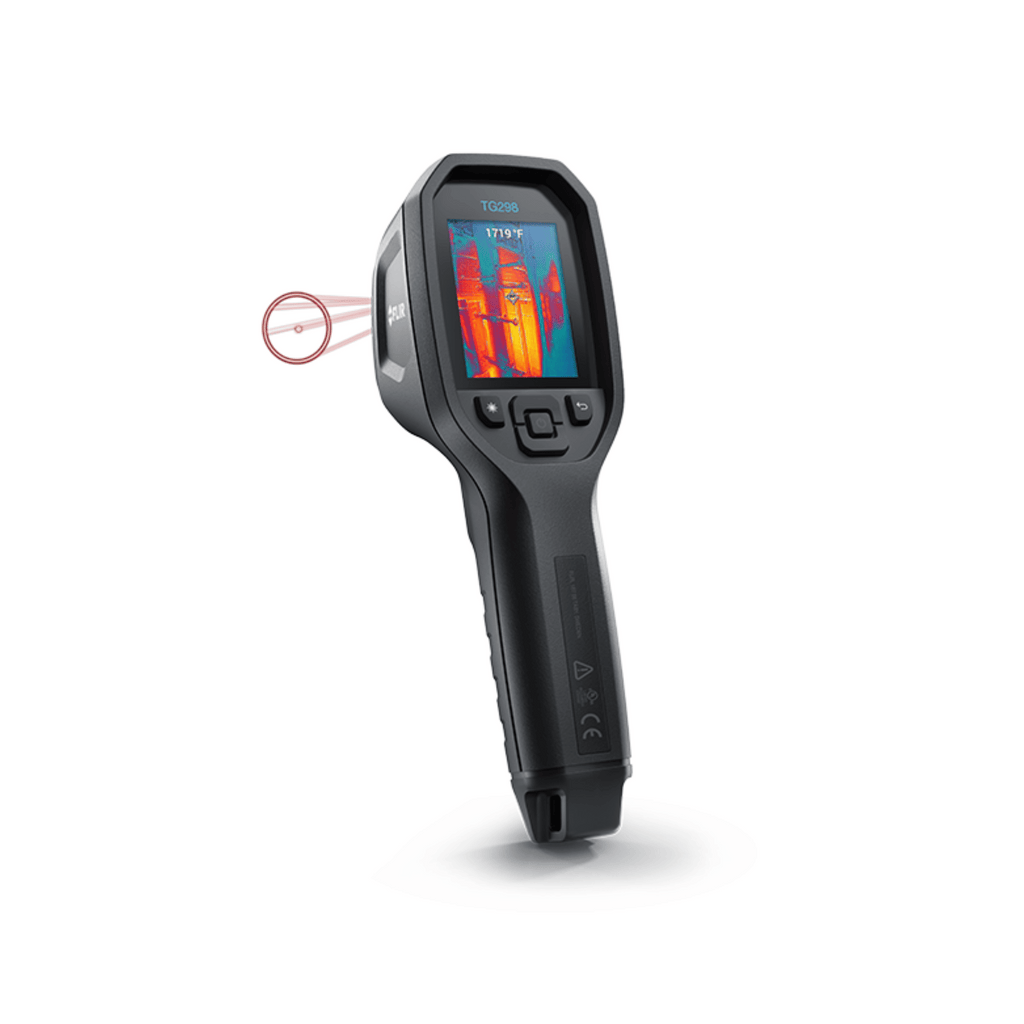

FLIR TG298
30:1 High Temperature Spot IR Thermal Imaging Camera with Bullseye Laser
FLIR TG298 Key Features
Identify Problems Quickly
Accurately measure temperatures up to 1080°C (1976°F) with a 30:1 spot size ratio and bullseye laser pointer
High-quality images and performance
Diagnose problems quickly with FLIR-patented MSX image enhancement and Improve the details of native thermal images with super resolution, which allows you to upscale images to 320×240 (76,800 pixels) resolution
Work with Confidence in Rugged Environments
The IP54 rated FLIR TG298 comes complete with a built-in LED worklight for better visibility in dark or poorly lit areas, and a 2 m drop test rating for durability.
Why Choose the FLIR TG298?
Get Inspection Information to the People you Need
FLIR METERLiNK® App
The FLIR METERLiNK® app lets you monitor multiple environmental and electrical conditions at the same time, with support for connecting up to seven compatible FLIR meters simultaneously. It enables safe, real-time monitoring of hazardous areas from a distance while capturing images with ease. Whether you're using FLIR clamp meters, digital multimeters, or any of the new METERLiNK-compatible devices, you can effortlessly track critical readings across your facility and quickly share data with your team.
UNRIVALED IMAGE QUALITY
MSX® Image Enhancement
The FLIR TG268 and TG298 are equipped with FLIR’s exclusive Multi-Spectral Dynamic Imaging (MSX®), which blends key details from the built-in visible light camera directly onto the full thermal image—in real time. The result is a clear, all-in-one thermal image enhanced with visible light features, making it easy to instantly pinpoint and identify problem areas. With MSX, you see the enhanced image live on the camera’s display, giving you immediate visual clarity and context.
Pictured left to right: without MSX® and with MSX®
Standard IR Resolution
FLIR Super Resolution
Super Resolution
FLIR TG-Series infrared cameras feature Super Resolution technology to boost image clarity and detail. This technology enhances the native 160 × 120 resolution by upscaling images to 320 × 240, providing sharper, more detailed thermal visuals. With clearer images, users can perform more accurate diagnostics, identify issues faster, and make better-informed decisions during thermal inspections..
| FLIR TG268 Specifications | |
| IR Resolution | 160 × 120 |
| Thermal Sensitivity/NETD | <70 mK |
| Accuracy | ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for −25°C to 50°C (−13°F to 122°F) and 100°C to 1030°C (212°F to 1886°F) |
| Field of view (FOV) | 57° × 44° |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) |
| Display | 320 × 240, 2.4 in color LCD |
| Storage Media | eMMC 4 GB |
| Imaging & Optical | |
| Built-in Digital Camera | Yes |
| Color Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Detector Pitch | 12 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Digital image enhancement | Yes |
| Field of view (FOV) | 57° × 44° |
| Focus | Focus free |
| Gallery | Yes |
| Image Frequency | 8.7 Hz |
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) |
| IR Resolution | 160 × 120 |
| Laser | Class 1 laser indicates the temperature measurement area; button-activated |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Measurement Distance | 0.26 m (0.85 ft) |
| Non-radiometric IR video recording | Yes |
| Spectral Range | 7.5 - 14 µm |
| Thermal Sensitivity/NETD | <70 mK |
| Measurement & Analysis | |
| Accuracy | ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for −25°C to 50°C (−13°F to 122°F) and 100°C to 1030°C (212°F to 1886°F) |
| Camera size (L x W x H) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Camera weight incl battery | 0.394 kg (13.9 oz) |
| Center spot | Yes |
| Emissivity Correction | Yes: 4 preset levels with custom adjustment of 0.1–0.99 |
| Object Temperature Range | −25°C to 1030°C (−13°F to 1886°F) |
| User Interface | |
| Display | 320 × 240, 2.4 in color LCD |
| Power | |
| Battery operating time | 5 hours continuous scanning, 4.5 hours with laser on |
| Battery Type | Rechargeable Li ion battery |
| Battery voltage | 3.7 V |
| Charging system | Battery is charged inside the camera |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time | 4 hours to 90%, 6 hours to 100% |
| Environmental & Certifications | |
| Certifications | CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan |
| Drop test | Designed for 2 m (6.6 ft) |
| EMC | EN 61000-6-3 |
| Encapsulation | IP 54 (IEC60529) |
| Humidity (Operating and Storage) | 0 to 90% RH (0 to 37°C (32 to 98.6°F)), 0 to 65% RH (37 to 45°C (98.6 to 113°F)), 0 to 45% RH (45 to 55°C (113 to 131°F)) |
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) |
| Radio Spectrum | ETSI EN 300 328 |
| Safety | CE/CB/EN61010/UL |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | −30°C to 55°C (−22°F to 131°F) |
| Tripod Mounting | 1/4 in.-20 on handle bottom |
| Vibration | 2 g (IEC 60068-2-6) |
| Warranty | FLIR 2-10 warranty |
| General | |
| Package Includes | G298 |
