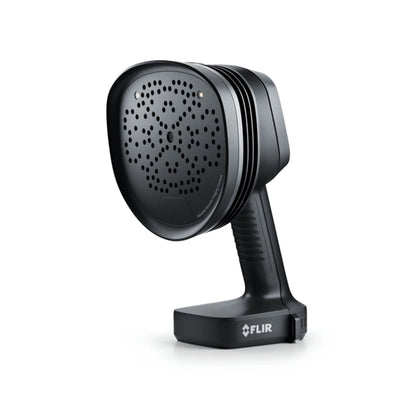

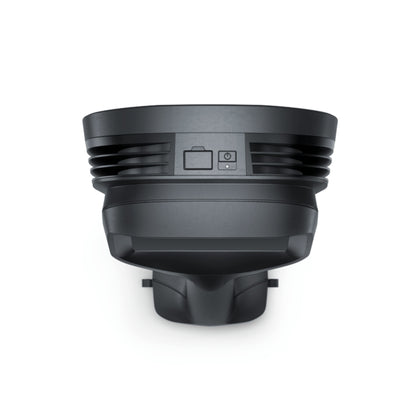

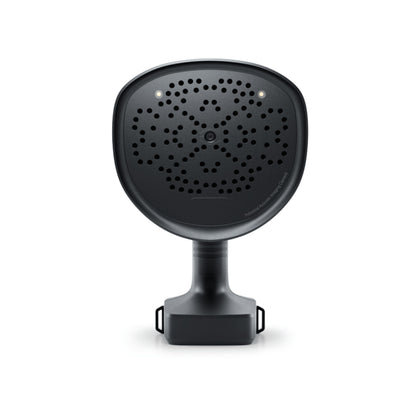

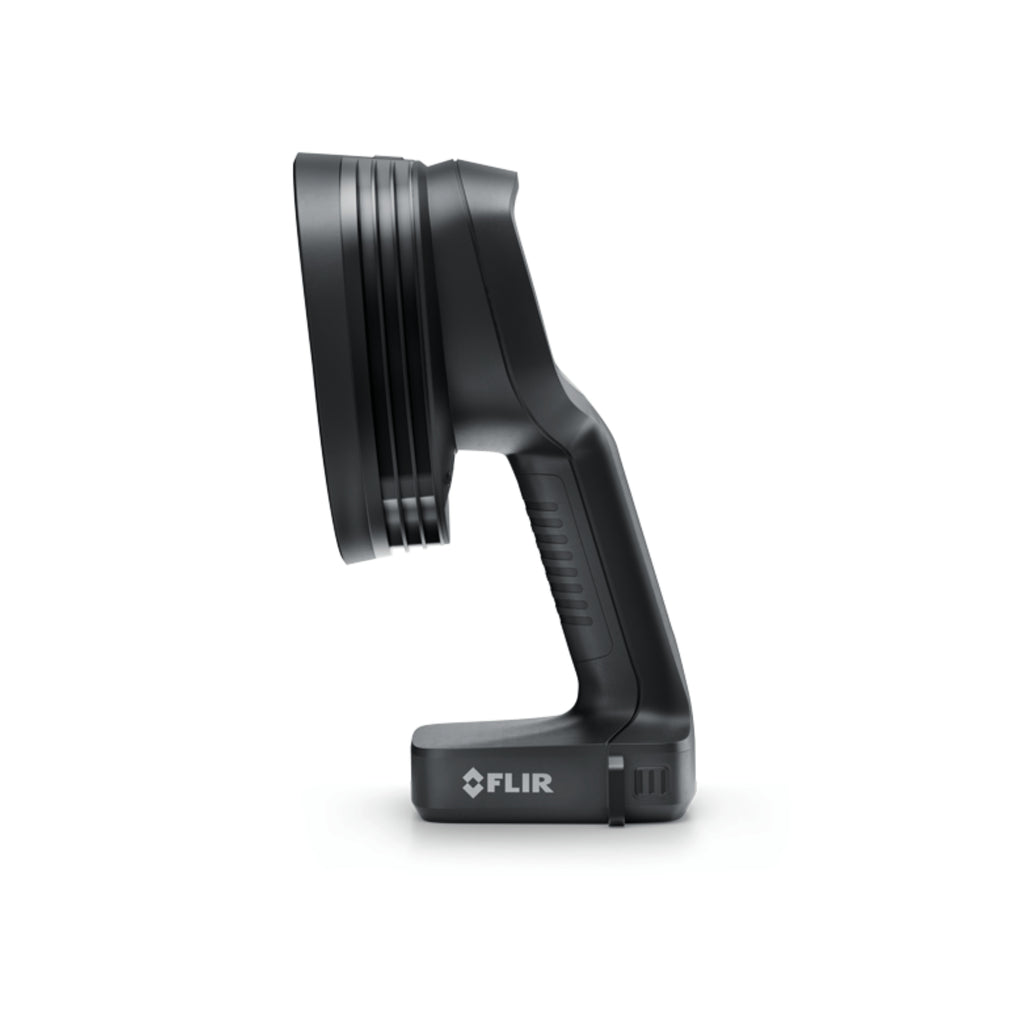

FLIR Si2-PD™ Industrial Acoustic Imaging Camera

  • Sale
  • Regular price R 414,599.00
Tax included. Shipping calculated at checkout.



FLIR Si2-PD™ Industrial Acoustic Imaging Camera for Partial Discharge Detection

The FLIR Si2-PD acoustic imaging camera offers a cost-effective solution for detecting and responding to partial discharge (PD) faults in electrical equipment, helping to reduce maintenance expenses. With the ability to detect, locate, classify, and assess PD faults from distances of up to 200 meters (656 feet), this camera identifies issues 30 times smaller than previously possible. It provides both on-camera and software-based severity assessments, empowering you to make precise maintenance decisions.

Tailor your maintenance approach to specific applications with the Si2-LD for leak detection and bearing fault detection, or the Si2-Pro for comprehensive electric utility, leak detection, and bearing fault detection applications. Explore these models in the related products section to customize your maintenance strategy according to your needs.


CLEAR VISION, SOUND SOLUTIONS

ADVANCED LEAK DETECTION

Accurately detect, pinpoint, and measure compressed air leaks, gas leaks, and partial discharges. Identify and measure even the smallest and most elusive issues from distances of up to 200 meters (656 feet), enhancing operational efficiency and ensuring safety.

BEARING FAULT ANALYSIS

Save on costly repairs, reduce downtime, and enhance maintenance efficiency by identifying bearing defects before they cause equipment failure.

FLEET MANAGEMENT FUNCTIONALITY

Maximize the utilization and upkeep of equipment in extensive industrial environments through fleet management, seamless cloud data integration, and over-the-air (OTA) software updates. Consolidate acoustic and thermal imaging data into unified reports for comprehensive analysis.


WHAT'S NEW WITH THE SI2 SERIES?

NEW 12 MP camera. 8x digital zoom. 1280 × 720, 5 in color screen.

IP54 rated for protection against water and dust.

Identify partial discharge 30x smaller than ever before.

Detect PD faults from up to 200 m (656 ft) away.

Identify, classify, and assess severity of partial discharge issues.

On-camera and software-based severity assessment of PD issues, and PD type classification.

Packed with features to streamline fleet operations.

Fleet management, cloud data integration, and OTA software updates.

Illuminate dimly lit areas with built-in LED lights.

Dual LED lamps.

FLIR Si2-PD Specifications

Severity Assessment

Automatic AI-based severity assessment including recommended actions onboard camera

Distance

From 0.3 m (1.0 ft) up to 200 m (656 ft)

Leak Rate

0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)

Wireless Data Transfer

Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN

IMAGING & OPTICAL

Camera software update

Automatic Over The Air (OTA) wireless update or via USB connection

Field of view (FOV)

75° diagonal

Video Frame Rate

Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps

Video Image Resolution

1280 × 720

Zoom

8x Digital zoom

MEASUREMENT & ANALYSIS

Bandwidth

2 kHz to 130 kHz

Distance

From 0.3 m (1.0 ft) up to 200 m (656 ft)

Leak Rate

0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)

Severity Assessment

Automatic AI-based severity assessment including recommended actions onboard camera

USER INTERFACE

Display

Size: 5 in. 1280 × 720
Resistive touch screen, TFT LCD, MIPI DSI

POWER

Battery

Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh
Max output: 16.8 V DC, 5 A

Battery Charger

Input: 19-26 V DC, 2.8 A
Max output: 17.4 V DC, 4.8 A

Battery weight

~ 0.25 kg

Nominal Input Voltage

Nominal input voltage: 12 V DC
Max input: 17 V DC , 3.3 A (limited)

ENVIRONMENTAL & CERTIFICATIONS

Operating And Storage Humidity

0-90% recommended

Operating Temperature Range

–10°C to 50°C (14°F to 122°F)

Protection Class

IP54

Storage Temperature Range

–10°C to 50°C (14°F to 122°F)–20°C to 70°C ( –4°F to 158°F)

Warranty

http://www.flir.com/warranty/

GENERAL

Battery Size

85 mm × 77 mm (RRC2504)

Worklights

LEDs, three modes off, normal and bright
