FLIR Si124 PD Industrial Acoustic Imaging Camera

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

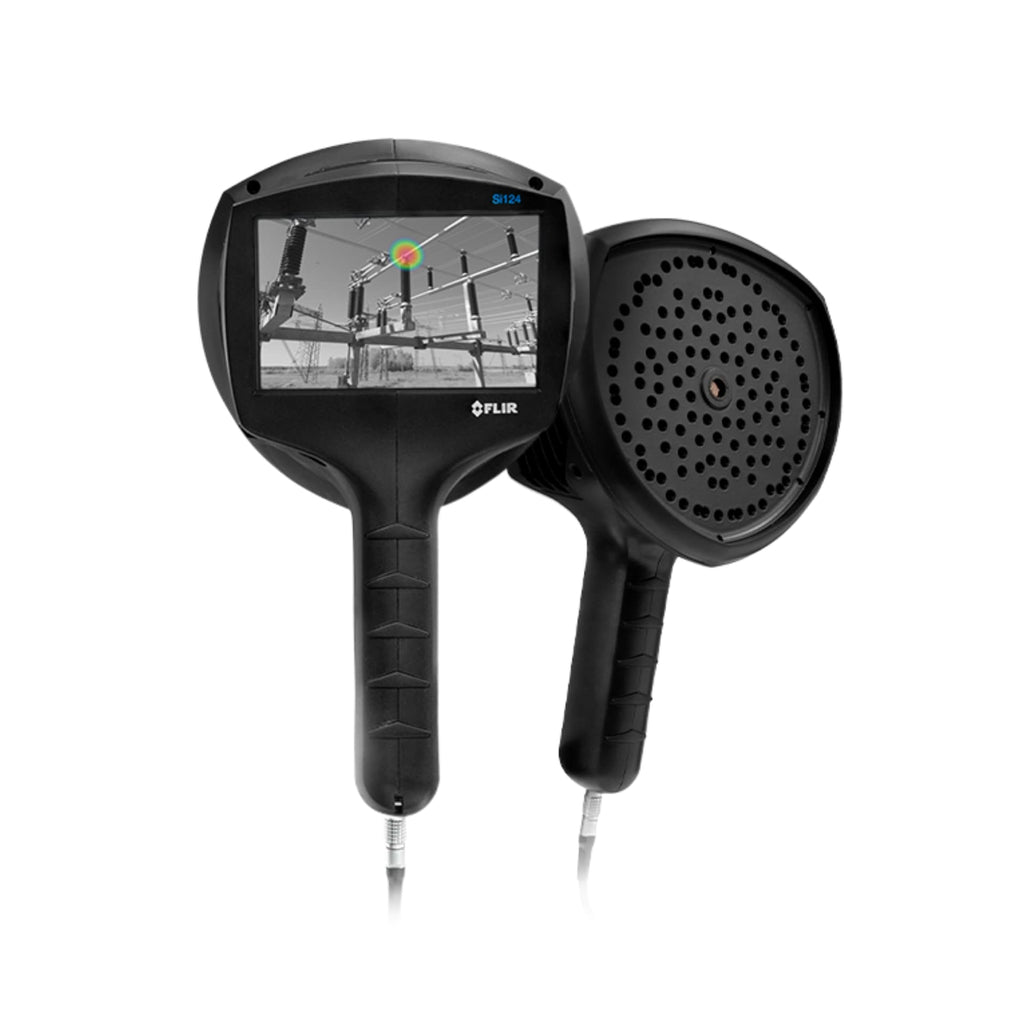

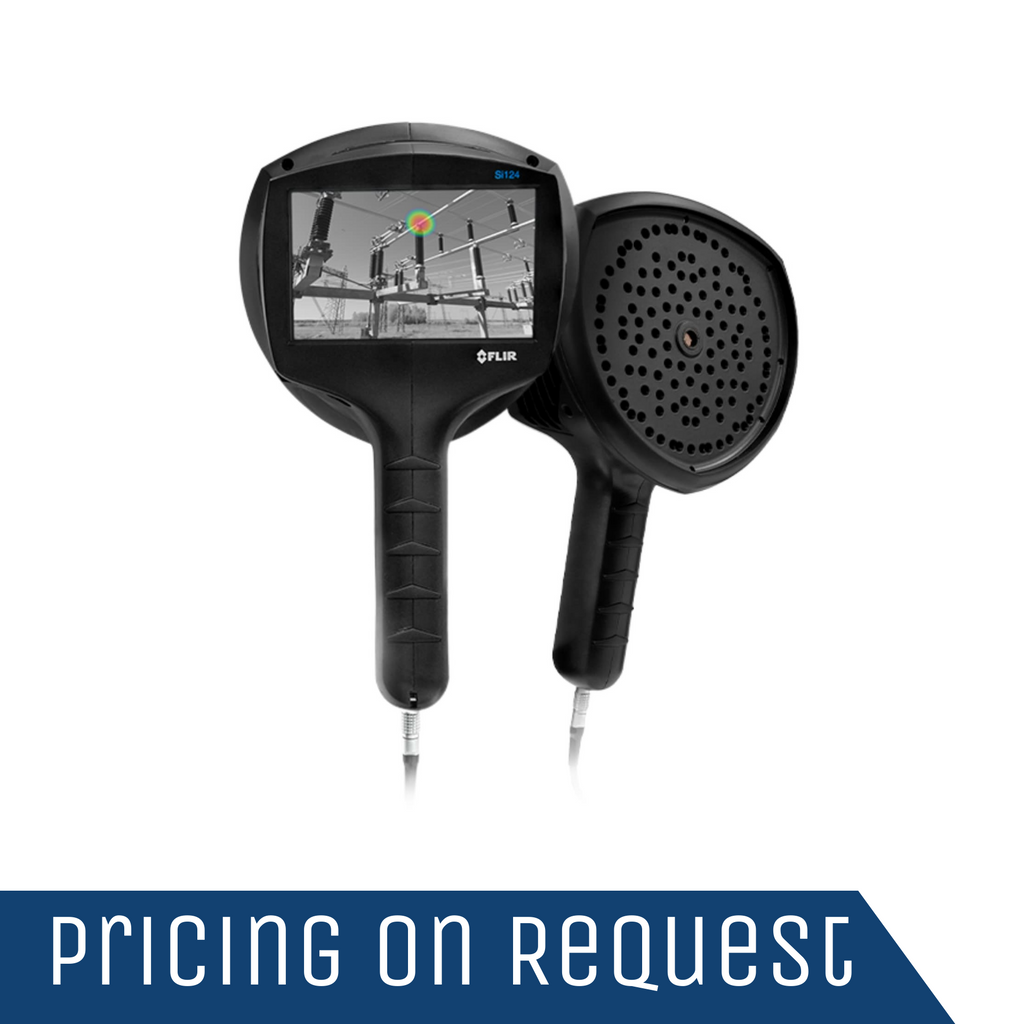

FLIR Si124 PD Acoustic Camera

Industrial Acoustic Imaging Camera

The FLIR Si124 acoustic imaging camera can help you locate pressurized leaks in compressed air systems or detect partial discharge from high-voltage electrical systems. This lightweight, one-handed solution can be used to identify issues up to 10 times faster than with traditional methods. Built with 124 microphones, the Si124 produces a precise acoustic image that visually displays ultrasonic information, even in loud industrial environments. The acoustic image is transposed in real time on top of a digital camera picture, which allows you to accurately pinpoint the source of the sound. Equipped with the FLIR Acoustic Camera Viewer cloud service, this smart tool automatically saves images to the cloud after they’re captured. Then you can access stored files and separate sound sources for deeper analysis and classification of problems. Through a regular maintenance routine, the FLIR Si124 can help facilities save money on utility bills and delay the expense of installing new compressors.

Si124-PD for electric utility applications


Find pressurized air leaks and partial discharge quickly

FIND PROBLEMS FASTER

Detect compressed air leaks, partial discharge, and corona up to 10 times faster with sound imaging vs. traditional methods

REDUCE COSTS, IMPROVE RELIABILITY

Minimize excess utility costs, equipment failures, and downtime by ensuring proper air pressure to pneumatic equipment and locating partial discharge or corona precisely

INSPECT EASILY

Classify leak severity and partial discharge type in real time with this lightweight, smart tool that you can operate with one hand


Specifications

General

Camera Size

273 × 170 × 125 mm (10.7 × 6.7 × 4.9 in)

ACOUSTIC SPECIFICATIONS

Text

Acoustic Measurement

124 low-noise MEMS microphones, real-time sound visualization

Discharge Classification

• Negative corona • Positive and negative corona • Floating discharge • Surface or internal discharge PRPD pattern provided in FLIR Acoustic Camera Viewer cloud service.

Distance

from 0.3 m (1.0 ft) up to 130 m (430 ft)

Dynamic Range (High Limit)

over 120 dB (frequency-dependent)

Dynamic Range (Low Limit)

< -15 dB (frequency-dependent)

Leak Rate

N/A

Severity Assessment

Automatic AI-based severity assessment including recommended actions

COMMUNICATION & DATA STORAGE

Text

Storage (External)

8 GB / 500 snapshots (typical) USB mass storage, provided with device

Storage (Internal)

32 GB/ 2000 snapshots (typical) SD card, non-removable

Wireless Data Transfer

Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN

ENVIRONMENTAL

Text

Operating And Storage Humidity

Recommended 0 to 90%

Operating Temperature Range

–10 to 50°C (14 to 122°F)

Storage Temperature Range

–20 to 70°C ( –4 to 158°F)

IMAGING & OPTICAL

Text

Video Frame Rate

25 fps

Video Image Resolution

800 × 480

PHYSICAL FEATURES

Text

Battery Cord Length

0.75 m (2.46 ft), extended 1.5 m (4.92 ft)

Battery Size

90 × 145 × 65 mm (3.5 × 5.7 × 2.6 in)

Input Device

Resistive touchscreen

Power On Indicator

LED (red)

Total Weight [Including All Accessories]

2.9 kg (6.4 lb)

POWER

Text

Battery Charger

Input: 100-240 V ~ 50/60 Hz 1.5 A Max output: 13.8 V, 4.0 A

Battery weight

985 g (2.2 lb)

External Battery

LiFePO 12 V 7 Ah, 84 Wh Usage: 7 h (depends on ambient conditions) Charge time: 4 to 6 h Max output: 13.8 V, 4.0 A

Internal Battery

Li-Ion 6 Wh

Nominal Input Voltage

12 V Max input: 15 V 2 A

SHIPPING INFORMATION

Text

Packaging (Contents)

Camera Battery Battery cable Battery charger Battery pouch Camera hand strap Camera pouch Printed documentation USB memory stick

Packaging Type

Cardboard box

Packaging Weight

4.5 kg (9.9 lb)

Accessories

Cases and Pouches

Soft Carrying Case (T911980)

Batteries and Power

Battery Charger (T911984)
Cable from Battery (T911981)
Rechargeable Battery (T911982)

Other

T911987_Acoustic Camera Tester with Table Tripod for Si124
