FLIR Si124-LD Plus

Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

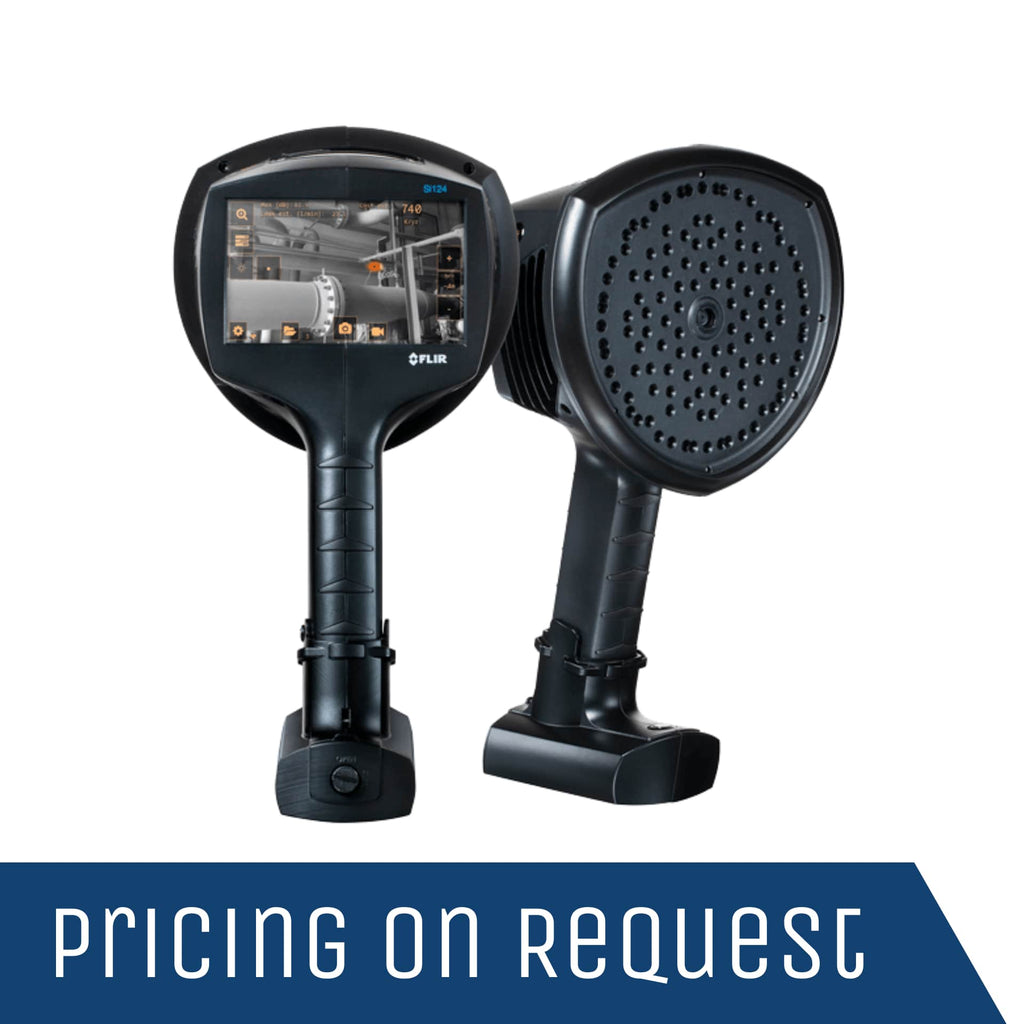

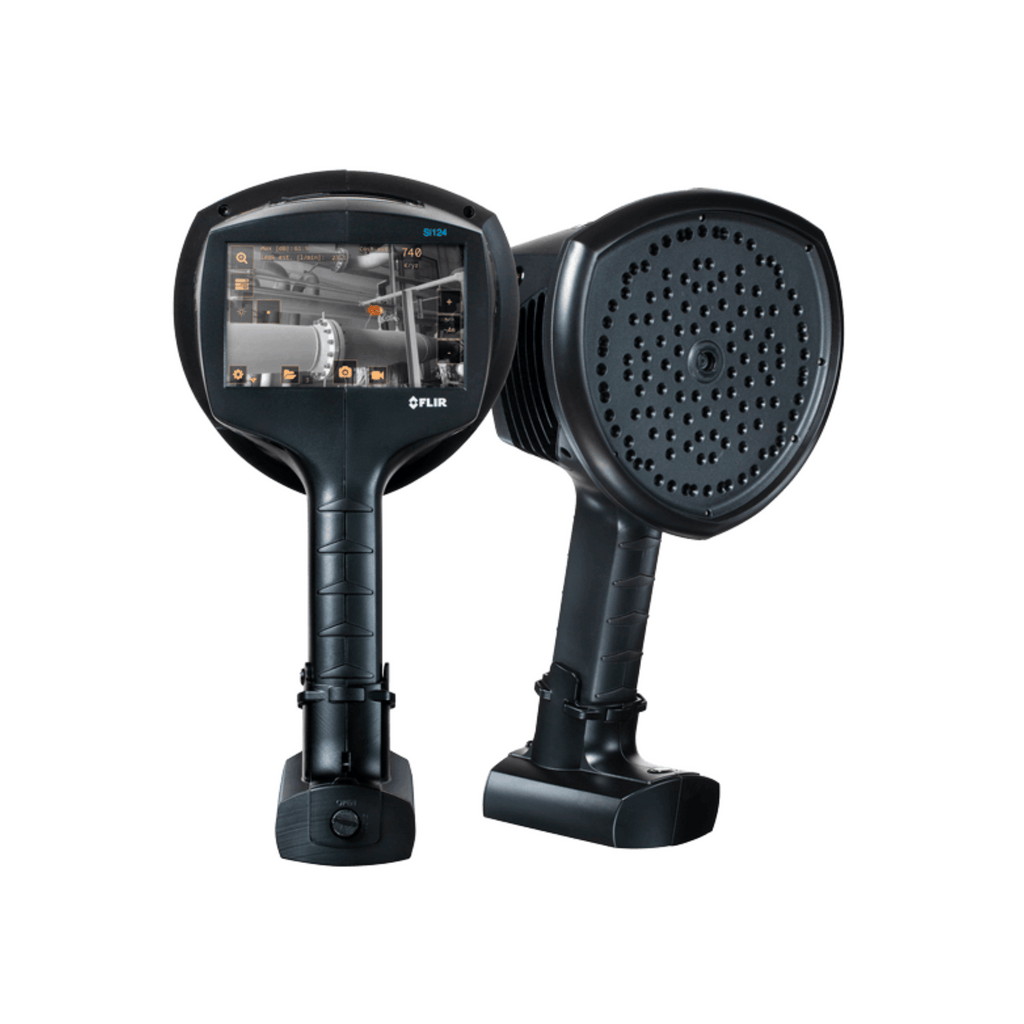

FLIR Si124-LD Plus Industrial Acoustic Imaging Camera for Compressed Air Leak Detection

The FLIR Si124-LD Plus is an easy-to-use, stand-alone system for locating and quantifying pressurized leaks in compressed air systems. This lightweight, one-handed solution is designed to help maintenance, manufacturing, and engineering professionals identify air leaks up to 10 times faster than with traditional methods. Built with 124 microphones, the Si124-LD Plus produces a precise acoustic image that visually displays ultrasonic information, even in loud, industrial environments. The acoustic image is overlaid in real time on a digital camera picture, allowing you to accurately pinpoint the source of the sound. The Si124-LD Plus features a plugin that enables you to import acoustic images to FLIR Thermal Studio suite for offline editing, analysis, and advanced report creation. Field analysis and reporting can also be done using the FLIR Acoustic Camera Viewer cloud service. Through a regular maintenance routine, the FLIR Si124-LD Plus can help facilities save money on utility bills and delay the expense of installing new compressors.

Available in additional models which include: the Si124-PD for electric utility applications, or the Si124 for both electric utility and leak-detection applications. View the models in the related products section below.

ACCURATELY FIND THE SMALLEST LEAKS

Accurately detect and measure small compressed air and gas leaks (from 0.016 l/min to 0.004 l/min) up to 10 times faster with sound imaging, Auto Distance, and Auto Filtering features.

REDUCE COSTS, SAVE MONEY

Minimize excess utility costs, equipment failures, and downtime by ensuring proper air pressure to pneumatic equipment and quantifying leak size to understand how much energy was lost



INSPECT EASILY

Quantify leak severity in real time with this lightweight, smart tool that you can operate with one hand and minimal training





Specifications

OVERVIEW

Acoustic Measurement

124 low-noise MEMS microphones, real-time sound visualization

Distance

From 0.3 m (1 ft) up to 130 m (430 ft)

Leak Rate

In typical industrial environment:
•>0.011 l/min @ 3 bar from 3 m (10 ft) •>0.024 l/min @ 3 bar from 10 m (33 ft) Absolute minimum detection in quiet environment: 0.004 l/min @ 1.2 bar from <1 m (3.0 ft)

IMAGING & OPTICAL

Camera software update

Automatic over Wi-Fi

Digital Camera FOV

62° × 49°

Video Frame Rate

25 fps

Video Image Resolution

62° × 49°800 × 480

ZoomMode

2x Digital zoom

MEASUREMENT & ANALYSIS

Acoustic Measurement

124 low-noise MEMS microphones, real-time sound visualization

Bandwidth

2 kHz to 65 kHz, adjustable range

Distance

From 0.3 m (1 ft) up to 130 m (430 ft)

Leak Rate

In typical industrial environment:
•>0.011 l/min @ 3 bar from 3 m (10 ft) •>0.024 l/min @ 3 bar from 10 m (33 ft) Absolute minimum detection in quiet environment: 0.004 l/min @ 1.2 bar from <1 m (3.0 ft)

USER INTERFACE

Display

Size: 5 in. 800 × 480

Input Device

Resistive touchscreen

Languages

Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Indonesian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese, Turkish, Vietnamese

Power On Indicator

LED (red)

POWER

Battery

Li-Ion rechargeable battery pack (RRC 2040): 10.8 VDC, 3.35 Ah, 36.2 Wh
Usage: Up to 2.5 h (depends on ambient conditions)
Charge time: Approximately 2 h
Max output: 12.6 VDC 4A

Battery Charger

Input: 19-26 VDC, 2.8 A, Max output: 17.4 VDC, 4.8 A

Battery weight

0.17 kg (0.37 lb)

Internal Battery

Li-ion 6 Wh

Power Input

Nominal input voltage 12 VDC, Max input: 15 VDC 2.5 A

ENVIRONMENTAL & CERTIFICATIONS

Operating Temperature Range

-10°C to 50°C (14°F to 122°F)

Protection Class

IP51

Relative Humidity

Recommended 0 to 90%

Storage Temperature Range

-20°C to 70°C (-4°F to 158°F)

Warranty

http://www.flir.com/warranty/

GENERAL

Battery Size

85 × 59 × 22 mm (3.34 × 2.31 × 0.86 in)

ACCESSORIES

Software

FLIR Acoustic Camera Viewer (free web-based analysis and simple acoustic reporting), FLIR Thermal Studio Suite (offline, desktop software with advanced capabilities including thermal and acoustic images on the same page)
