Certified for the New Fireground Standard

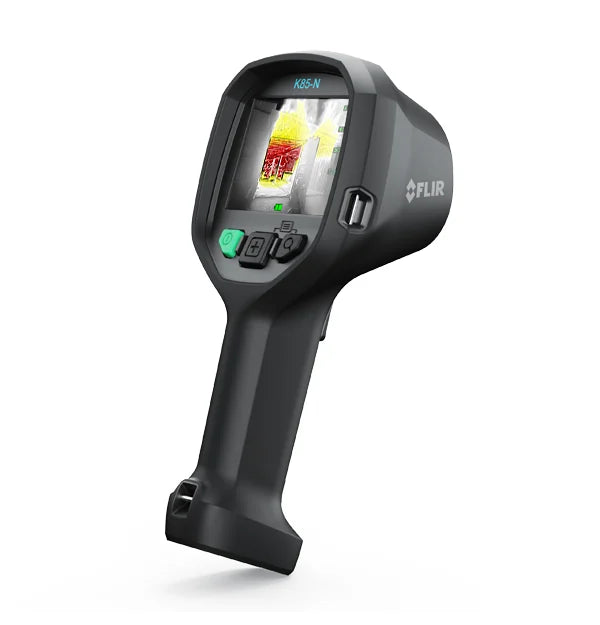

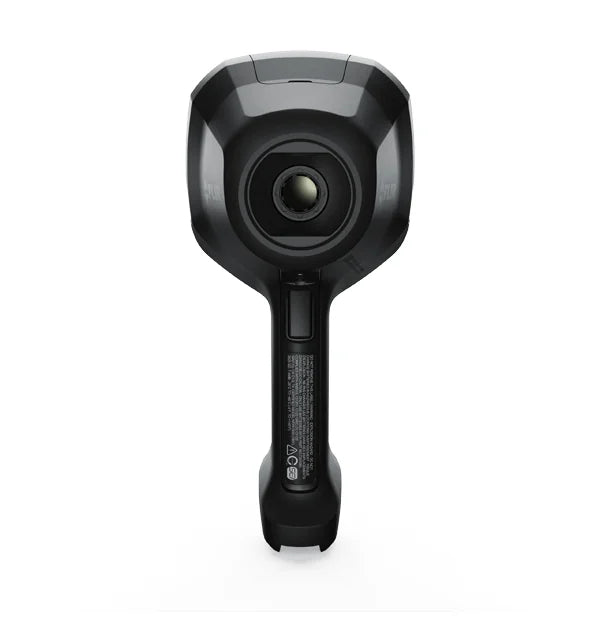

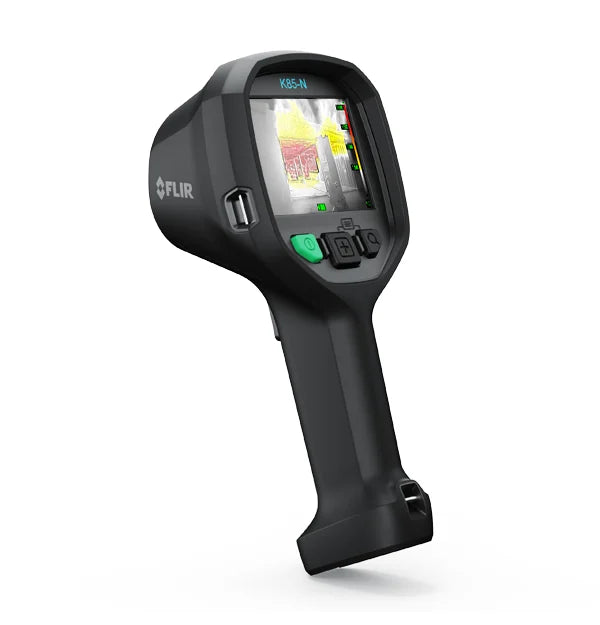

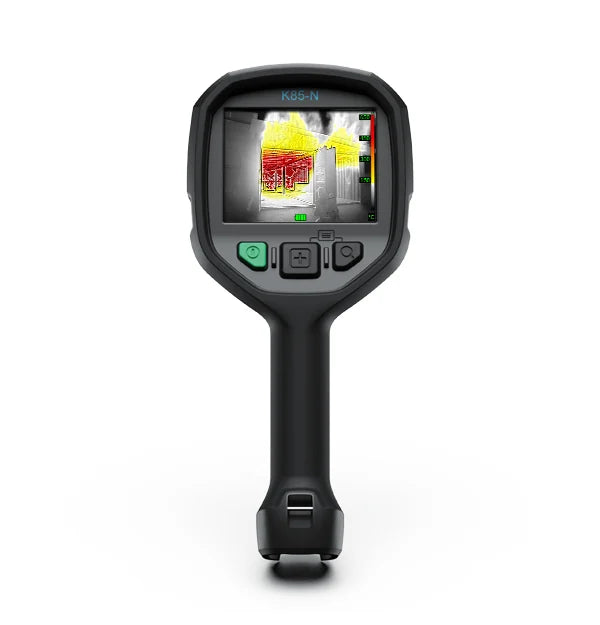

The FLIR K85-N is a next-generation firefighting thermal imaging camera fully certified to NFPA 1930:2025. It combines high-resolution 640 × 480 thermal imaging, a continuous single-range view and rugged fireground construction to help crews see critical detail through smoke and extreme heat.
Purpose-built imaging modes support fire attack, search and rescue, navigation and overhaul. Wireless connection to the FLIR Responder App extends the camera beyond the incident with configuration, over-the-air updates, live streaming, media handling, training and post-incident review.
Get a QuoteFLIR K85-N Key Features
NFPA 1930:2025 Certified
A future-ready TIC aligned with the latest NFPA standard for thermal imagers used by the fire service.
Clear, Freeze-Free Imaging
640 × 480 resolution and a single −20°C to 650°C range keep the thermal view continuous as conditions change.
Connected and Mission-Ready
Wi-Fi, Bluetooth and FLIR Responder App support simplify setup, live streaming, updates and media management.
See Critical Detail Without Range Switching
The K85-N’s 640 × 480 detector, <60 mK thermal sensitivity and FLIR Flexible Scene Enhancement (FSX®) reveal structural detail, heat patterns and potential hazards in low-visibility environments.
Its single-range system covers object temperatures from −20°C to 650°C without the image freeze associated with range changes, preserving situational awareness while crews move from cooler spaces into high heat.
Built for Frontline Firefighting
The IP67-rated housing is designed for smoke, water, dust and demanding operations. The K85-N is drop-tested from 2 metres onto concrete and operates at 150°C for up to 15 minutes or 260°C for up to 5 minutes. Its glove-friendly controls and bright 4-inch display minimise distraction on the fireground.
Fire Attack
Read heat conditions and monitor fire development to support tactical decisions.
Search & Rescue
Locate people, paths, doors, obstacles and structural hazards through dense smoke.
Smoke Navigation
Maintain orientation and scene awareness where normal vision is severely restricted.
Overhaul
Find residual heat, concealed spread and hot spots after knockdown.
Connected with the FLIR Responder App
Before deployment
Configure supported settings and install over-the-air software updates via Wi-Fi.
During training
Stream thermal video so instructors and team members can see the operator’s view in real time.
After the incident
Transfer images and video for reporting, review and ongoing training.
FLIR K85-N at a Glance
Technical Specifications
| IMAGING & OPTICAL | |
|---|---|
| IR resolution | 640 × 480 |
| Detector type | Focal plane array (FPA), uncooled microbolometer |
| Thermal sensitivity / NETD | <60 mK |
| Field of view | 53° × 40° |
| Image frequency | 30 Hz |
| Spectral range | 7.5 µm to 14 µm |
| Pixel pitch | 12 µm |
| Image modes | TI Basic, Search, Detection, High Heat, White Hot |
| Zoom | 2× digital zoom |
| DISPLAY, MEASUREMENT & STORAGE | |
|---|---|
| Display | 4-inch backlit LCD, 640 × 480, 60 Hz |
| Object temperature range | Single range: −20°C to 650°C |
| Accuracy | ±4°C or ±6% of reading, at 10°C to 35°C ambient |
| Image format | Standard JPEG |
| Storage capacity | Up to 200 files total* |
| Video recording | Non-radiometric MPEG-4 to internal flash memory |
*Total file count varies with the number and size of saved video clips.
| CONNECTIVITY & POWER | |
|---|---|
| Wi-Fi | IEEE 802.11 b/g/n, 2.4 GHz |
| Bluetooth | Bluetooth 5.0 EDR + BLE |
| USB | USB-C |

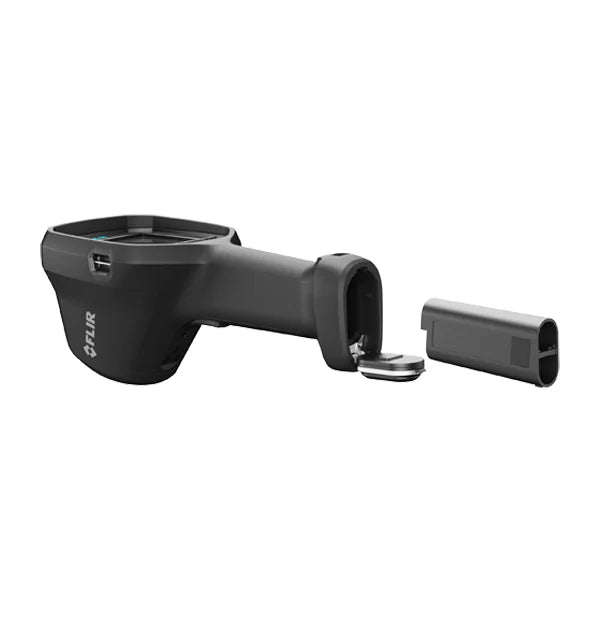

| Battery | Rechargeable Li-Ion, 3.6 V, 6.2 Ah |
| Typical operating time | Approximately 4 hours |
| Charging | Desktop 2-bay charger; optional Kxx-Series in-truck charger |
| ENVIRONMENTAL & CERTIFICATION | |
|---|---|
| Compliance | NFPA 1930:2025 |
| Encapsulation | IP67 (IEC 60529) |
| Operating temperature | −20°C to 60°C; 150°C for 15 min; 260°C for 5 min |
| Storage temperature | −40°C to 85°C |
| Drop resistance | 2 m onto concrete (IEC 60068-2-31) |
| Shock / vibration | 25 g / 2 g |
Downloads & Documentation
Download the FLIR K85-N Data Sheet (PDF)Get a Quote
