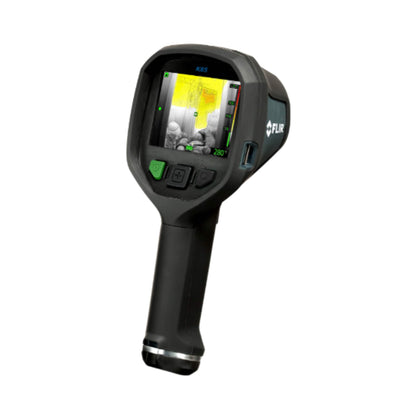

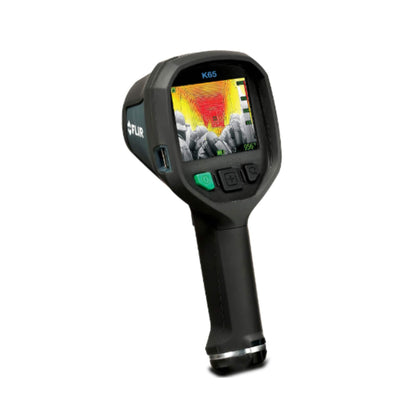

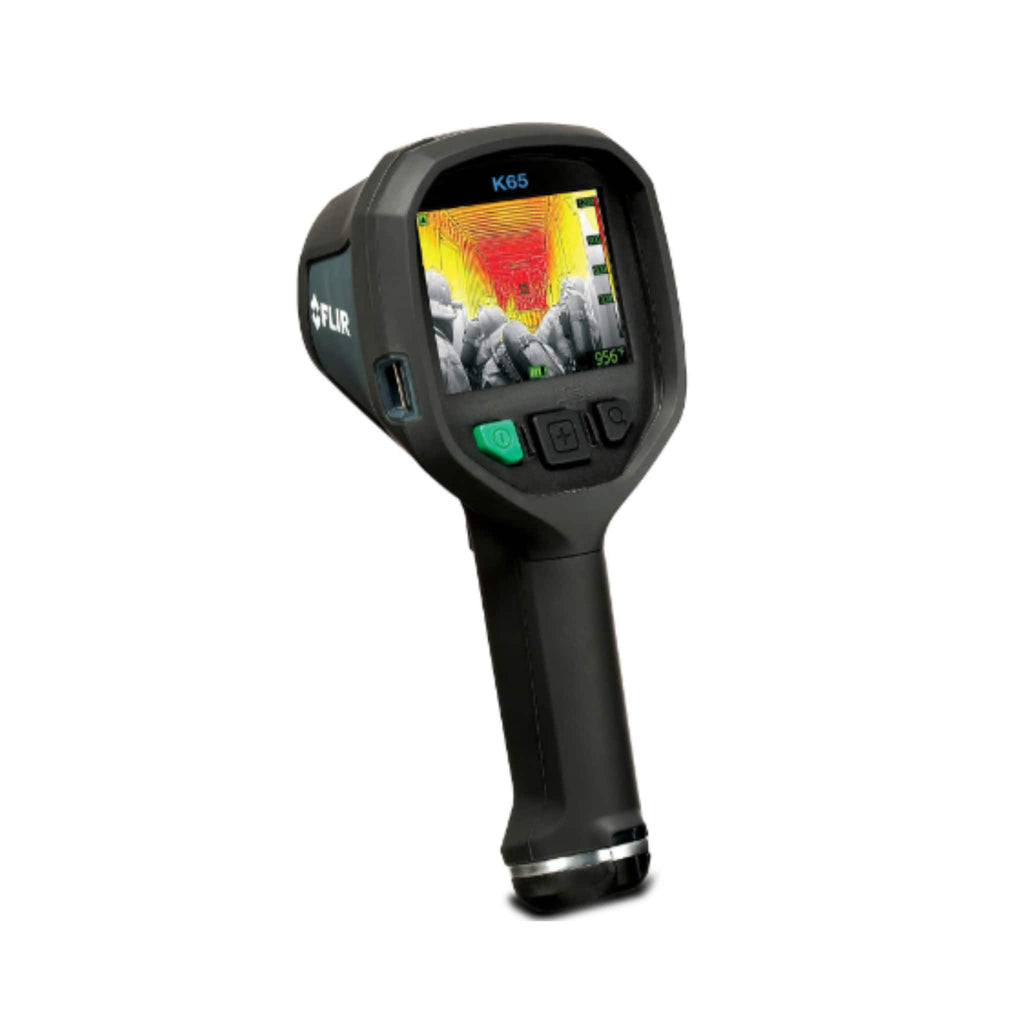

FLIR K65 Thermal Imaging Camera for Firefighting

  • Sale
  • Regular price R 143,999.00
Shipping calculated at checkout.




FLIR K65 NFPA Compliant TIC 320x240 (3 Button)

The FLIR K65 is the advanced, feature-rich thermal imaging camera you need when NFPA® compliance is a must. With fully sealed connectors and a secured battery, the K65 is designed to be fully compliant with the NFPA 1801-2021 Standard for Thermal Imagers covering usability, image quality, and durability for firefighting.


MEETS NFPA® STANDARDS

The K65 is designed to be fully compliant with the National Fire Protection Association® (NFPA) 1801-2021 Standard for Thermal Imagers.

CRISP, CLEAR IMAGERY

The maintenance-free sensor produces detail-rich 320 x 240 pixels thermal images to help you navigate easier in smokey conditions.

IN-CAMERA VIDEO STORAGE

Store up to 200 photos or video files that can be played-back in-camera or from a computer for later analysis.


FLIR K65 Now Available with Enhanced Improvements

Includes great K65 values you’ve come to rely on plus:

  • Improved image clarity and sharpness
  • Better contrast in low-contrast areas
  • Better contrast in high contrast areas
  • Better room and depth perception
  • More efficient and safer search and rescue operation
  • Better at preventing firefighter disorientation
  • More efficient navigation and orientation in low and non-visibility areas
  • Quicker location of fire
  • Better image performance during demonstration

Comparison

*Note: The enhancement does not affect the technical specifications of the products *


Specifications

OVERVIEW

Camera size (L x W x H)

120 x 125 x 280 mm (4.7 x 4.9 x 11 in.)

Camera weight incl battery

01.1 ±0.05 kg (2.4 ±0.1 lb.)

IR Resolution

320 × 240 pixels

Display

4 in. LCD, 320 × 240 pixels, backlit

Object Temperature Range

–20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)

Image Modes

IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery

COMMUNICATIONS & DATA STORAGE

Interface

Update from PC devices Data transfer to and from PC

File Formats

Standard JPEG

Image Storage Capacity

200 files in total the total number of files is co-dependent on the number of saved video clips.

USB

USB Mini-B

ENVIRONMENTAL & CERTIFICATIONS

Text

Compliance

•NFPA1801:2021 •Ex-certified according to ANSI/ISA 12.12.01-2015 and meets Class I Division 2 Groups C and D •Class II Division 2 Groups F and G, Temperature Code T4/T135°C

Directives

Certified according to NFPA 1801:2021 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability

Drop

2 m(6.6 ft.) on concrete floor (IEC 60068-2-31)

EMC

EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission)

Encapsulation

IP 67 (IEC 60529)

Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C(77°F to 104°F)/ 2 cycles

Magnetic fields

EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)

Operating Temperature Range

–20°C to 85°C (–4°F to 185°F) 150°C (302°F): 15 min. 260°C (500°F): 5 min.

Relative Humidity

95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to 85°C(–40°F to 185°F)

Vibration

2 g (IEC 60068-2-6)

IMAGING & OPTICAL

Contrast optimization

Digital image enhancement using FSX

Depth of Field

0.84 m to infinity (33 in. to infinity)

Field of view (FOV)

51° × 38°

Detector Type

Focal plane array (FPA), uncooled microbolometer (VOx)

f-number

1.25

Focal Length

9 mm (0.35 in.)

Focus

Fixed

Image Frequency

60 Hz

Image Modes

IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery

IR Resolution

320 × 240 pixels

Pitch

25 µm

Spatial resolution (IFOV)

2.8 mrad

Spectral Range

8-14 µm

Thermal Sensitivity/NETD

<30 mK @ 30°C (86°F)

MEASUREMENT & ANALYSIS

Accuracy

±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)

Automatic Hot Detection

Heat detection mode (the hottest 20% of the of scene is colorized)

Isotherm

Yes, according to NFPA

Object Temperature Range

–20°C to 150°C (–4°F to 302°F) 0°C to 500°C (32°F to 932°F)

Spot Meter

1.0

POWER

Battery capacity

4.4 Ah, at 20°C to 25°C (68°F to 77°F)

Battery operating time

Approximately 4 hours at 25°C (77°F) ambient temperature and typical use. This operating time is independent of camera mode.

Battery type

Li ion

Battery voltage

3.6 V

Battery weight

0.152 kg(0.3 lb.)

Charging system

Battery is charged inside the camera 2-bay charger Optional In-truck charger

Charging Temperature

0–45°C (32–113°F)

Charging Time

2 h to 85% capacity, charging status indicated by LEDs

Power Management

Automatic shutdown and sleep mode

Safety [power supply]

CE/EN/UL/CSA/PSE 60950-1

Start Up Time

<17 s. (IR image, no GUI)

Start-up time from sleep mode

<4 seconds

GENERAL

Compatible with FLIR software

FLIR Tools®

Material

PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy

Packaging Size

500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)


Related Documents
