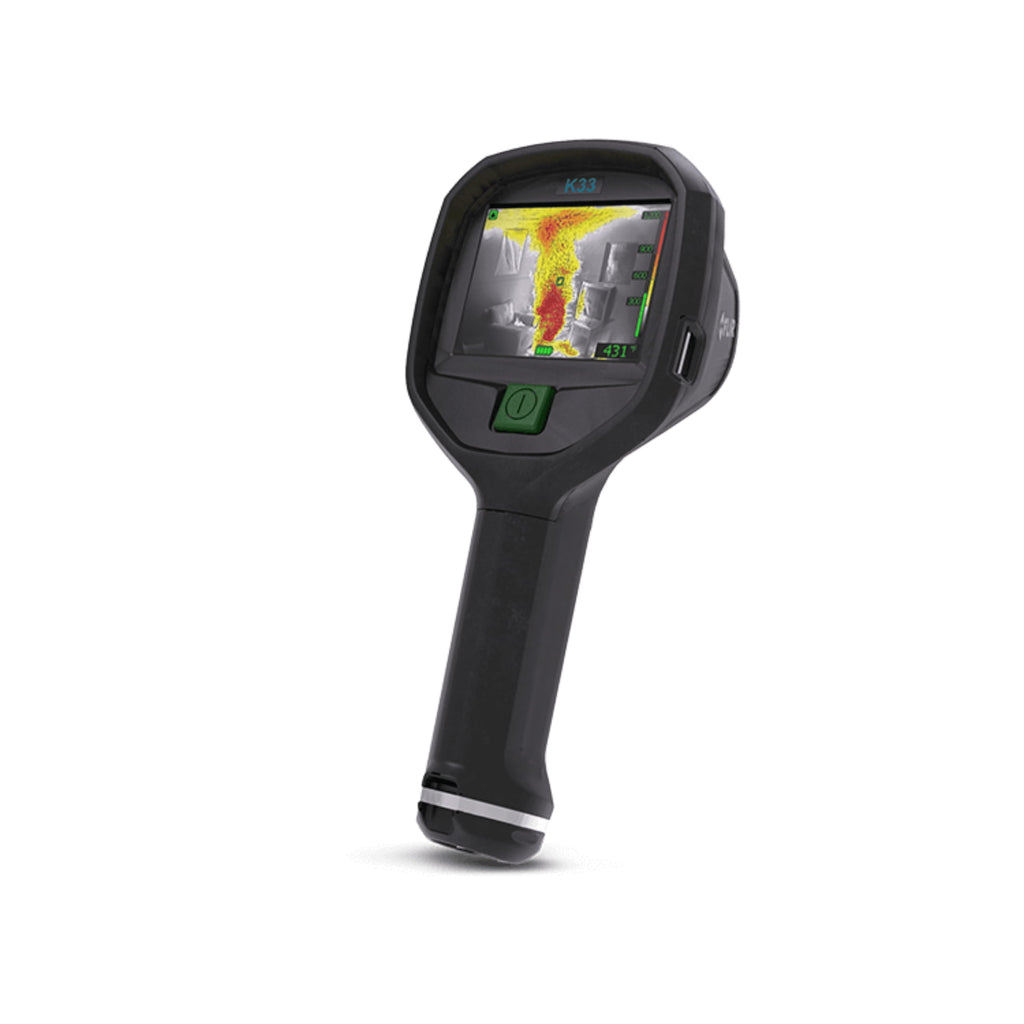

FLIR K33 Thermal Imaging Camera for Firefighting

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.



FLIR K33 High performance TIC 240x180

Introducing the FLIR K33: your affordable and user-friendly solution without compromising the dependable clarity and performance you require. Unveiling the FSX™ Flexible Scene Enhancement, this thermal imaging camera heightens structural and textural intricacies within thermal images. The enriched perspective and alignment significantly enhance situational awareness, instilling firefighters with heightened confidence and an amplified sense of safety.


FIREPOWER SIMPLIFIED

One glove-friendly button starts the K33 in TI-Basic mode, while pulling and holding the trigger freezes the image.

UNCOMPROMISING VISUAL QUALITY

240 × 180 resolution, a 60 Hz frame rate, and a bright 4" LCD all help you see more in smokey conditions.

AFFORDABILITY REDEFINED

The K33's affordable price helps fire and rescue departments get essential tools into the hands of those who could use them most.


FLIR K33 Now Available with Enhanced Improvements

Includes great K33 values you’ve come to rely on plus:

  • Improved image clarity and sharpness
  • Better contrast in low-contrast areas
  • Better contrast in high contrast areas
  • Better room and depth perception
  • More efficient and safer search and rescue operation
  • Better at preventing firefighter disorientation
  • More efficient navigation and orientation in low and non-visibility areas
  • Quicker location of fire
  • Better image performance during demonstration

Comparison

*Note: The enhancement does not affect the technical specifications of the products *


Specifications

OVERVIEW

Camera size (L x W x H)

120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)

Camera weight incl battery

1.1 ±0.05 kg (2.4 ±0.1 lb.)

IR Resolution

240 × 180 pixels

Display

4 in. LCD, 320 × 240 pixels, backlit

Object Temperature Range

–20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)

COMMUNICATIONS & Data Storage

Image Storage

No JPEG storage; Image freeze: configurable

Image Storage Capacity

NA

Interface

Update from PC devices Data transfer to and from PC

USB

USB Mini-B

ENVIRONMENTAL

Directives

Designed to meet NFPA 1801:2013 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability

Drop

2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)

EMC

EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC 47 CFR Part 15 B (emission)

Encapsulation

IP 67 (IEC 60529)

Humidity (Operating and Storage)

IEC 60068-2-30, 24 hours, 95% relative humidity, 25–40°C (77–104°F), 2 cycles

Magnetic fields

EN 61 000-4-8, test level 5 for continuous field (severe industrial environment)

Operating Temperature Range

–20°C to 85°C (–4°F to 185°F) 150°C (302°F): 15 min. 260°C (500°F): 5 min.

Relative Humidity

95% relative humidity, 25–40°C (77–104°F), non-condensing

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to 85°C (–40°F to 185°F)

Tripod Mounting

UNC ¼"-20 (adapter needed)

Vibration

2 g (IEC 60068-2-6)

IMAGING & OPTICAL

Contrast optimization

Digital image enhancement using FSX

Depth of Field

0.84 m to infinity (33 in. to infinity)

Detector Type

Focal plane array (FPA), uncooled microbolometer

Field of view (FOV)

51° × 38°

f-number

1.25

Focal Length

9 mm (0.35 in.)

Focus

Fixed

Image Frequency

60 Hz

Image Modes

TI Basic fire-fighting mode

IR Resolution

240 × 180 pixels

Pitch

Uncompressed colorized video using USB

Pitch

25 µm

Spatial resolution (IFOV)

3.6 mrad

Spectral Range

7.5–13 µm

Thermal Sensitivity/NETD

<40 mK @ 30°C (86°F)

MEASUREMENT & ANALYSIS

Accuracy

±4°C (±7.2°F) or ±4% for ambient temperatures of 10–35°C (50–95°F)

Set-up Commands

Local adaptation of units, date and time formats

Isotherm

Yes

Object Temperature Range

–20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)

Spot Meter

1.0

METER DATA

Auto Range

Yes, selectable on/off using FLIR Tools®

POWER

Battery capacity

4.4 Ah, at 20°C to 25°C (68°F to 77°F)

Battery operating time

Approximately 4 hours at 25°C (77°F) ambient temperature and typical use

Battery type

Li ion

Battery voltage

3.6 V

Battery weight

0.52 kg (0.3 lb.)

Charging system

Battery is charged inside the camera 2-bay charger Optional In-truck charger

Charging Temperature

0–45°C (32–113°F)

Charging Time

2 h to 85% capacity, charging status indicated by LEDs

Power Management

Automatic shutdown and sleep mode

Safety [power supply]

CE/EN/UL/CSA/PSE 60950-1

Start Up Time

<17 s. (IR image, no GUI)

Start-up time from sleep mode

<4 s.
