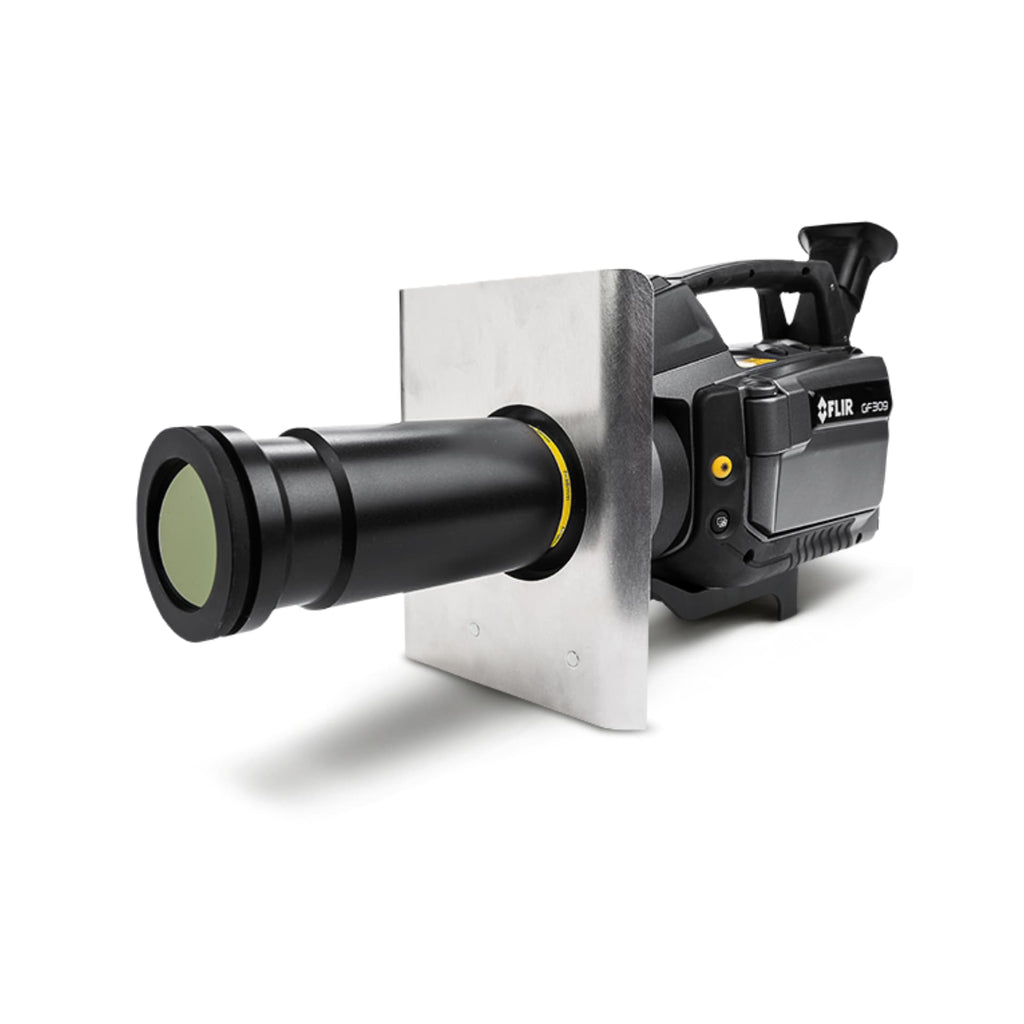

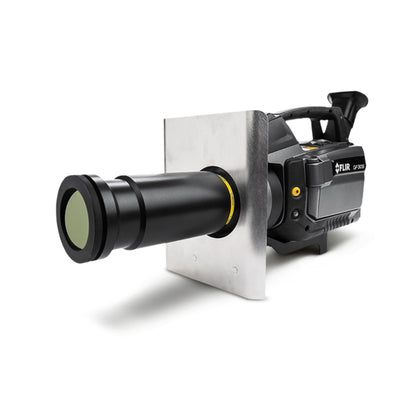

The FLIR GF309 is designed for high temperature industrial furnace applications. These infrared cameras are ideal for monitoring all types of furnaces, heaters, and boilers, particularly in the chemical, petrochemical, and utility industries. Custom-built to see through flames, the FLIR GF309 also features a detachable heat shield designed to reflect heat away from the camera and camera operator, providing increased protection.
FLIR GF309
Furnace and Electrical Inspection Camera
FASTER, SAFER INSPECTIONS
By accurately measuring temperature across the entire surface, GF309 helps you inspect faster, work safer, and avoid shutdowns.
SEE MORE WITH EXTENDER LENS
The GF309 extender lens offers better angles when measuring temperatures through a viewport, for improved safety and greater accuracy.
RECORD & REPORT EASILY
Save images and video from the GF309 to any off-the-shelf video recorder for easy archiving and documentation.
SPECIFICATIONS
| OVERVIEW | |
|
Accuracy |
±1°C (±1.8°F) for temperature range 0°C to +100°C (+32°F to +212°F) or ±2% of reading for temperature range +100°C (+212°F) |
|
Detector Type |
Cooled InSb |
|
Field of view (FOV) |
24° × 18° |
|
Packaging Size |
400 x 190 x 510 mm (15.7 x 7.5 x 20.1 in.) |
|
Profile |
1 live line (horiz. or vert.) |
|
Resolution |
320 × 240 |
|
Zoom |
1 – 8× continuous digital |
|
GPS [compass] |
Yes |
|
Area Box |
5 (min./max./avg.) |
|
Laser Spot |
Yes |
Get a Quote
Please complete the form below to submit your quote request.
Export Restrictions
The information contained in this page pertains to a dual use product controlled for export by the Export Administration Regulations (EAR). Diversion contrary to US law is prohibited. US Department of Commerce authorization is not required prior to export or transfer to foreign persons or parties unless otherwise prohibited.
