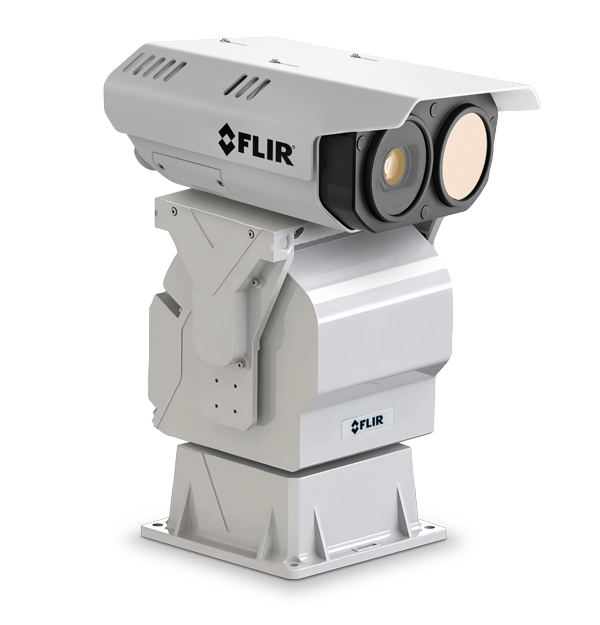

The FLIR FH-Series R PTZ combines radiometric thermal imaging, visible video and continuous pan-tilt coverage for early fire detection, surface-temperature monitoring and security. It helps operators find hot spots before ignition, verify alarms visually and monitor wide outdoor areas around the clock.
Request pricing and a site assessment
Detect heat early. Verify events fast.
-
MONITOR SURFACE TEMPERATURES
Onboard radiometry measures minimum, maximum, average and differential temperatures across user-defined spots, boxes and polygon areas.
-
COVER WIDE OUTDOOR AREAS
Continuous 360° pan, programmable presets and thermal imaging support scheduled patrols of industrial yards, stockpiles, processing areas and critical infrastructure.
-
VERIFY AND COORDINATE RESPONSE
Visible video with 30× optical zoom helps operators assess smoke, hot spots and intrusions, while NEXUS and ONVIF support integration with compatible security systems.
Eight thermal configurations
Choose 9 mm, 13 mm, 25 mm or 35 mm thermal optics, with 30 Hz and export-compatible 9 Hz configurations. GoThermal can match the lens and frame rate to your monitoring distance, coverage area and regulatory requirements.
| Model | Focal length | Frame rate |
|---|---|---|
| FH-617 R PTU | 35 mm | 30 Hz |
| FH-644 R PTU | 13 mm | 30 Hz |
| FH-625 R PTU | 25 mm | 9 Hz |
| FH-669 R PTU | 9 mm | 30 Hz |
| FH-669 R PTU | 9 mm | 9 Hz |
| FH-644 R PTU | 13 mm | 9 Hz |
| FH-617 R PTU | 35 mm | 9 Hz |
| FH-625 R PTU | 25 mm | 30 Hz |
Designed for high-consequence sites
The IP66 system is designed for demanding outdoor environments. Typical applications include early fire detection around mines, warehouses, manufacturing plants, waste and recycling facilities, energy sites and other areas where a developing hot spot can cause injury, asset loss or operational shutdown.
Technical specifications
| Compliance & Certifications | |
|---|---|
| Compliance and certifications | FCC Part 15, Subpart B, Class A; UL Listed; RoHS; WEEE; ONVIF Profiles S, G and T; IEC 62368. Certifications for the complete camera plus PTU assembly are pending. |
| Cybersecurity | IEEE 802.1X; TLS/HTTPS; user authentication; firewall access control; credential policy enforcement; digest authentication. |
| Environmental | |
| IP rating | IP66 |
| Operating temperature | −35 °C to 65 °C (−31 °F to 149 °F) |
| Storage temperature | Camera: −55 °C to 85 °C; PTU: −40 °C to 70 °C |
| Humidity | Camera: 0–95% relative humidity; PTU: <90% relative humidity |
| Vandal resistance | IK10, except windows; camera only |
| Shock and vibration | IEC 60068-2-27 and IEC 60068-2-64; camera only |
| General | |
| Detector type | Long-life, uncooled VOx microbolometer |
| Enclosure | Camera: NEMA 4X; PTU: aluminium alloy |
| Input voltage | 24 V AC (±10%) or 24 V DC (±10%) |
| Power consumption | FH-Series R PTZ with PTU: ≤150 W |
| Weight | 18.1 kg (41.4 lb) |
| Measurement & Analysis | |
| Object temperature range | High gain: 0 °C to 160 °C; low gain: 0 °C to 380 °C |
| Accuracy | Below 100 °C: ±5 °C; below 150 °C: ±5%; above 150 °C: ±15%, measured at 25 °C ambient. Inaccuracy may increase at extreme temperatures. |
| Radiometric analysis | Minimum, maximum, average and differential temperature measurement in user-defined spots, boxes and polygon-shaped areas. |
| Pan-Tilt Unit | |
| Pan | 360° continuous; 0.1°/s to approximately 55°/s |
| Tilt | −75° to approximately 40°; 0.1°/s to approximately 25°/s |
| Presets | 200 valid preset positions; ±0.1° accuracy |
| System Integration | |
| Ethernet | 100/1000 Mbps |
| Network APIs | NEXUS SDK, NEXUS CGI, ONVIF Profiles S, G and T |
| Alarm I/O | Two dry-contact inputs and two relay outputs, 1 A maximum at 24 V AC/30 V DC; normally open or normally closed, configurable |
| Streaming resolution | Thermal: 640 × 512. Visible: 1920 × 1080, 1280 × 720 and 640 × 480. |
| Supported protocols | IPv4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP and IEEE 802.1X |
| Thermal Camera | |
| Array format | 640 × 512 |
| Pixel pitch | 17 µm |
| Sensitivity | <35 mK at 25 °C, f/1.0 |
| Spectral range | 7.5 µm to 13.5 µm |
| Frame rate | NTSC: 5–30 fps; PAL: 5–25 fps |
| Image controls | Automatic flat-field correction, Auto AGC, Digital Detail Enhancement, brightness and contrast |
| Visible Camera & Video | |
| Visible stream | Up to 1920 × 1080 with 30× optical zoom |
| Visible F-number | f/1.6–f/4.4 |
| Compression | H.264, H.265 and MJPEG; four independent streams, two visible and two thermal |
Documents and downloads
Technical documentation published by FLIR and distributed by GoThermal — Unit 9, No 4 Homestead Avenue, Bryanston, Johannesburg, South Africa — Tel +27 11 557 9200 — sales@GoThermal.co.za
Frequently asked questions
What does radiometric thermal imaging add?
Radiometry provides contactless surface-temperature measurements, not only a thermal picture. Alarm rules can be based on temperature thresholds and changes within configured regions.
Can it be used for both fire detection and security?
Yes. The system combines radiometric thermal monitoring with visible verification and PTZ coverage. The final design, alarm logic and integrations should be engineered for the specific site and risk.
Which lens and frame rate should I choose?
The correct choice depends on target size, monitoring distance, required scene width and export regulations. GoThermal can specify the configuration from a site plan and operating requirements.
Does it replace a certified fire-detection or suppression system?
No. It is an early-warning and monitoring component. It should be integrated into a professionally designed fire-risk strategy and does not replace required certified detection, alarm or suppression systems.
Get a Quote
Send us your site layout, monitoring distances, target temperature range and VMS requirements. GoThermal will help specify the appropriate FH-Series R PTZ configuration and integration approach.
