FLIR EST Kiosk Skin Temperature Screening Solution

Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

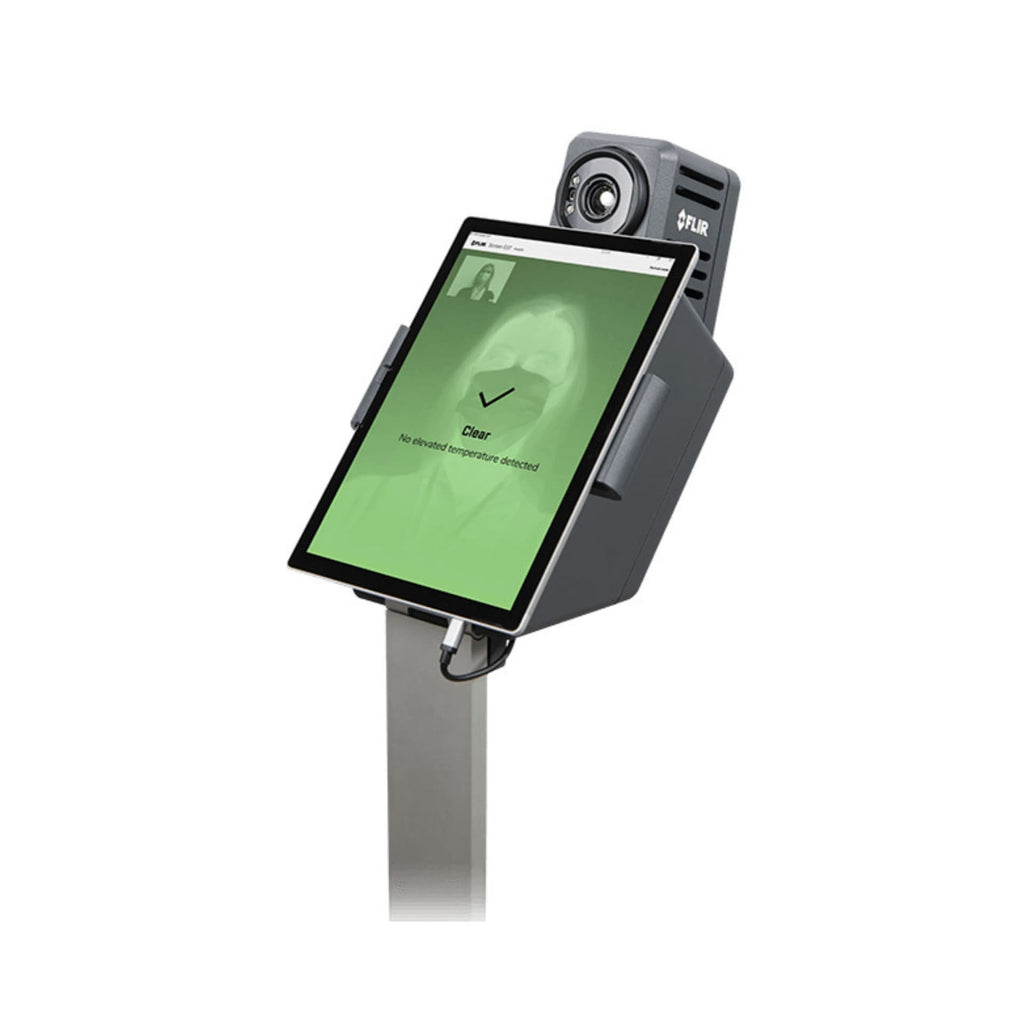

FLIR EST Kiosk

Skin Temperature Screening Solution

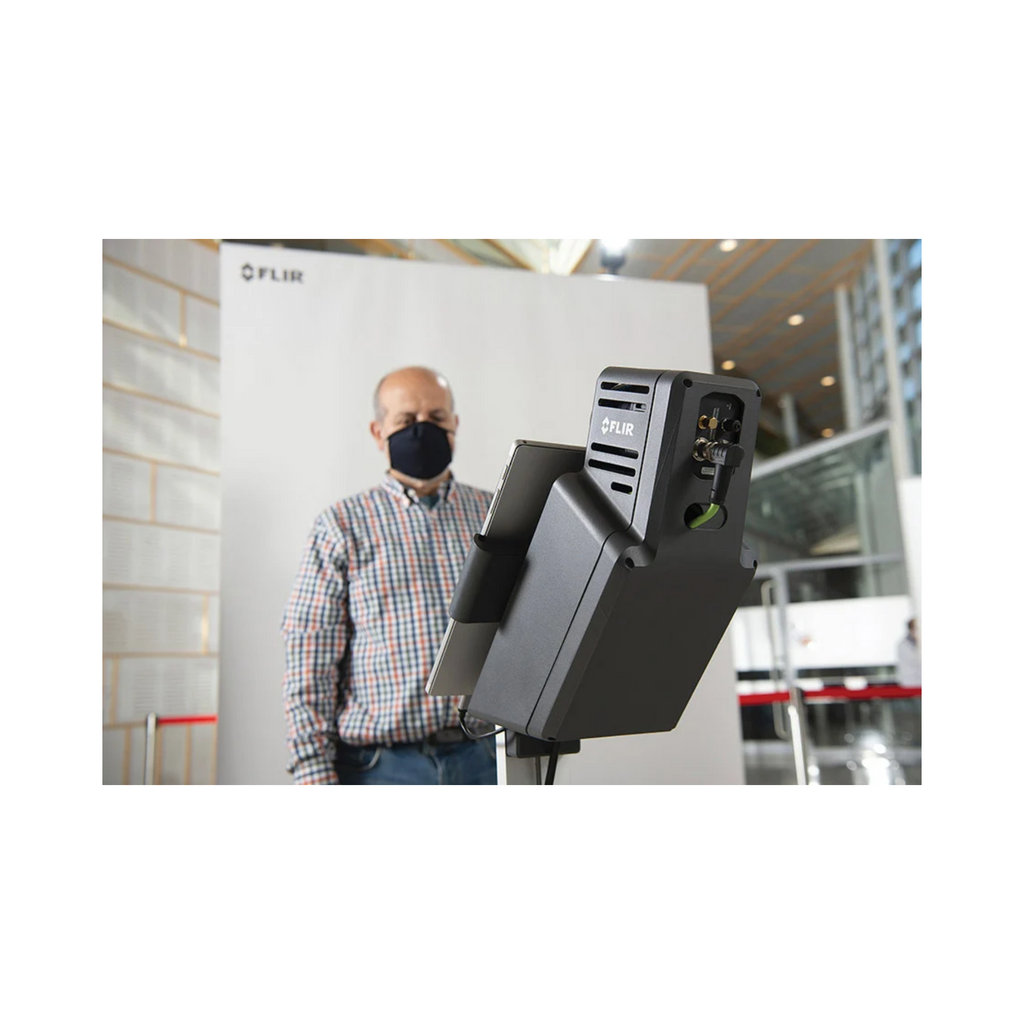

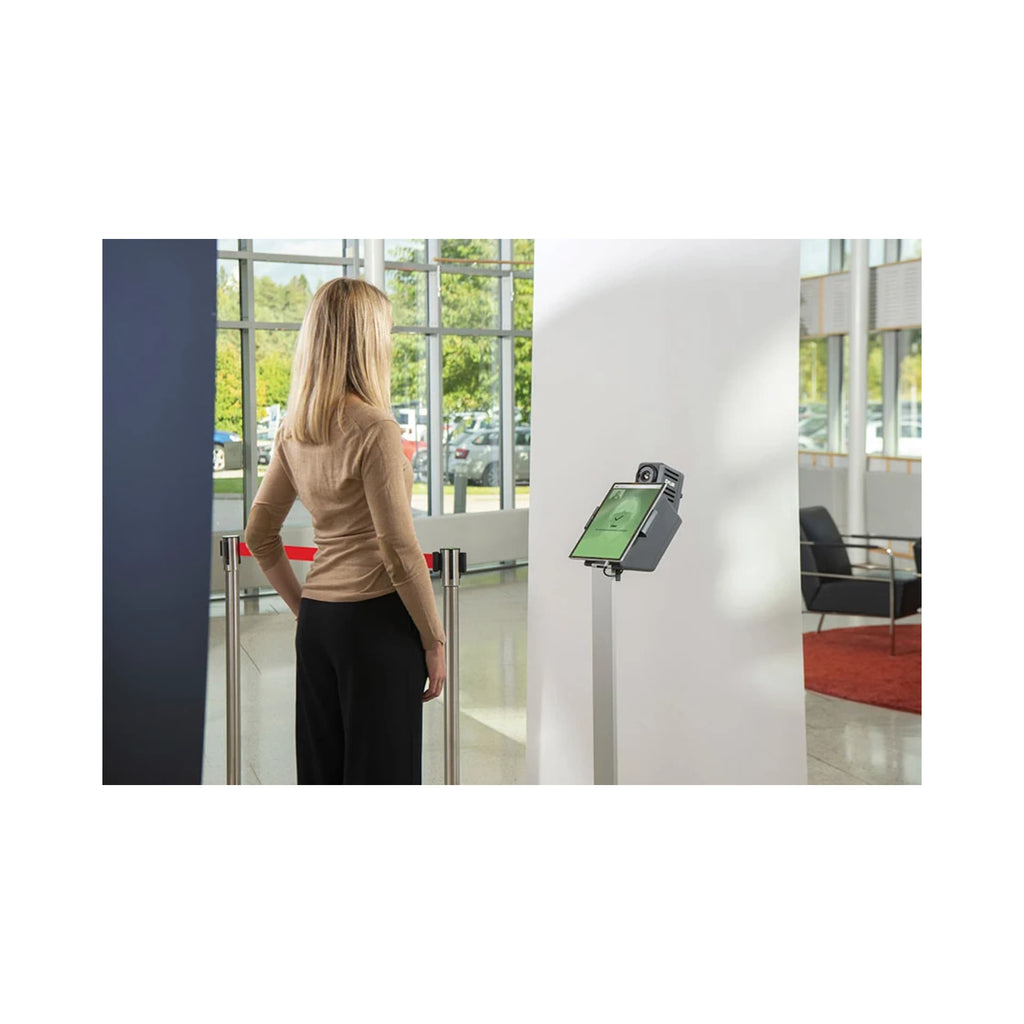

Quickly screen passengers, customers, or employees for signs of elevated skin temperature with this turnkey solution. The FLIR EST Kiosk combines the temperature measurement capabilities of a thermal imaging camera plus FLIR Screen-EST™ software with the convenience of a tablet display and floor stand. This kiosk sets up in minutes, offering fully automated, self-service screening that targets the inner canthus (corner of the eye) for accurate skin temperature measurement.


Faster, Easier Skin Temperature Screening

EASY SETUP AND OPERATION

Ready to use right out of the box with pre-installed FLIR Screen-EST software, customizable instructions, and alert displays.

EFFICIENT, CONSISTENT RESULTS

Automatically targets the inner canthus for fast, accurate screening.

ACCURATE TEMPERATURE SCREENING

Advanced factory calibration combined with relative measurement methodology ensures screening accuracy and avoids false-positives.

Specifications:

General

Package Includes

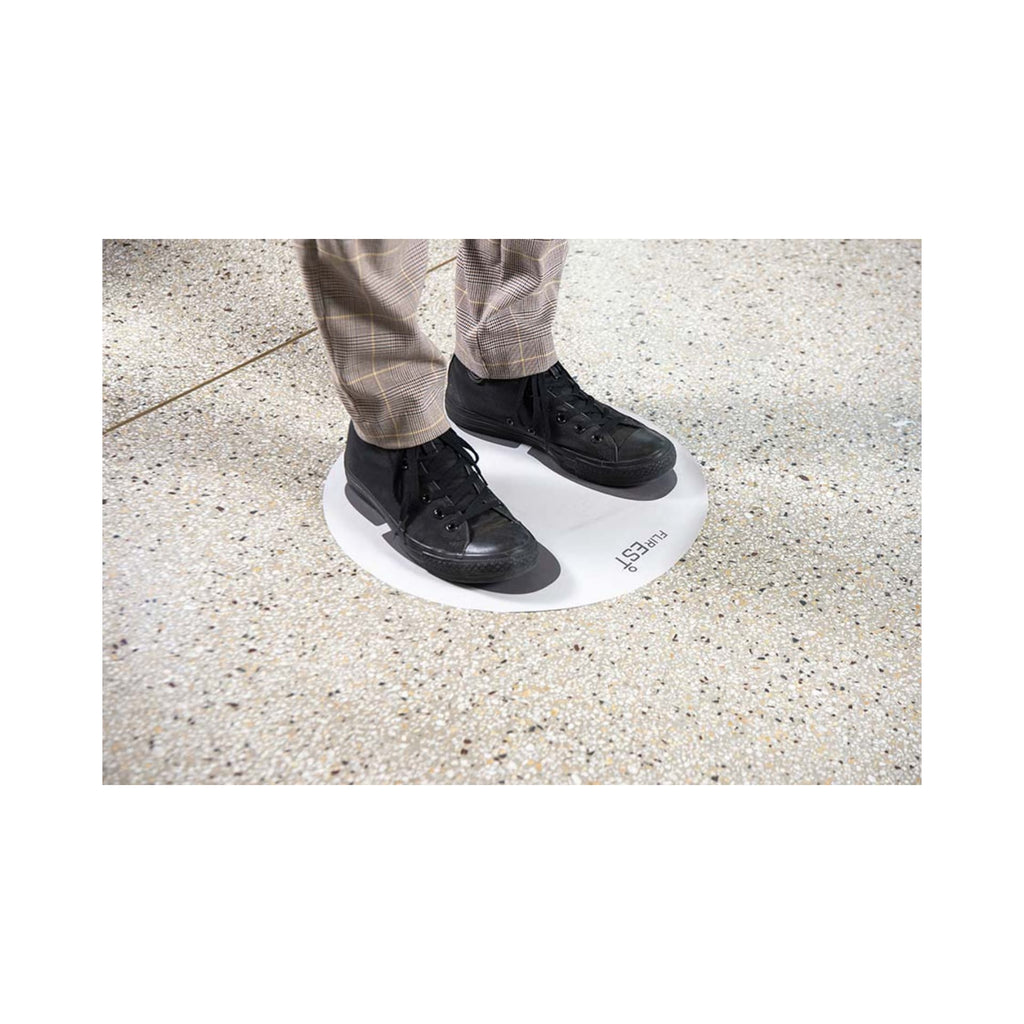

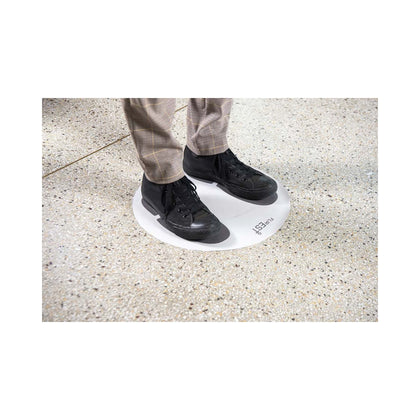

Camera, Surface® Pro7 tablet, tablet stand, cables (Europe, UK, US), screening position floor sticker (T131181), FLIR Screen-EST™ license card, printed documentation

Overview

Encoding

Video stream – H.264, MPEG4, or MJPEG; Radiometric stream – Compressed JPEG-LS, FLIR radiometric

Size (L x W x H)

360 × 270 × 1300 mm (14 × 11 × 51.2 in)

Warranty

http://www.flir.com/warranty/

Web interface

Yes

Weight

8.3 kg (18 lb.)

Connections & Communications

Digital I/O connector type

M12 12-pin A-coded, Male (shared with external power)

Digital I/O isolation voltage

500 VRMS

Digital Output Purpose

As function of alarm, output to external device, for example when the screening alarm is triggered

Digital Outputs

3x opto-isolated, 0–30 V DC, max. 300 mA (derated to 200 mA at 60C); Solid state opto relay; 1x dedicated as Fault output (NC)

Ethernet

Control, result, image, and power

Ethernet Communication

TCP/IP socket-based FLIR proprietary

Ethernet Connector Type

M12 8-pin X-coded, Female; RP-SMA, Female

Ethernet Interface

Wired, Wi-Fi

Ethernet Standard

IEEE 802.3

Ethernet Type

1000 Mbps

WiFi

(optional) RP-SMA, Female; Dipole antenna 2.4/5 GHz (gain: maximum 2 dBi); Peer to peer (ad hoc)‎ or infrastructure (network)‎

Imaging & Optical

Contrast Enhancement

FSX® / Histogram equalization (IR only)

Detector Pitch

17 µm

Field of view (FOV)

24° × 18°

f-number

1.3

Focal Length

17 mm (0.67 in)

Focal Plane Array (FPA)

Uncooled microbolometer

Focus

One-shot contrast, motorized, manual

Image Fequency

30 Hz

IR Resolution

464 × 348

Lens Identification

Automatic

Minimum Focus Distance

0.15 m (0.49 ft)

MSX Image Enhancement

Yes (video streaming source 0)

Overlay

Video stream 0 – With/Without; Video stream 1 – No

Spatial resolution (IFOV)

0.90 mrad/pixel

Spectral Range

7.5–14 µm

Streaming Resolution

Video stream 0 – 640 × 480 pixels; Video stream 1 – 1280 × 960 pixels; Radiometric stream – 464 × 348 pixels

Thermal Sensitivity/NETD

<40 mK at 30°C (86°F)

Video Streaming

Bit rate set through camera web

Measurement & Analysis

Accuracy

±0.3°C (±0.5°F) when used with FLIR Screen-EST™ software

Object Temperature Range

15°C to 45°C (59°F to 113°F)

Other

Pixel Format

Video stream – YUV411; Radiometric stream – MONO 16

Power

External Power Operation

24/48 V DC 8 W max

External Voltage

Allowed range 18–56 V DC

Power Connection

Camera: M12 12-pin A-coded, Male (shared with Digital I/O)

Power Consumption

7.5 W at 24 V DC typical; 7.8 W at 48 V DC typical; 8.1 W at 48 V PoE typical

Radiometry

Image Source

Video stream 0 – visual / IR / MSX®; Video stream 1 – visual; Radiometric video stream – IR
