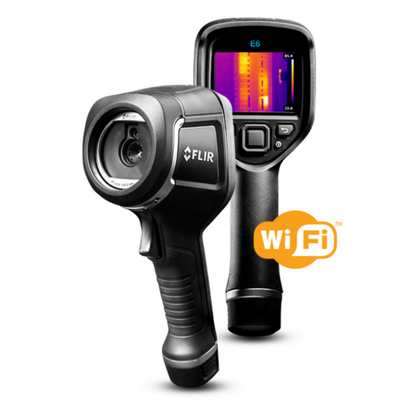

FLIR E6-XT Thermal Inspection Camera with MSX and WiFi

Shipping calculated at checkout.

This product is End Of Life. Please CONTACT US for alternatives.



This product has now been discontinued, please see the alternative product:

FLIR E6-XT InfraRed Camera With Extended Temperature Range

FLIR E6-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 43.200 (240 × 180) pixel infrared detector and expanded, -20°C to 550°C (-4°F to 1022°F) temperature range. FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.


Affordable, Professional Thermal Imaging

SIMPLE, INTUITIVE CONTROLS

Automatic and focus-free, with clear on-screen navigation to measurement tools and settings

SHARE IMAGES AND FINDINGS EASILY

Download standard JPEGS, create reports, and share what you've found via a Wi-Fi connection to the FLIR Tools Mobile app

BUILT FOR YOUR TOUGH WORK ENVIRONMENT

Lightweight and well-balanced, the E6-XT has an IP54 enclosure and easily withstands a 2-meter drop test

Specifications

FLIR E6-XT

IR Resolution

240 × 180 pixels

Thermal Sensitivity/NETD

<0.06°C (0.11°F) / <60 mK

Field of view (FOV)

45° × 34°

Image Modes

Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.°

Display

3.0 in. 320 × 240 color LCD

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

IMAGING & OPTICAL

Colour

Black and gray

Colour Palettes

Black & white, iron, and rainbow

Detector Type

Uncooled microbolometer

Field of view (FOV)

45° × 34°

FLIR Screen-EST Mode

No

f-number

1.5

Focus

Focus free

Image Frequency

9 Hz

Image Modes

Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.

IR Resolution

240 × 180 pixels

Minimum Focus Distance

0.5 m (1.6 ft.)

Multi Spectral Dynamic Imaging (MSX)

IR image enhanced with visible camera detail

Picture-in-Picture

IR area on visual image

Spatial resolution (IFOV)

3.4 mrad

Spectral Range

7.5–13 µm

Thermal Sensitivity/NETD

<0.06°C (0.11°F) / <60 mK

MEASUREMENT & ANALYSIS

Accuracy

±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)

Camera size (L x W x H)

244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)

Camera weight incl battery

0.575 kg (1.27 lb.)

Isotherm

Above alarm, below alarm

Object Temperature Range

–20°C to 550°C (-4°F to 1022°F) in two ranges

Reflected apparent temperature correction

Automatic, based on input of reflected temperature

Set-up Commands

Local adaptation of units, language, date and time formats

Spot Meter

Center spot; box with min./max.

USER INTERFACE

Display

3.0 in. 320 × 240 color LCD

POWER

Charging system

Battery is charged inside the camera or in specific charger.

Charging Time

2.5 hours to 90% capacity in camera. 2 hours in charger.

Power Management

Automatic shut-down

ENVIRONMENTAL & CERTIFICATIONS

Certifications

UL, CSA, CE, PSE and CCC

EMC

•WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B

Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity

Operating Temperature Range

–15°C to 50°C (+5°F to 122°F)

Radio Spectrum

•Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to 70°C (–40°F to 158°F)

GENERAL

List of Contents

•Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation

Packaging Size

385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
