FLIR E54-EST Handheld Elevated Skin Temperature Screening Solution

Tax included. Shipping calculated at checkout.

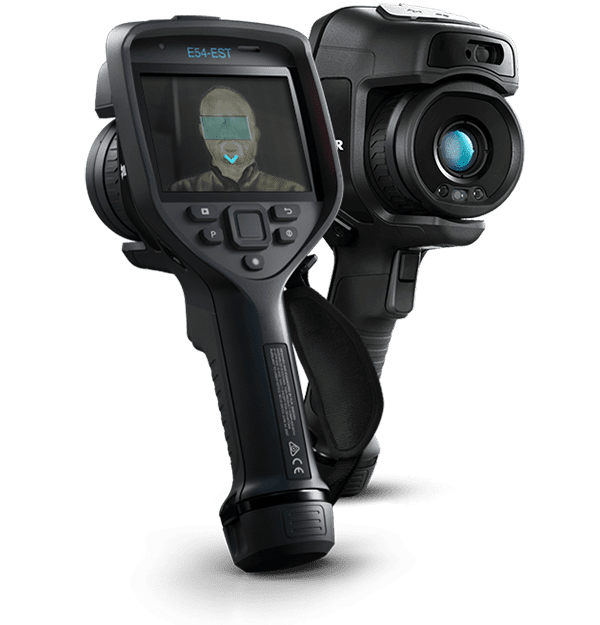

The FLIR E54-EST handheld thermal camera

The FLIR E54-EST handheld thermal camera is a non-contact screening tools that serve as a first line of defense against potential health risks. This FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. With 320 × 240 thermal pixel resolution and bright touchscreen display, the E54-EST offers accurate, easy-to-interpret temperature measurement. The on-camera FLIR Screen-EST Mode offers visual positioning guides, automatic sampling to maintain an updated temperature average, and graphic pass/fail indicators for results, reducing the burden on screening station operators. Compatibility with FLIR Screen-EST Desktop software, an integrated tripod mount, and external power makes this camera a good fit for permanent installations.

Get in Touch

Return to business with efficient skin temperature screening

EASY SET-UP AND OPERATION

Begin screening quickly with limited ramp-up time, simple video connectivity, and choice of >2.5-hour battery or external power

FAST, ACCURATE SCREENING

Optimal screening accuracy with automatic ambient drift compensation, visual pass/fail graphic indicators, and audible alarms.

MAINTAIN SAFETY AND PRIVACY

On-camera FLIR Screen-EST Mode does not store images or personal information and allows for social distancing in screening setups.

SPECIFICATIONS

Overview
Display Technology	IPS
Field of view (FOV)	24° × 18°
Focal Length	17 mm (0.67 in)
Housing material	PCABS with TPE, magnesium
IR Resolution	320 × 240
Object Temperature Range	15°C to 45°C (59°F to 113°F)
Programmable Buttons	1
Size (L x W x H)	278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)
Warranty	http://www.flir.com/warranty/
Weight	1 kg (2.2 lbs)
FLIR Screen-EST Mode	Yes
Sampling Average in Screen-EST Mode	Recommended range: 30 to 45°C (86 to 113°F) in stable room temperature
Accuracy [Drift] in Screen-EST Mode	±0.3°C (±0.5°F)

APP
Palette	Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

CONNECTIONS & COMMUNICATIONS
Communication Interfaces	USB 2.0, Bluetooth, Wi-Fi
Remote Control	Bluetooth®-enabled Remote Operation Button
Storage Media	Removable SD card (8 GB)
USB	USB Type-C: data transfer/video/power
USB - Standard	USB 2.0 High Speed
Video Out	DisplayPort over USB Type-C
WiFi	Peer to peer (ad hoc) or infrastructure (network)
Setup Commands	Local adaptation of units, language, date and time formats
Command and Control	On-camera screen, USB Type-C

ENVIRONMENTAL
Drop	Designed for 2 m (6.6 ft)
Emissivity Correction	Yes: variable from 0.01 to 1.0 or selected from materials list
Operating Temperature Range	-15°C to 50°C (5°F to 122°F)
Radio Spectrum	ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2
Safety	EN/UL/CSA/PSE 60950-1
Storage Temperature Range	-40°C to 70°C (-40°F to 158°F)
Tripod Mounting	UNC ¼"-20
Shock & Vibration & Encapsulation	25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1

IMAGING & OPTICAL
Aspect ratio	4:3
Camera f-number	1.3
Color	Black
Color depth (bits)	24
Detector Type and Pitch	Uncooled microbolometer, 17 µm
Digital Data Streaming	Simultaneous thermal and visible, USB Type-C
Digital Zoom	1-4x continuous
Focus	Manual
Frame Rate	30 Hz
Image Modes	Infrared, visual, MSX°, picture-in-picture
Lens	24° (fixed)
Lens Identification	Automatic
Minimum Focus Distance	0.15 m (0.49 ft)
Spatial resolution (IFOV)	1.75 mrad/pixel
Spectral Range	7.5–14 µm
Viewfinder	No
MSX	Yes
UltraMax	No
Viewing Angle	80°

MEASUREMENT & ANALYSIS
Languages	21
Measurement Corrections	Yes
Reference Temperature	Yes
Automatic hot & cold detection	Auto-maximum/minimum markers within area

METER DATA
Cover Glass Material	Dragontrail®
Display	4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness

OTHER
Stream Non_Radiometric Video	H.264 or MPEG4 over Wi-Fi, MJPEG over UVC and Wi-Fi
Stream Radiometric Video	Over UVC
Thermal Sensitivity_NETD [typical]	<40 mK @ 30°C (86°F)

POWER
Battery Life (Operating)	>2.5 hours at 25°C (68°F) and typical use
Battery size (L x W x H)	150 × 46 × 55 mm (5.9 × 1.8 × 2.2 in)
Battery Type	Rechargeable Li ion battery, >2.5 hrs (typical use)
Battery voltage	3.6 V
Battery weight	140 g (4.9 oz)
Charging Temperature	0°C to 45°C (32°F to 113°F)
Charging Time (using two-bay charger)	2.5 hours to 90% capacity with charging status indicated by LEDs
External Power Operation	USB 2.0 A to USB Type-C with Power supply
Power Management	No

SHIPPING INFORMATION
Packaging	Infrared camera with lens, battery (2 ea), battery charger, front protection, carabiner hook, straps (hand, wrist), hard transport case, lanyards, lens cap, lens cleaning cloth, power supplies, Torx T10 wrench, screws, cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C, USB Type-C to HDMI), USB-C to USB Type-A with power supply included, remote operation button, 8 GB SD card, printed documentation

SHIPPING INFORMATION

Packaging

Infrared camera with lens, battery (2 ea), battery charger, front protection, carabiner hook, straps (hand, wrist), hard transport case, lanyards, lens cap, lens cleaning cloth, power supplies, Torx T10 wrench, screws, cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C, USB Type-C to HDMI), USB-C to USB Type-A with power supply included, remote operation button, 8 GB SD card, printed documentation

STORAGE MEDIA
Image File Format	Standard radiometric JPEG, measurement data included
