The FLIR C8 is a next-generation compact thermal imaging camera built for fast, accurate, and reliable inspections. Traditional thermal inspections can be slow, unclear, and hard to document, but the C8 overcomes these challenges with high-resolution thermal imaging, MSX® enhancement, and FLIR Ignite™ cloud connectivity. Its rugged, compact design ensures you can perform expert-level inspections anywhere, from industrial plants to HVAC systems and vehicle diagnostics.

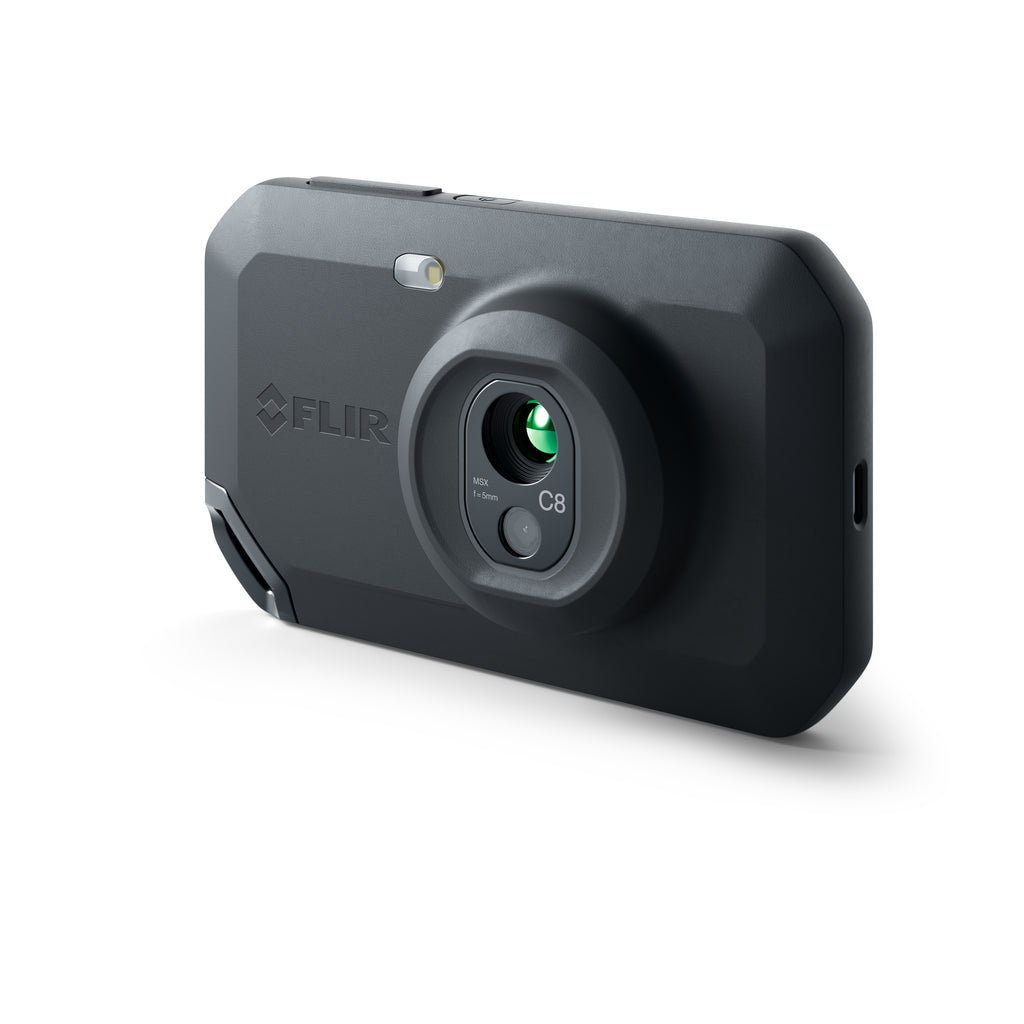

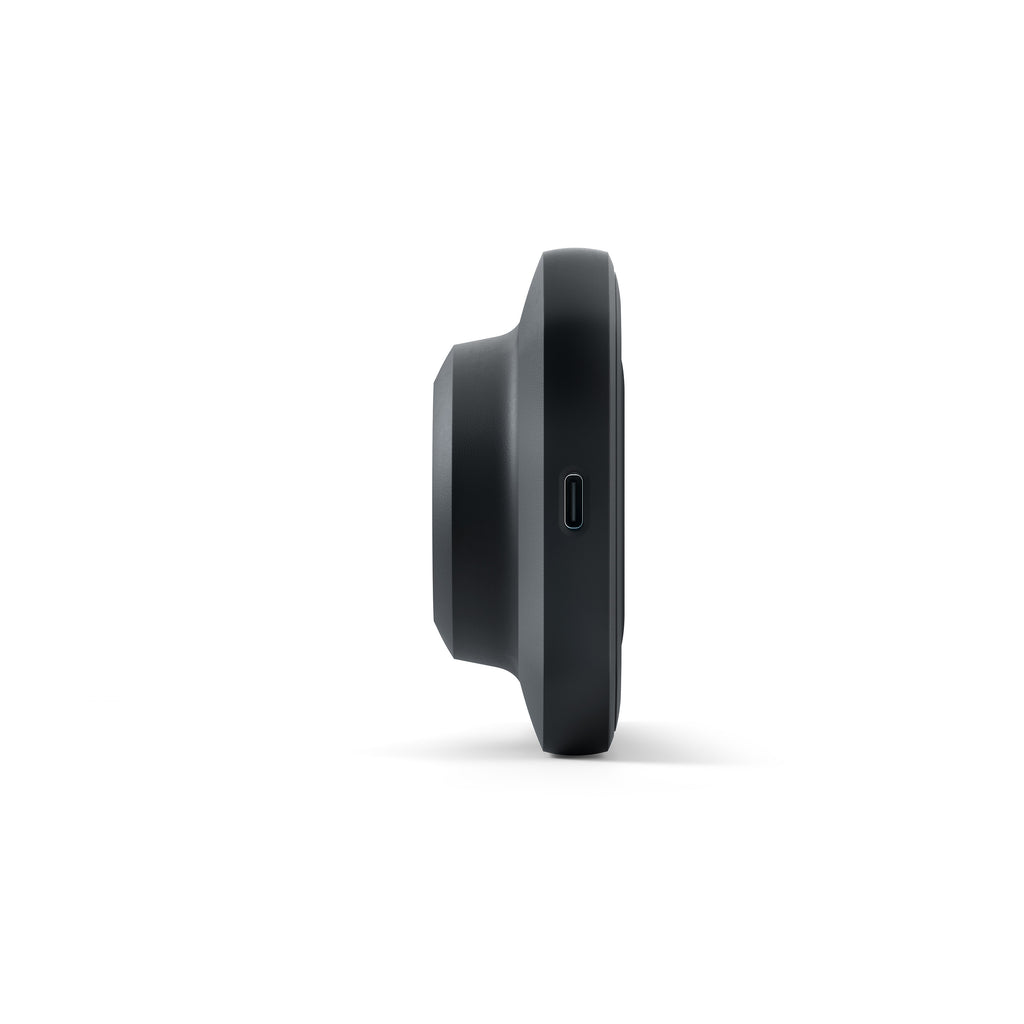

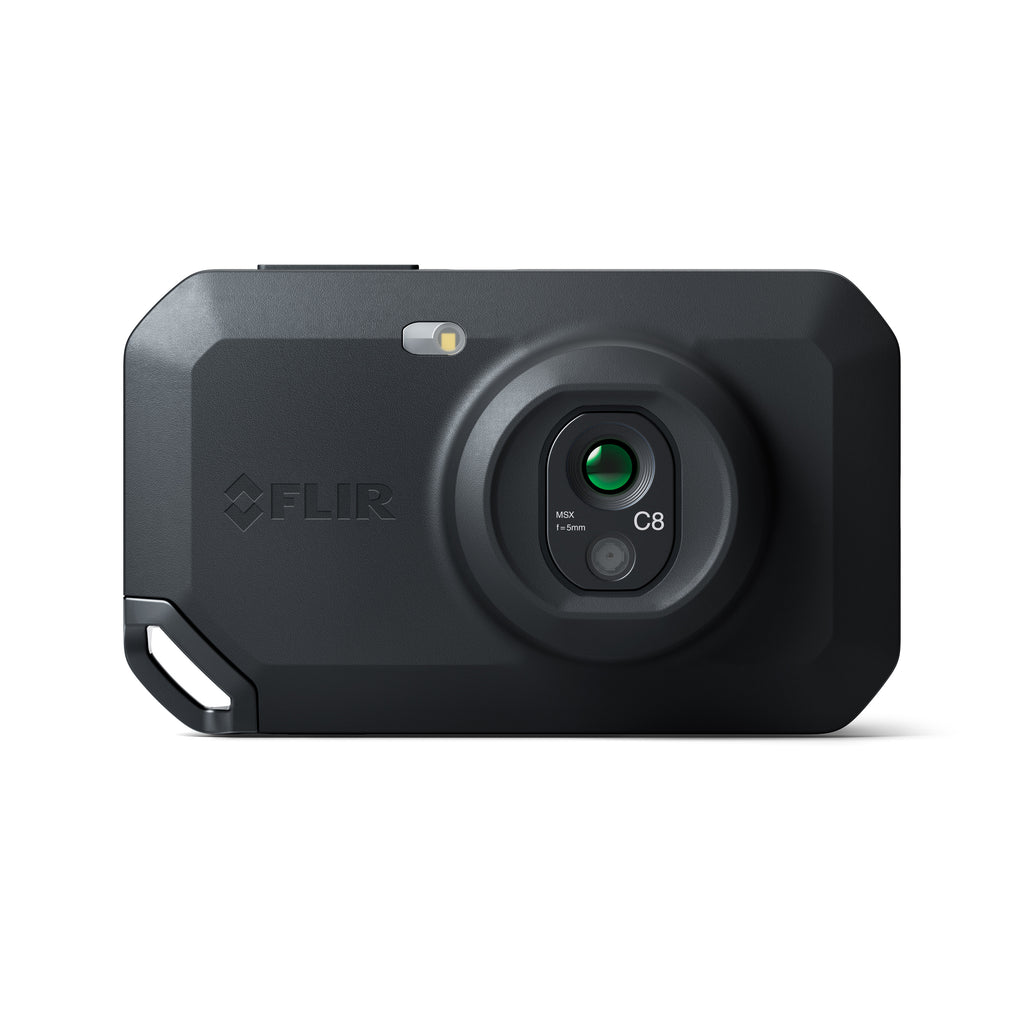

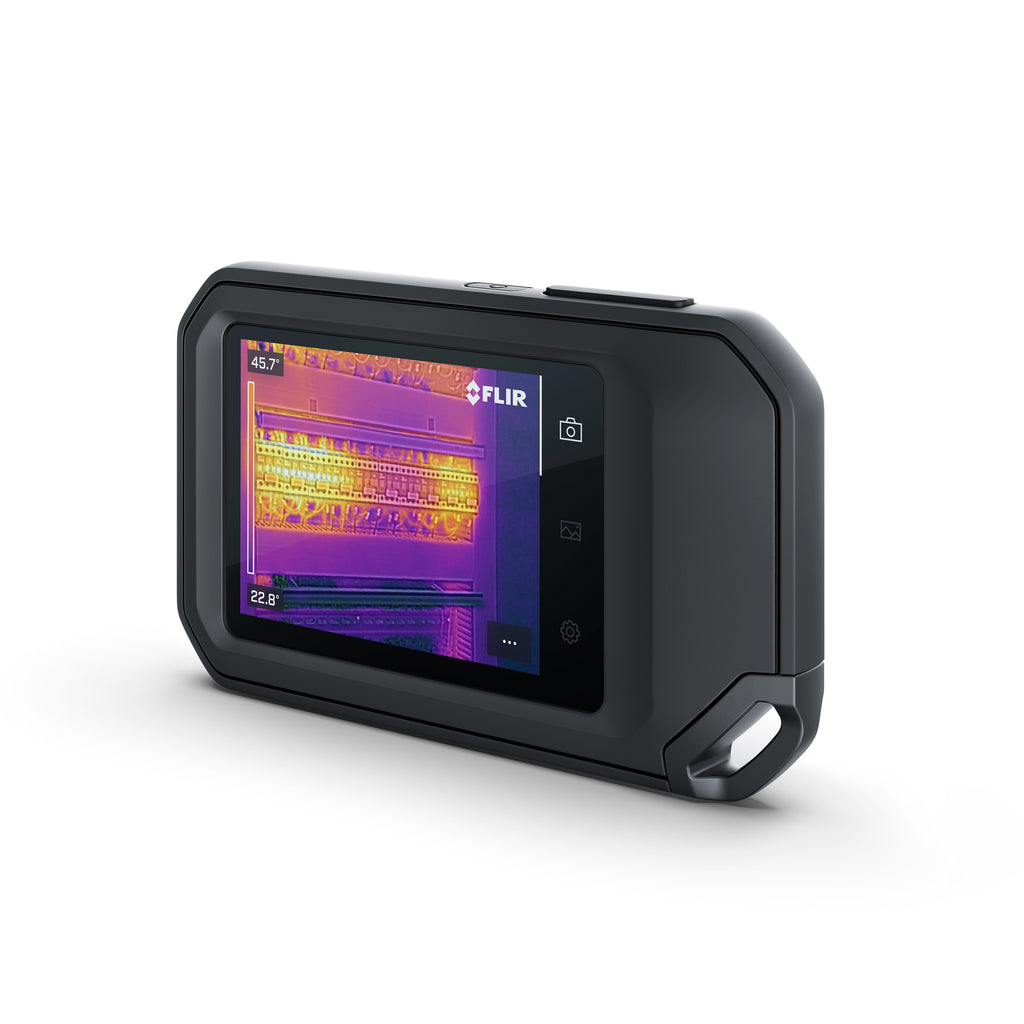

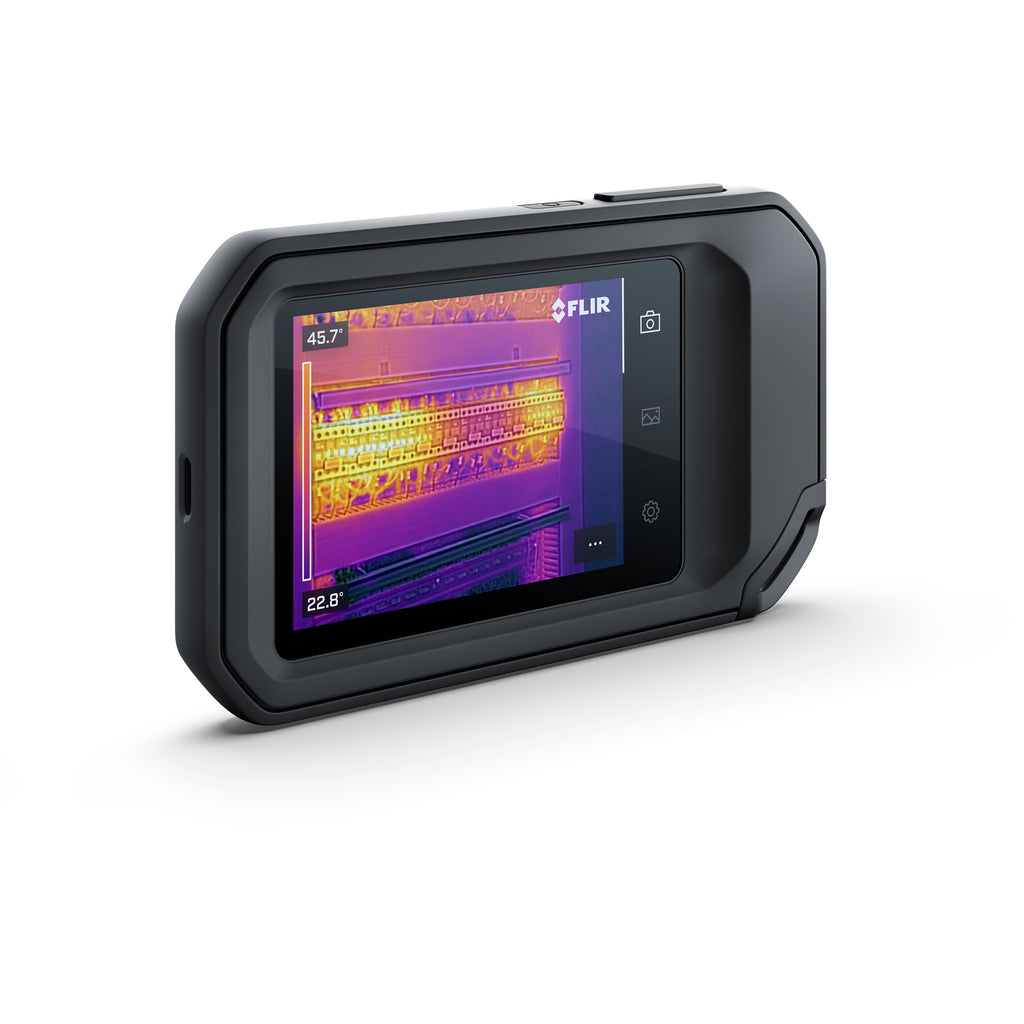

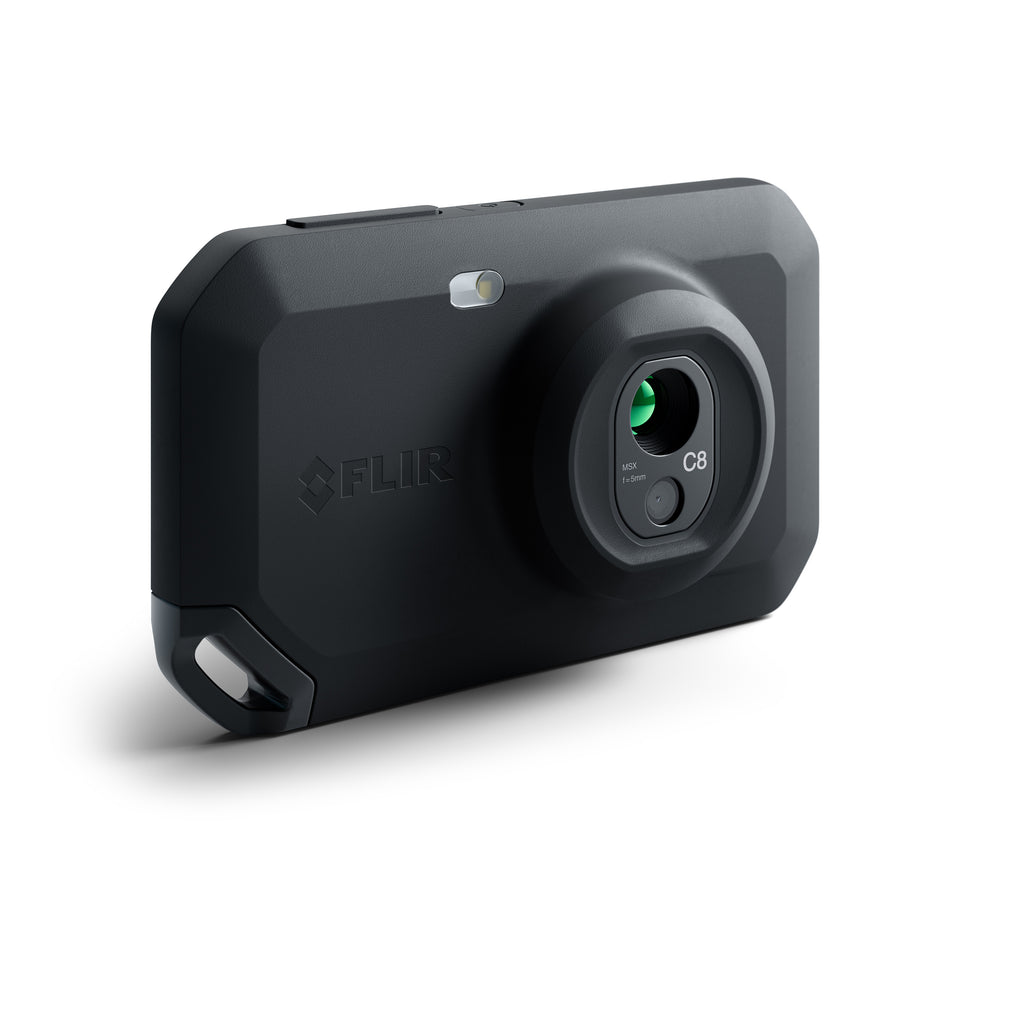

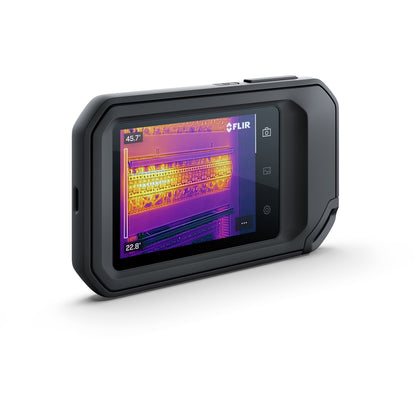

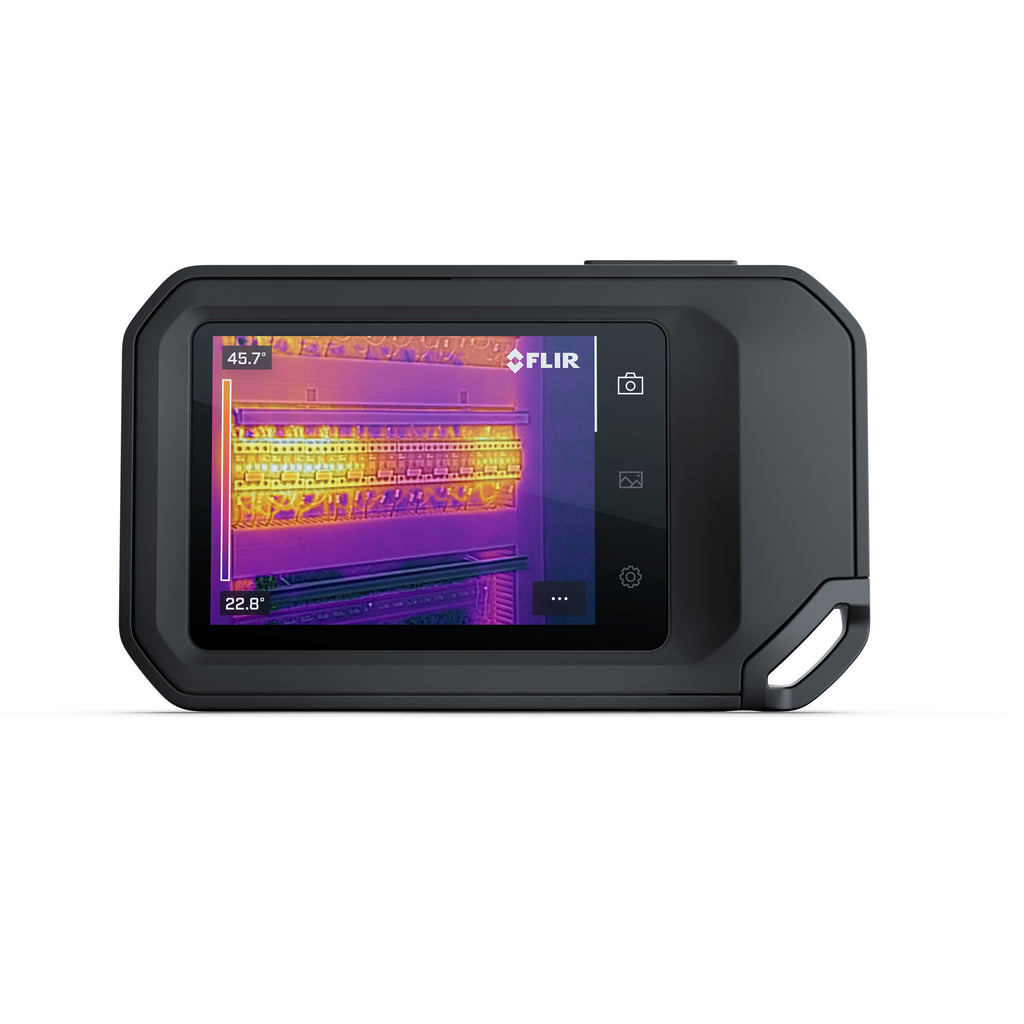

FLIR C8 Thermal Camera
Enhanced Compact Thermal Diagnostics for Faster, Clearer Inspections
RELIABLE, FASTER INSPECTIONS
Identify issues quickly and with confidence thanks to a high resolution, high thermal sensitivity, and isotherm alarming that support consistent, repeatable results.
SEAMLESS CLOUD INTEGRATION
Images automatically upload to Flir Ignite for secure storage, easier access, and standardized reporting, reducing manual steps and data loss.
SIMPLIFIED REPORTING
Prebuilt inspection templates within Ignite Pro accelerate analysis and documentation, making it easy to share findings with teams or clients.
Accuracy: ±2 -2°C @ 0°C to 450°C
The FLIR C8 delivers dependable readings with an accuracy of ±2°C across the 0°C to 450°C range, ensuring reliable data in every inspection.
320 × 240 Resolution
The FLIR C8 offers crisp thermal imaging with a 320 × 240 resolution, ensuring clear and detailed visuals for accurate inspections.
450°C Max Object Temperature
Capable of measuring up to 450°C, the FLIR C8 is suitable for a wide range of applications, from electrical systems to mechanical inspections.
NETD <50 mK
A thermal sensitivity of <50 mK allows the camera to detect even subtle temperature differences, giving users highly precise thermal images.
Isotherm Alarms
With built-in isotherm alarms, the camera quickly highlights areas above or below set temperature thresholds for instant fault detection.
Hot & Cold Spot Measurement
Easily identify problem areas using the hot and cold spot measurement feature, which automatically marks the highest and lowest temperatures in view.
Flir Ignite Pro: 12 month subscription included
| Imaging and optical data | |
| IR resolution | 320 × 240 pixels |
| Thermal sensitivity/NETD | <50 mK |
| Field of view (FOV) | 35° × 27° |
| Minimum focus distance | 0.4 m (1.3 ft) |
| Spatial resolution (IFOV) | 2.0 mrad/pixel |
| F-number | 1.4 |
| Image frequency | 9 Hz |
| Focus | Focus free |
| Digital zoom | Yes, zoom pinch, 1 to 4× continuous |
| Imaging and Optical Data | |
| Detector type | Focal plane array, uncooled microbolometer |
| Spectral range | 7.5–13 μm |
| Detector pitch | 12 μm |
| Image Presentation | |
| Display resolution | 640 × 480 pixels |
| Screen size | 3.5 in |
| Aspect ratio | 4:3 |
| Auto orientation | Yes |
| Touch screen | Yes, capacitive |
| Display technology | IPS |
| Image adjustment | Automatic level and span / Manual level and span / 1-Touch level and span |
| Image modes | Infrared image / Visual image / MSX / Picture-in-picture (IR area on visual image) |
| Gallery | Yes, incl. thumbnails and custom folder structure |
| Measurement | |
| Object temperature range | -20°C to 450°C (-4°F to 842°F) |
| Accuracy at ambient temperature | • 0°C to 100°C (32°F to 212°F): ±2°C (±5.5°F) • 100°C to 450°C (212°F to 842°F): ±2% |
| Measurement analysis | |
| Measurement functions | Spot / Box with max. and min. / Isotherm |
| Measurements correction | Emissivity; matt/semi-matt/semi-glossy + custom value / Reflected apparent temperature / Atmospheric compensation |
| Color palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Service functions | |
| Camera software update | Automatic over Wi-Fi / USB via computer |
| Storage of images | |
| Storage media | Built-in |
| Image storage capacity | >5000 sets of images |
| Image file format | Standard JPEG, 14-bit measurement data included |
| Image annotations | |
| Text | Soft keyboard on touchscreen, auto-prompt for note when image is saved |
| Video streaming | |
| Non-radiometric video streaming | Yes; MSX, Thermal, Visual, Picture-in-Picture. USB video class colorized uncompressed with overlay 9 Hz. |
