DJI Matrice 4TD

RUGGED, RELIABLE & READY FOR REAL-WORLD DEMANDS

The DJI Matrice 4TD redefines enterprise drone operations with advanced thermal and visual imaging, real-time data capture, and full remote deployment capabilities via DJI Dock 3. Engineered for high-stakes missions in emergency response, critical infrastructure inspections, energy utilities, remote site monitoring, and public safety, the Matrice 4TD is your all-in-one solution for unmatched aerial intelligence.

Equipped with a powerful 48MP zoom camera, 640×512 thermal sensor, and a laser rangefinder with 1800 m range, all in a single integrated payload, the M4TD enables precise detection, inspection, and situational awareness. Its IP55-rated weatherproof build, extended flight time of up to 54 minutes, and 4G connectivity ensure stable, autonomous performance, even in extreme environments.

From search and rescue to tactical surveillance and beyond visual line-of-sight (BVLOS) operations, the DJI Matrice 4TD empowers teams to respond faster, operate smarter, and cover more ground, safely and efficiently.

Experience the future of industrial drone technology, purpose-built for professionals who can’t afford to compromise.

Intelligent Operations

Smarter Operations

The built-in model can detect vehicles, vessels, and subjects during search and rescue operations or routine flights. It also supports switching to other models, enabling the expansion of application scenarios. Additionally, it supports high-res grid photos and features powerful tracking capabilities.

Laser Range Finder, Precise Measurement

The laser range finder enables real-time precise measurement. Through simple operations such as pin point, line drawing, and area calculation, it can complete tasks like marking target locations for inspection purposes or calculating the area of a wildfire. Additionally, users can share info via the DJI Pilot QR code or FlightHub 2 with relevant personnel to enhance collaboration and workflow efficiency.

Observation Range Recording

DJI Pilot 2 can highlight the center position of the camera frame and ground area observed. It can display the surveyed area on the map, making it especially useful for patrols, and rescue operations in mountainous terrain without clear landmarks.

Efficient Flight, Intelligent Operations

Cruise

Activate cruise control mode to pilot the drone in a specific direction without constantly pressing the control sticks, making long-distance flights easier.

FlyTo

In emergencies or disasters, the drone can automatically adjust its flight path and speed based on the surrounding environment, allowing it to reach a designated location without manual adjustments.

Smart Track

Smart Track allows for precise subject positioning and automatic zoom adjustments, allowing you to switch between subjects easily. It can automatically reacquire a subject even if obscured briefly.

POI

POI enables continuous observation and 3D modeling of buildings while flying around a designated area, greatly enhancing the efficiency of fixed-point observation and modeling tasks.

Professional-Grade Aerial Inspections Start Here

The DJI Matrice 4TD is a next-generation drone engineered for industrial inspections, public safety, and emergency response. Equipped with a high-resolution RGB camera, thermal imaging, a laser rangefinder, and full integration with DJI Dock 3, this UAV is built for autonomous deployment in extreme environments. With up to 54 minutes of flight time, IP55-rated durability, and advanced long-range imaging tools, the Matrice 4TD delivers mission-critical data when it matters most.

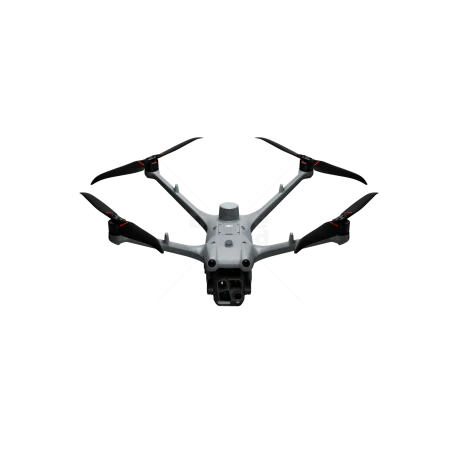

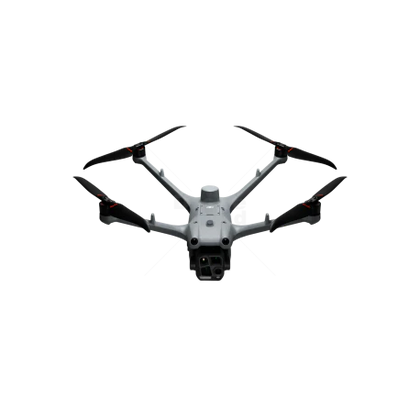

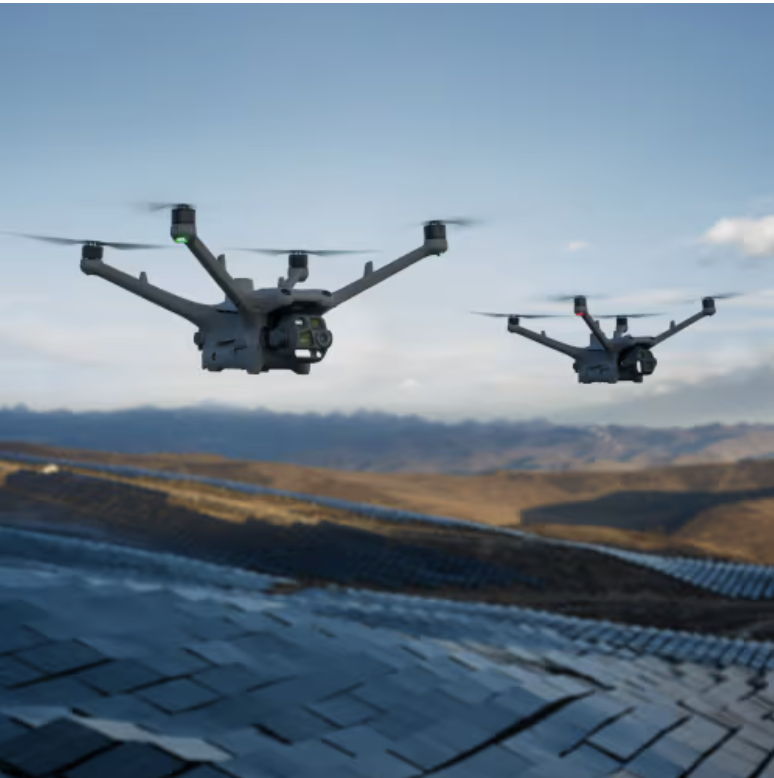

dji matrice 4td in flight

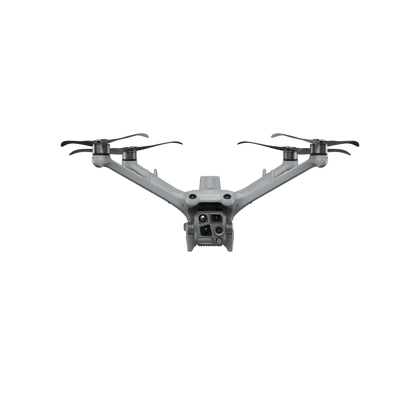

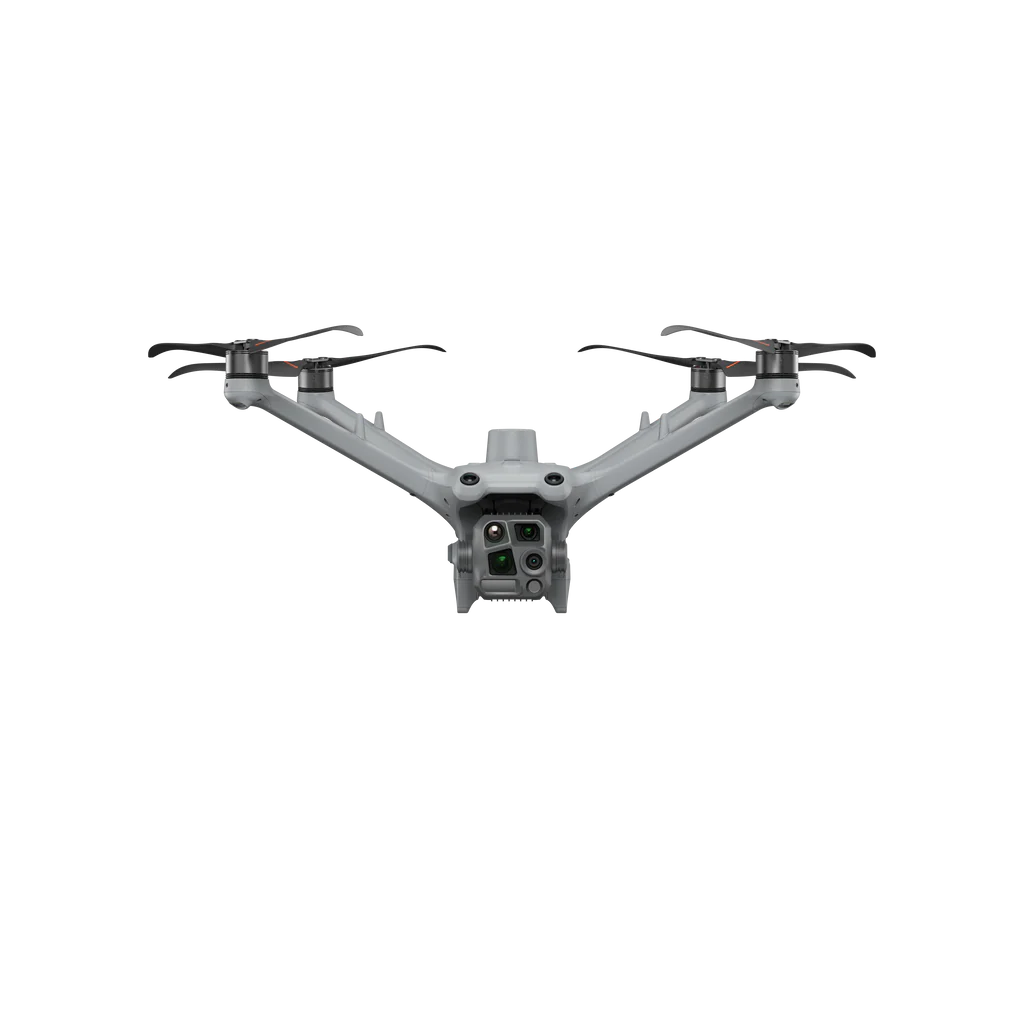

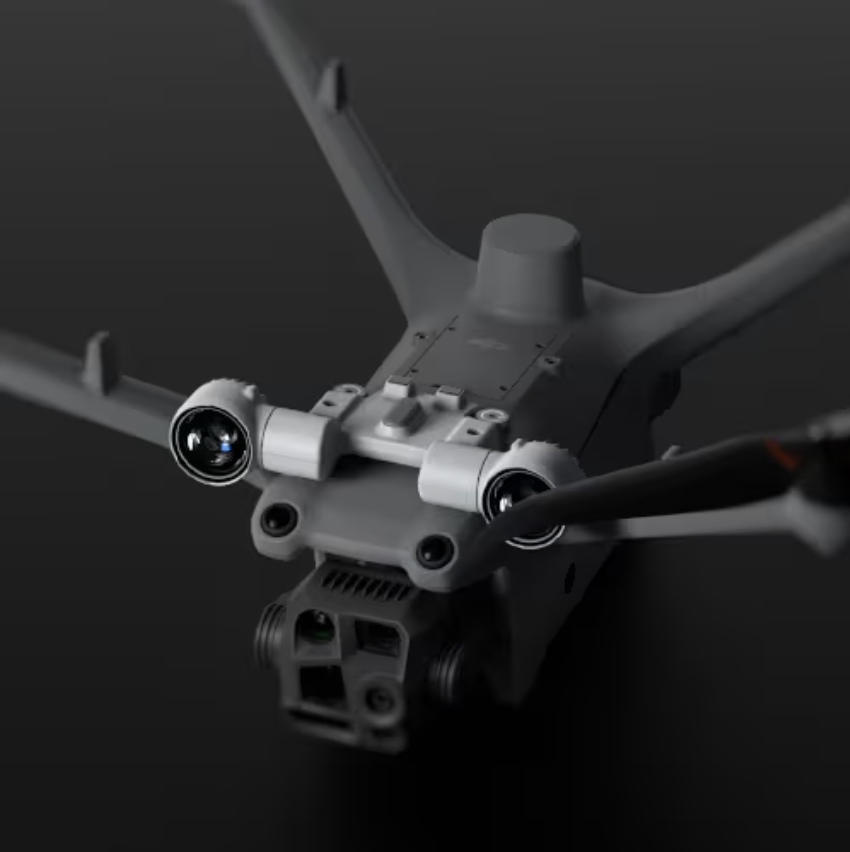

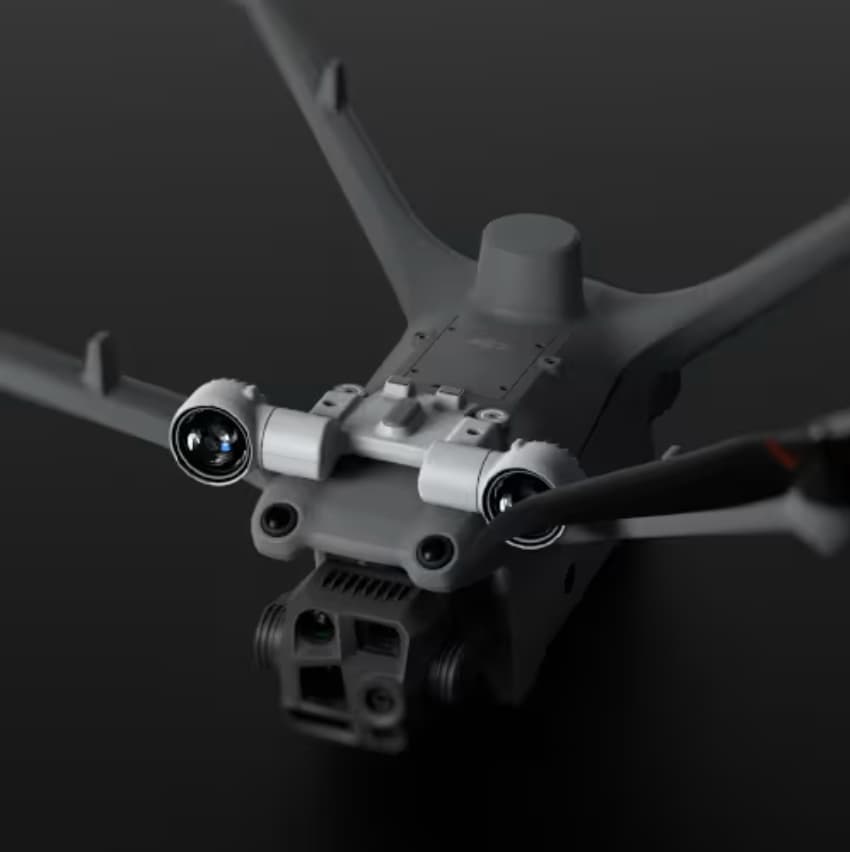

dji matrice 4 thermal drone
Purpose-built for high-stakes field operations, the DJI Matrice 4TD combines cutting-edge aerial performance with rugged durability in a compact, enterprise-ready frame. With IP55-rated weather resistance, it’s engineered to perform in rain, dust, and extreme environmental conditions.

At its core is a multi-sensor imaging suite featuring a wide-angle, telephoto, and thermal camera (exclusive to the 4TD), delivering exceptional situational awareness for inspection, search and rescue, and emergency response missions. The integrated laser rangefinder and NIR auxiliary light enhance visibility and precision in low-light or obscured environments.

A rotating LiDAR module paired with millimeter-wave radar enables 360° obstacle sensing and avoidance, while DJI Dock 3 integration and FlightHub 2 compatibility support remote deployment and centralized mission control. The onboard relay module ensures stable communication in challenging terrains, delivering confidence and reliability when it matters most.
SPECIFICATIONS

Flight Time

Up to 54 minutes

Ingress Protection

IP55 (dust and water resistant)
Max Takeoff Weight

Approx. 9.5 kg (depending on payload configuration)

Max Flight Speed

~23 m/s (approx. 82.8 km/h)

Operating Temperature

-20°C to 50°C

Camera System

Triple sensor system:
• Wide-angle RGB
• Telephoto RGB
• Thermal (IR)

Thermal Resolution

Likely 640×512 px or higher (TBC)

Laser Rangefinder

Yes – precise distance detection

LiDAR & Radar

360° Obstacle Avoidance:
• Rotating LiDAR
• Millimeter-wave radar

NIR Auxiliary Light

Yes – Near-Infrared for low-light environments

Transmission Range

Up to 15 km (with O3 Enterprise Transmission System)

Dock Compatibility

Fully compatible with DJI Dock 3 for autonomous operations

Ground Software

DJI FlightHub 2

Onboard Relay Module

Yes – extends communication in complex environments

GNSS

GPS + GLONASS + BeiDou + Galileo

Redundancy Systems

Dual IMU, dual barometer, dual compasses, RTK support

Battery System

TB65 Dual-Battery System

Charging System

DJI BS65 Intelligent Battery Station or Dock 3 charging

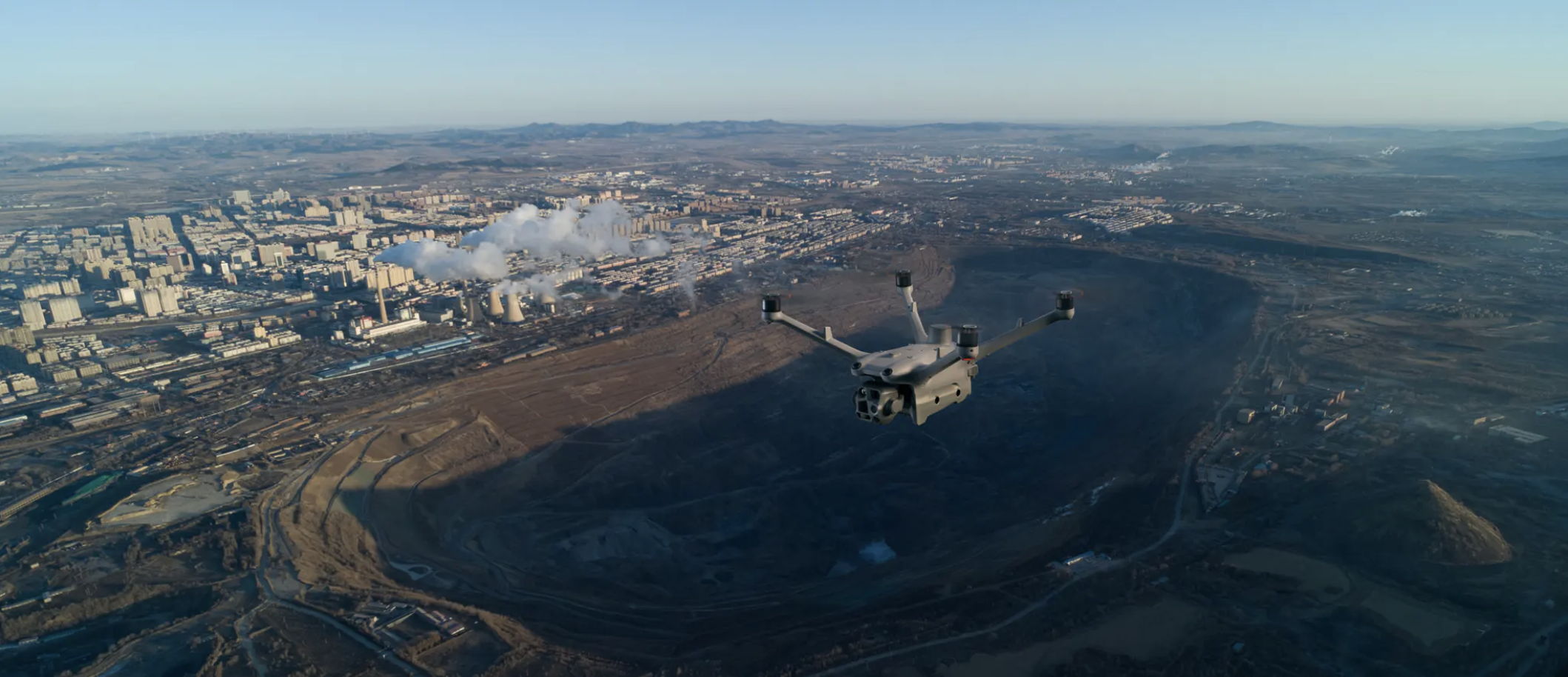

DJI Matrice 4TD Thermal Drone for Surveying

Long-Range RGB + Thermal Cameras

Capture high-resolution images and thermal data using a 48MP wide camera, 2× optical zoom telephoto lens, and 640×512 thermal sensor.

Rugged and Weather-Resistant

With an IP55 rating, the M4TD withstands wind, rain, and dust,engineered for industrial-grade durability.

Autonomous Deployment

Connects to DJI Dock 3 for fully remote BVLOS missions. Includes relay support and transmission up to 25 km with 4G connectivity.

Precision Laser Rangefinder

Measure distances up to 1,800 meters with ±0.2 m accuracy. Perfect for mapping, inspections, and tactical scenarios.

Extended Flight Endurance

Fly for up to 54 minutes at cruising speed or 47 minutes when hovering, maximizing coverage and efficiency per mission.

Integrated All-in-One Payload

Three sensors and a laser rangefinder in one compact gimbal. No payload swapping required.

Why Choose the Matrice 4TD?

Built to perform in harsh environments

With IP55 weather resistance, the Matrice 4TD operates confidently in rain, wind, and dusty conditions - making it mission-ready when the elements are unpredictable.

All-in-one thermal and visual payload

Equipped with a 48MP wide-angle camera, 20MP zoom lens, 640×512 thermal sensor, and laser rangefinder, this drone delivers unmatched versatility in a single flight.

Industry-leading flight time and range

Fly up to 54 minutes and relay signals over 25 km with advanced transmission, enabling wide-area coverage and fewer battery swaps per mission.

Built to perform in harsh environments

Compatible with DJI Dock 3 for remote launches, autonomous missions, and BVLOS capabilities, perfect for 24/7 deployment without on-site teams.

Obstacle Sensing Module

- Combines rotating LiDAR and millimeter-wave
radar technologies.
- Achieves precise 12mm wire-level obstacle
avoidance at speeds up to 15 m/s.
- Enhances positioning in low-light conditions.

Airborne Relay

- Ensures smooth video transmission without a
4G signal or in obstructed conditions.
- Significantly extends the transmission range,
making it ideal for a wide range of scenarios,
including SAR tasks and inspections.

AI Intelligence & Smart Features

- Operates from -20°C to 50°C (-4° to 122° F).
- Low-noise and anti-ice propellers.

54-Min Forward Flight Time

- Significantly boosts work efficiency.
- Confident operation over long distances.

Intelligent Operation

- Detects and counts vehicles and vessels using
RGB and infrared thermal cameras.
- Supports AR projection of maps and the
Return-to-Home (RTH) route.
- Supports custom object detection models.
- Real-time laser marking, measurement, and
sharing.

Excels in Day or Night

- The medium tele camera can detect screws
and cracks from a distance of 10 meters.
- The tele camera can capture details, like signs,
from up to 250 meters away.
- Upgraded stabilization keeps foreground
subjects clear during telephoto shots.
- New Night Scene mode.
- New NIR auxiliary light.
- High-resolution, low-light fisheye vision sensor.

Efficient, High-Precision Surveying

- Rapid 0.5-second interval shooting.
- Five-direction oblique photography function,
three-direction orthophoto photography.
- Smart 3D Capture routes, geometric routes,
and slope routes.
- DJI Terra Distortion Correction 2.0.

Comprehensive Accessory Upgrades

- Obstacle Sensing Module (IP55 protection).
- Gimbal-Following Spotlight (IP55 protection).
- Real-Time Voice Speaker (IP55 protection).
- Integrated Broadcasting and Lighting (IP55
protection).
- DJI RC Plus 2 Enterprise.
