DJI Matrice 30 BS30 Intelligent Battery Station

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

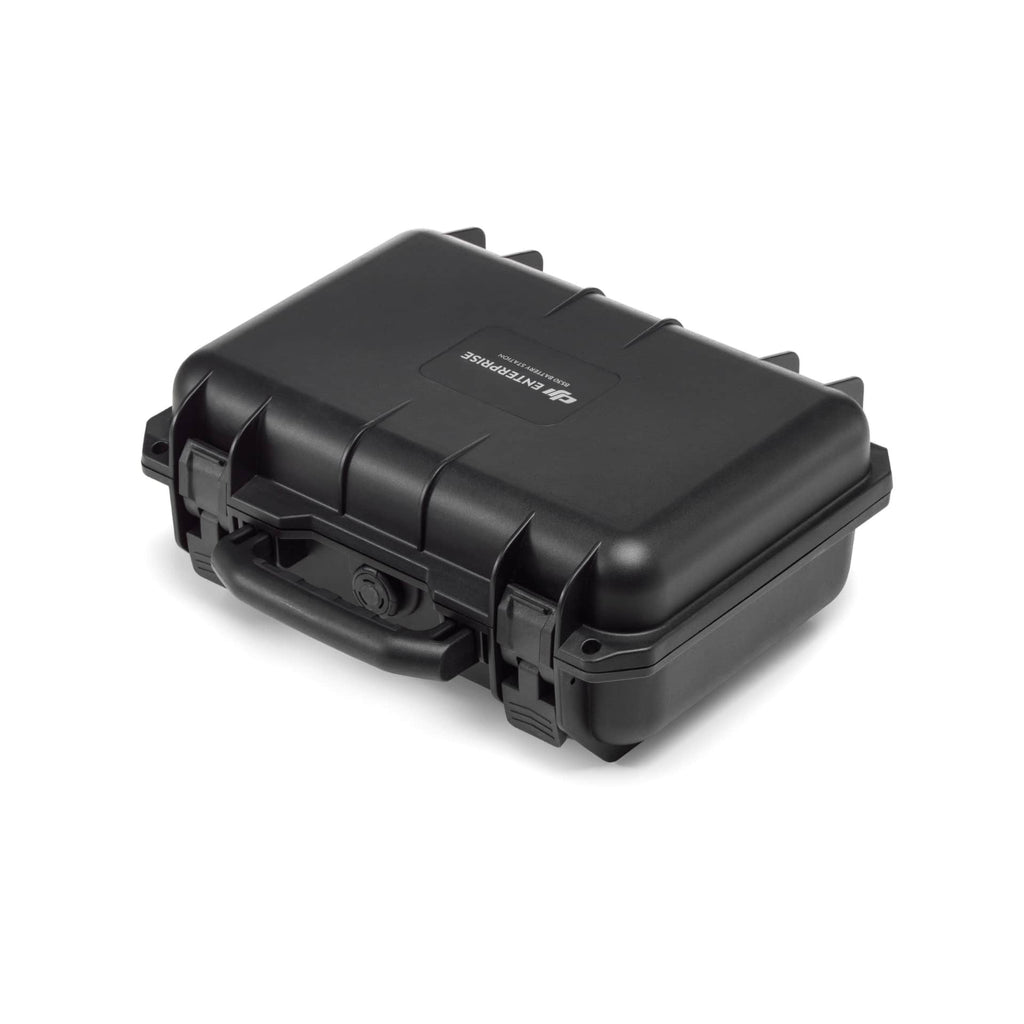

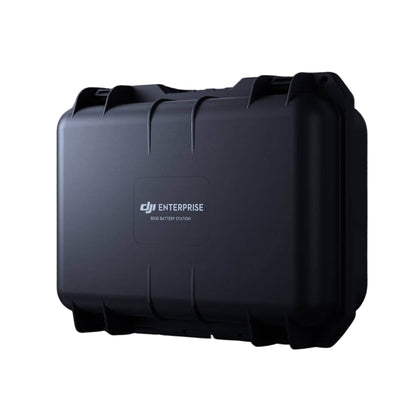

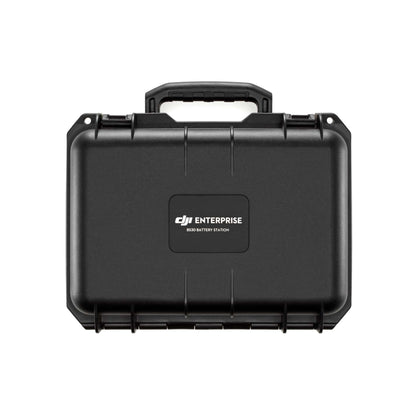

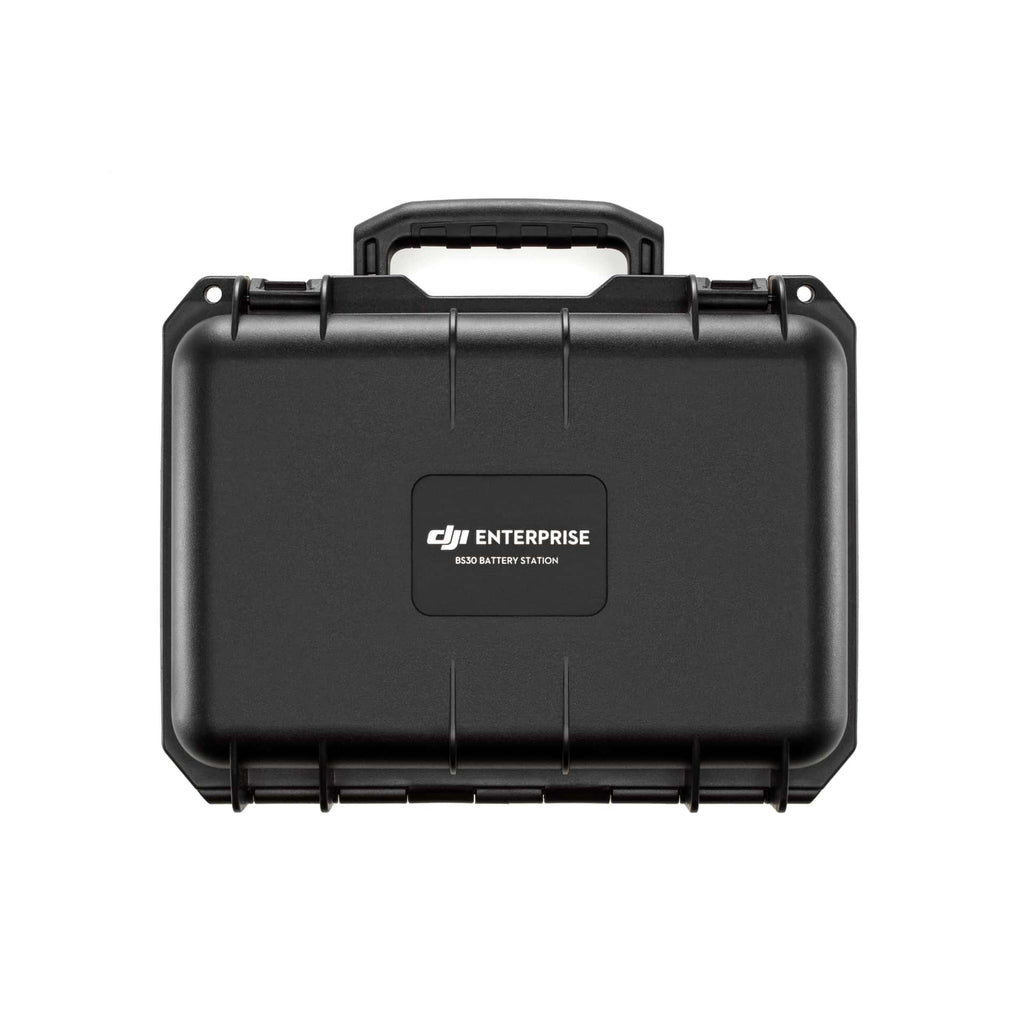

BS30 Intelligent Battery Station

A smart, portable solution with multiple charging modes to meet your mission needs. Capable of charging four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, pairs are charged one at a time, with one pair taking just 30 minutes to charge from 20-90%.

Features:

  • Charges two aircraft batteries, one RC battery (W837), and one RC Plus at the same time
  • Aircraft batteries are charged in vertical pairs
  • Cannot transport batteries inside the case
Specifications

Dimensions

353×267×148 mm

Net Weight

3.95 kg

Compatible Battery Type

TB30 Intelligent Flight Battery
WB37 Intelligent Battery

Input

100-240 VAC, 50/60 Hz

Output

TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
WB37 Intelligent Battery: 8.7 V, 6 A

Output Power

525 W

USB-C port

Max. output power of 65 W

USB-A port

Max. output power of 10 W (5 V, 2 A)

Power Consumption (when not charging battery)

< 8 W

Output Power (when warming up battery)

Approx. 30 W

Operating Temperature

-20° to 40° C (-4° to 104° F)

Ingress Protection Rating[3]

IP55 (with the cover closed properly)

Charging Time[6]

Approx. 30 min (charging two TB30 batteries from 20% to 90%)
Approx. 50 min (charging two TB30 batteries from 0% to 100%)

Protection Features

Anti-Backflow Protection
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Temperature Protection
