This product has now been discontinued, please see the alternative product:

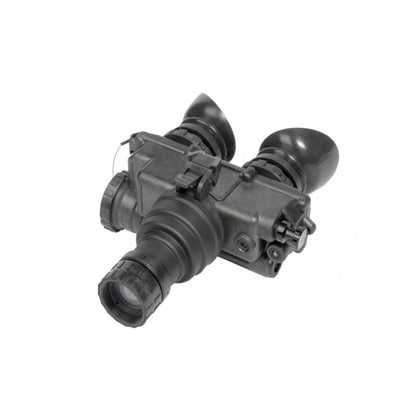

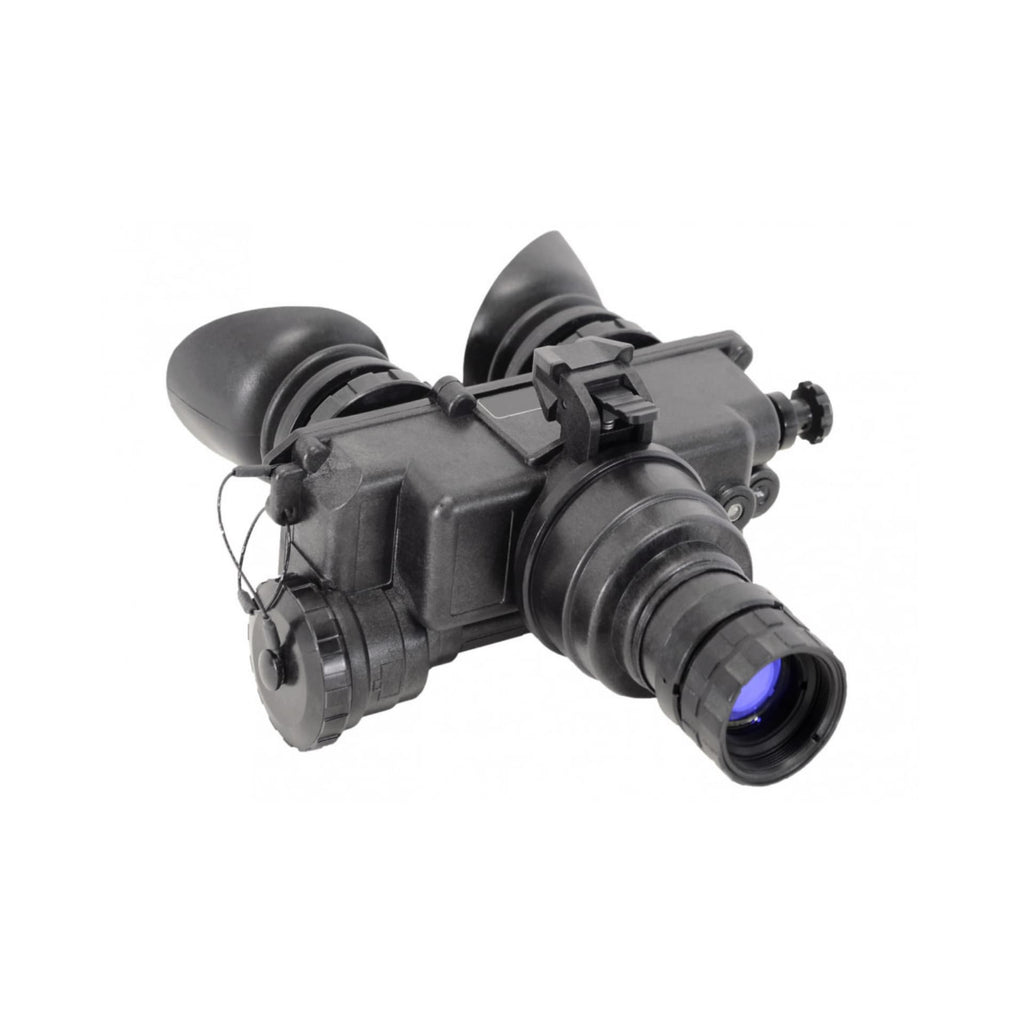

AGM PVS-7 NL3 Night Vision Goggles
DESCRIPTION
The PVS-7 is widely recognized for its unsurpassed dependability and ergonomic design. This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality AN/PVS-7 B/D system on the market. The PVS-7 can be outfitted with high-performance Gen 2+ and Gen 3 image intensifier tubes (available in Green phosphor or P45 white phosphor). The PVS-7 is equipped with Automatic Brightness Control (ABC) to adjust image brightness in changing light conditions to maintain image definition and clarity. The built in infrared illuminator provides a light source beyond the visible spectrum to enable the user to operate in complete darkness without being detected. Additionally, the PVS-7 has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS-7 has two LED indicators in the eyepiece for the IR illuminator on and low battery indicator. Lightweight, tough, and versatile, the PVS-7 can be handheld, or mounted to the user’s head/helmet. It is compatible with a focal magnifier lenses for superior long-range viewing.
FEATURES
Compact, rugged design
Waterproof
Head or helmet-mountable for hands-free operation
Ergonomic, simple, easy-to-operate controls
Built-in Infrared illuminator and flood lens
Limited 3-Year Warranty
CHARACTERISTICS
Image Intensifier Tube:
Magnification:
Lens System:
FOV:
Gen 2+ "Level 3"
1x
27 mm; F/ 1.2
40°
PACKAGE INCLUDES
- Packing Box
- Demist Shields
- Operators Manual
- One Lithium Battery CR123A
- Lens Tissue
- Neck Lanyard
- Head Mount Assembly
- Sacrificial Window
- Soft Carrying Case
DOWNLOADS
SPECIFICATIONS
Image Intensifier Tube | Gen 2+ "Level 3" |
Resolution | 45-51 lp/mm |
Field of view cleanness by zone | Gen2 IIT NL3 offers good quality at competitive pricing. |
Magnification | 1x |
Lens System | 27 mm; F/ 1.2 |
FOV | 40° |
Focus Range | 0.2 m to infinity |
Diopter Adjustment | -6 to +2 dpt |
Led Indicators | Low battery; IR On; Excessive light conditions |
Automatic Brightness Control | Yes |
Infrared Illuminator | Yes |
Bright Light Cut-Off | Yes |
Automatic Shut-Off System | Yes |
Battery Type | 2 AA Alkaline or 1 Lithium (BA-5567/ U) |
Battery Life (Operating) | Up to 60 hours at 20°C |
Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
Storage Temperature Range | -50°C to +70°C (-58°F to +158°F) |
Weight | 0.68 kg (1.5 lbs) |
Overall Dimensions | 162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in) |
Package Includes | Head Mount Assembly, Medium & Thick Brow Pads, Eye Cups, Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Sacrificial Window, Demist Shields, Operator’s Manual |
EXPORT RESTRICTIONS:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
