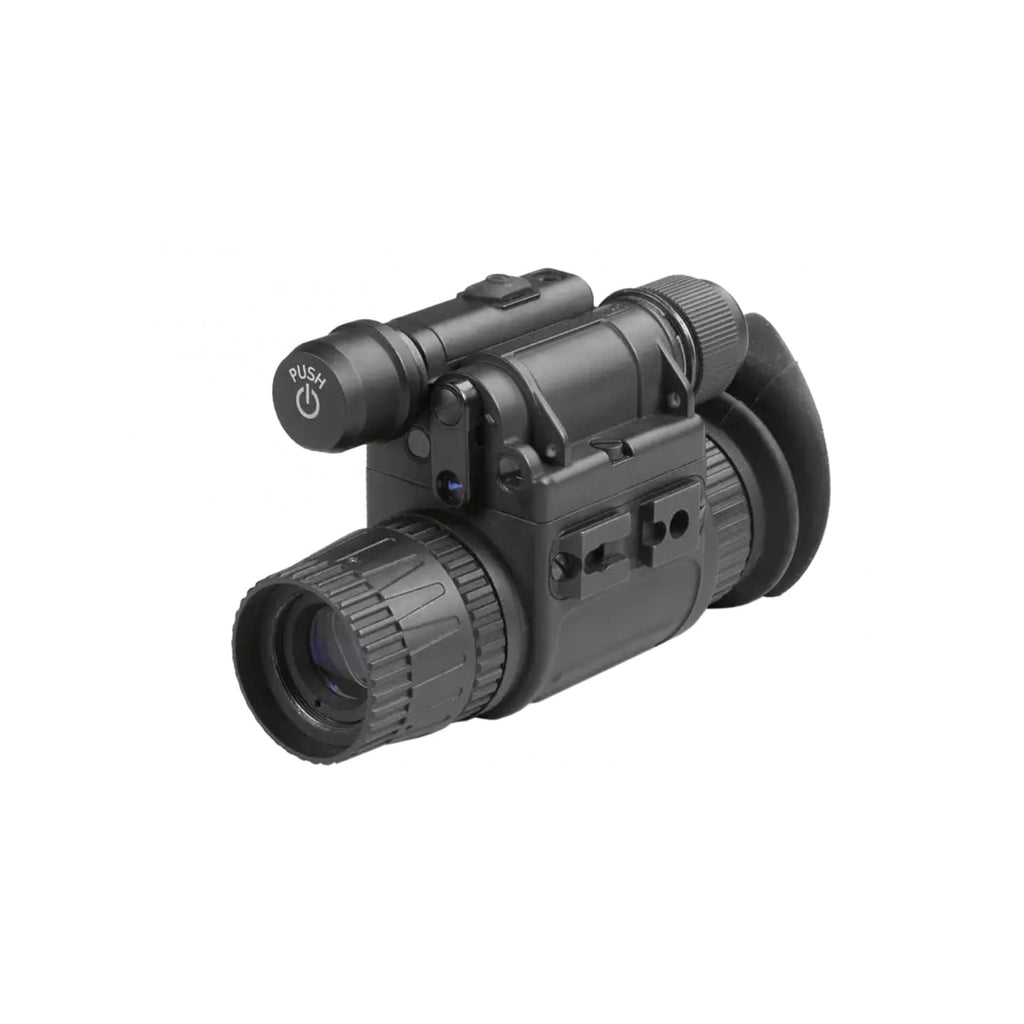

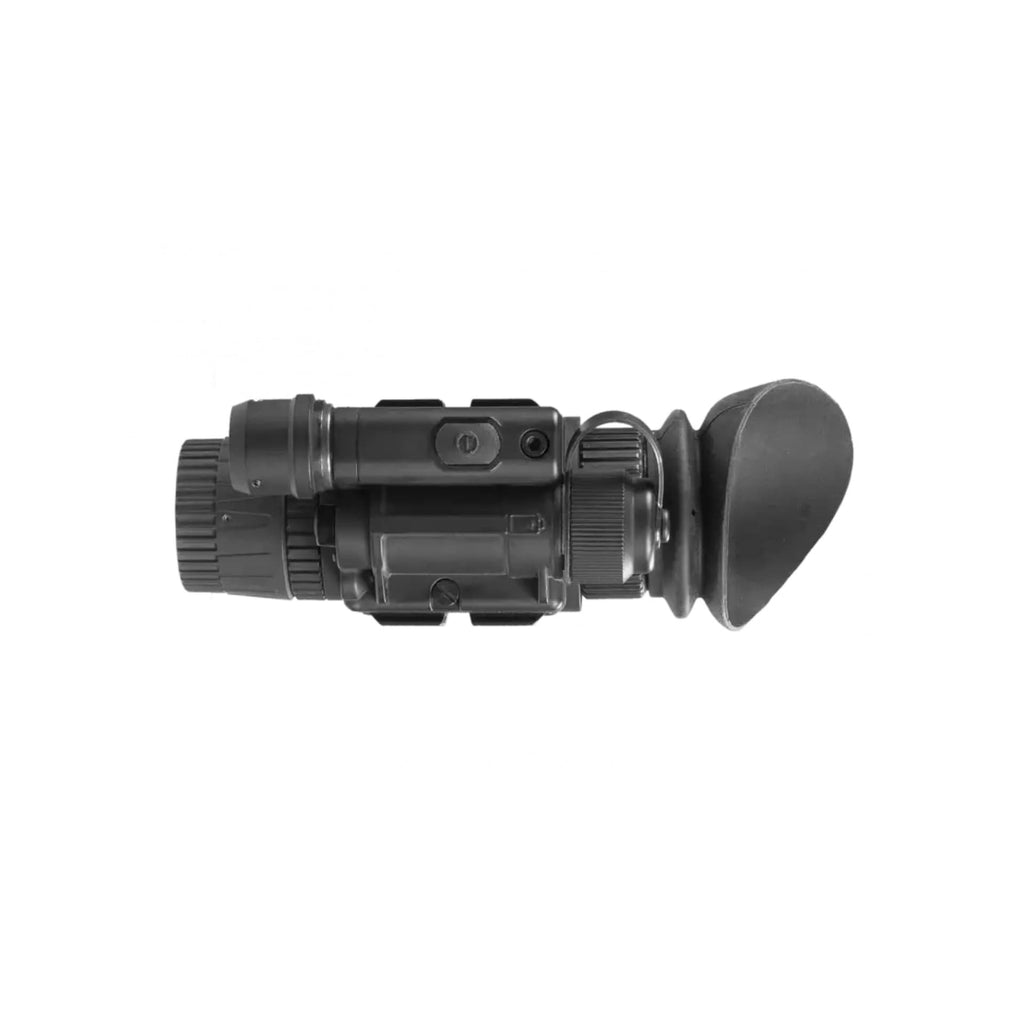

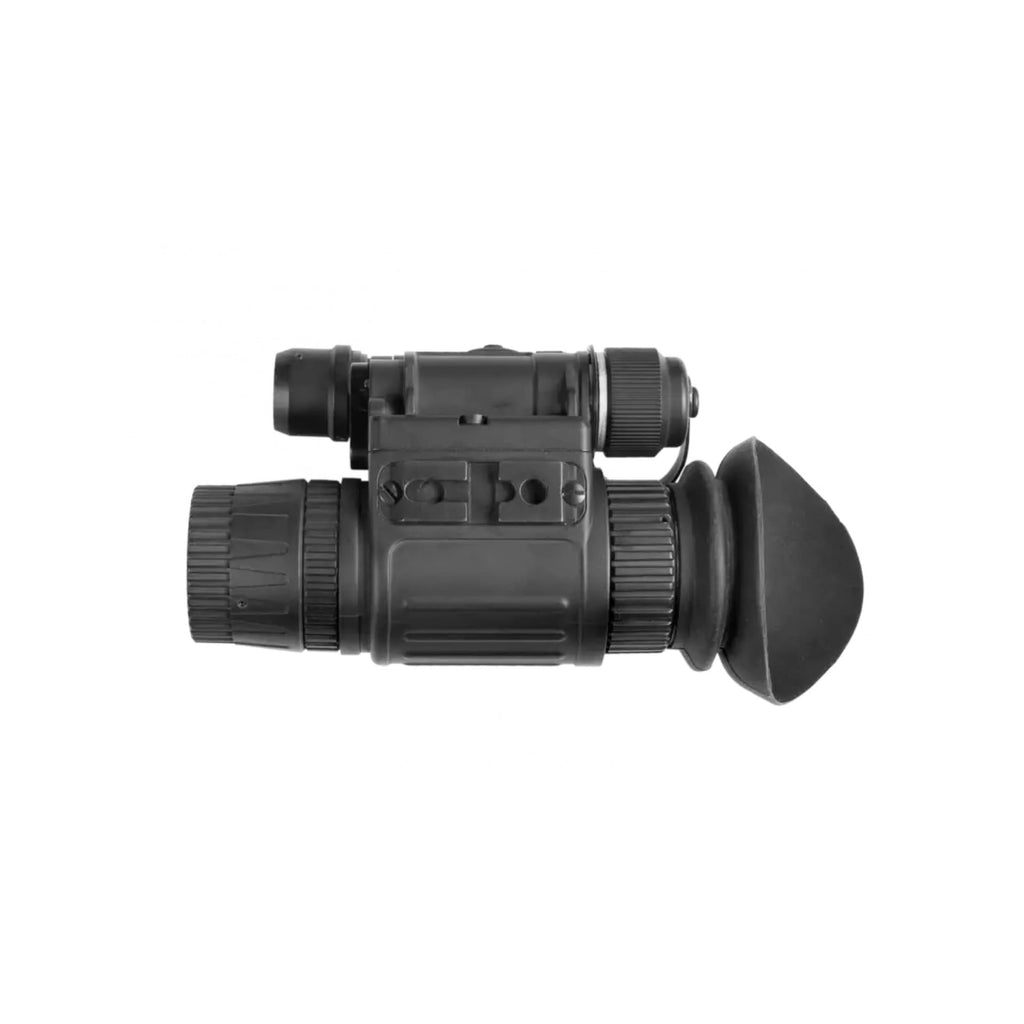

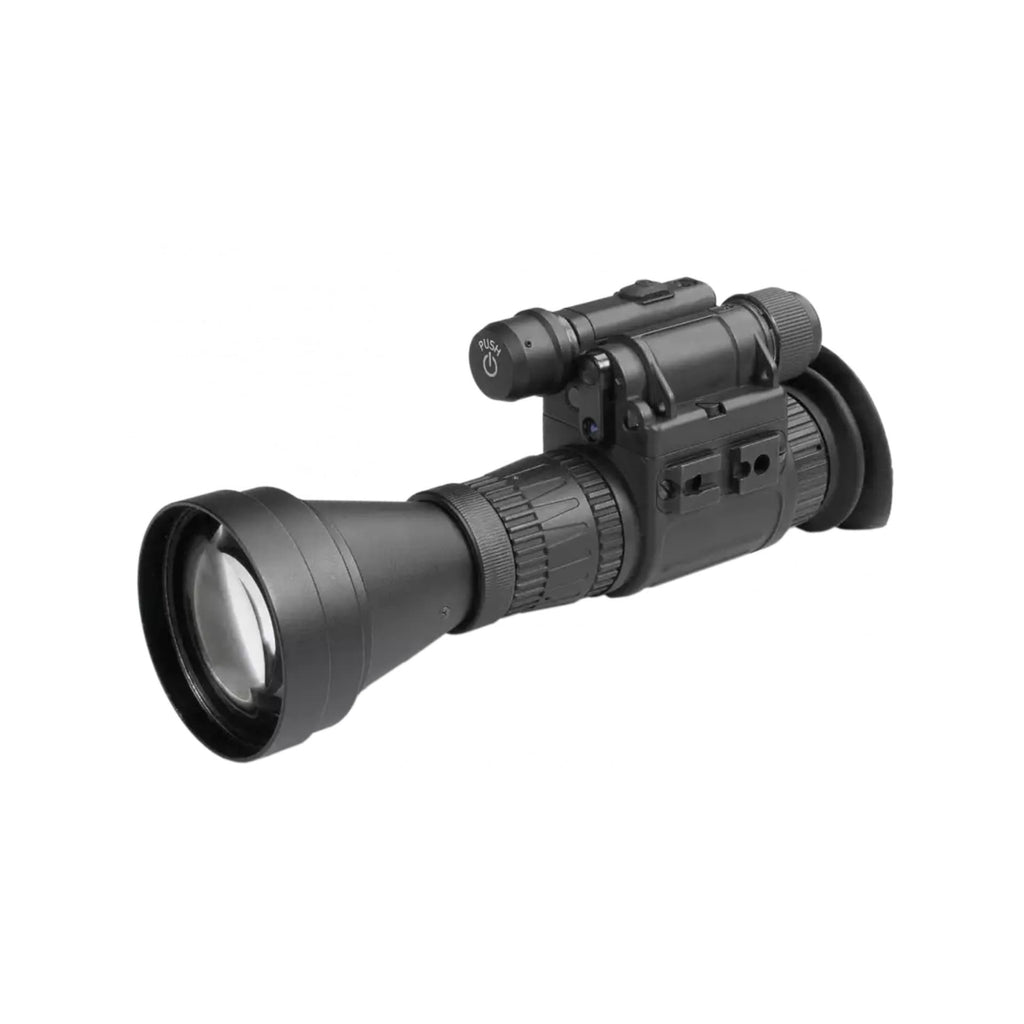

The NVM-50 is the standard by which all compact multi-use monoculars should be judged, now and in the future. The NVM-50 employs optics that are equal or superior to current Military-issue night vision devices, built into a rugged, compact, and ergonomic composite housing. We built this device to exceed user expectations and MIL-SPEC-810 specifications; as a result, the NVM-50 offers unmatched performance even in rain, salt water, temperature extremes, and high-humidity environments. Its 51° field of view (FOV) covers a large visual range, without requiring the operator to shift the position of the device. The NVM-50 is available with a vast array of accessories, including 3x and 5x magnification lenses for mid to long-range viewing; head or helmet mounts to enable handsfree operation; and, a detachable IR illuminator for long-range use.
AGM NVM-50 NW2 NIGHT VISION MONOCULARS
Description
Features
- Wide 51° field of view

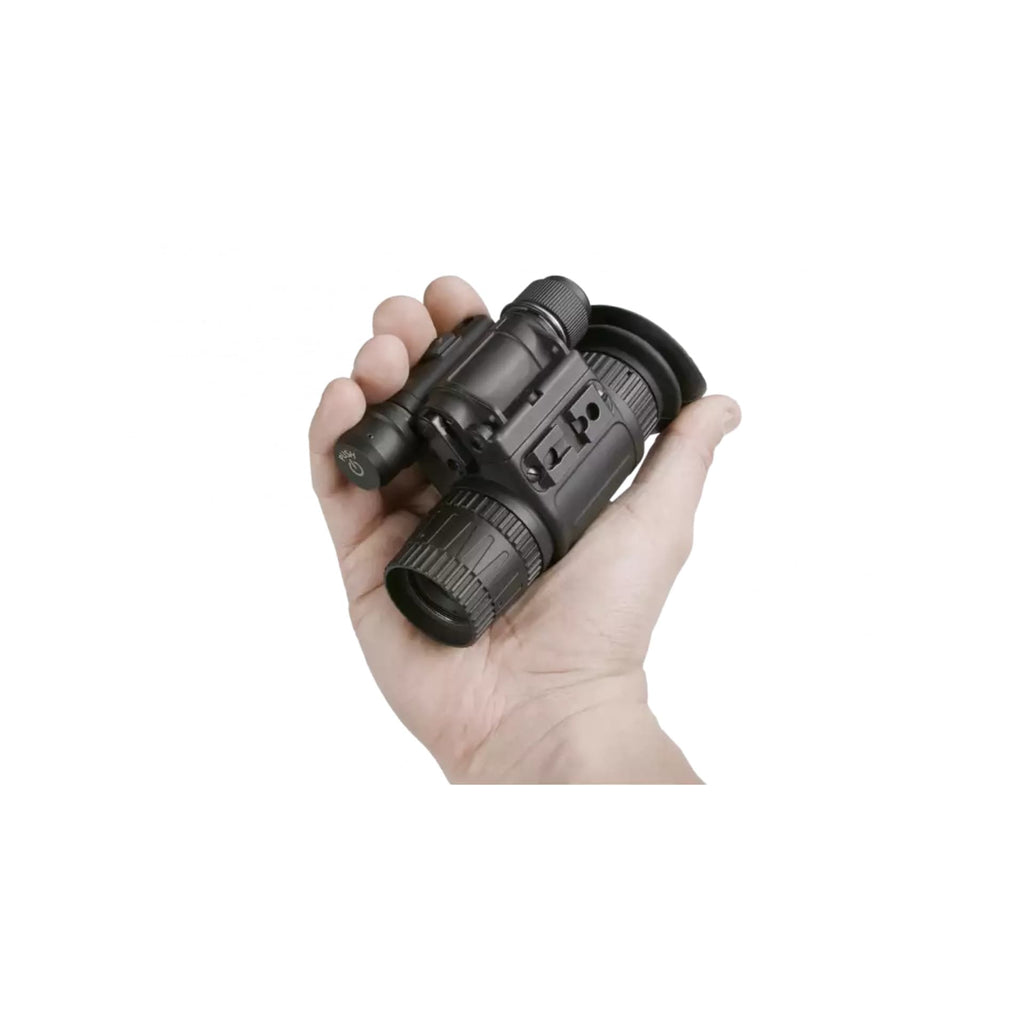

- Compact, sturdy design

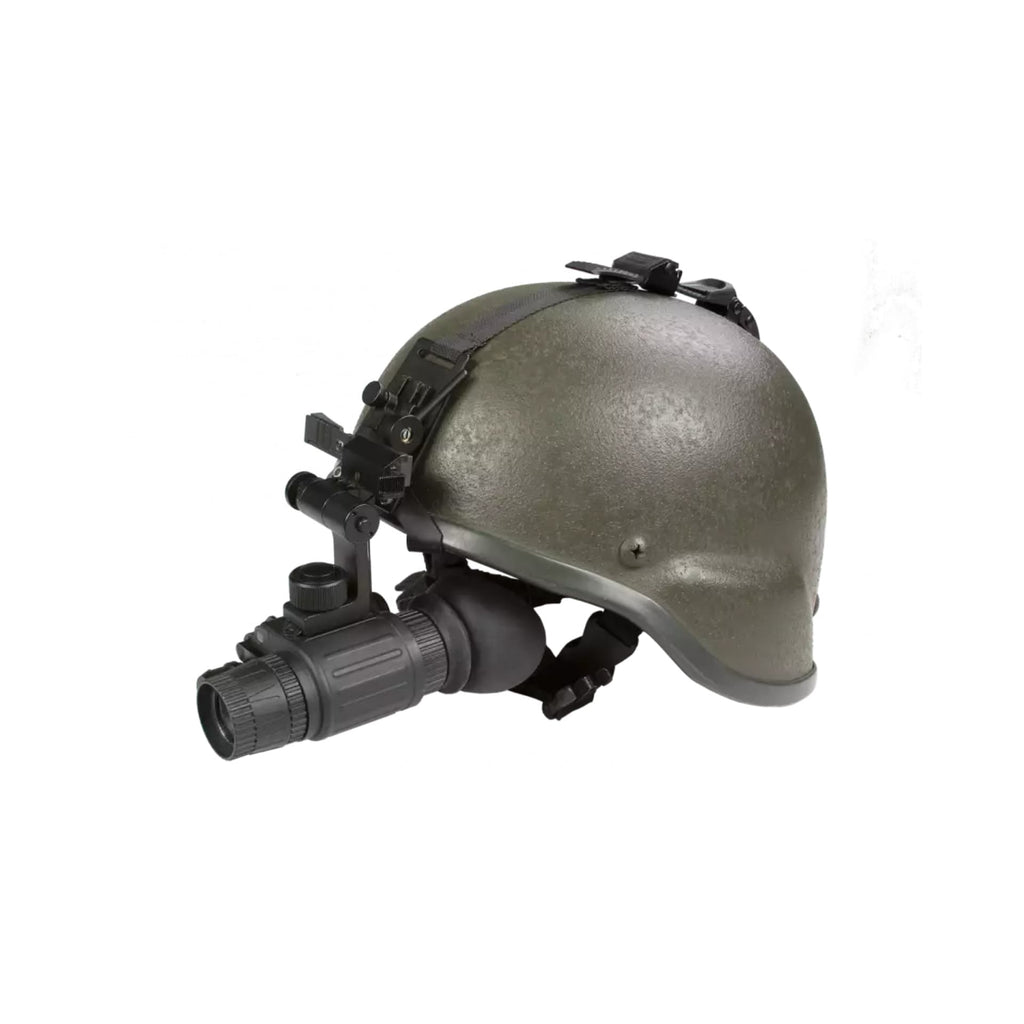

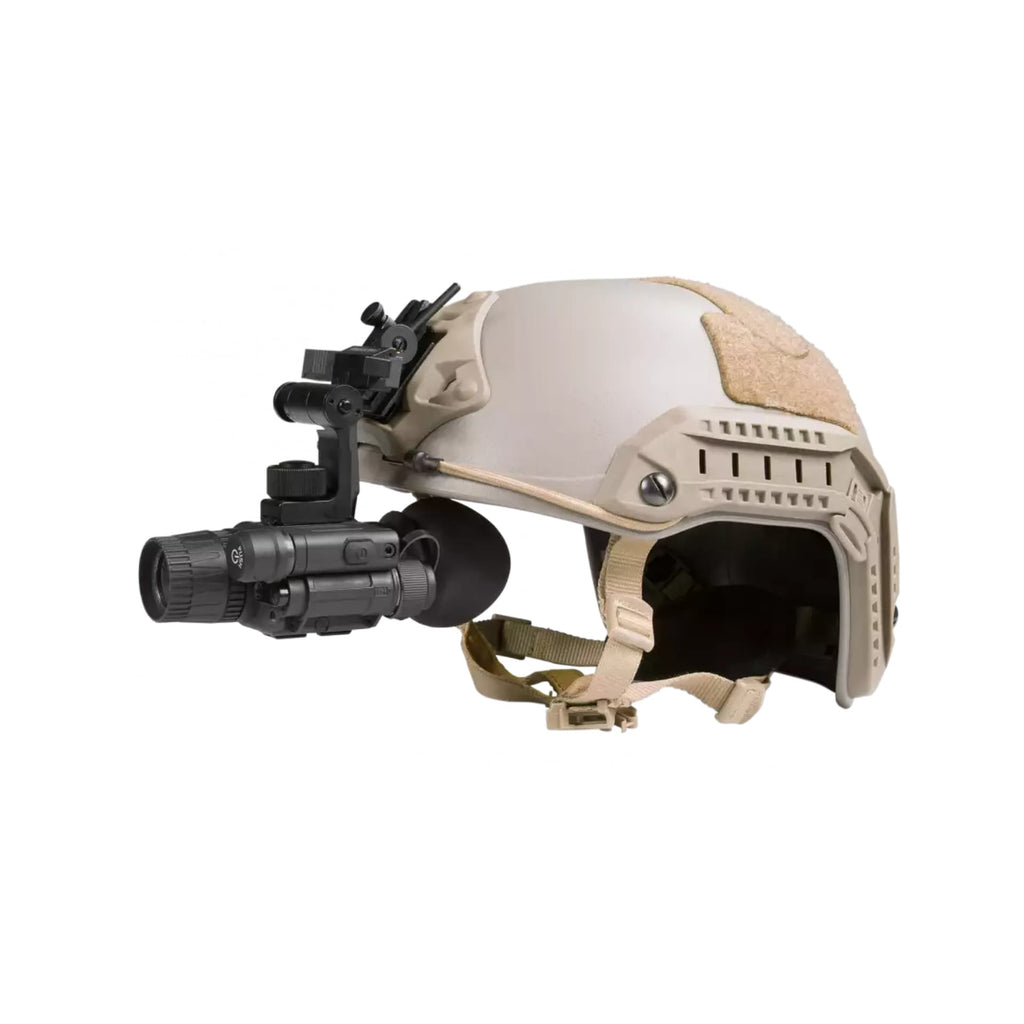

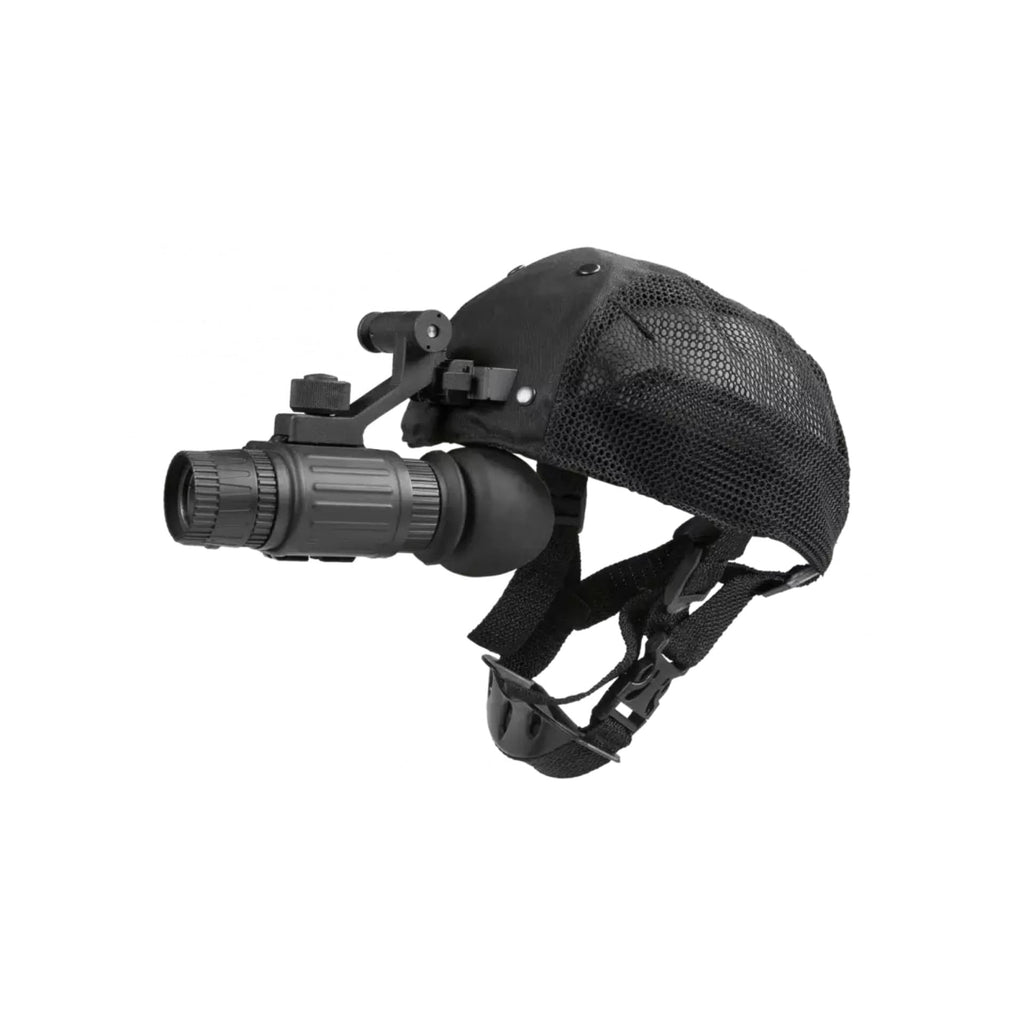

- Head- or helmet-mountable for hands-free usage
- Bright light cut-off system
- Ergonomic, simple, easy-to-operate controls
- Utilizes a single CR123A Lithium or AA battery
- Built-in Infrared illuminator and flood lens
- Limited 3-year warranty
Characteristics:
Image Intensifier Tube: Gen 2+ "White Phosphor" "Level 2"

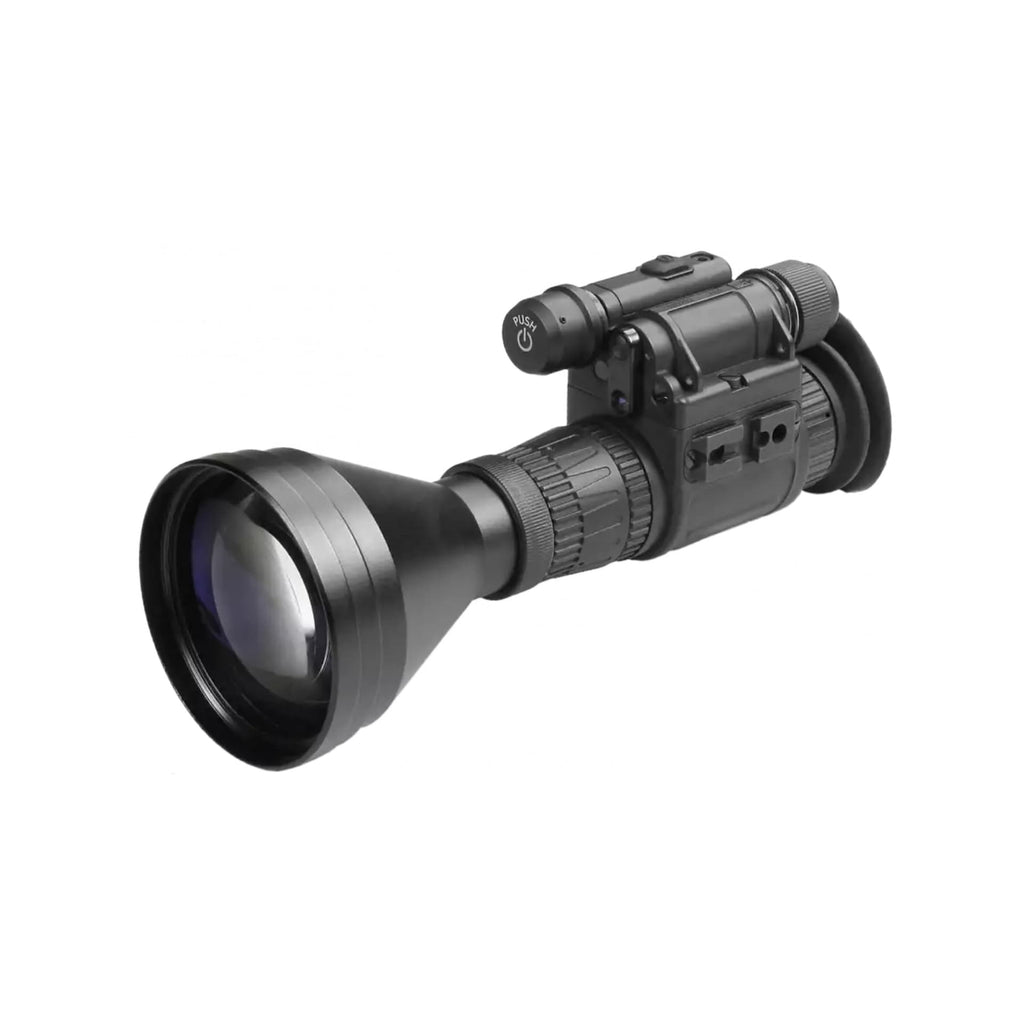

Magnification: 1x (3x and 5x optional)
Lens System: 19 mm; F/1.26
FOV: 51°
Package Includes:
- Night Vision Monocular
- Lens Cloth
- Soft Carrying Case
- Manual
Specifications:
| Image Intensifier Tube | Gen 2+ (White Phosphor Level 2) |
| Resolution | 45-57 lp/mm |
| Field of view cleanness by zone | NW2 is the second-best quality Gen 2 IIT offered by AGM, very limited number of spots in Zone 1 |
| Magnification | 1x (3x and 5x optional) |
| Lens System | 19 mm; F/1.26 |
| FOV | 51° |
| Focus Range | 0.25 m to Infinity |
| Eye Relief | 17 mm |
| Led Indicators | - Low Battery - IR On - Excessive Light Conditions |
| Automatic Brightness Control | Yes |
| Bright Light Cut-Off | Yes |
| Automatic Shut-Off System | Yes; Two power levels |
| Battery Type | One CR123A (3V) or AA (1.5 V) |
| Battery Life (Operating) | Up to 40 hours at 20°C |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +50°C (-58°F to +122°F) |
| Weight | 0.34 kg (0.75 lbs) |
| Overall Dimensions | 110 × 49 × 73 mm (4.3 × 1.9 × 2.8 in) |
| Package Includes | Night Vision Monocular, Lens Cloth, Soft Carrying Case, Manual |
