This product has now been discontinued, please see the alternative product:
AGM NVG-50 NL2i Dual Tube Night Vision Goggle/Binocular 51 degree FOV Gen 2+ "Level 2"
Description and Features
The AGM NVG-50 is a dual-channel night vision system. With a 51° field of view (FOV), it provides a large visual field without needing to move the binoculars. The NVG-50 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG-50 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.
For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

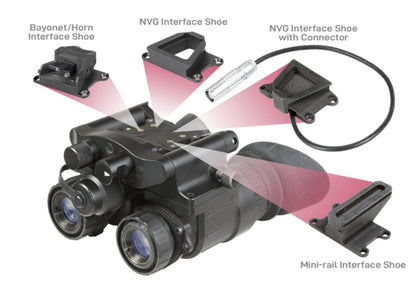

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
Key Features
- Redundant dual-tube design
- True stereoscopic vision
- Wide 51° field of view
- Lightweight & compact

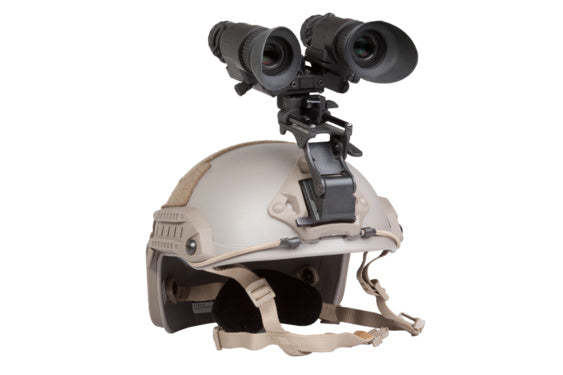

- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- Limited 3-year warranty
| Specifications | |
|
Image Intensifier Tube |
Gen 2+ "Level 2" International |
|
Resolution |
45-57 lp/mm |
|
Cosmetic level of IIT |
NL2i second-best quality |
|
Magnification |
1x (3x optional) |
|
Lens System |
19 mm; F/1.26 |
|
FOV |
51° |
|
Focus Range |
0.25 m to infinity |
|
Eye Relief |
17 mm |
|
Diopter Adjustment |
-6 to +2 dpt |
|
Led Indicators |
Low battery; IR on; Excessive light conditions |
|
Infrared Illuminator |
Yes; Two power levels |
|
Manual Gain Control |
Yes |
|
Bright Light Cut-Off |
Yes |
|
Automatic Shut-Off System |
Yes |
|
Battery Type |
One CR123A (3V) or AA (1.5 V) |
|
Battery Life (Operating) |
Up to 20 hours at 20°C (up to 80 hrs with optional battery pack) |
|
Operating Temperature Range |
-40°C to +50°C (-40°F to +122°F) |
|
Storage Temperature Range |
-50°C to +50°C (-58°F to +122°F) |
|
Weight |
615 g (1.35 lbs) |
|
Overall Dimensions |
112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in) |
