Guide TD653 Thermal Imaging Monocular

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

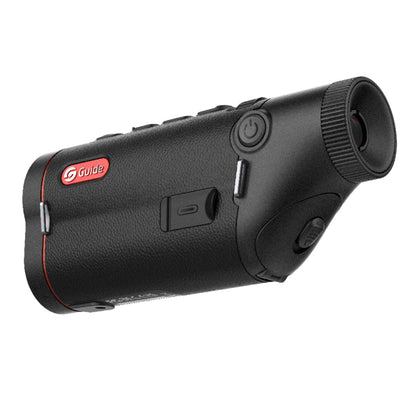

TD653 Handheld Thermal Imaging Monocular

Precision. Durability. Clarity.

Experience the outdoors like never before with the TD653. This advanced thermal monocular combines power and precision with user-friendly design—perfect for search and rescue, tactical response, and nature observation. With a powerful 640×512 infrared sensor, 2600m range, and 20mK sensitivity, it’s built for professionals who demand clarity in any condition.



Guide TD653 Key Features

Exceptional Thermal Clarity

Equipped with a 640×512 @12μm uncooled VOx infrared sensor and ultra-low NETD ≤20mK, the TD653 delivers crisp, high-contrast thermal imagery - even in complete darkness, fog, or smoke. This ensures precise target detection and identification in any environment.

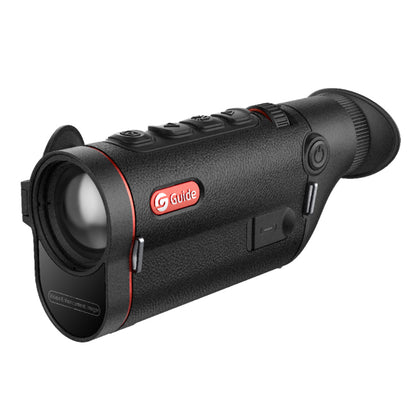

Long-Range Detection Power

With a powerful 53mm lens and a detection range of up to 2600 meters, the TD653 allows you to spot heat signatures at extreme distances. Ideal for wildlife observation, search and rescue, perimeter monitoring, or tactical operations.

Smart Recording and Connectivity

Capture every detail with built-in video and audio recording, and save up to 100,000 images on the 32GB internal storage. Dual-band Wi-Fi and Bluetooth make it easy to connect, stream, and transfer footage via your mobile device or app.




TD Gen3 Series features 12μm infrared detector

High-sensitivity detector, NETD down to 20mK

The TD Gen3 Series features 12μm infrared detector with 600×512 and 400×300 resolutions, and offers multiple focal lengths, delivering impressively crisp images even in complete darkness.

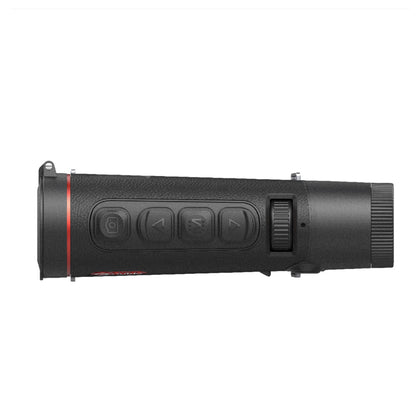

Fine-tuning focus, scroll with fingers

The mini focusing roller design offers a unique experience of fast and precise fine-tuning, allowing users to adjust the focus with a simple scroll of one finger.

Guide TD433 has Fine-tuning focus, scroll with fingers

Guide TD433 Ambidextrous design, one-handed operation

Ambidextrous design, one-handed operation

The symmetrical housing design allows for easy operation with both left and right hands. Its button layout is ergonomically crafted to suit user habits, enabling one-handed operation.

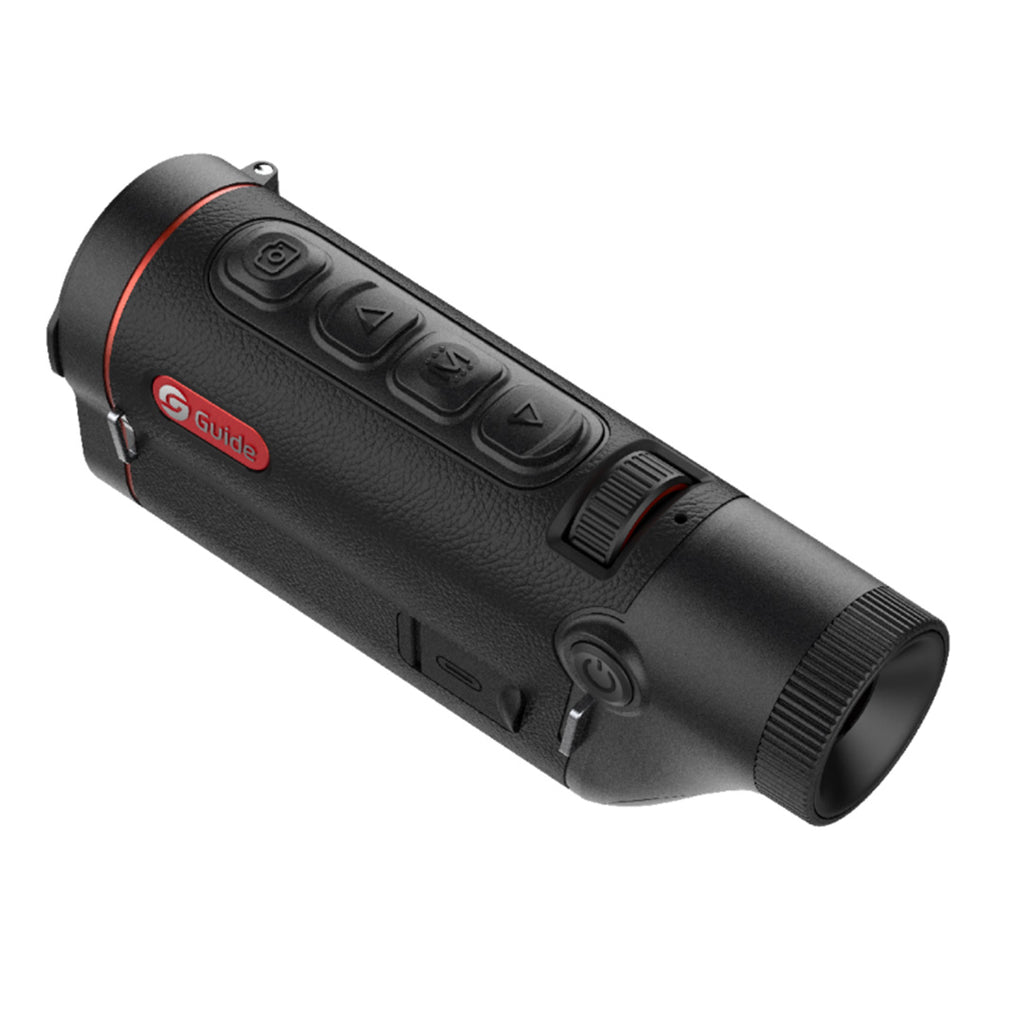

Upgraded visuals, enlarged AMOLED Display

Building on the previous generation, the TD Gen3 Series features a 0.36” AMOLED display with a 1280×960 resolution, delivering more vivid details and a more comfortable viewing experience.

Guide TD433 the TD Gen3 Series features a 0.36” AMOLED display

TD Gen3 Series offers an impressive 12-hour runtime

Extended battery life, uninterrupted power

During observation, exploration and stalking in the field, the TD Gen3 Series offers an impressive 12-hour runtime. The replaceable 18650 battery supports blind installation in the dark, with no need to distinguish between the positive and negative terminals.


Smart recording, expanded built-in storage

The upgraded smart recording function can capture videos with sound. It’s built-in storage of up to 32GB allows users to store over 100,000 pictures without worrying about running out of space.

Guide TD433 Smart recording, expanded built-in storage

  Technical Parameters

Sensor

Type

Uncooled VOx Infrared Detector, 8 to 14μm

Resolution

640×512@12μm

NETD

20mK

Frame rate

50Hz

Lens

Objective lens

35mm, F1.0

Field of view

12.5°×9.4°

FOV m@100m

22×17

Magnification

1.8x~14.4x

Detection range

1800m/1950yd

Focus

Manual

Display

Display type

0.36'' AMOLED 1280×960

Color palettes

White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

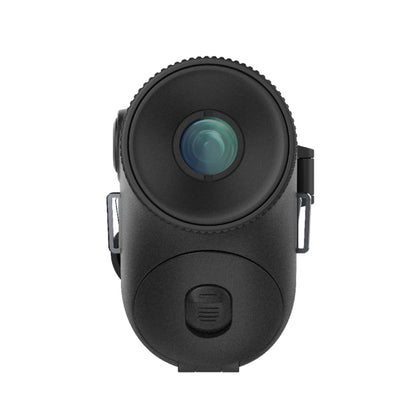

Eyepiece

Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x

Hardware

WIFI

2.4G, 5G

Interface

USB-C

Others

Microphone, Bluetooth

System

Recording function

Photo/Video (Audio recording included)

Memory capacity

32GB

Power

Battery type

Single, Replaceable 18650 Battery

Operating time

10 hours

Environmental

Operating temp.

-20°C to 50°C / -4°F to +122°F

Encapsulation

IP67

Physical

Weight (g/oz)

461/16.26

Size (mm/in)

189.5×67.5×88/7.46×2.66×3.46

Standard

Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card

Optional

Bluetooth Remote Control, 18650 Battery

Guide TD433 Thermal Imaging Monocular

Ready to Upgrade Your Vision?


Experience unmatched thermal precision
with the TD653.

Whether you're in the field, on patrol, or navigating the great outdoors, the TD653 delivers the confidence to see more, react faster, and stay ahead. It’s not just a tool — it’s your thermal edge.
