Saros DM-Series Multispectural PTZ Thermal Camera

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

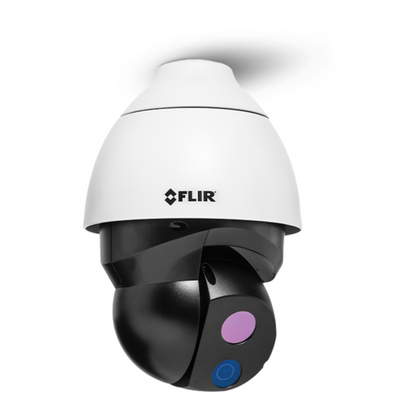

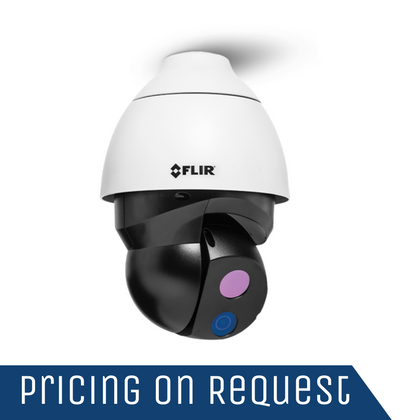

Saros DM-Series Multispectural PTZ Thermal Camera

The FLIR Saros DM-Series introduces eight new VGA and QVGA resolution options to FLIR’s multi-sensor security lineup. Capable of capturing video in complete darkness, bright sunlight, and through smoke, dust, or light fog, the DM-Series provides superior perimeter protection in the toughest lighting and environmental conditions. A built-in 4K visible light camera operates alongside the thermal sensor to capture minute details in low light conditions. The DM-Series also integrates with the FLIR United Video Management System (UVMS), as well as other ONVIF-compliant video management systems. This gives users complete control over the all new dual-sensor viewing mode, alarm functions, and fully programmable preset tour.


INDUSTRY-LEADING THERMAL

Superior thermal image quality and a built-in 4K visible camera offer versatile multi-spectral surveillance.

MULTIPLE LENS OPTIONS

Choose from a wide range of lenses along with VGA and QVGA sensors for optimal detection ranges in challenging conditions.

DESIGNED FOR CYBERSECURITY

The DM-Series is engineered to reduce exposure to remote security attacks.

Specifications

OVERVIEW

Detector Type

Long-Life, Uncooled VOx Microbolometer

Focus Range

Athermalized, Focus-Free

Optical Characteristics

FOV (H x W): 50° x 38° Focal Length: 4.3 mm

Pixel Pitch

12 µm

Sensitivity

Color: 0.25 Lux @(f1.6 AGC On, 30FPS) B/W: 0.10 Lux @ (f1.6 AGC On, 30FPS)

Thermal Frame Rate

NTSC: 30 Hz PAL: 25 Hz / 8.3 Hz

CONNECTIONS & COMMUNICATIONS

Ethernet

Yes

Network APIs

FLIR SDK, FLIR CGI, ONVIF Profile S

Supported Protocols

IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP

ENVIRONMENTAL

Humidity

10 – 90% relative

IP Rating (dust & water ingress)

IP66

Operating Temperature Range

-40°C – 55°C cold start

Shock

IEC 60068-2-27

Storage Temperature

-40°C – 85°C

Vibe

IEC 60068-2-64

IMAGING & OPTICAL

Array format

320 × 256

Sensor Type

Full HD 4K 1/1.8" Exmor R CMOS

Spectral Range

7.5 µm to 13.5 µm

Streaming Resolution

Thermal: QVGA to VGA Visible: VGA to 4K

Visible Camera

110° HFOV 2.8mm focal length F/# 1.6

Thermal Image Settings

Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast

MEASUREMENT & ANALYSIS

Programmable Presets

256

POWER

Input Voltage

12 VDC, 24 VAC, Universal PoE Injector

Power Consumption

12VDC, 2.5A, 30W 24VAC, 2.36A, 57VA 55VDC (PoE), 0.62A, 34W

PTZ

Pan Angle

Continuous 360°

Tilt Angle

-10° – 190°

VIDEO & RECORDING

Video Compression

Thermal: One channel of H.264 & M-JPEG Visible: Two independent channels of H.264 & M-JPEG

Video Thermal AGC Region of Interest [ROI]

Default, Presets and User definable to insure optimal image quality on subjects of interest
