The Guide TL450 rrepresents Guide Sensmart's pioneering effort in multispectral fusion thermal monoculars. With its all-in-one design, it caters to the demands of day and night observation in any weather condition. Featuring a cutting-edge 12μm thermal sensor, alongside 1920×1080 CMOS and AMOLED displays, the TL Series delivers exceptionally crisp and high-contrast imagery. Moreover, it boasts an integrated laser rangefinder capable of accurate ranging up to 600 meters. Additionally, the device comes equipped with a built-in GPS, laser rangefinder, and gyroscope, providing users with essential data such as target coordinates, distance, and device angle for precise targeting.

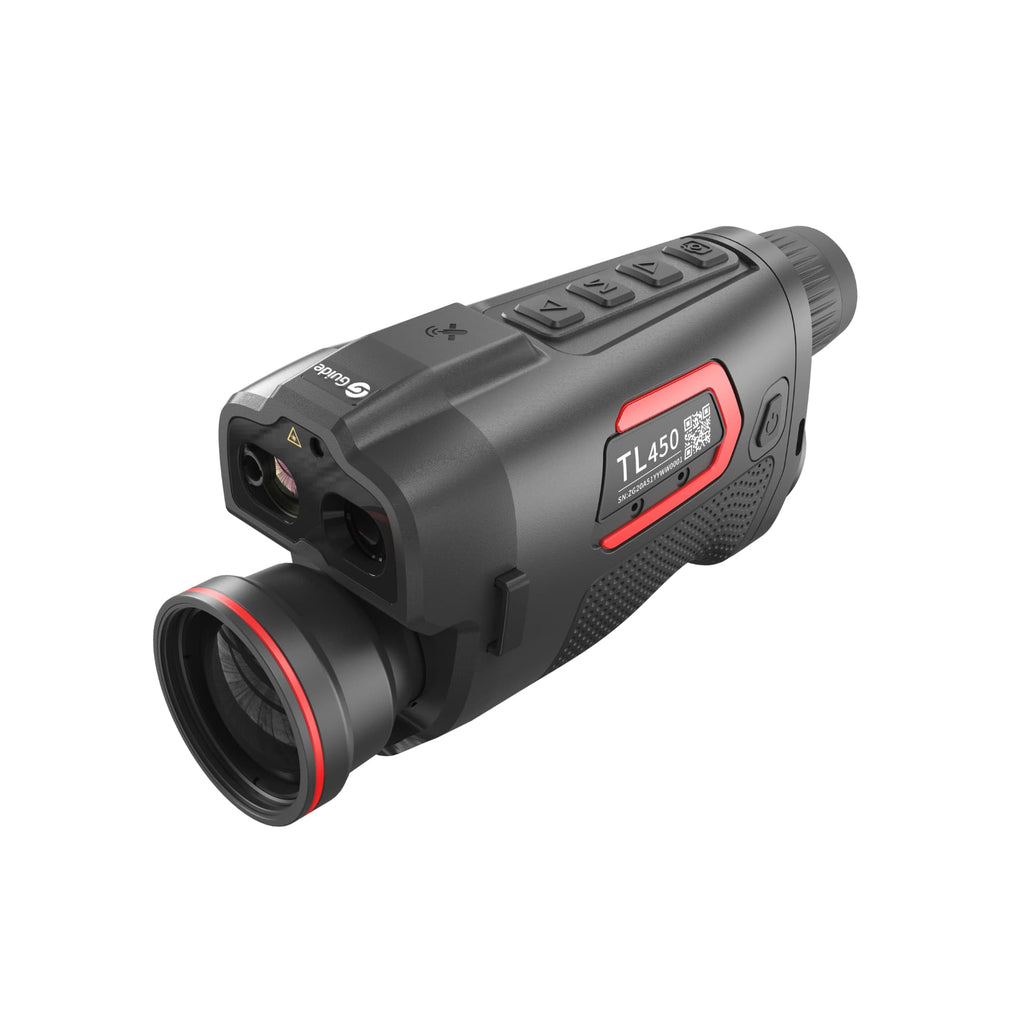

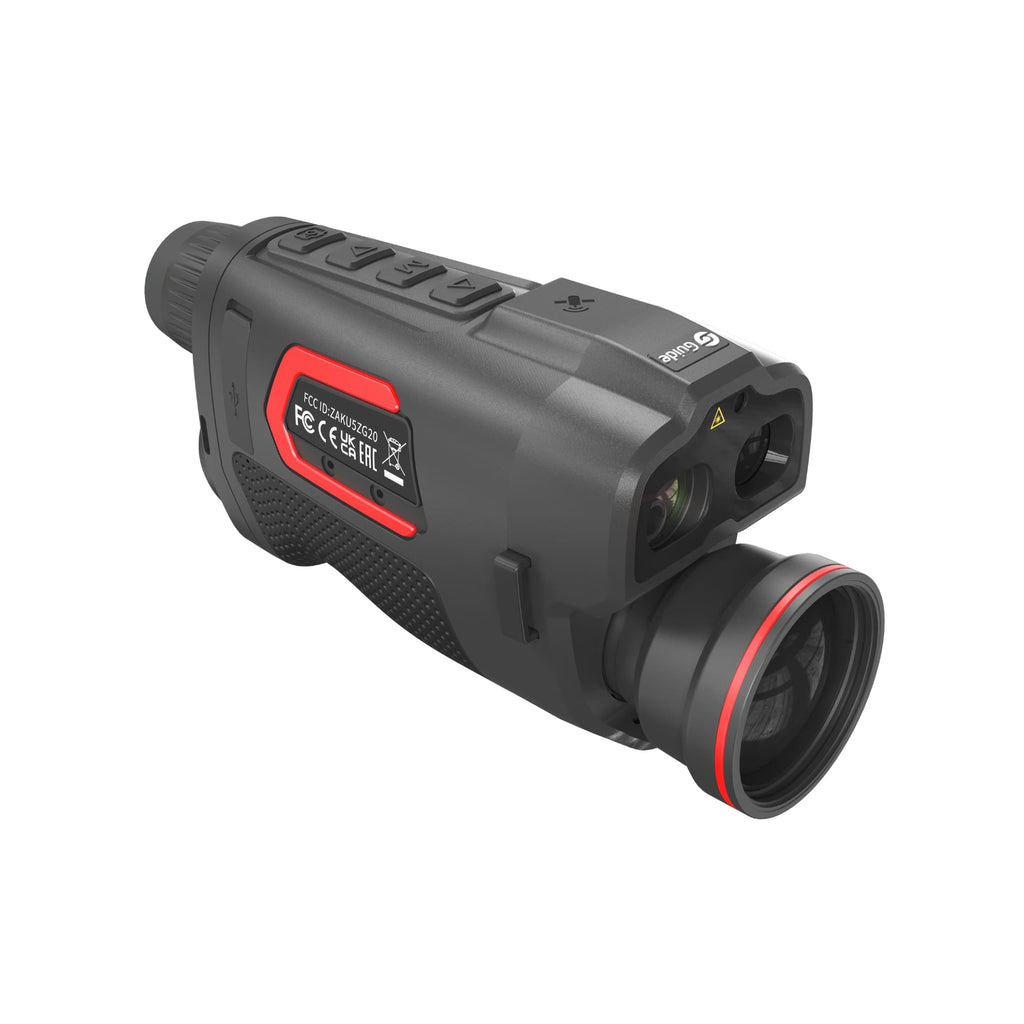

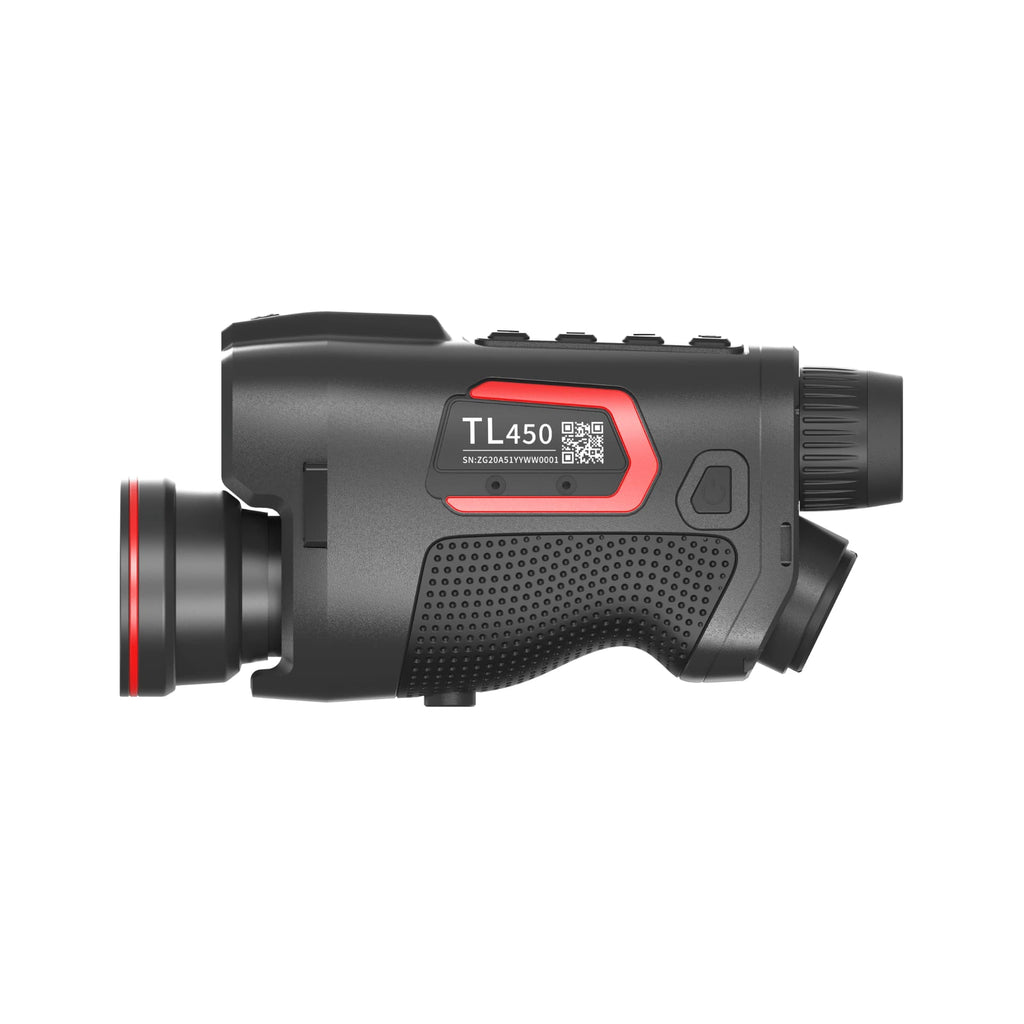

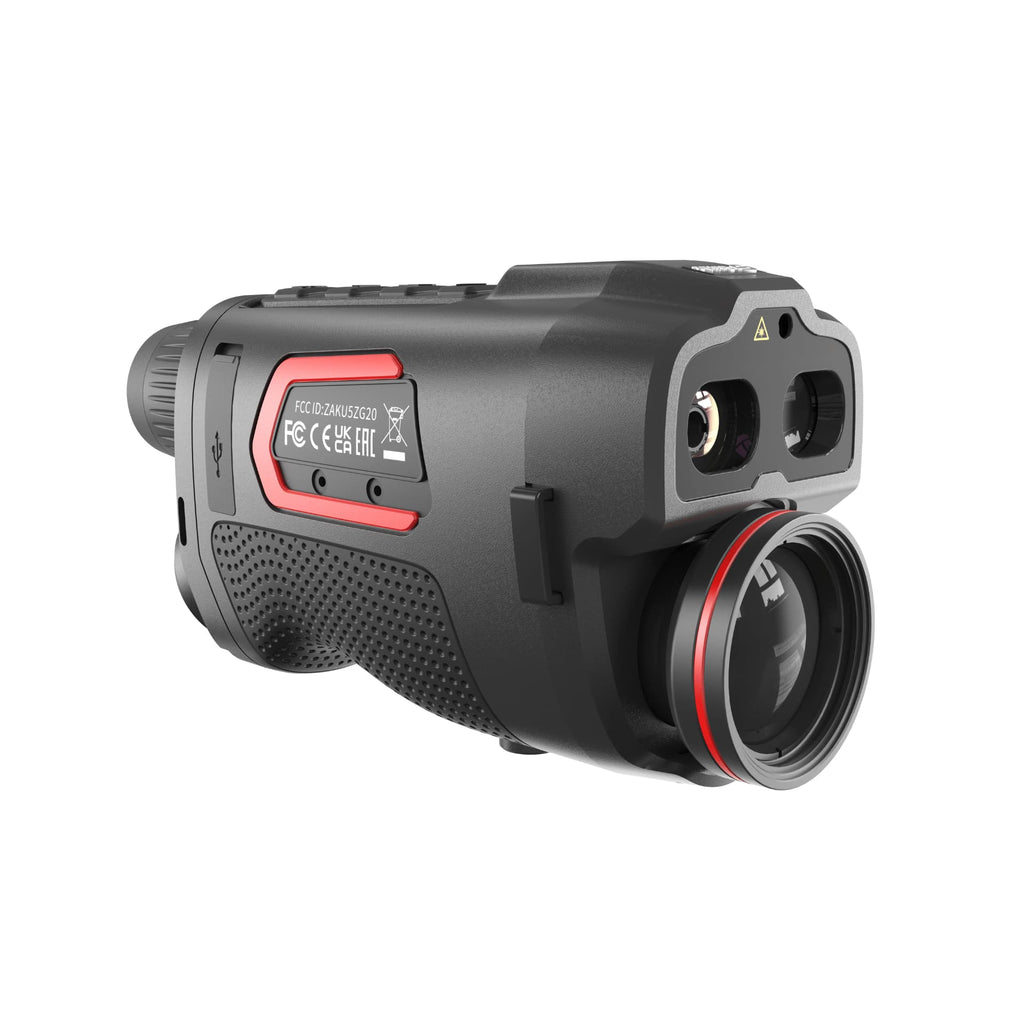

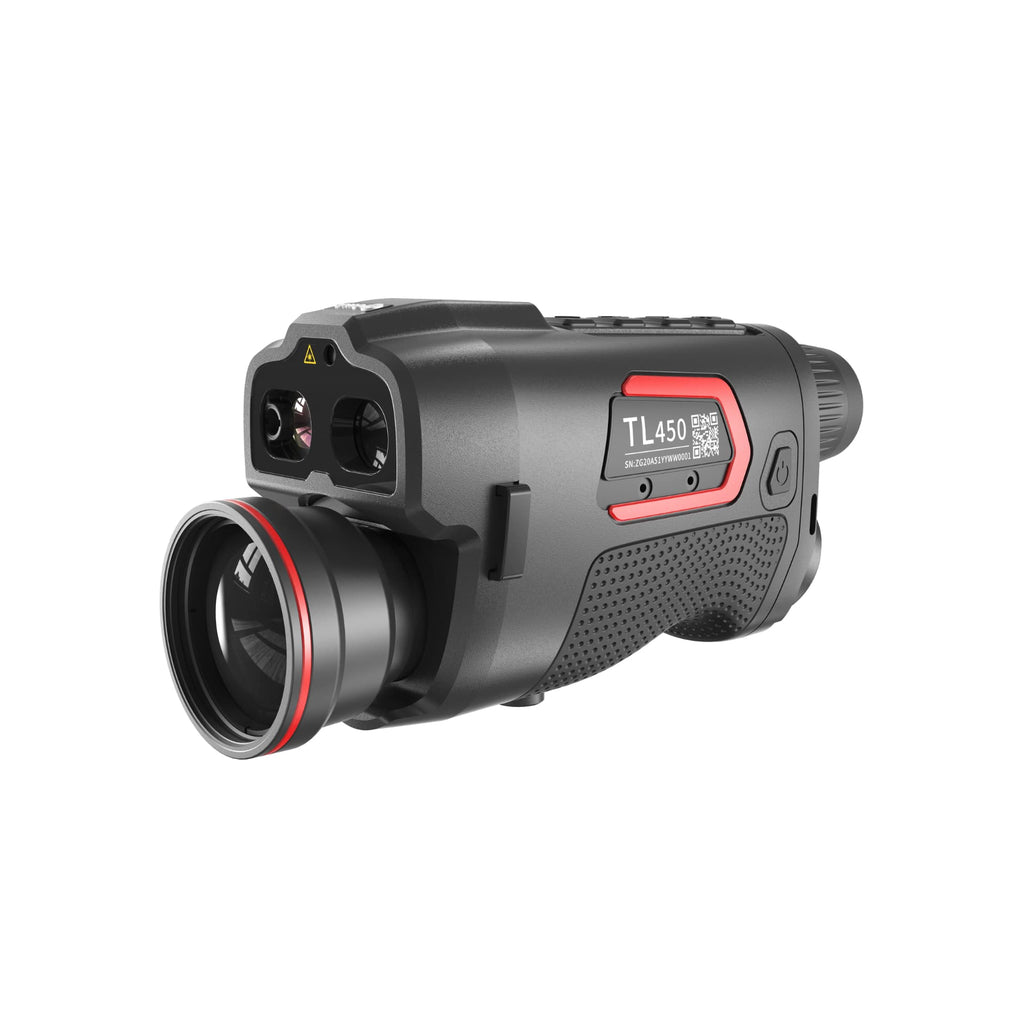

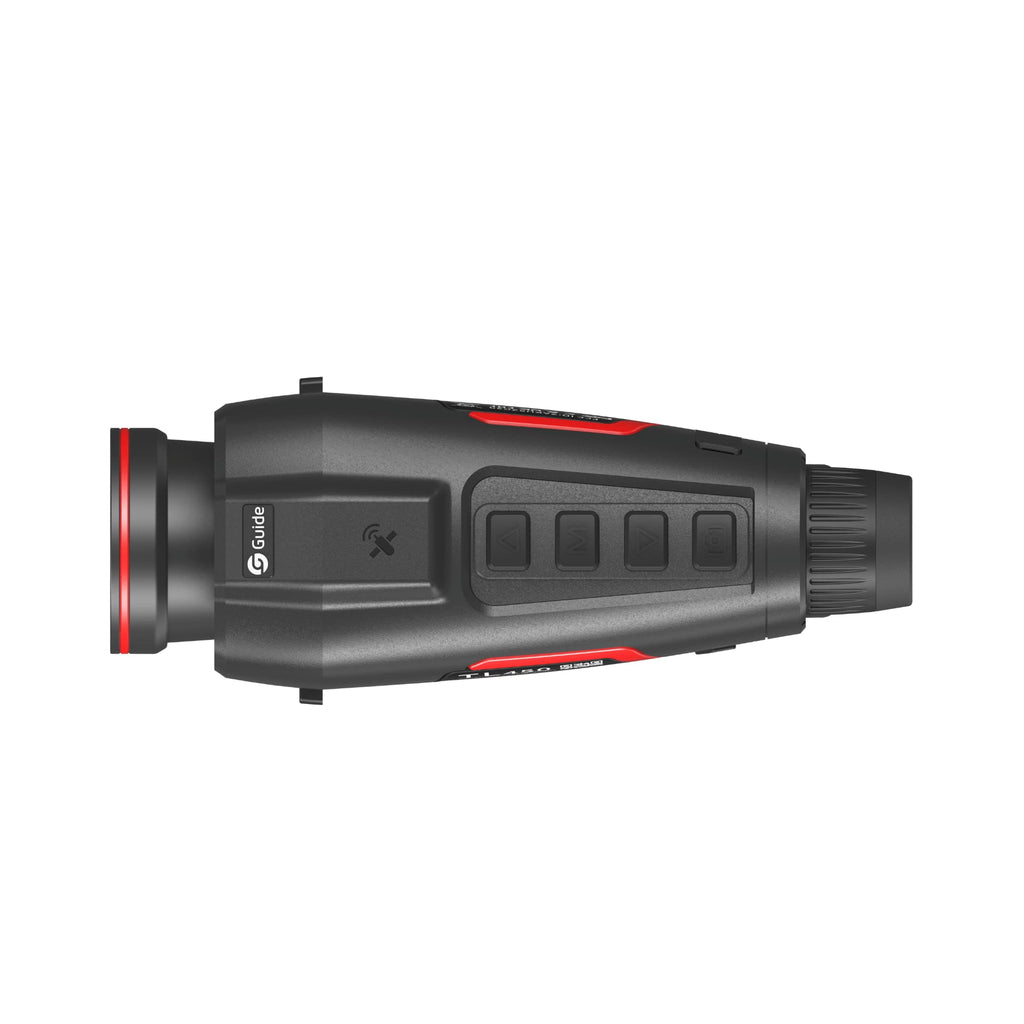

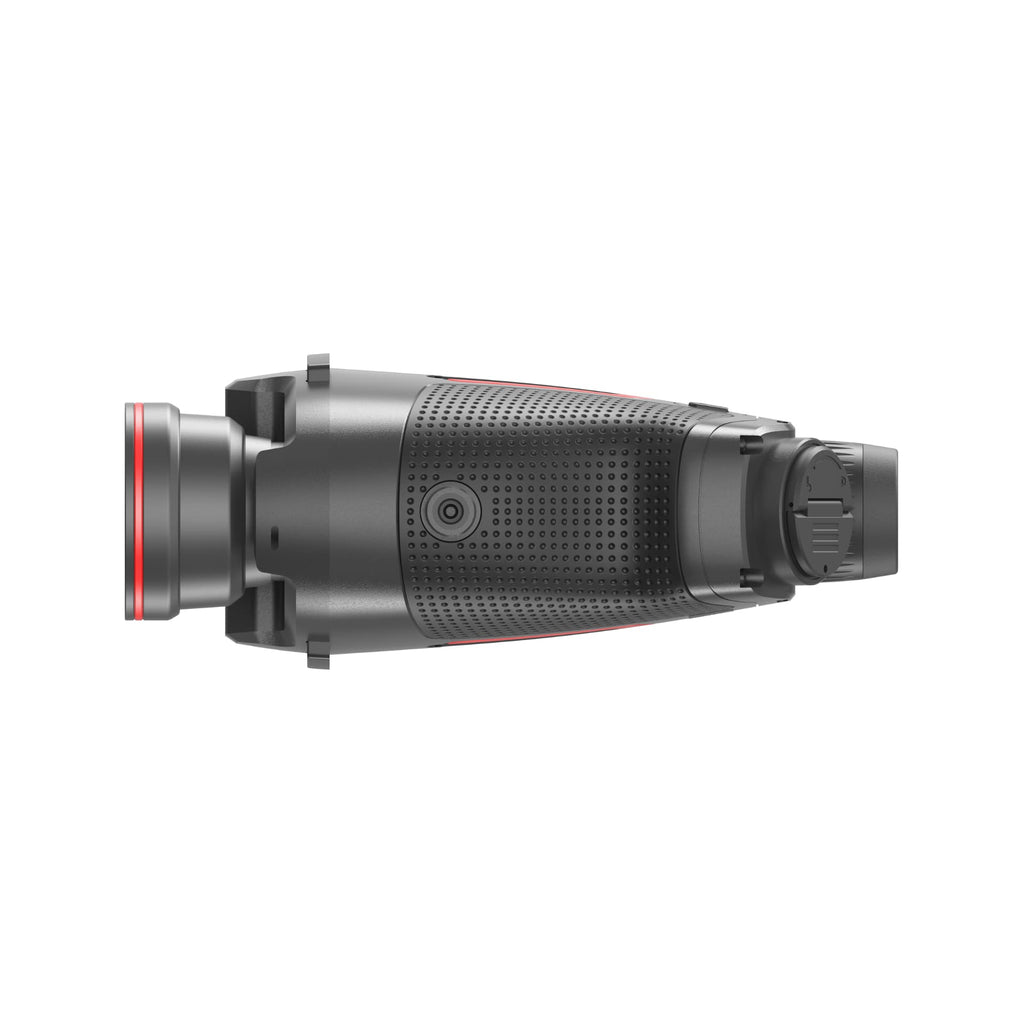

Guide TL450 Multispectral Fusion Thermal Monocular
Guide TL450 Key Features:
- 400×300@12μm IR resolution
- 5.5°×4.1° FOV
- Day & Night Use Thermal+Digital
- 1920x1080 AMOLED Display
- Thermal: 400×300@12μm; Digital: 1920×1080@4μm
Guide TL450 LRF Features
Enhanced Search and Target Identification with Integrated Thermal and Night Vision
Experience seamless search and target identification capabilities with integrated thermal and night vision, catering to both daytime and nighttime scenarios for swift operations.
Enhanced Animal Recognition and Landscape Clarity with Thermal Imaging and Night Vision
Benefit from high-quality thermal imaging and night vision, enabling clear distinctions for improved recognition of animals, their features, and intricate landscape elements like branches, leaves, and grass, regardless of day or night conditions.
1920 X 1080 AMOLED Display
Experience superior observation details with the high-resolution 0.39'' 1920×1080 AMOLED display, offering lower power consumption, a wider viewing angle, and richer color rendition for better observation.
Precision Laser Ranging for Accurate Target Distance Measurement
Utilizing the integrated high-precision laser range module, our device achieves accurate laser ranging of up to 600m, providing precise distance information of targets without the need for calibration.
Enhanced Navigation and Targeting Capabilities with GPS Integration
Our GPS systems display precise target latitude and longitude, crucial for hunters in navigation, safety, mapping, game tracking, and environmental analysis. Integrated with a built-in laser rangefinder and gyroscope, our device provides accurate target distance and device angle information, facilitating quick aiming.
Versatile Imaging Modes for Enhanced Detection
With the TL Series, you have access to multiple image modes tailored to your needs. Choose from a conventional thermal monocular featuring 5 color palettes, a detailed daylight and night vision optical camera, or the innovative Fusion mode. This unique mode combines optical image detail with thermal channel performance, maximizing detection capabilities and detail for unparalleled results.
Applications
Law Enforcement
Outdoor
Low Light Observation
Guide TL450 Specifications | |
Sensor | |
Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS |
Resolution | Thermal: 400×300@12μm; Digital: 1920×1080@4μm |
NETD | 30mK |
Frame rate | 50Hz |
Lens | |
Objective lens | Thermal: 50mm, F1.2; Digital: 22mm, F1.5 |
Field of view | 5.5°×4.1° |
FOV m @100m | 10×7 |
Magnification | 3.3x~13.2x |
Detection range | 2600m/2800yd |
Display | |
Color palettes | IR: White Hot, Black Hot, Red Hot, Iron Red, Blue Hot |
Scene modes | Visible: Day, Night, Low-light |
Display type | IR, Visible, Fusion 1, Fusion 2, Fusion 3 |
Eyepiece | Exit pupil distance 15 mm; Diopter: -4 to +4; Zoom: 13.8x |
Hardware | |
Laser rangefinder | 600m/650yd |
WIFI | 2.4G |
Interface | USB Type-C |
Others | GPS, Compass, Gyroscope, Bluetooth |
System | |
Recording function | Photo/Video |
Memory capacity | 64GB |
Power | |
Battery type | Single, replaceable 18650 battery |
Operating time | 5 hours |
Environmental | |
Operating temp. | -20 °C to 50 °C/ -4°F to +122°F |
Encapsulation | IP67 |
Physical | |
Weight(g/ oz) | 567/ 20.00 |
Size(mm/ in) | 190×70×90/7.48×2.76×3.54 |
Standard | A device, Wrist strap, Battery charger, single 18650 battery, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card |
Optional | Bluetooth remote control, 18650 battery, Dovetail guide |
