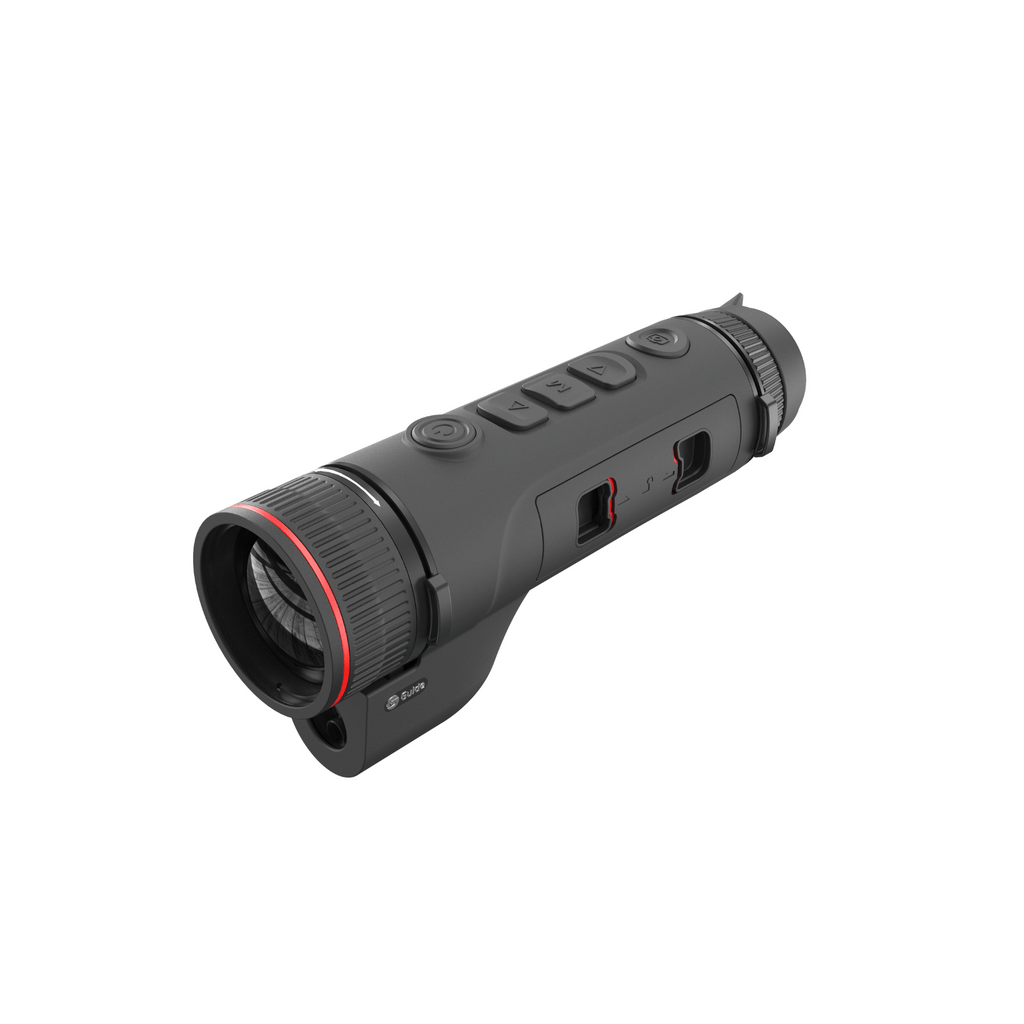

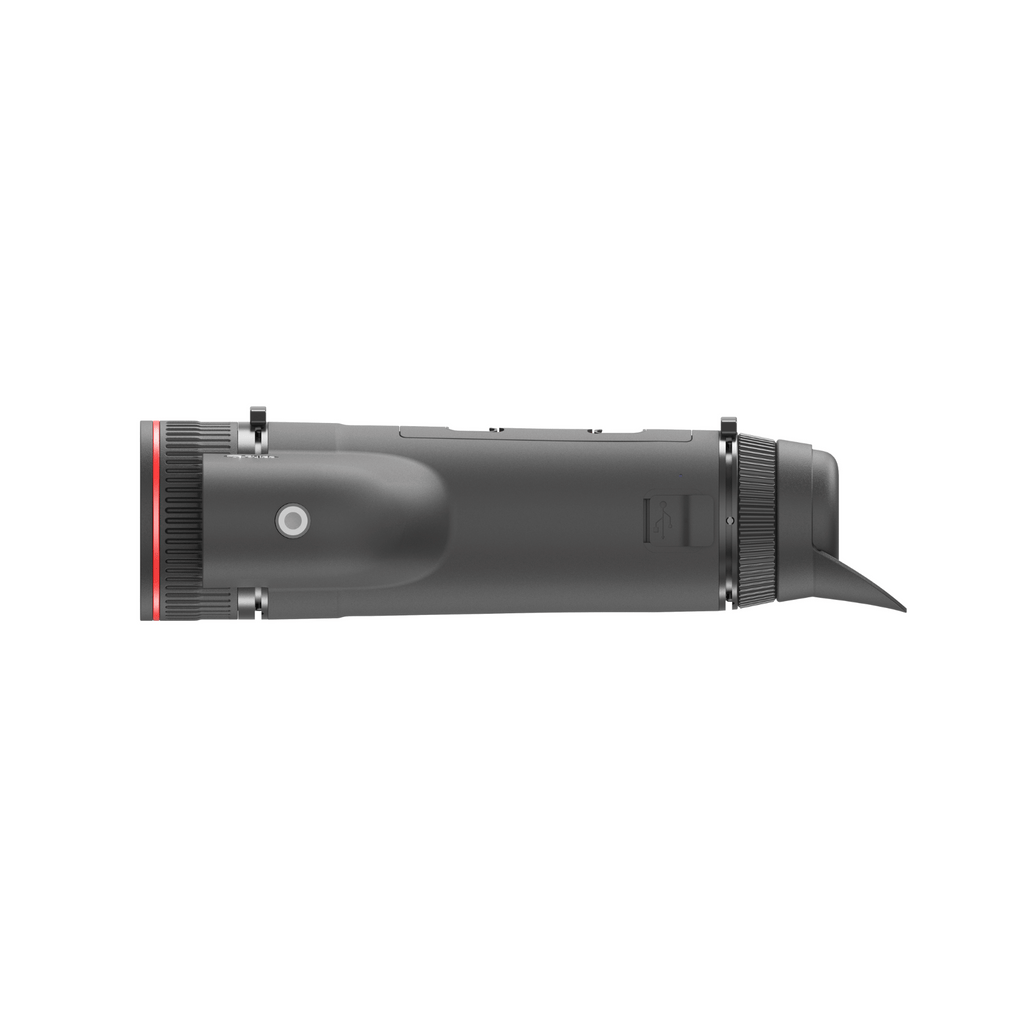

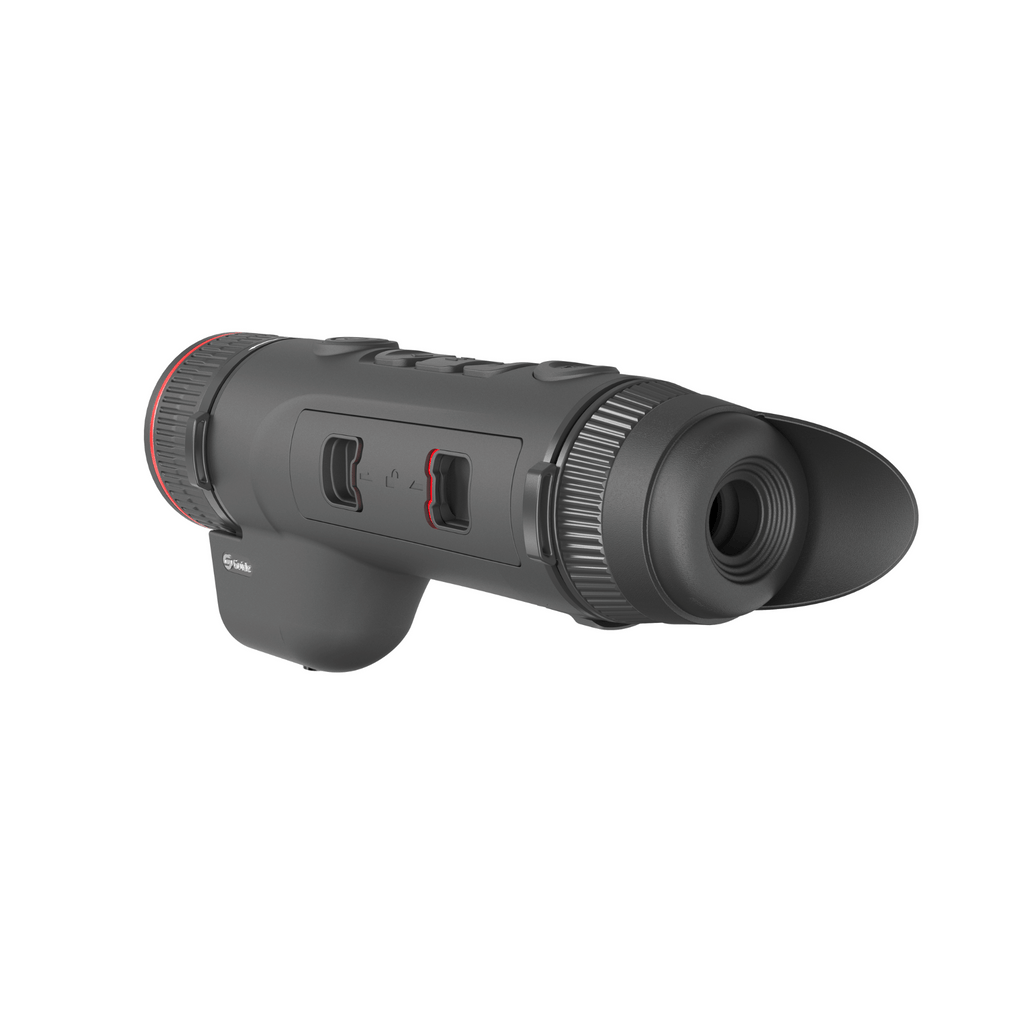

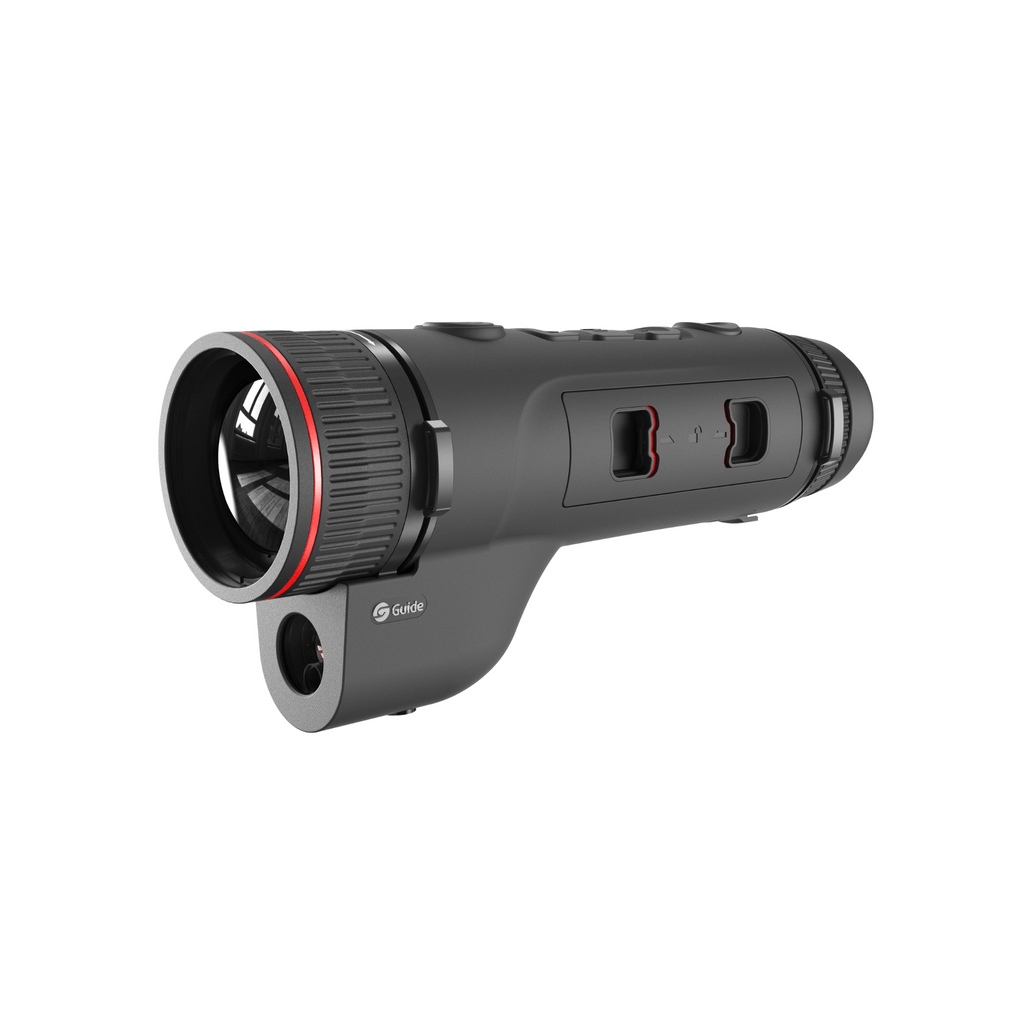

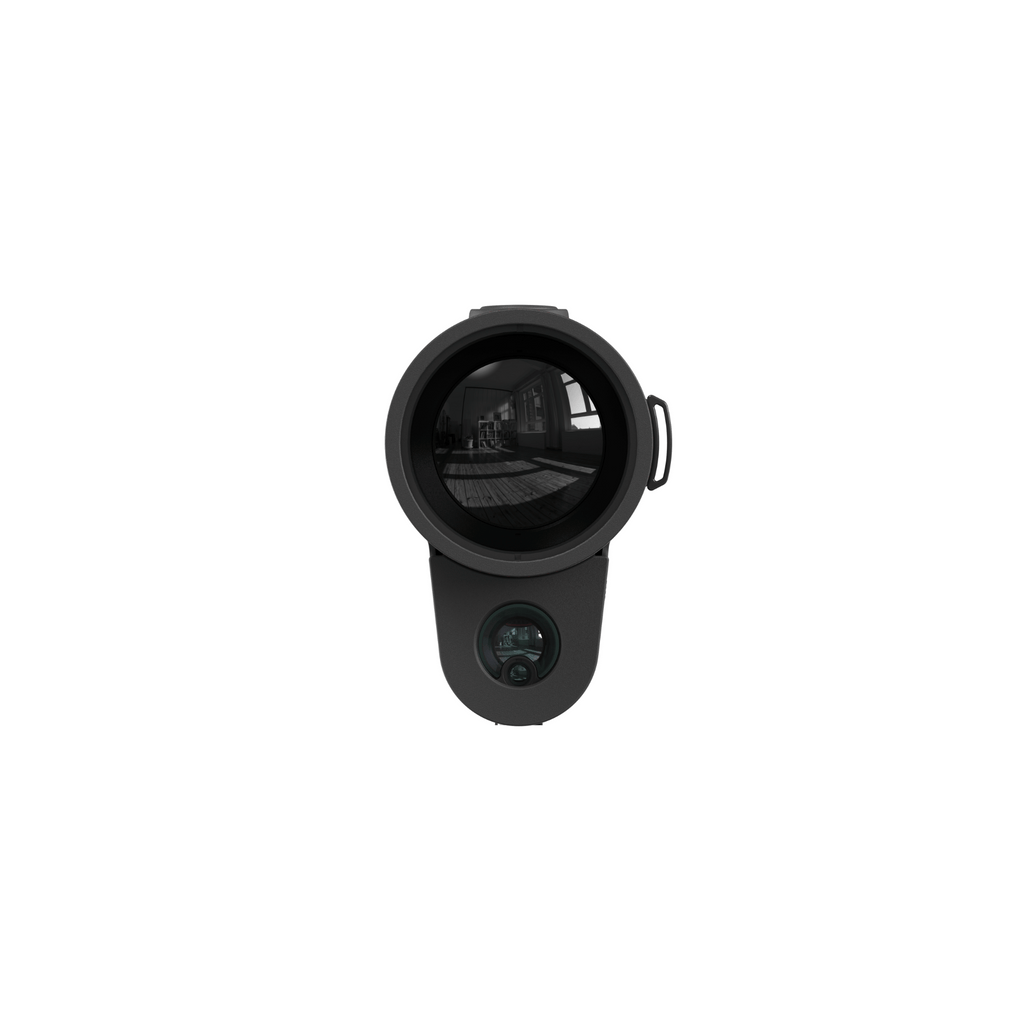

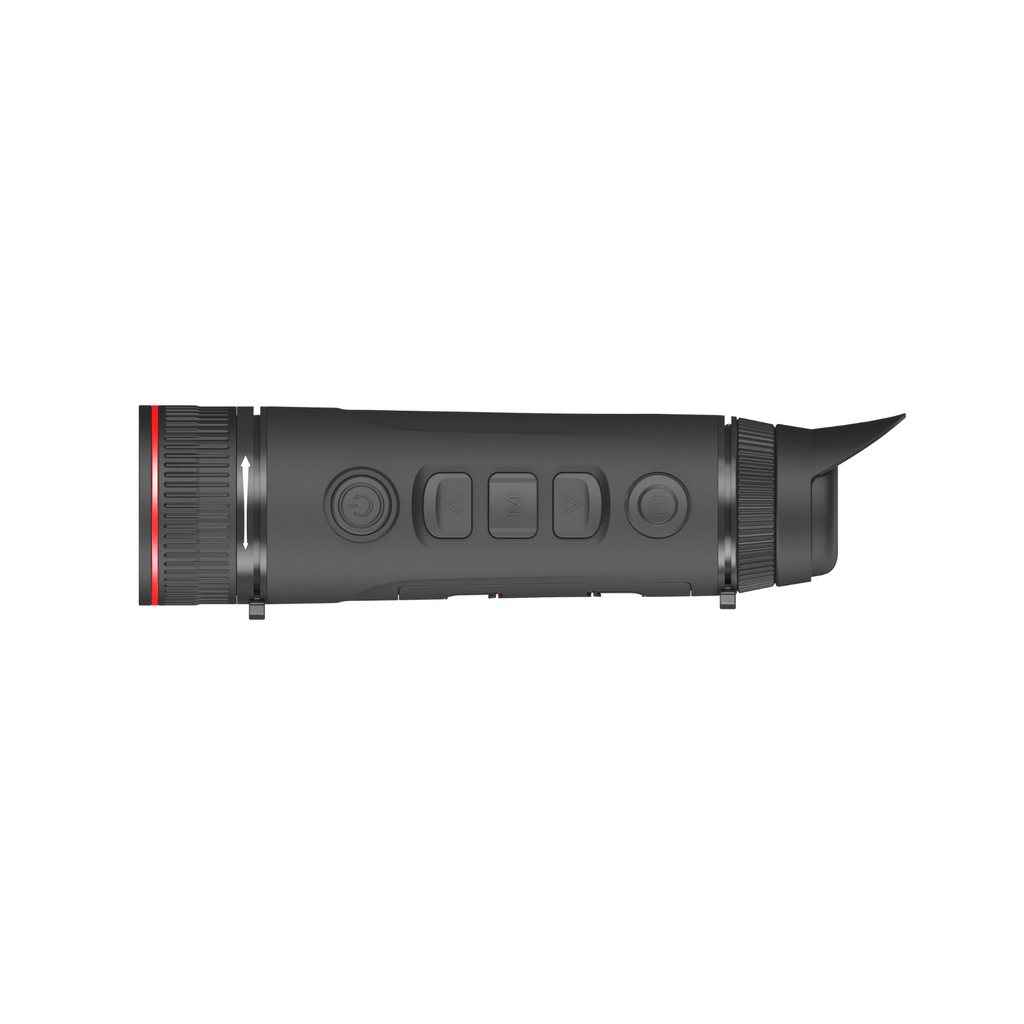

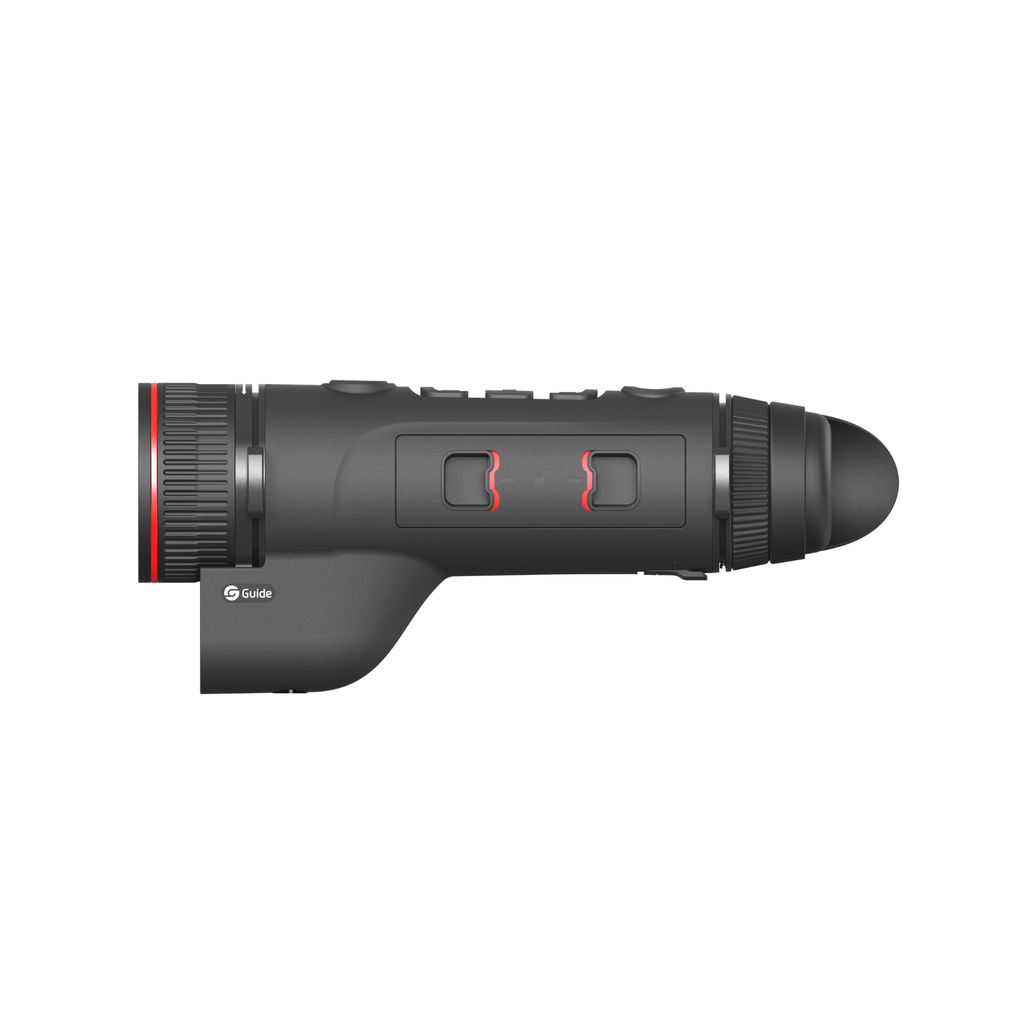

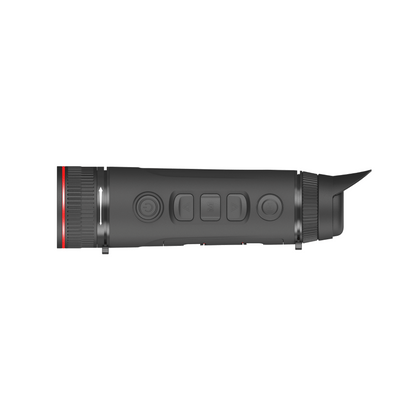

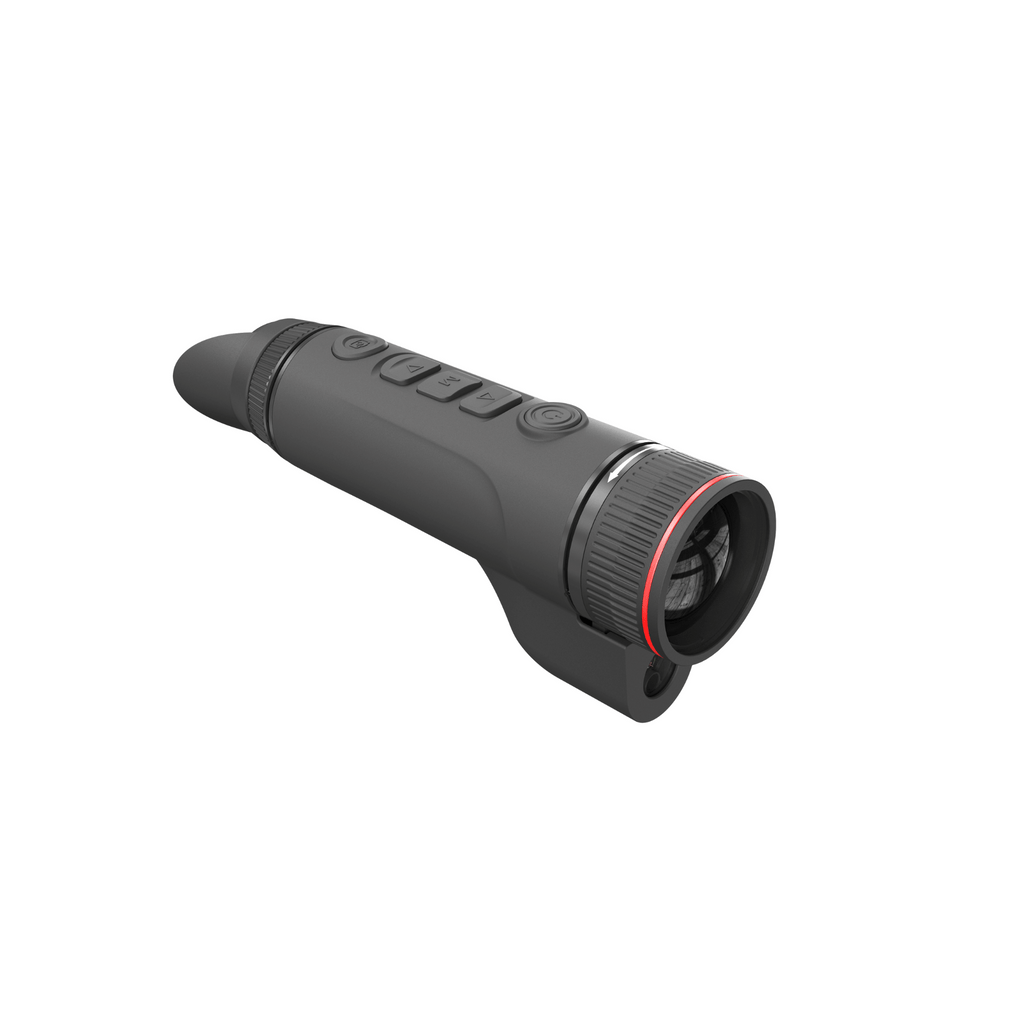

Guide TJ650L Thermal Imaging Night Vision Monocular

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.



Guide TJ650 LRF

Handheld Thermal Imaging Monocular with Laser Range Finder

The Guide TJ650 LRF Thermal Night Vision Monocular invites you to embark on nighttime explorations, making it a top choice for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and a 12-hour battery life make it the perfect companion for nighttime adventures.

Guide TJ650 Key Features:

  • 640x512 IR resolution
  • 50mm/F1.0 Focal Length
  • 2000m Laser Detection Range
  • Full-HD 1920x1080 AMOLED Display
  • IP67 Encapsulation

Guide TJ650 LRF Features

Welcome to the big screens

TJ LRF Series - Handheld Thermal Imaging Monocular

Guide TJ650 LRF
Guide TD Gen 2 LRF

12um high sensitivity infrared detector

Utilizing a highly sensitive IR detector with a NETD<20mK enables the clear distinction of even the slightest temperature differences, resulting in sharper and clearer imaging.

1920 X 1080 AMOLED Display

Featuring a 1920x1080 high-definition AMOLED screen, the eyepiece delivers a visual experience characterized by vibrant colors and excellent image quality. This enhancement significantly improves the comfort of observation.



Guide TJ650 LRF 1920 X 1080 AMOLED Displayuide TD211

50mm F1.0 focal length

With multiple focal lengths, the Guide TJ650 LRF gains stronger capabilities and offers more options in various environments. The maximum 50mm F1.0 lens can clearly identify targets within 2000m, providing convenience for observation and recording purposes.

1000m laser ranging

The Guide TJ650 LRF is equipped with a built-in laser rangefinder boasting a long detection range of up to 1000m, the device enhances the ability to accurately determine target distances and improves long-distance perception.


Applications

Law Enforcement

Outdoor

Low Light Observation

Guide TJ650 LRF Specifications

Sensor

Type

Uncooled VOx Infrared Detector, 8 to 14 μm

Resolution

640×512@12μm

NETD

20mK

Frame rate

50Hz

Lens

Objective lens

50mm, F1.0

Field of view

8.8°×6.6°

FOV m @100m

15×12

Magnification

3.79x~30.32x

Detection range

2000m/yd

Display

Display type

0.39'' AMOLED 1920x1080

Color palettes

White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia

Scene modes

Eyepiece

Exit pupil distance 16 mm; Diopter: -6 to +6; Zoom: 18x

Hardware

Laser rangefinder

1000m/yd

WIFI

2.4G, 5G

Interface

USB Type-C (Power supply/USB2.0)

Others

Microphone, Compass, Gyroscope, Bluetooth

System

Recording function

Photo/Video (Audio recording included)

Memory capacity

64GB

Power

Battery type

2 replaceable 18650 batteries

Operating time

10 hours

Environmental

Operating temp.

-20 °C to 50 °C/ -4°F to +122°F

Encapsulation

IP67

Physical

Weight(g/ oz)

625/ 22.05

Size(mm/ in)

243×97×66/ 9.57×3.82×2.60

Standard

A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card

Weight(g/ oz)

Bluetooth remote control, 18650 battery
