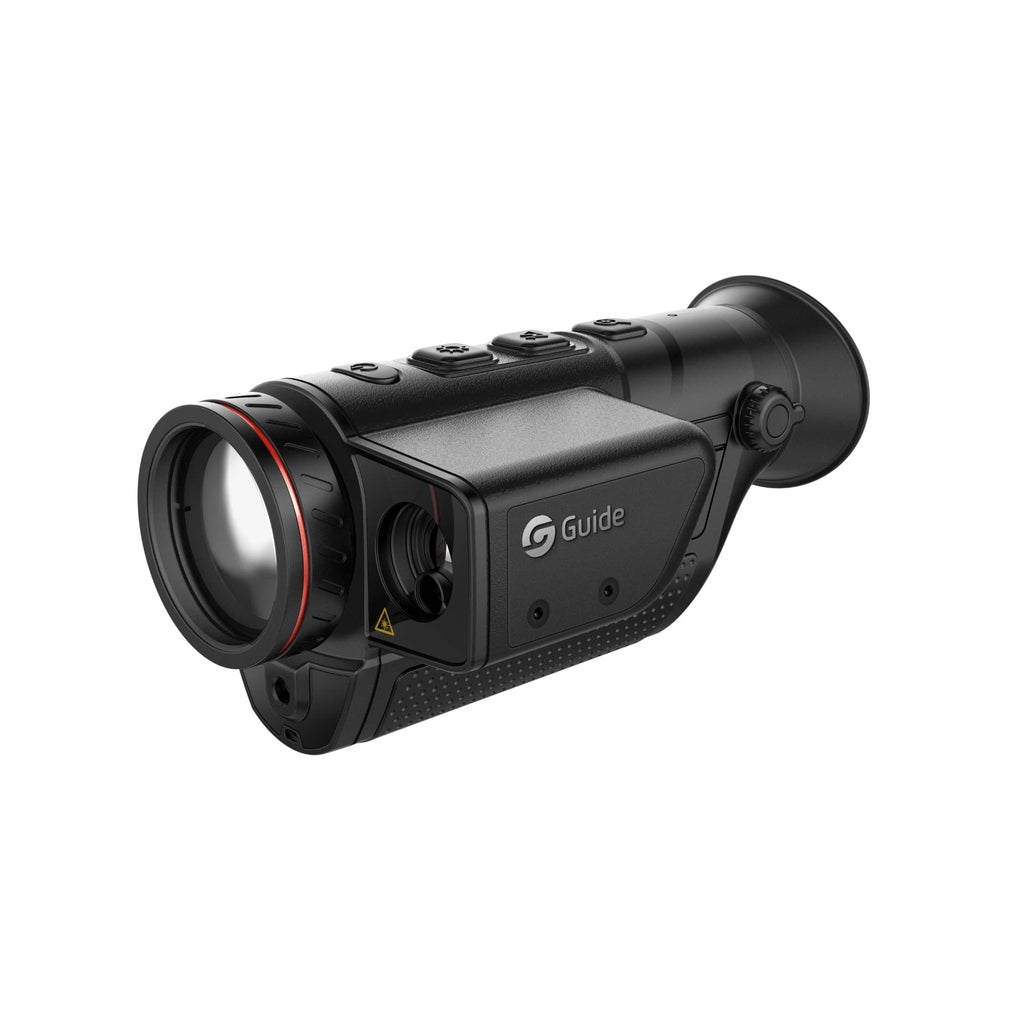

Guide TD431 LRF Compact Thermal Imaging Night Vision Monocular

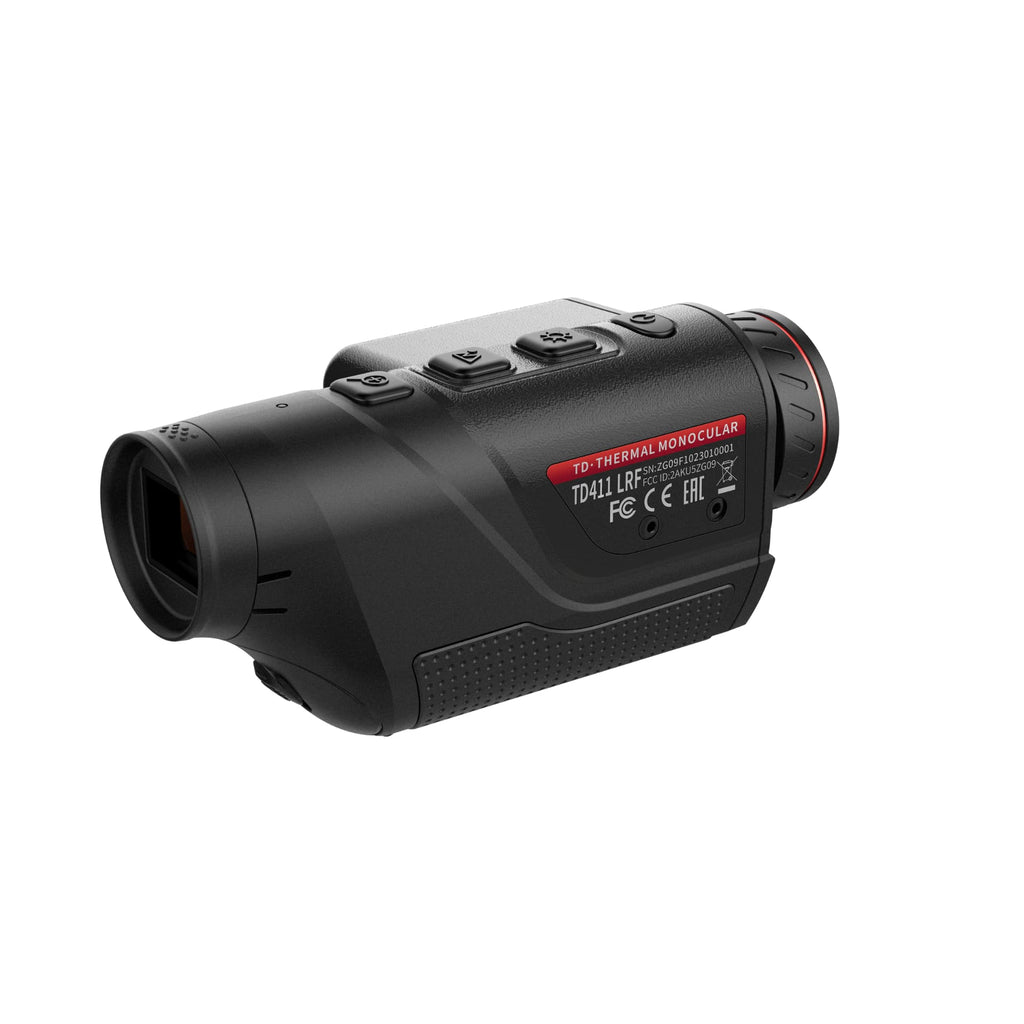

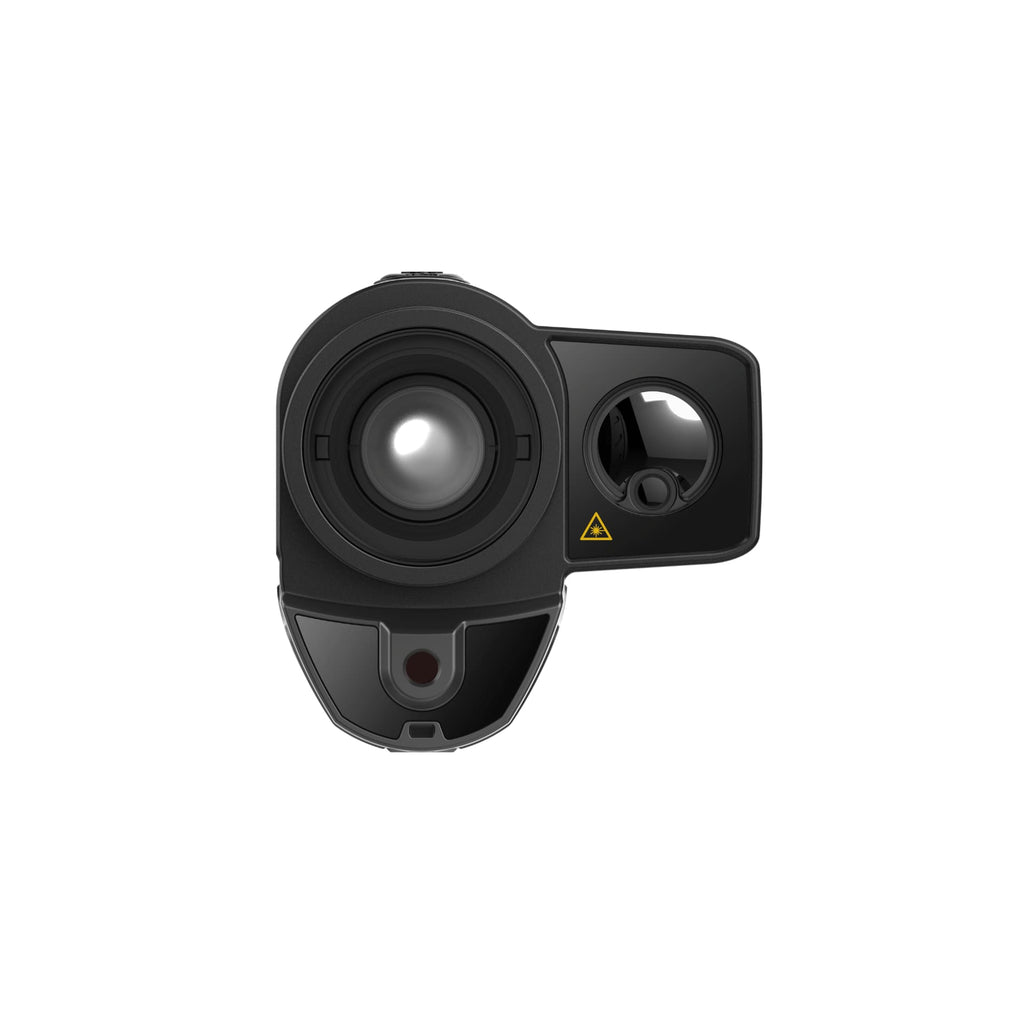

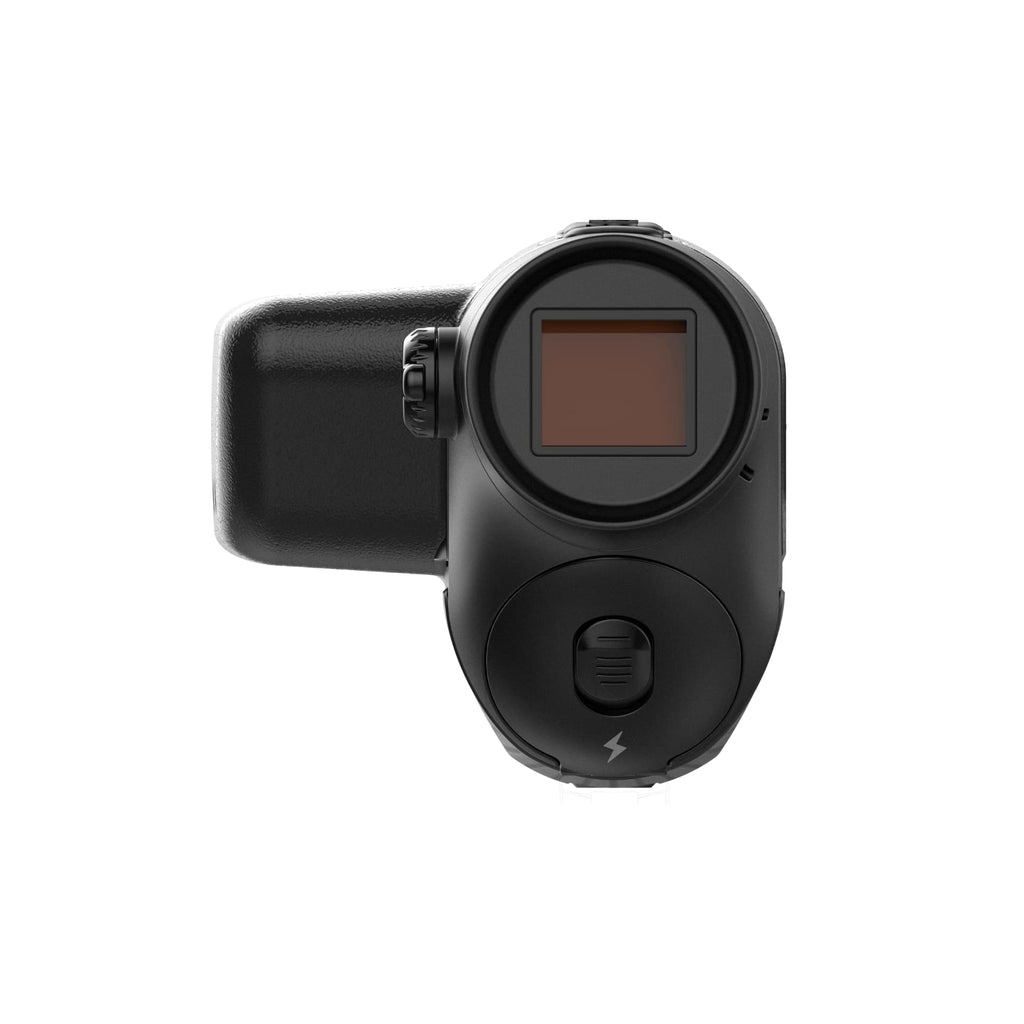

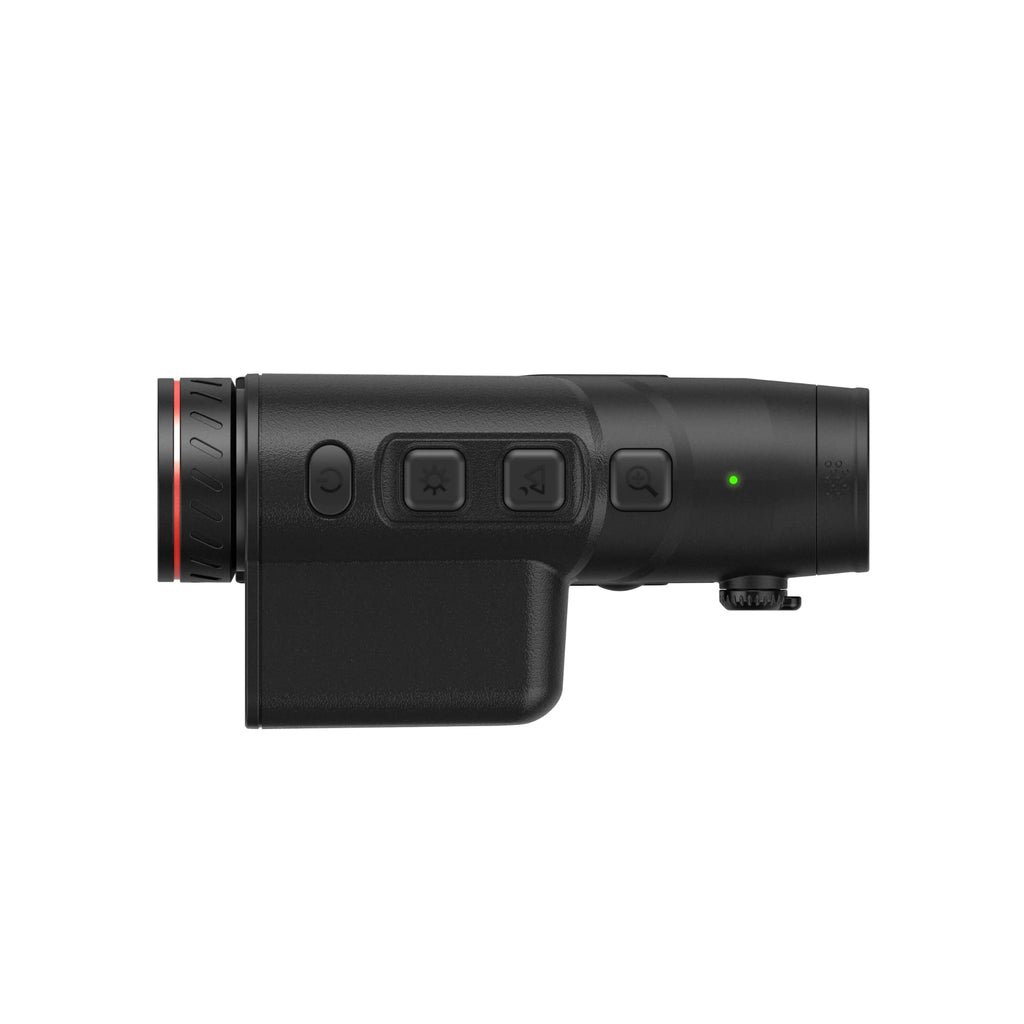

Guide TD411 LRF Compact Thermal Imaging Night Vision Monocular

Guide TD631 LRF Compact Thermal Imaging Night Vision Monocular

Name: Guide TD631 LRF Compact Thermal Imaging Night Vision Monocular
Brand: Guide
SKU: GS-TD31LRF
Price: 27899.00 ZAR
Availability: InStock

Tax included. Shipping calculated at checkout.

Guide TD631 LRF

Handheld Thermal Imaging Monocular with Laser Range Finder

Step into the forefront of night vision technology with the TD631 LRF, a groundbreaking addition to the TD Gen2 LRF Series. As the industry's first entry-level full-featured handheld thermal imaging monoculars, it inherits the renowned traits of its predecessor – being lightweight, portable, easy to operate, and durable. Taking innovation to new heights, the TD631 LRF integrates a high-precision laser rangefinder module, enabling precise target detection within an impressive range of 600 meters. With an OLED display offering clear imaging and a comfortable viewing experience, this monocular stands as the perfect companion for outdoor night vision pursuits. Unleash the potential of advanced night vision with the TD631 LRF.

Features:

640x480 IR resolution
35mm/F1.0 Focal Length
1400 Detection Range
640x400 AMOLED Display
8 Hours Battery Life

Get in Touch

High-brightness OLED Display

Experience enhanced thermal imaging with the 12μm high sensitivity infrared detector and a 0.23-inch OLED display boasting a resolution of 384 x 288. This powerful combination brings image edges and details into sharp focus, delivering a high-contrast and detailed thermal image for an exceptionally comfortable viewing experience.

Enhanced Image Processing Algorithms

Employing an innovative approach to image optimization based on the specific purposes and observation conditions, the TD Gen2 LRF Series ensures high-quality rendering of target objects and backgrounds alike, delivering superior performance for various applications.

10 Hours，Extended Operation Time

Experience more than 10 hours of active usage, a remarkable 3-hour improvement over the previous generation, powered by a standard 18650 battery that is easily accessible for purchase.

New User Interface design

Enjoy a simplified operation with the new user interface design, featuring iconized controls that transcend language barriers for effortless usability.

Real-time Sharing by WIFI

Easily connect to the app on your phone via WiFi and instantly share wonderful moments in real-time. i

OTA Upgrade

Achieve high efficiency by connecting to the TargetIR APP for seamless device firmware updates support.

Applications

Law Enforcement

Outdoor

Low Light Observation

Media Gallery

Specifications
Infrared detector
Detector resolution and pitch	640×480, 12 μm
Spectral range	Uncooled VOx Infrared Detector, 8～14μm
NETD	≤35mk
Lens
Focal length	35 mm; F1.0
Focusing mode	Manual
Field of view	12.5°×9.4°
Frame Rate
Output frame frequency	50Hz
Zoom
Optical zoom	1.7x
Digital zoom	1x, 2x 4x and 8x
Visual effect	It's like viewing at a 22’‘ screen at a 1 meter
Display
Display type	0.23'' OLED
Resolution	640 × 400
Eyepiece	Monocular, exit pupil distance ≥12 mm; Diopter: -4 to +2; Zoom: 18x
Eyepiece zoom	18x
Video output	Analog Video
Button
Button Function	Power / Brightness / Zoom / Color palette
System
Laser Range Finder	Laser rangefinder (up to 600 m)
Others	PIP, Hot spot tracking
Environmental
Operating temperature range	-10 ℃ to 50 ℃
Storage temperature range	-30 ℃ to 60 ℃
Humidity	10 % to 95 % non-condensing
Shock	30 G at 11 ms half sine pulse (as per IEC60068-2-27)
Vibration	10 Hz - 150 Hz - 10 Hz 0.15 mm (as per IEC60068-2-6)
Drop	1 m
Encapsulation	IP66
Certification	IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2
Physical
Weight	≤383 g
Size (L × W × H)	150 × 75 × 74 mm
Standard	A device, lens cover and lanyard, Battery charger, single 18650 battery, USB Type-C cable, Wrist strap, Carry bag, Eye mask, Quick use guide, Warranty card
