The Guide TB630 is your ultimate clip-on thermal imaging attachment that combines precision and portability seamlessly. Crafted with a magnesium alloy housing, this attachment offers lightweight durability, weighing over 20% less than comparable products. Its compact design enhances convenience without compromising performance. Plus, enjoy stunning visuals with the Full-HD AMOLED display, boasting a wider viewing angle and richer color. Elevate your hunting experience with the TB630.

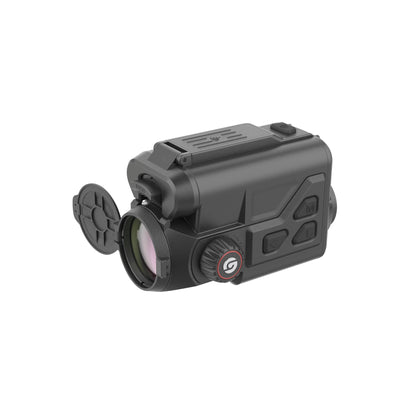

Guide TB630 Clip-on Thermal Imaging Attachment
Guide TB630 Key Features:
- 640×512 IR resolution
- 35mm/F1.0 Focal Length
- 1800m Detection Range
- 1920x1080 AMOLED Display
- 12.5°×9.4° FOV
Guide TJ650 LRF Features
Advanced Features of the TB630 Thermal Imaging Attachment
Experience unparalleled thermal imaging performance with the 12μm advanced thermal detector, boasting an impressive NETD of <25mK. Enjoy crisp and detailed visuals on the Full-HD 1920x1080 AMOLED display, ensuring clear observation in any condition. Crafted with a magnesium alloy housing, this attachment offers a compact and lightweight design without compromising power. Benefit from extended operation time with two standard 18650 batteries, providing up to 12 hours of continuous use. Easily adjust focus with the double-sided focus knob for seamless operation. Capture every moment with video recording capabilities, including sound. Plus, enjoy peace of mind with IP68 waterproofing and shock resistance up to 1000G/ms.
Exceptional Durability for Unmatched Performance
Benefit from superior waterproof performance, ensuring reliable operation even in the harshest conditions. With shock resistance up to 1000G/ms, this device remains durable and effective, no matter the circumstances.
Compact and Lightweight Design
Crafted from magnesium alloy, this device boasts a compact and lightweight design without compromising on power.
Vivid Viewing Experience with High-Definition AMOLED Screen
Experience vibrant colors and outstanding image quality with the 1920x1080 high-definition AMOLED screen integrated into the eyepiece. This enhances the comfort of observation, ensuring a visually engaging experience
Sharper Imaging with Highly Sensitive IR Detector
Achieve sharper and clearer imaging with the highly sensitive IR detector featuring a NETD<25mK. This advanced technology allows even the slightest temperature differences to be distinguished, ensuring exceptional thermal imaging performance.
Efficient Battery Management with Standard 18650 Cells
Benefit from convenient battery replacement with the Guide TB630, which utilizes standard 18650 batteries. Featuring a safety circuit protection design, this device ensures safe and reliable operation. When replacing the batteries, simply orient the positive and negative poles of the two cells oppositely, eliminating the need for burdensome identification and memory.
Elevate Your Adventures
Embark on thrilling adventures with efficient energy consumption, a lightweight design, and enduring performance.
Applications
Law Enforcement
Outdoor
Low Light Observation
| Guide TB630 Specifications | |
| Sensor | |
| Type | Uncooled VOx Infrared Detector, 8 to 14 μm |
| Resolution | 640×512@12μm |
| NETD | 20mK |
| Frame rate | 50Hz |
| Lens | |
| Objective lens | 35mm, F1.0 |
| Field of view | 12.5°×9.4° |
| FOV m @100m | 22×16 |
| Magnification | 1x |
| Detection range | 1800m/ 1950yd |
| Display | |
| Display type | 0.39'' AMOLED 1920x1080 |
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Eyepiece | Exit pupil distance 20mm; Zoom: 9.5x |
| Hardware | |
| WIFI | 2.4G, 5G |
| Interface | USB Type-C (Power supply/USB2.0) |
| Others | Microphone, Bluetooth |
| System | |
| Recording function | Photo/Video (Audio recording included) |
| Memory capacity | 64GB |
| Power | |
| Battery type | 2 replaceable 18650 batteries |
| Operating time | 10 hours |
| Environmental | |
| Operating temp. | -20 °C to 50 °C/ -4°F to +122°F |
| Operating temp. | 1000 G at 1 ms half sine pulse (as per IEC60068-2-27) |
| Encapsulation | IP68 |
| Physical | |
| Weight(g/ oz) | 440/ 15.52 |
| Size(mm/ in) | 128×79×79/ 5.04×3.11×3.11 |
| Standard | A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card |
| Optional | 18650 battery, Bluetooth remote control, Cover ring adapter |
