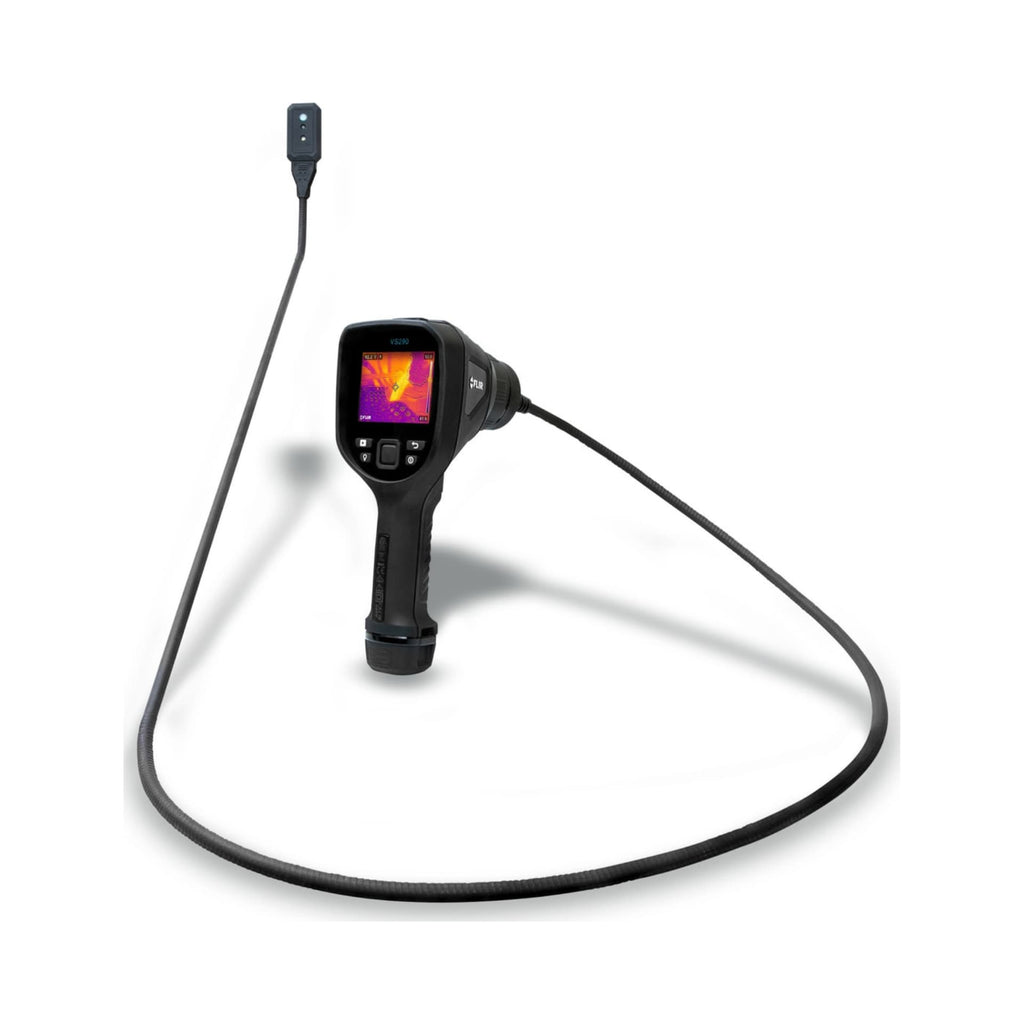

FLIR VS290-32 Thermal MSX® Videoscope Kit with Rectangular Probe Tip

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.



FLIR VS290-32 Thermal MSX® Videoscope Kit with Rectangular Probe Tip

The FLIR VS290-32 is an industrial thermal and visual videoscope designed to help professionals quickly and safely find hidden dangers in difficult-to-access locations, especially underground electrical distribution vaults. Featuring a 160 × 120 true thermal imager and FLIR MSX® (Multi-Spectral Dynamic Imaging), the VS290-32 enables users to catch hot spots before a failure occurs to maintain uptime. The 2 m camera probe makes it possible to easily inspect through small openings – improving productivity and reducing diagnostic time. Plus, the CAT IV 600 V safety rating makes the VS290-32 a rugged and versatile tool for the most demanding environments in utility, manufacturing, and building maintenance applications.

Available accessories: Thermal 160 × 120 MSX® Camera Probe with Rectangular Tip (VSC-IR32), Videoscope Display and Battery for VS290 Series (VS290-00)


FLIR VS290-32 Thermal MSX® Videoscope Kit with Rectangular Probe Tip

INSPECT INACCESSIBLE AREAS SAFELY

Quickly find hidden faults using the 160 × 120 true thermal imager with MSX and 2 MP visual camera, without entering difficult-to-access places.

FLIR VS290-32 Thermal MSX® Videoscope Kit with Rectangular Probe Tip

IDENTIFY, DOCUMENT, SHARE

Improve workflow and communicate potential issues before they become major problems using FLIR Thermal Studio.

FLIR VS290-32 Thermal MSX® Videoscope Kit with Rectangular Probe Tip

VERSATILE, RUGGED, AND RELIABLE

CAT IV 600 V rated and offers a high level of protection against dust and water for the most demanding environments.

SPECIFICATIONS

OVERVIEW

Built-in Illuminator LED

Yes

Camera size (L x W x H)

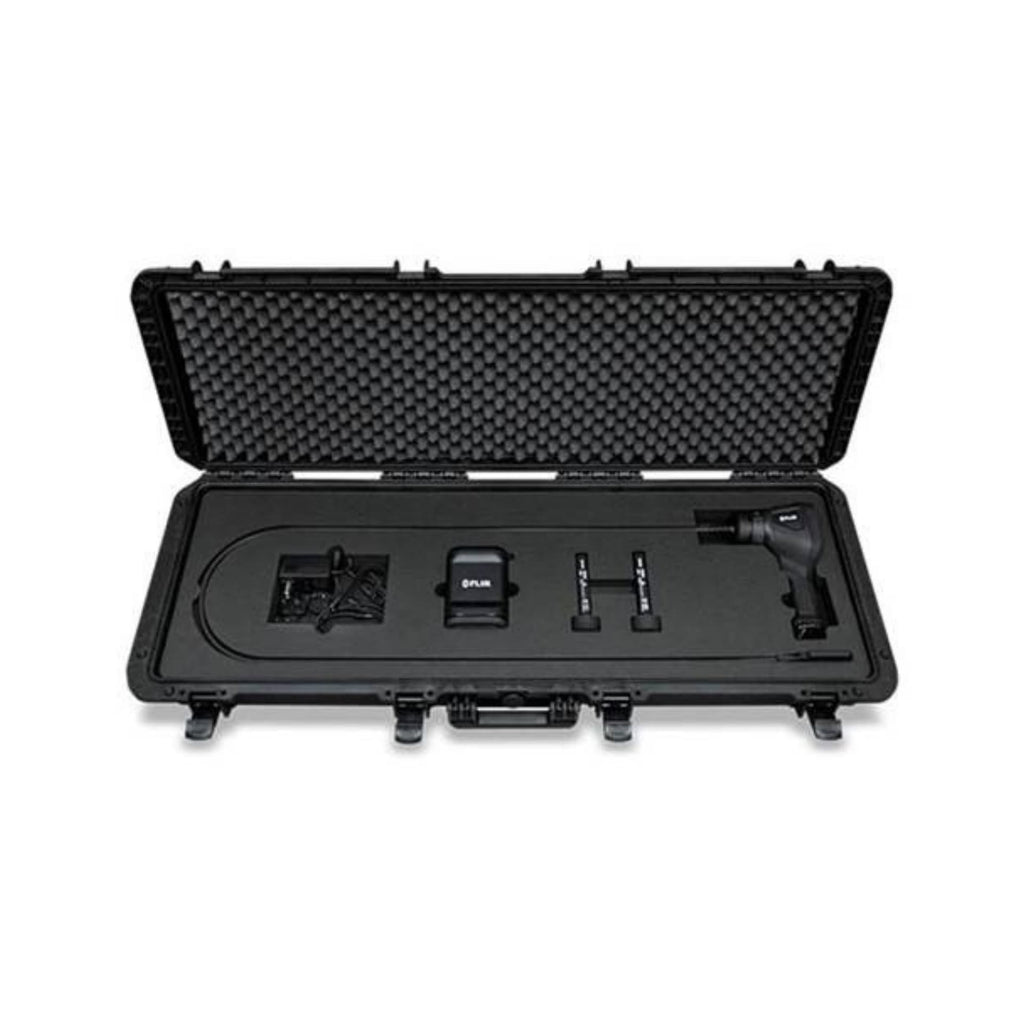

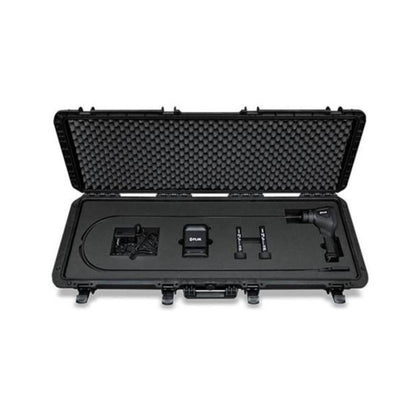

Complete kit with case: 120 × 48 × 20 cm (47 × 18.90 × 7.87 in)
Display: 26.4 × 11 × 11 cm (10.4 × 4.3 × 4.3 in)
Probe: 212.2 × 0.69 cm (83.5 × 0.3 in

Camera weight incl battery

Complete kit with case: 13 kg (28.66 lb)
Display: 640 g (1.41 lb)
Probe: 470 g (1.04 lb)

Color Alarm (Isotherm)

Above, below

Detector Type

Focal plane array (FPA), uncooled microbolometer

Display

3.5 in RGB TFT LCD (320 × 240 pixels)

Form Factor

Side-viewing cameras

Probe Length

2 m (6.6 ft) without probe tip

Warranty

FLIR 2-10 warranty
