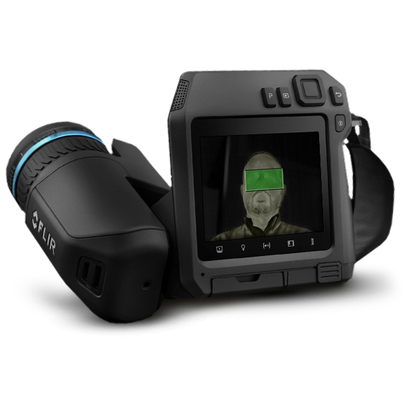

FLIR T560-EST Handheld Elevated Skin Temperature Screening Solution

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.



The FLIR T560-EST handheld thermal camera is a non-contact screening tool that serves as a first line of defense against potential health risks. This FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. Battery-powered and featuring an integrated touchscreen display, the T560-EST sets up quickly and easily for operation in temporary or mobile screening settings. The on-camera FLIR Screen-EST Mode offers visual positioning guides, automatic sampling to maintain an updated temperature average, and graphic pass/fail indicators for results, reducing the burden on screening station operators. A 640 × 480 pixel detector offers the highest thermal resolution in this line of handheld FLIR EST cameras, for superior measurement accuracy. Compatibility with FLIR Screen-EST Desktop software makes this camera a good fit for permanent installations as well.

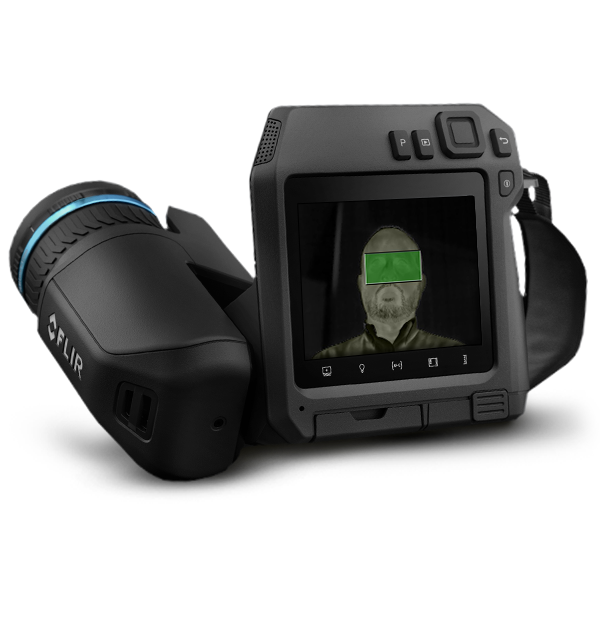

FLIR T560-EST Handheld Elevated Skin Temperature Screening Solution

The FLIR T560-EST handheld thermal camera is a non-contact screening tool that serves as a first line of defense against potential health risks. This FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. Battery-powered and featuring an integrated touchscreen display, the T560-EST sets up quickly and easily for operation in temporary or mobile screening settings. The on-camera FLIR Screen-EST Mode offers visual positioning guides, automatic sampling to maintain an updated temperature average, and graphic pass/fail indicators for results, reducing the burden on screening station operators. A 640 × 480 pixel detector offers the highest thermal resolution in this line of handheld FLIR EST cameras, for superior measurement accuracy. Compatibility with FLIR Screen-EST Desktop software makes this camera a good fit for permanent installations as well.


EASY SET-UP AND OPERATION

Begin screening quickly with limited ramp-up time, simple video connectivity, and choice of >4 hour battery or external power.

FAST, ACCURATE SCREENING

Optimal screening accuracy with automatic ambient drift compensation, visual pass/fail graphic indicators, and audible alarms.

MAINTAIN SAFETY AND PRIVACY

On-camera FLIR Screen-EST Mode does not store images or personal information and allows for social distancing in screening setups.

Specifications

OVERVIEW

Display Technology

IPS

Field of view (FOV)

42° × 32°

Focal Length

10 mm (0.39 in)

Housing material

PCABS with TPE, magnesium

IR Resolution

640 × 480

Object Temperature Range

15°C to 45°C (59°F to 113°F)

Programmable Buttons

2

Size (L x W x H)

Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in)

Warranty

http://www.flir.com/warranty/

Weight

1.3 kg (2.9 lb)

FLIR Screen-EST Mode

Yes

Sampling Average in Screen-EST Mode

Recommended range: 30 to 45°C (86 to 113°F) in stable room temperature

Accuracy [Drift] in Screen-EST Mode

±0.3°C (±0.5°F)
APP

Palette

Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
CONNECTIONS & COMMUNICATIONS

Communication Interfaces

USB 2.0, Bluetooth, Wi-Fi

Remote Control

Bluetooth®-enabled remote operation button

Storage Media

Removable SD card (8 GB)

USB

USB Type-C: data transfer/video/power

USB - Standard

USB 2.0 High Speed

Video Out

DisplayPort over USB Type-C

WiFi

Peer to peer (ad hoc) or infrastructure (network)

Setup Commands

Local adaptation of units, language, date and time formats

Command and Control

On-camera screen, USB Type-C
ENVIRONMENTAL

Drop

Designed for 2 m (6.6 ft)

Emissivity Correction

Yes: variable from 0.01 to 1.0 or selected from materials list

Operating Temperature Range

-15°C to 50°C (5°F to 122°F)

Radio Spectrum

ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2

Safety

EN/UL/CSA/PSE 60950-1

Storage Temperature Range

-40°C to 70°C (-40°F to 158°F)

Tripod Mounting

UNC ¼"-20

Shock & Vibration & Encapsulation

25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1
IMAGING & OPTICAL

Aspect ratio

4:3

Auto Rotation

Yes

Camera f-number

1.1

Camera software update

Using USB cable or SD card

Color

Black

Color depth (bits)

24

Detector Type and Pitch

Uncooled microbolometer, 12 µm

Digital Data Streaming

USB Type-C

Digital Zoom

1-8x continuous

Focus

Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual

Frame Rate

30 Hz

Image Modes

Infrared, visual

Lens

42°

Lens Identification

Automatic

Minimum Focus Distance

0.15 m (0.49 ft)

Spatial resolution (IFOV)

1.2 mrad/pixel

Spectral Range

7.5–14 µm

Viewfinder

No

MSX

Yes

UltraMax

Yes

Viewing Angle

80°
MEASUREMENT & ANALYSIS

Languages

21

Measurement Corrections

Yes

Reference Temperature

Yes

Automatic hot & cold detection

Auto-maximum/minimum markers within area
METER DATA

Cover Glass Material

Dragontrail®

Display

4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness
OTHER

Thermal Sensitivity_NETD [typical]

<30 mK @ 30°C (86°F)
POWER

Battery Life (Operating)

>4 hours at 25°C (77°F) and typical use

Battery size (L x W x H)

59 × 66 × 94 mm (2.3 × 2.6 × 3.7 in)

Battery Type

Rechargeable Li ion battery

Battery voltage

3.6 V

Battery weight

195 g (6.89 oz)

Charging Temperature

0°C to 45°C (32°F to 113°F)

Charging Time (using two-bay charger)

3.5 hours to 90% capacity with charging status indicated by LEDs

External Power Operation

USB 2.0 A to USB Type-C with Power supply

Power Management

No

SHIPPING INFORMATION

Packaging

Infrared camera with lens, front and rear lens caps, cleaning cloth, rechargeable battery (2 ea.), battery charger, power supplies, straps (lens cap, neck), hard transport case, cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C,USB Type-C to HDMI and PD adapter), USB-C to USB-A with power supply included, remote operation button, 8 GB SD card, printed documentation
STORAGE MEDIA

Image File Format

Standard radiometric JPEG, measurement data included
