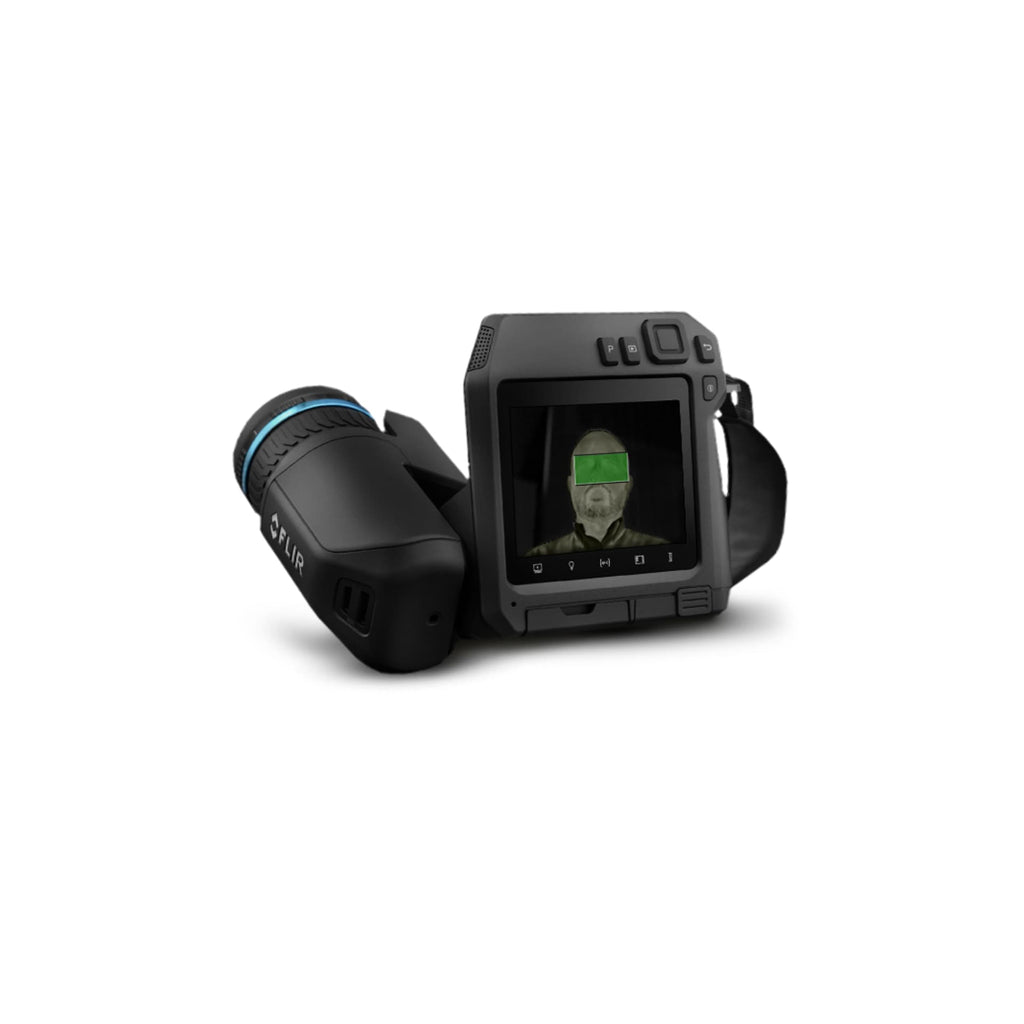

The FLIR T540-EST handheld thermal camera is a non-contact screening tools that serve as a first line of defense against potential health risks. This 464 × 348 pixel resolution FLIR EST™ thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. Battery-powered and featuring an integrated touchscreen display, the T540-EST sets up quickly and easily for operation in temporary or mobile screening settings. The on-camera FLIR Screen-EST Mode offers visual positioning guides, automatic sampling to maintain an updated temperature average, and graphic pass/fail indicators for results, reducing the burden on screening station operators. Compatibility with FLIR Screen-EST Desktop software, an integrated tripod mount, and external power makes this camera a good fit for permanent installations.
EASY SET-UP AND OPERATION
Begin screening quickly with limited ramp-up time, simple video connectivity, and choice of >4-hour battery or external power.
FAST, ACCURATE SCREENING
Optimal screening accuracy with automatic ambient drift compensation, visual pass/fail graphic indicators, and audible alarms.
MAINTAIN SAFETY AND PRIVACY
On-camera FLIR Screen-EST Mode does not store images or personal information and allows for social distancing in screening setups.
Specifications
| OVERVIEW | |
| Display Technology | IPS |
| Field of view (FOV) |
|
| Focal Length |
|
| Housing material |
|
| IR Resolution |
|
| Object Temperature Range |
|
| Programmable Buttons | 2 |
| Size (L x W x H) |
|
| Warranty |
|
| Weight |
|
| FLIR Screen-EST Mode |
|
| Sampling Average in Screen-EST Mode |
|
| Accuracy [Drift] in Screen-EST Mode |
|
| APP | |
| Palette |
|
| CONNECTIONS & COMMUNICATIONS | |
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi |
| Remote Control | Bluetooth®-enabled Remote Operation Button |
| Storage Media | Removable SD card (8 GB) |
| USB | USB Type-C: data transfer/video/power |
| USB - Standard | USB 2.0 High Speed |
| Video Out | DisplayPort over USB Type-C |
| WiFi | Peer to peer (ad hoc) or infrastructure (network) |
| Setup Commands | Local adaptation of units, language, date and time formats |
| Command and Control | On-camera screen, USB Type-C |
| ENVIROMENTAL | |
| Drop | Designed for 2 m (6.6 ft) |
| Emissivity Correction | Yes: variable from 0.01 to 1.0 or selected from materials list |
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Radio Spectrum | ETSI EN 300 328/FCC Part 15.249/RSS-247 Issue 2 |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC ¼"-20 |
| Shock & Vibration & Encapsulation | 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6, IP 54 /IEC 60529; EN/UL/CSA/PSE 60950-1 |
| IMAGING & OPTICAL | |
| Aspect ratio | 4:3 |
| Camera f-number | 1.1 |
| Color | Black |
| Color depth (bits) | 24 |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Data Streaming | USB Type-C |
| Digital Zoom | 1-6x continuous |
| Focus | Continuous laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
| Frame Rate | 30 Hz |
| Image Modes | Infrared, visual, MSX°, picture-in-picture |
| Lens | 24° |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m (0.49 ft) |
| Spatial resolution (IFOV) | 1.66 mrad/pixel |
| Spectral Range | 7.5–14 µm |
| Viewfinder | No |
| MSX | Yes |
| UltraMax | Yes |
| Viewing Angle | 80° |
| Auto Rotation | Yes |
| Camera software update | Using USB cable or SD card |
| MEASUREMENT & ANALYSIS | |
| Languages | 21 |
| Measurement Corrections | Yes |
| Reference Temperature | Yes |
| Automatic hot & cold detection | Auto-maximum/minimum markers within area |
| METER DATA | |
| Cover Glass Material | Dragontrail® |
| Display | 4 in., 640 × 480 optically-bonded PCAP touchscreen, with 400 cd/m2 surface brightness |
| OTHER | |
| Stream Non_Radiometric Video | H.264 or MPEG4 over Wi-Fi, MJPEG over UVC and Wi-Fi |
| Stream Radiometric Video | Over UVC |
| Thermal Sensitivity_NETD [typical] | <40 mK @ 30°C (86°F) |
| POWER | |
| Battery Life (Operating) | >4 hours at 25°C (77°F) and typical use |
| Battery size (L x W x H) | 59 × 66 × 94 mm (2.3 × 2.6 × 3.7 in) |
| Battery Type | Rechargeable Li ion battery |
| Battery voltage | 3.6 V |
| Battery weight | 195 g (6.89 oz) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Charging Time (using two-bay charger) | 3.5 hours to 90% capacity with charging status indicated by LEDs |
| External Power Operation | USB 2.0 A to USB Type-C with Power supply |
| Power Management | No |
| SHIPPING INFORMATION | |
| Packaging | Infrared camera with lens, front and rear lens caps, cleaning cloth, rechargeable battery (2 ea.), battery charger, power supplies, straps (lens cap, neck), hard transport case, cables (USB 2.0 A to USB Type-C, USB Type-C to USB Type-C,USB Type-C to HDMI and PD adapter), USB-C to USB-A with power supply included, remote operation button, 8 GB SD card, printed documentation |
| STORAGE MEDIA | |
| Image File Format | Standard radiometric JPEG, measurement data included |
