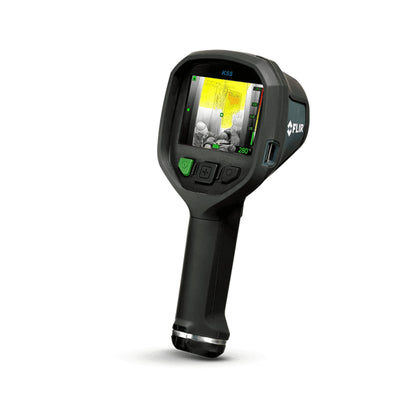

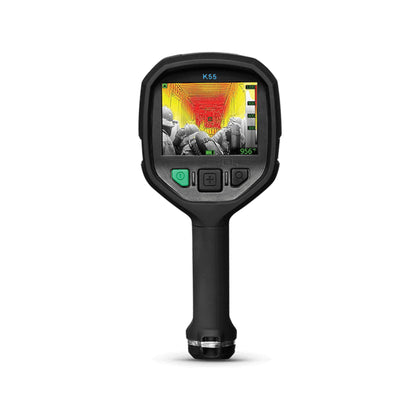

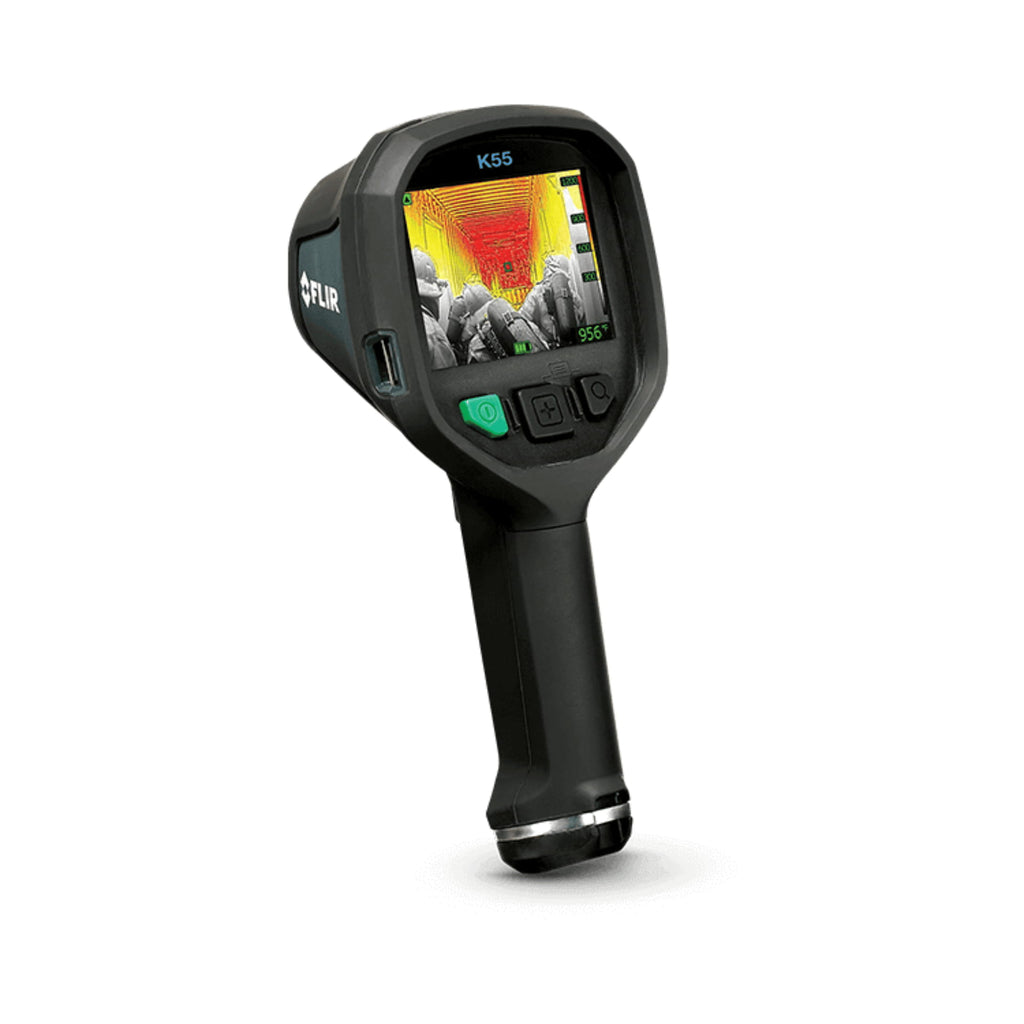

With a FLIR K55 TIC in hand, you can attack fires more strategically, maneuver through smoke more easily, and save lives. The K55 displays crisp thermal images on a bright LCD, helping you navigate better and expedite critical decisions. The 320 x 240 pixel IR sensor and FSX™ Flexible Scene Enhancement produce detail-rich imagery at a 60 Hz frame rate that keeps up with the action.
CRISP, CLEAR IMAGERY
The maintenance-free sensor produces detail-rich 320 x 240 pixels thermal images to help you navigate easier in smokey conditions.
IN-CAMERA VIDEO STORAGE
Store up to 200 photos or video files that can be played-back in-camera or from a computer for later analysis.
EXPANDED WARRANTY
K55 cameras are protected by FLIR's 2-5-10 Warranty: 2 years for batteries, 5 for the camera, and 10 years for the detector.
FLIR K55 Now Available with Enhanced Improvements
Includes great K55 values you’ve come to rely on plus:
- Improved image clarity and sharpness
- Better contrast in low-contrast areas
- Better contrast in high contrast areas
- Better room and depth perception
- More efficient and safer search and rescue operation
- Better at preventing firefighter disorientation
- More efficient navigation and orientation in low and non-visibility areas
- Quicker location of fire
- Better image performance during demonstration
Comparison
*Note: The enhancement does not affect the technical specifications of the products *
Specifications
| OVERVIEW | |
| Camera size (L x W x H) | 120 × 125 × 280 mm (4.7 × 4.9 × 11 in.) |
| Camera weight incl battery | 1.1 ±0.05 kg (2.4 ±0.1 lb.) |
| IR Resolution | 320 x 240 pixels |
| Display | 4 in. LCD, 320 × 240 pixels, backlit |
| Object Temperature Range | –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F) |
| COMMUNICATIONS & Data Storage | |
| Image Storage | Standard JPEG; Image freeze: configurable |
| Image Storage Capacity | 200 files in total. The total number of files is co-dependent on the number of saved video clips. |
| Interface | Update from PC devices Data transfer to and from PC |
| USB | USB Mini-B |
| ENVIRONMENTAL | |
| Directives | Designed to meet NFPA 1801:2013 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability |
| Drop | 2 m (6.6 ft.) on concrete floor (IEC 60068-2-31) |
| EMC | EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC 47 CFR Part 15 B (emission) |
| Encapsulation | IP 67 (IEC 60529) |
| Humidity (Operating and Storage) | IEC 60068-2-30, 24 hours, 95% relative humidity, 25–40°C (77–104°F), 2 cycles |
| Magnetic fields | EN 61 000-4-8, test level 5 for continuous field (severe industrial environment) |
| Operating Temperature Range | –20°C to 85°C (–4°F to 185°F) 150°C (302°F): 15 min. 260°C (500°F): 5 min. |
| Relative Humidity | 95% relative humidity, 25–40°C (77–104°F), non-condensing |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | –40°C to 85°C (–40°F to 185°F) |
| Tripod Mounting | UNC ¼"-20 (adapter needed) |
| Vibration | 2 g (IEC 60068-2-6) |
| IMAGING & OPTICAL | |
| Contrast optimization | Digital image enhancement using FSX |
| Depth of Field | 0.84 m to infinity (33 in. to infinity) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Field of view (FOV) | 51° × 38° |
| f-number | 1.25 |
| Focal Length | 9 mm (0.35 in.) |
| Focus | Fixed |
| Image Frequency | 60 Hz |
| Image Modes | IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery |
| IR Resolution | 320 x 240 pixels |
| Non-radiometric IR video recording | MPEG-4 to internal flash memory |
| Pitch | 25 µm |
| Spatial resolution (IFOV) | 3.6 mrad |
| Spectral Range | 7.5–13 µm |
| Thermal Sensitivity/NETD | <40 mK @ 30°C (86°F) |
| MEASUREMENT & ANALYSIS | |
| Accuracy | ±4°C (±7.2°F) or ±4% for ambient temperatures of 10–35°C (50–95°F) |
| Set-up Commands | Local adaptation of units, date and time formats |
| Isotherm | Yes |
| Object Temperature Range | –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F) |
| Spot Meter | 1.0 |
| METER DATA | |
| Auto Range | Yes, selectable on/off using FLIR Tools® |
| POWER | |
| Battery capacity | 4.4 Ah, at 20°C to 25°C (68°F to 77°F) |
| Battery operating time | Approximately 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery type | Li ion |
| Battery voltage | 3.6 V |
| Battery weight | 0.152 kg (0.3 lb.) |
| Charging system | Battery is charged inside the camera 2-bay charger Optional In-truck charger |
| Charging Temperature | 0–45°C (32–113°F) |
| Charging Time | 2 h to 85% capacity, charging status indicated by LEDs |
| Power Management | Automatic shutdown and sleep mode |
| Safety [power supply] | CE/EN/UL/CSA/PSE 60950-1 |
| Start Up Time | <17 s. (IR image, no GUI) |
| Start-up time from sleep mode | <4 s. |
