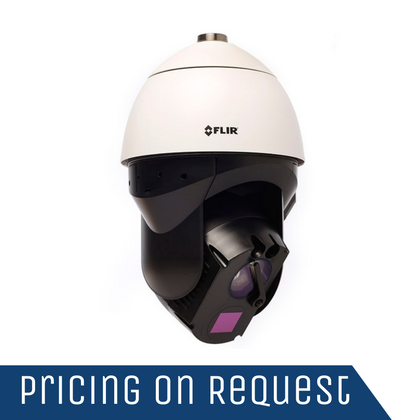

FLIR Elara DX-Series Multispectral PTZ Thermal Camera

Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

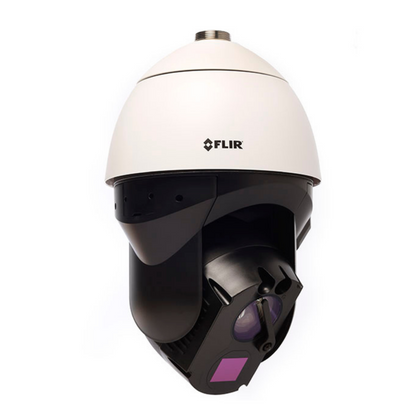

FLIR Elara DX-Series Multispectral PTZ Thermal Camera

The FLIR Elara™ DX-Series multispectral pan/tilt/zoom (PTZ) security camera provides full situational awareness in the most punishing environments. Combining thermal and visible light imagers, the Elara DX-Series gives operators the ability to monitor large areas in complete darkness, glaring light, and adverse weather. The exceptional detection and identification capabilities of multispectral cameras help integrators provide solutions for challenging imaging problems at critical infrastructure sites and remote facilities.


MULTISPECTRAL IMAGING IN ANY CONDITION

Integrated thermal and visible sensors capture sharp video where other PTZ cameras cannot

DESIGNED TO WITHSTAND EXTREME ENVIRONMENTS

Built to handle the challenges of critical infrastructure sites and other demanding locations.

SUPERIOR MONITORING OF LARGE AREAS AND CHANGING ENVIRONMENTS

PTZ capability gives operators continuous visibility in large areas

Specifications

OVERVIEW

Focus Range

Athermalized, Focus-Free

Optical Characteristics

FOV: 24° × 18°
Focal Range: 18 mm

Pixel Pitch

12 µm

Sensitivity

Color: 0.25 Lux (@ (f1.6 AGC On, 30FPS)
B/W: 0.10 Lux (@ (f1.6 AGC On, 30FPS)

Thermal Frame Rate

NTSC: 30 Hz or PAL: 25 Hz / 8.3 Hz

Zoom

Visible: Optical Zoom: 31
CONNECTIONS & COMMUNICATIONS

Ethernet

10/100/1000 Mbps

Network APIs

FLIR SDK, FLIR CGI

Supported Protocols

IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP

ENVIRONMENTAL

Humidity

0-95% relative

IP Rating (dust & water ingress)

IP66

Operating Temperature Range

-40°C to 60°C

Shock

IEC 60068-2-27

Storage Temperature

-55°C to 85°C

Vibe

IEC 60068-2-64
IMAGING & OPTICAL

Array format

FOV: 24° x 18°
Focal Length: 18 mm

Electronic Zoom

Continuous E-Zoom to 4×

Focal Length

Visible: 6.5mm - 202mm

Lens Field of View

Visible:
HFOV: 61.8° - 2.15°
VFOV: 36.65° - 1.2°

Sensor Type

Visible :[BR] Full HD 4K [BR] 1/1,8 po CMOS

Spectral Range

7.5 μm to 13.5 μm

Streaming Resolution

Thermal: QVGA to VGA
Visible: VGA to 4k

Thermal Image Settings

Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast

MEASUREMENT & ANALYSIS

Programmable Presets

256

POWER

Input Voltage

24 VAC(±10%)
Universal POE injector

PTZ

Tilt Speed

-10° to 190°
0.1° to 60°/sec

Pan Speed

Continuous 360°
0.1° to 90° /sec

VIDEO & RECORDING

Video Compression

Thermal: One channel of H.264 & M-JPEG
Visible: Two independent channels of H.264 & M-JPEG

Video Image Uniformity Optimization

Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers

Video Thermal AGC Region of Interest [ROI]

Default, Presets and User definable to insure optimal image quality on subjects of interest
