FLIR E96 Advanced Thermal Imaging Camera

  • Sale
  • Regular price R 222,499.00
Tax included. Shipping calculated at checkout.

Please CONTACT US if you are interested in this product.

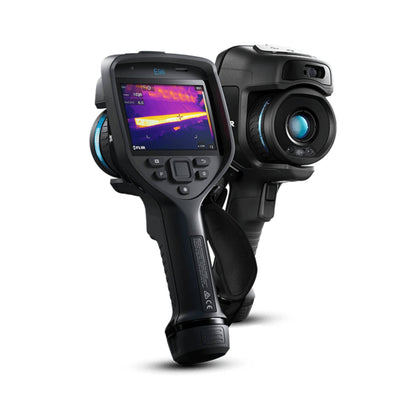

FLIR E96 Advanced Thermal Imaging Camera

The FLIR E96 is our first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations. For a limited time, the purchase of an E96 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.


OUTSTANDING THERMAL IMAGERY

The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most virbrant, easiest-to-interpret images in its class.

INTELLIGENT AUTOCAL™ OPTICS

Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.

STREAMLINED REPORTING

Onboard integration with FLIR routing software*, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday.



Streamline Daily Surveys with Route Creation

Exx-Series cameras come equipped with FLIR Inspection Route. This camera mode guides users along a defined route across multiple locations and organizes images and data connected with each inspected asset. Users create a route in FLIR Thermal Studio Pro* with the Route Creator* plugin, then download it to the camera to streamline inspections and speed up post-processing and reporting. (*optional accessory software)

SPECIFICATIONS

OVERVIEW

Laser Pointer

Yes

Programmable Buttons

1

Text

Predefined list or touchscreen keyboard

Time Lapse

10 seconds to 24 hours (infrared)

Voice

60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®

Weight & Dimensions (without lens)

1 kg (2.2 lbs), 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in)

FLIR Screen-EST Mode

Yes

Sampling Average in Screen-EST Mode

Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature

Accuracy [Drift] in Screen-EST Mode

Accuracy (drift): ±0.3°C (±0.5°F)

FLIR Inspection Route

Enabled in camera

CONNECTIONS & COMMUNICATIONS

Communication Interfaces

USB 2.0, Bluetooth®, Wi-Fi, DisplayPort

Storage Media

Removable SD card

Video Out

DisplayPort over USB Type-C

METERLiNK

Yes

ENVIRONMENTAL

Operating Temperature Range

-15 to 50°C (5 to 122°F)

Safety

EN/UL/CSA/PSE 60950-1

Storage Temperature Range

-40 to 70°C (-40 to 158°F)

Shock & Vibration & Encapsulation

25g (IEC 60068-2-27), 2g (IEC 60068-2-6), IP54 (IEC 60529)

IMAGING & OPTICAL

Color palettes

Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC

Detector Type and Pitch

Uncooled microbolometer, 12 µm

Digital Camera

5 MP, with built-in LED photo/video lamp

Digital Zoom

1-8× continuous

f-number

1.3

Focus

Continuous LDM, One-shot LDM, One-shot contrast, Manual

Global Positioning System [GPS]

Automatic image tagging

Image Frequency

30 Hz

Image Sketch

From touchscreen, on infrared image only

IR Resolution

640 × 480 pixels

Lens Identification

Automatic

Minimum Focus Distance

0.15 m

Non-Radiometric IR or Visual Video

H.264 to memory card

Non-radiometric IR video streaming

H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi

Picture-in-Picture

Resizable and movable

Radiometric IR video recording

Real-time radiometric recording (.csq)

Radiometric IR video streaming

Yes, over UVC

Spectral Range

7.5-14 µm

Thermal Sensitivity/NETD

<40 mK at 30°C (86°F)

Viewfinder

No

UltraMax

Yes

MEASUREMENT & ANALYSIS

Accuracy

±2°C (±3.6°F) or ±2% of the reading

Area measurement information

Yes

Laser Distance Meter

Yes; dedicated button

Measurement Presets

No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2

Object Temperature Range

-20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)

Spot Meter

3 ea. in live mode

METER DATA

Display

4", 640 × 480 pixel touchscreen LCD with auto-rotation

POWER

Battery operating time

>2.5 hours at 25°C (68°F) and typical use

Battery Type

Rechargeable Li-ion battery

SHIPPING INFORMATION

Packaging

Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, lens caps, power supplies, SD card (8 GB), camera straps (hand, wrist, lanyard), carabiner hook, front protection, cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), strap brackets, screws, Torx T10 wrench, printed documentation

STORAGE MEDIA

Image File Format

Standard JPEG with measurement data included. Infrared-only mode

Image Storage Mode

Infrared, Visual, MSX®, Picture-in-Picture, Gallery
