This product has now been discontinued, please see the alternative product:

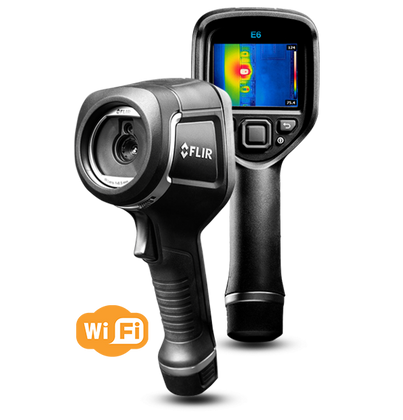

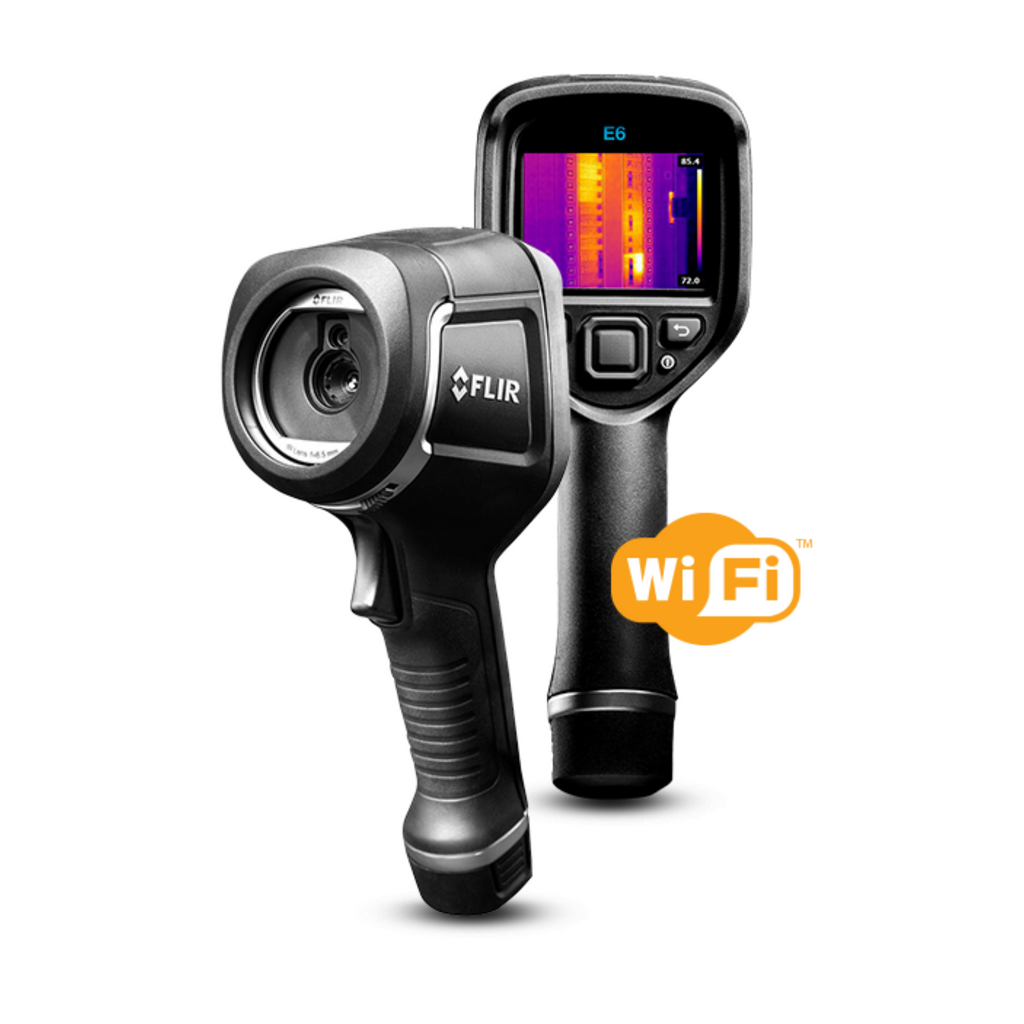

FLIR E6 WIFI Infrared Thermal Imaging Camera
The FLIR E6 WiIFi thermal imaging camera for thermographic inspections is easy to use and offers a temperature range of -20°C to +250°C (-4 to +482°F) with an accuracy of ±2%. The FLIR E6 WIFI thermal imaging camera is user-friendly, compact, and rugged, for use in harsh environments.
The wide field of view makes it the perfect choice for building applications.
Display: 3 in color LCD
IR resolution: 160 ´ 120 pixels
Field of view (FOV): 45° ´ 34°
Image frequency: 9 Hz
On-board 640 x 480 Digital Camera
2% accuracy
File format: Radiometric jpg
Battery operating time: Approx. 4 hours
Spot Measurement mode
Simultaneous Storage of IR/Visual/MSX Images
Variable emissivity and reflected temperature parameters for detection accuracy
WI-FI CONNECTIVITY
No matter where you are, share images and send reports instantly from your smartphone or tablet via the FLIR Tools Mobile app, and make critical decisions faster!
Supplied with
Infrared camera, power supply/charger with 4 plugs, rechargeable battery, FLIR Tools download card, USB cable, hard transport case, user documentation CD-ROM, printed documentation
FLIR EX-SERIES FEATURES
Rechargeable Batteries
Quick-release battery is easy to remove, change, and recharge
Fast Download
Rapid image downloading via USB for sharing and documentation
Quick Reports
FLIR Tools software to analyze images and create convincing reports
Measurement Accuracy
Min/max area box for auto hot/cold readings plus variable emissivity and reflected temperature settings for reliable results
Fast Temperatures
Area box with auto hot and cold spot hunts down extremes in no time
Warranty
2 years coverage on the camera, 5 on batteries, and 10 on the detector
FLIR Ex-Series Specifications
| IR Resolution | 80 × 60 | 120 × 90 | 160 × 120 | 320 × 240 |
| MSX Resolution | 320 × 240 | Thermal Sensitivity | <0.15°C | <0.10°C |
| <0.06°C | Field of View | 45° × 34° | Focus | Focus Free |
| Detector | Uncooled Microbolometer | Screen | 3.0 in. 320 × 240 color LCD | Frame Rate |
| 9 Hz | Image Modes | IR image, visual image, MSX, thumbnail gallery | IR image, visual image, MSX, picture-in-picture, thumbnail gallery | |
| Multi Spectral Dynamic Imaging (MSX) | IR image with enhanced detail presentation | Picture-in-Picture | N/A | |
| IR area on visual image | Temperature Range | –4° F to 482°F (–20° to 250°C) | Accuracy | |
| ±2% or 2°C | Measurement Modes | Spot (center) mode | 2 modes: 1 Spot (center); 1 Area Box (Min/Max) | |
| 3 modes: 1 Spot (center); 1 Area Box (Min/Max); Isotherm (above/below) | Alarm | N/A | N/A | |
| Blue below or red above set temperature | Emissivity Correction | Variable from 0.1 to 1.0 | Color Palettes | |
| Iron, Rainbow, and Gray | Set-up Commands | Local adaptation of units, language, date and time formats | Storage Capacity | |
| Internal memory store at least 500 sets of images | Storage Mode | Simultaneous storage of images in IR, visual and MSX | File Formats | |
| Standard JPEG, 14-bit measurement data included | Battery Type / Op Time | ~4 hours | Dimensions / Weight | |
| / 1.27 lbs (0.575 kg) |
